Характеристики

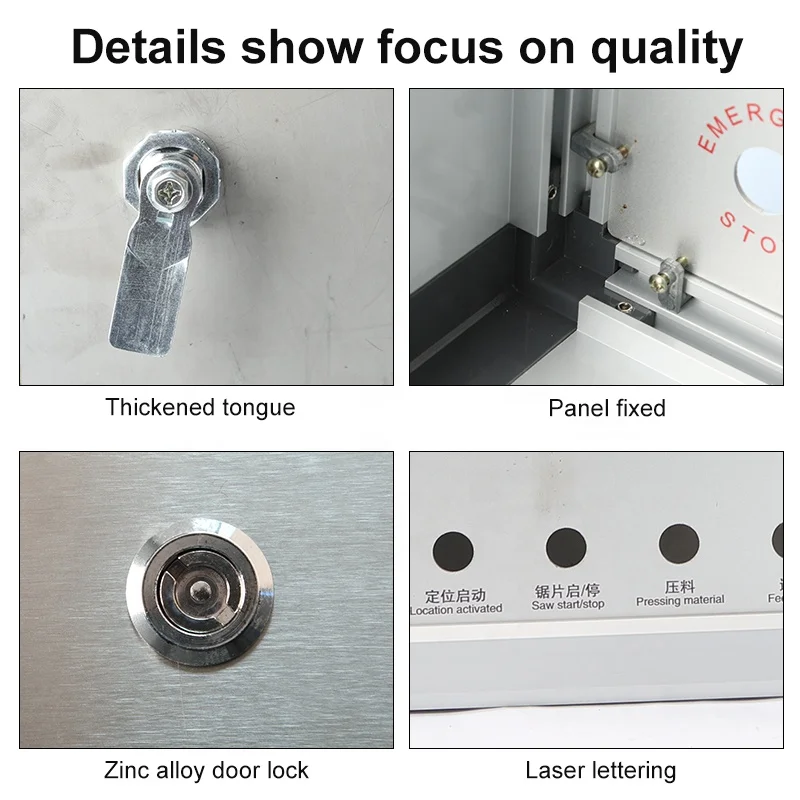

Product advantages
1. The width and height of the cantilever control box can be freely selected
2. Quick and easy installation of panels from the inside
3. The internal mounting groove of the cantilever control box can be easily fixed with the elastic nut
4. Multiple installation combinations,
5. The uniquely designed profile structure has excellent heat dissipation performance

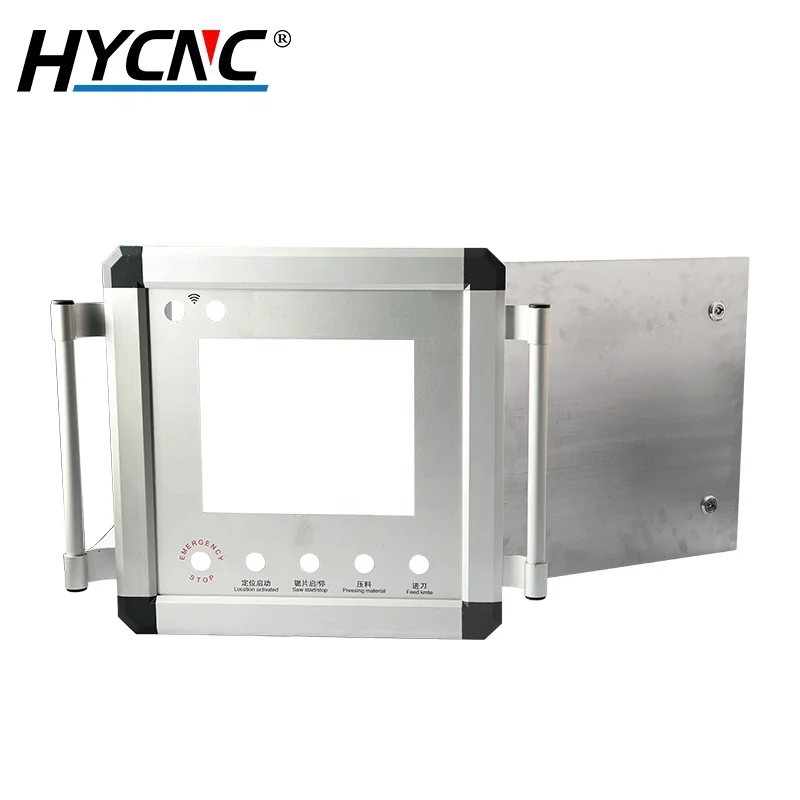

6. There are two options for the rear panel: fixing and locking the rear door
7. Rectangular front panel (can directly install standard control panel)
8. The protection level reaches IP54
9. No rubber gasket is required on the outside of the box
10. In line with the characteristics of modern industrial design

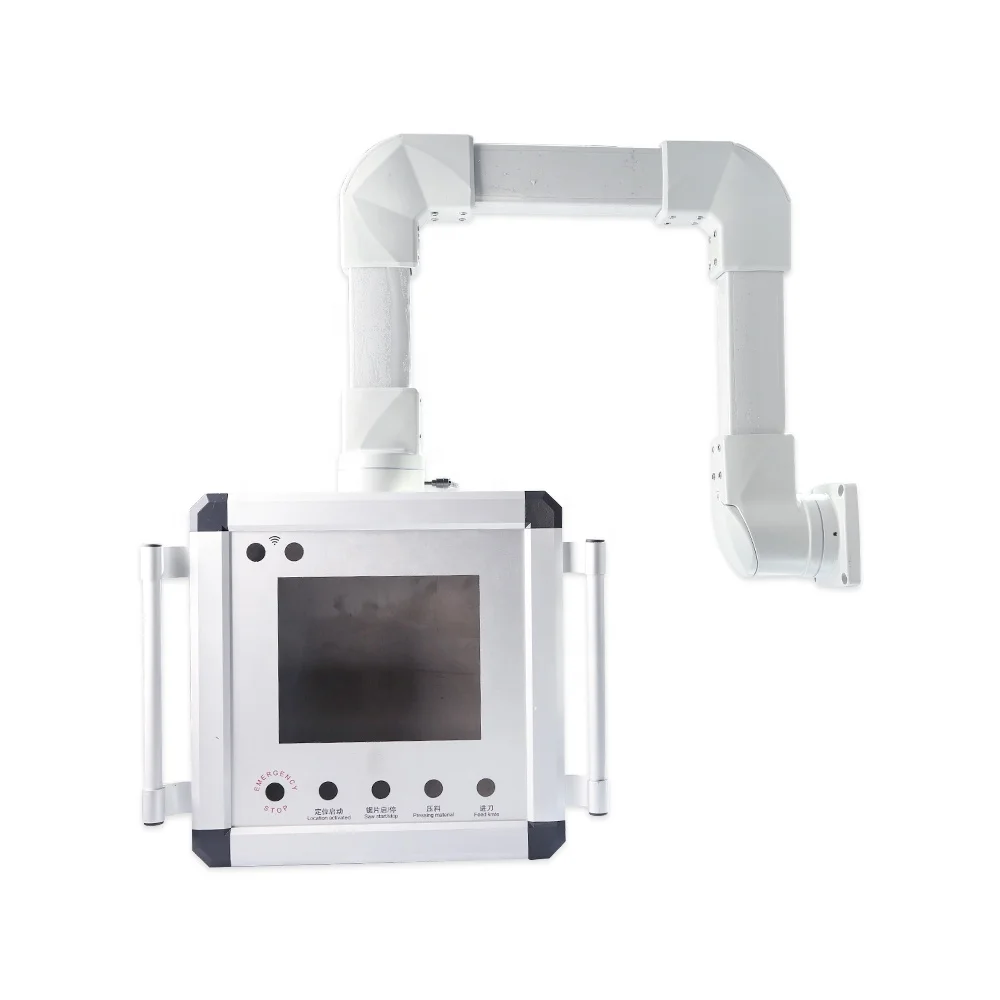

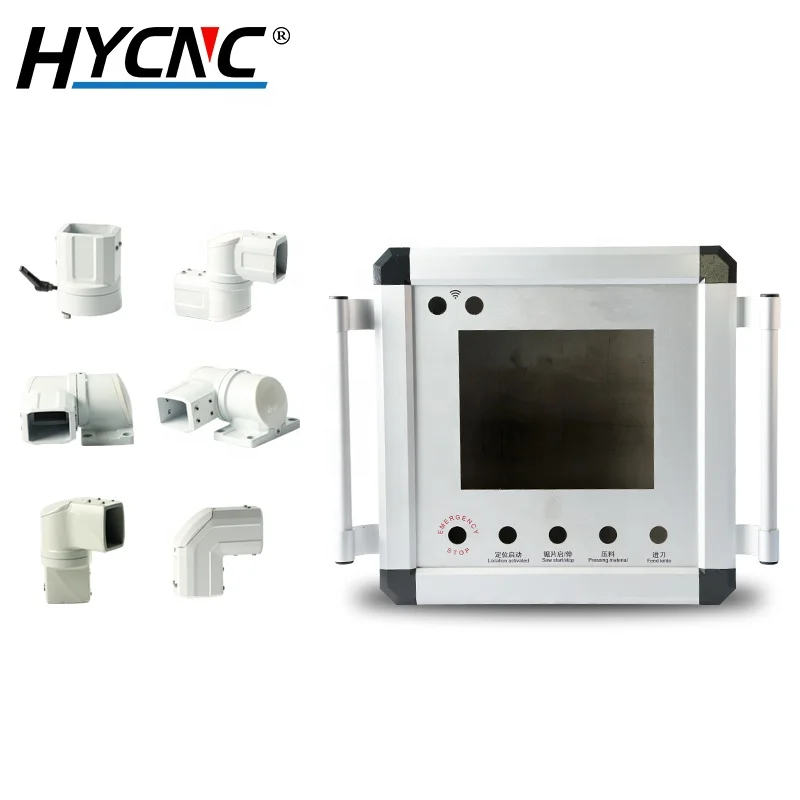

44/60 Lightweight Cantilever Assembly
This series of light-weight most bone components are matched with 45x60mm aluminum tubes, which are used to support or support the control box. The copper tubes are surface-sprayed, and the components are all manufactured according to the alloy pressing process. Under the guarantee of strength and reasonable structure, more attention is paid to external New topic skills.



Name: box connector Order number: CZ-45/60-A+B
Weight: 0.88kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: 90° box connector Order number: CZ-45/60-C+B
Weight: 1.08kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: 90° corner Order number: CZ-45/60-D
Weight: 1.08kg Material: Die-cast aluminum alloy



Name: top seat Order number: CZ-45/60-C+E
Weight: 1.18kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: horizontal wall seat Order number: CZ-45/60-C+F
Weight: 1.38kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-180°



Name: Intermediate connector Order number: CZ-45/60-C+G
Weight: 1.38kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: vertical wall seat Order number: CZ-45/60-A+F
Weight: 1.18kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: base Order number: CZ-45/60-H
Weight: 0.6kg Material: Die-cast aluminum alloy



Name: Rotatable base Order number: CZ-45/60-A+E
Weight: 0.98kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: Can be rotated 90° corner Order number: CZ-45/60-A+G
Weight: 1.36kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Product name: 15° inclined surface connector Order number: CZ-45/60-X
Weight: 0.45kg Material: Die-cast aluminum alloy



Name: Chassis casters are optional accessories Material: Steel
Order number: CZ-45/60-500 Weight: 8.5kg (without casters)

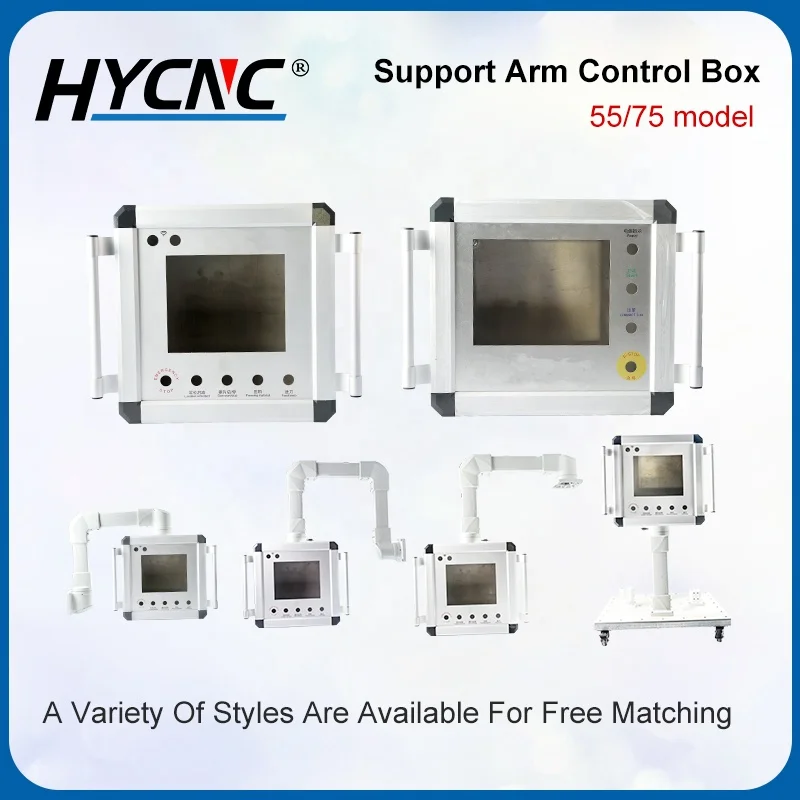

CZ-55/75 Medium Cantilever Assembly
This series of medium-sized cantilever components are matched with 55X75mm aluminum tubes, which are used to suspend or support the control box. style.



Name: box connector Order number: 550.7.090.00
Weight: 1.8kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: 90° box connector Order number: 550.7.150.00
Weight: 2.6kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: 90° corner Order number: CZ-55/75-D
Weight: 1.3kg Material: Die-cast aluminum alloy



Name: top seat Order number: CZ-55/75-C+E
Weight: 2.7kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°



Name: horizontal wall seat Order number: CZ-55/75-C+F
Weight: 3.3kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-180°



Name: Intermediate connector Order number: CZ-55/75-C+G
Weight: 3.4kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°




Name: vertical wall seat Order number: 550.7.170.00
Weight: 2.6kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°




Name: vertical wall seat Order number: 550.7.170.00
Weight: 2.6kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°




Name: Rotatable base Order number: 550.7.180.00
Weight: 2.0kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°




Name: Can be rotated 90° corner Order number: 550.7.190.00
Weight: 2.7kg Material: Die-cast aluminum alloy
Can be rotated horizontally 0-320°




Name: 15°Chamfered Connector Order number: CZ-55/75-X
Weight: 0.45kg Material: Die-cast aluminum alloy




Name: Chassis casters are optional accessories Material: Steel
Order number: CZ-55/75-500 Weight: 8.5kg (without casters)
