XCMG завод GR180 новые грейдеры бульдозеры 180hp
- Категория: Motor Graders >>>
- Поставщик: Xcmg,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 11900.22 $* | 12495.15 $* |
| Aug-17-2025 | 11800.33 $* | 12390.19 $* |
| Jul-17-2025 | 9900.96 $* | 10395.91 $* |
| Jun-17-2025 | 11600.65 $* | 12180.97 $* |
| May-17-2025 | 10100.35 $* | 10605.14 $* |
| Apr-17-2025 | 11400.95 $* | 11970.15 $* |
| Mar-17-2025 | 11300.29 $* | 11865.56 $* |
| Feb-17-2025 | 11200.55 $* | 11760.27 $* |
| Jan-17-2025 | 11100.28 $* | 11655.15 $* |
Характеристики
Product Description
XCMG factory GR180 new graders buldozers 180hp motor grader
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. Dongfeng Cummins Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.
2. Double-circuit hydraulic brake system makes the brake more reliable and stable.
3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.
4. Use XCMG special enhanced work devices.
5. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.
6.Various options expand the machine's performance and working range.
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. Dongfeng Cummins Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.
2. Double-circuit hydraulic brake system makes the brake more reliable and stable.
3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.
4. Use XCMG special enhanced work devices.
5. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.
6.Various options expand the machine's performance and working range.
Specification
Item | GR180 | ||||
Basic parameters | Engine model | 6CTA8.3-C190-Ⅱ | |||
Rated power/speed | 142kW/2200rpm | ||||
Overall dimension (standard) | 8900x2625x3420 | ||||
Total weight (standard) | 15400 kg | ||||
Tire specification | 17.5-25 | ||||
Ground clearance (front axle) | 430mm | ||||
Tread | 2156mm | ||||
Space of front and rear axles | 6219 mm | ||||
Space of middle and rear wheels | 1538 mm | ||||
Performance parameters | Forward velocity | 5､8､11､19､23､38km/h | |||
Reverse speed | 5､11､23km/h | ||||
Tractive effort f=0.75 | ≥79 kN | ||||
Maximum gradeability | ≥25% | ||||
Tire inflation pressure | 260kPa | ||||
Working system pressure | 18MPa | ||||
Transmission pressure | 1.3—1.8Mpa | ||||
Working parameters | Maximum steering angle of front wheel | ±50° | |||
Maximum slant angle of front wheel | ±17° | ||||
Maximum oscillating angle of front axle | ±15° | ||||
Maximum oscillating angle of equilibrium box | ±15° | ||||
Maximum steering angle of frame | ±27° | ||||
Minimum turning radius | 7.3m | ||||
Scrape knife | Maximum lift height | 450mm | |||
Maximum cutting depth | 500mm | ||||
Maximum tilt angle | 90° | ||||
Cutting angle | 28°—70° | ||||
Angle of revolution | 360° | ||||
Length & chord height | 3965x610mm | ||||
Oil filling amount | Coolant | 50L | |||
Fuel tank | 280L | ||||
Engine | 24L | ||||
Transmission | 38L | ||||
Balancing box | 46L | ||||
Drive axle | 28L | ||||

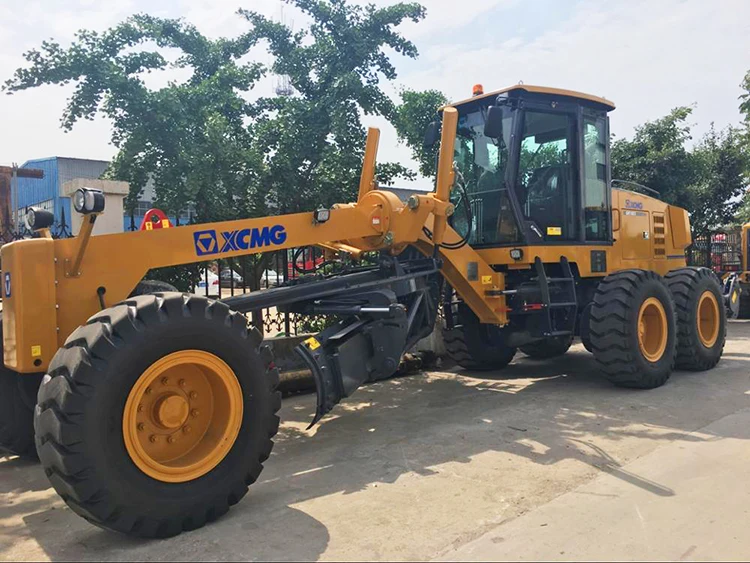

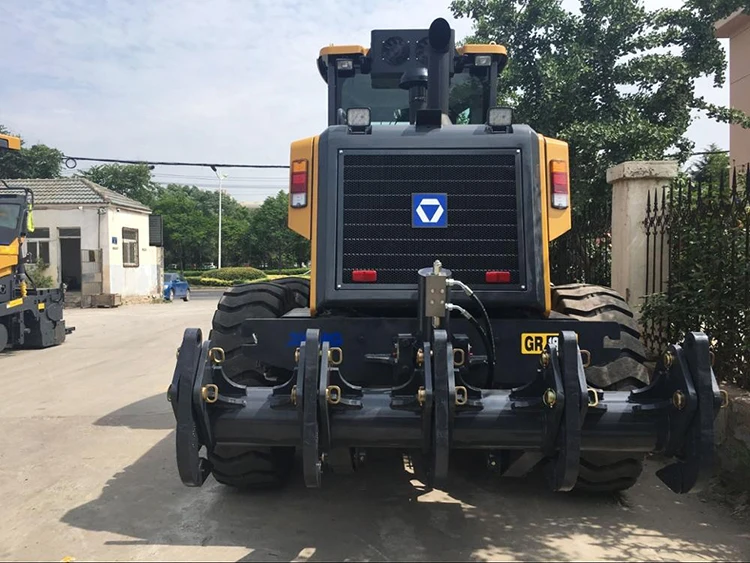

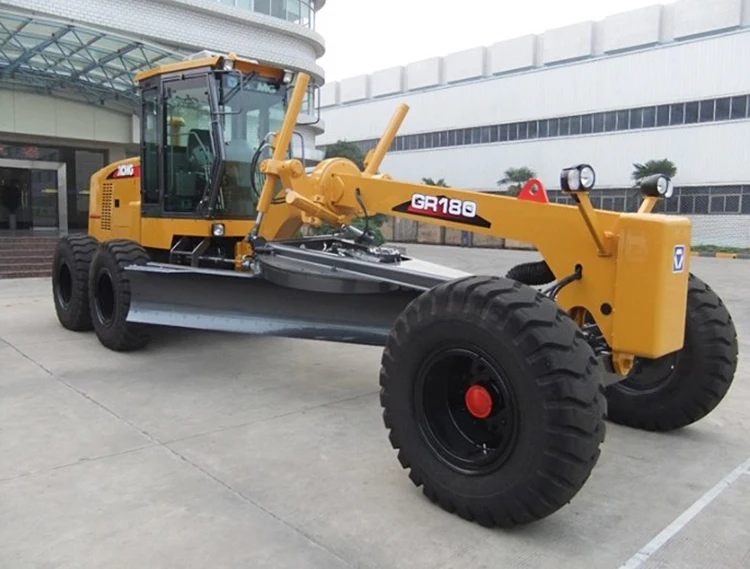

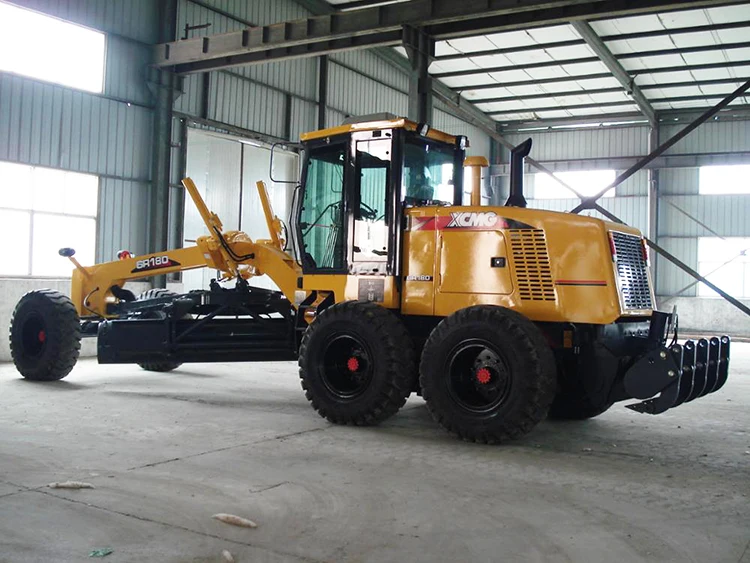

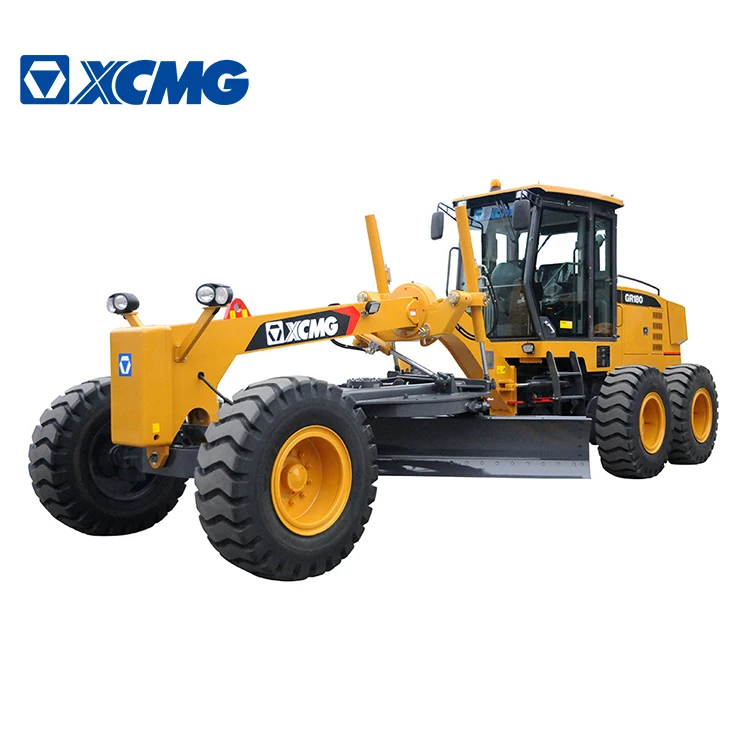

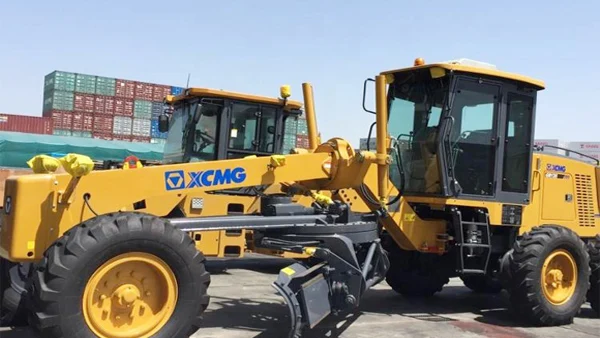

Product Show
