Система внутреннего и наружного блока VRV VRF многосекционный Инвертор постоянного тока коммерческий центральный
- Категория: >>>
- Поставщик: Shenzhen,Monchrui,Industrial,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3013.74 $* | 3164.30 $* |
| Aug-16-2025 | 2988.67 $* | 3137.13 $* |
| Jul-16-2025 | 2507.23 $* | 2632.34 $* |
| Jun-16-2025 | 2937.2 $* | 3084.50 $* |
| May-16-2025 | 2557.74 $* | 2685.69 $* |
| Apr-16-2025 | 2886.54 $* | 3030.58 $* |
| Mar-16-2025 | 2861.38 $* | 3004.10 $* |
| Feb-16-2025 | 2836.50 $* | 2978.26 $* |
| Jan-16-2025 | 2811.4 $* | 2952.81 $* |
Характеристики
ABOUT EUROKLIMAT
EUROKLIMAT Group
EUROKLIMAT Group was established in Italy in 1963. Over the past half century of development along with continuous innovation and exploration, it has grown into a leading energy-saving air conditioning brand in Italy, Spain and the entire European market. Our products are exported to Europe, Australia, Southeast Asia, the Middle East and other countries and regions. Products cover modular air cooled chiller (heat pump), precision air conditioner, VRF air conditioner, air and water cooled screw chiller, magnetic levitation centrifugal chiller, air handing unit, fan coil unit, etc.
EK actively participates in formulating VRF standard
EK AC is a member of the drafting team with five leading VRF producers for "Low Ambient Temperature Air Source VRF Heat Pump (Air Conditioning)Units", as well as one of the drafter for the national standard of “VRF Air Conditioning (Heat Pump) Units".
Go beyond the national first-class energy efficiency
Comprehensive performance
coefficient leading the industry
Products overview

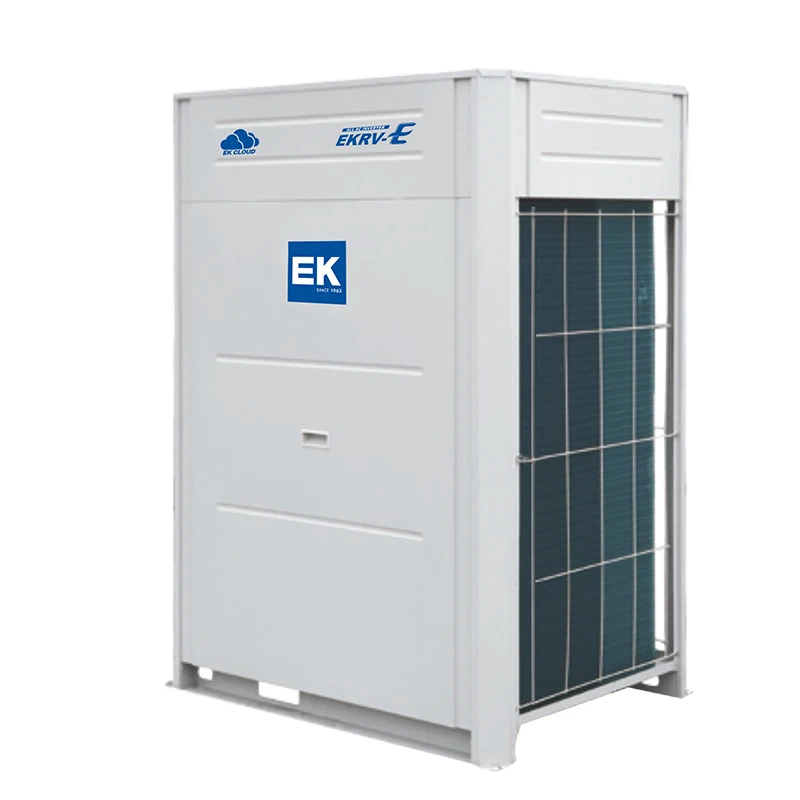

Efficent outdoor units
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Products Description
Leading technology of low temperature and strong heat
The unit adopts an imported DC VF scroll compressor with large displacement and high-pressure cavity, a high-rigidity casing, anti-overcompression system, anti-liquid hammer technology, suction the air direct into the compression chamber for higher volumetric efficiency. In addition, by combining the unique EVI technology and advanced three-stage supercooling technology, the compressor has a higher circulation of refrigerant in the system at low temperatures for highly efficient operating.
EVI technology
The new EVI system has a jet booster compressor and high-efficiency supercooler. An air suction port added to the medium-pressure cavity of the compressor scroll will supplement air in middle-pressure to boost the air displacement of the compressor for improved heating capacity in a low temperature environment. The main advantage of the system is that the unit will operate with high efficiency in cooling, while significantly raise the heating performance in severe cold environment for safe and reliable operation.
Advanced medium-pressure air supplement system
After the compressor exhaust passing through the indoor unit for sufficient heat exchange, the high-efficiency economizer will, on the one hand, supercool the refrigerant in the main circulation circuit before throttling, increasing the air temperature difference; and on the other hand, properly preheated the medium-pressure, low-temperature refrigerant passing through the auxiliary circuit and depressurized by the electronic expansion valve. It will enable the compressor for secondary compression, improving the heating capacity of the system as a perfect solution of winter heating in cold areas.
Refrigerant control technology
Smart control system
Smart control system of key card
The key card signal interface can be preset on the indoor unit control board, while the relevant indoor unit can be controlled through the key card. Removing the card will shut down the indoor unit. Reinserting the card will turn on the indoor unit again automatically in the operating mode before the card is removed or in the standby mode.Open smart building control system
The EK open smart building control system can be applied to the MODBUS protocol. Through the network connection module, the EK VFR AC system is connected to the smart building control system to activate the following functions:
1.The monitoring center order the AC by commands (turn on/off, temperature setting, air volume, direction setting, mode setting, etc.)
2.Built-in protocol converter for outdoor unit
3.Fault alarm and fault code display
4.Real-time monitoring of the operation of AC
5.Manage the user authority settings
6.Chain control (fire alarm, door lock, lighting, etc.) Improve
7.management reliability and save management costs
1.The monitoring center order the AC by commands (turn on/off, temperature setting, air volume, direction setting, mode setting, etc.)
2.Built-in protocol converter for outdoor unit
3.Fault alarm and fault code display
4.Real-time monitoring of the operation of AC
5.Manage the user authority settings
6.Chain control (fire alarm, door lock, lighting, etc.) Improve
7.management reliability and save management costs
DC inverter motor
The DC brushless inverter motor will effectively operate in various environmental temperatures, quickly responding to adjust the fan speed, ensuring the stable suction and exhaust pressure of the system. Meanwhile, the air volume and pressure of the outdoor unit are automatically adjusted according to the load change, ensuring the stable and reliable operation of the system.
Against head wind of outdoor fan
If the fan of the outdoor unit rotates in the reverse direction under strong wind, turning on the AC in such case might damage the fan because a sudden start might lead to the increase of the motor torque in short time. Electrical box rotating, waterproof design
Electrical box rotating, waterproof design
Since electrical components are sensitive to water, the electrical control box of the EKRV-E series adopts a layered design with multiple waterproof measures. Therefore the electrical components are effectively protected, while the service life of the unit will be extended. The rotation design of the electrical box brings great convenience to debugging and maintenance.
Anti-wind and snow & reverse cleaning
The outdoor unit has the anti-wind and snow function to prevent the
unit from being covered by heavy snow when the unit is not running. It
also has the reverse cleaning function to clean the heat exchanger to
improve the heat exchange efficiency.
The outdoor unit has the anti-wind and snow function to prevent the
unit from being covered by heavy snow when the unit is not running. It
also has the reverse cleaning function to clean the heat exchanger to
improve the heat exchange efficiency.
Lightning protection
The lightning protection function of the outdoor unit will protect the unit from damage by lightning strikes, effectively protecting safe and stable unit operation.
The lightning protection function of the outdoor unit will protect the unit from damage by lightning strikes, effectively protecting safe and stable unit operation.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

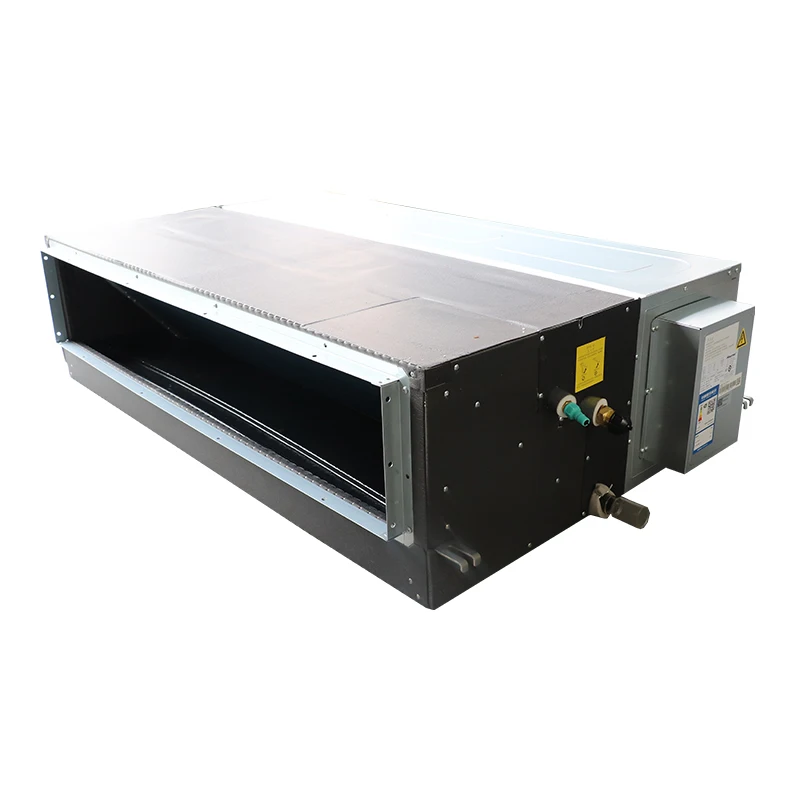

New wind treatment unit
The new wind treatment unit has its own cold and heat source, which can process the outdoor fresh air to a temperature close to that of the indoor before spreading.The air volume ranges from 1100 to 9000m3/h, meeting the demand for fresh air in different occasions, presenting fresh and healthy air even indoor.
With the automatic energy-saving mode, it will automatically switch to the air supply mode when the outdoor temperature is 15°C~20°C, and stops the outdoor unit (serving as an AC indoor unit only) to save operating costs.
The new unit and traditional indoor unit can be controlled by a centralized line controller.
The new unit can be connected to the EK VFR centralized contro lsystem and the building automation system. Various air purification devices are optional.
The capacity of the new unit connected to the same system as the traditional one shall not exceed 30% of that of the connected outdoor unit. The total capacity of the new and traditional units shall not exceed that of the outdooru nit.
Connected by one-to-multiple method, allowing multiple new units connected to the same system. The total capacity of the new unit shall not exceed that of the outdoor unit.
EKDB680B1X and EKDB790B1X has no multiple or series-parallel connection. Suggest one for one application
Various air purification devices are optional
With the automatic energy-saving mode, it will automatically switch to the air supply mode when the outdoor temperature is 15°C~20°C, and stops the outdoor unit (serving as an AC indoor unit only) to save operating costs.
The new unit and traditional indoor unit can be controlled by a centralized line controller.
The new unit can be connected to the EK VFR centralized contro lsystem and the building automation system. Various air purification devices are optional.
The capacity of the new unit connected to the same system as the traditional one shall not exceed 30% of that of the connected outdoor unit. The total capacity of the new and traditional units shall not exceed that of the outdooru nit.
Connected by one-to-multiple method, allowing multiple new units connected to the same system. The total capacity of the new unit shall not exceed that of the outdoor unit.
EKDB680B1X and EKDB790B1X has no multiple or series-parallel connection. Suggest one for one application
Various air purification devices are optional
Outdoor unit line-up
EKRV-E series has two types: parallel module combination and independent type. There are 18 basic models of 8~42HP for parallel module combination, 1~3 for independent type, Max. capacity 126HP, suitable for various places and applications. The commonly used capacity range is 8~42HP, which is ideal for the independent type to simplify the on-site installation workload and improve the construction efficiency.
Product Paramenters
Independent outdoor Unit type | EKRVO50ER1 | EKRVO60ER1 | EKRVO70ER1 | EKRVO80ER1 | |||
Features | Side Discharge (-AP*) | Side Discharge (-AP*) | Side Discharge (-FP*) | Top Discharge (-FS*) | |||
Rated cooling capacity | KW | 14 | 16 | 18 | 25.2 | ||
Rated heating capacity | KW | 16 | 18 | 20 | 28 | ||
Rated input power of cooling | KW | 3.88 | 4.54 | 5.21 | 5.85 | ||
Rated input power of heating | KW | 3.92 | 4.65 | 5.29 | 5.97 | ||
Power supply | 220V-50Hz | 380V/3N-50Hz | |||||
Air volume | m3/h | 6500 | 6500 | 7000 | 12000 | ||
Liquid pipe | Φmm | 9.52 | 9.52 | 9.52 | 9.52 | ||
Gas pipe | Φmm | 15.88 | 15.88 | 19.05 | 19.05 | ||
Unit weight | kg | 120 | 135 | 150 | 205 | ||
Noise | dB(A) | 55 | 56 | 57 | 56 | ||
Max. operating current of outdoor unit | A | 24.9 | 26.3 | 11.8 | 22.5 | ||
Integrated Part Load Value | IPLV(C) | 6.5 | 6.3 | 6 | 10 | ||
Dimensions (W×D×H) | mm | 900*350*1160 | 900*350*1290 | 900*350*1240 | 920*760*1680 | ||

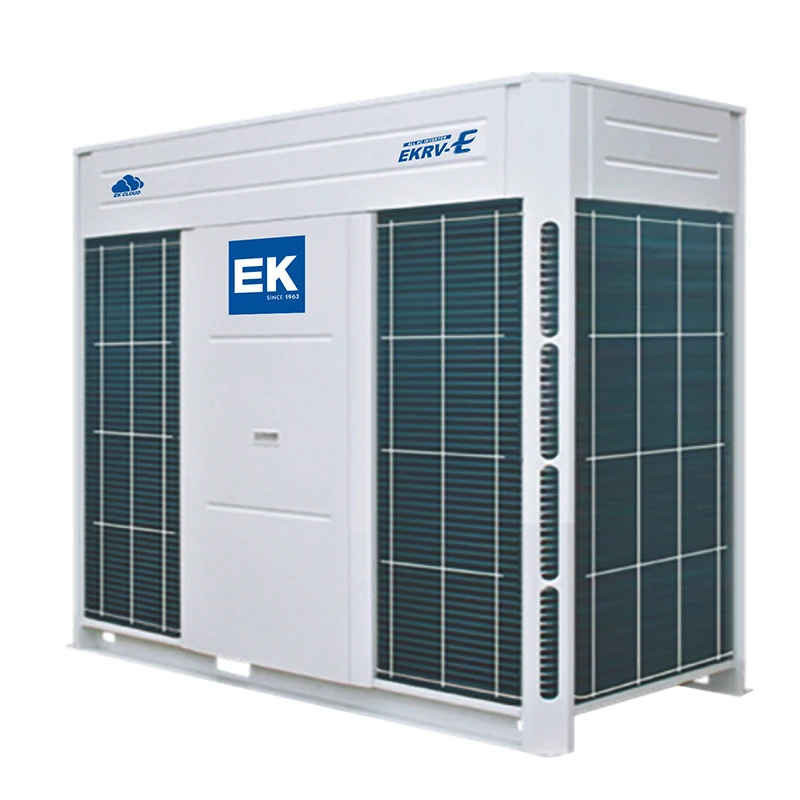

Outdoor units
Recommended combination of outdoor units, Independent outdoor unit and Modular outdoor unit

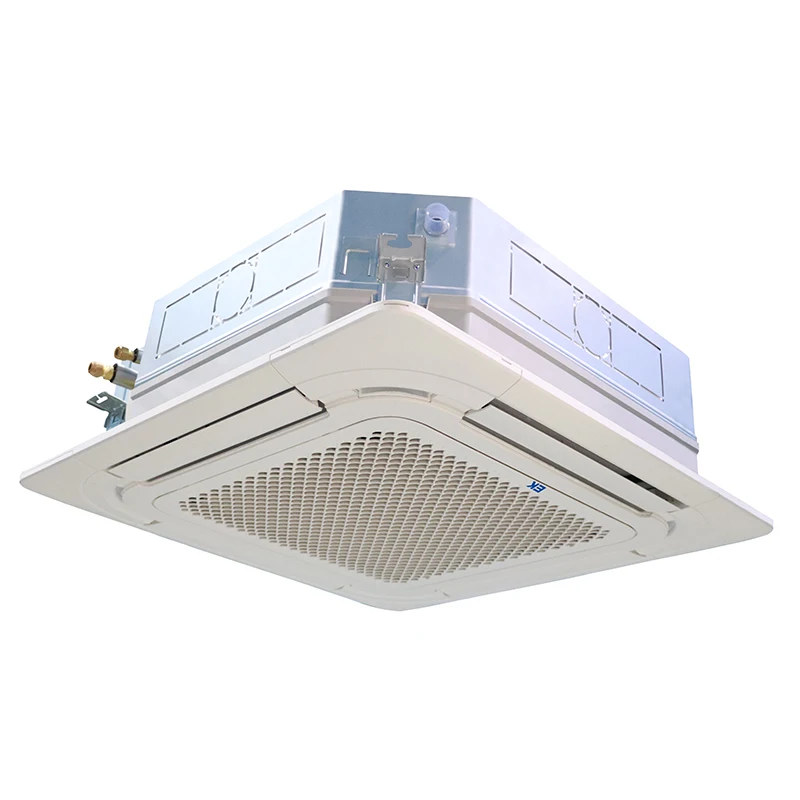

Indoor fan coil unit
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
