Raycus 1000 Вт 1500w 2000W 3000w с острым концом ручной лазерный сварочный агрегат портативная волоконная лазерная машина сварного шва сканер штрих кода
- Категория: Laser Welders >>>
- Поставщик: Jinan,Dowell,Photoelectricity,Equipment,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2380.56 $* | 2499.63 $* |
| Aug-20-2025 | 2360.3 $* | 2478.27 $* |
| Jul-20-2025 | 1980.38 $* | 2079.9 $* |
| Jun-20-2025 | 2320.92 $* | 2436.27 $* |
| May-20-2025 | 2020.99 $* | 2121.49 $* |
| Apr-20-2025 | 2280.62 $* | 2394.86 $* |
| Mar-20-2025 | 2260.71 $* | 2373.84 $* |
| Feb-20-2025 | 2240.46 $* | 2352.83 $* |
| Jan-20-2025 | 2220.12 $* | 2331.18 $* |
Характеристики

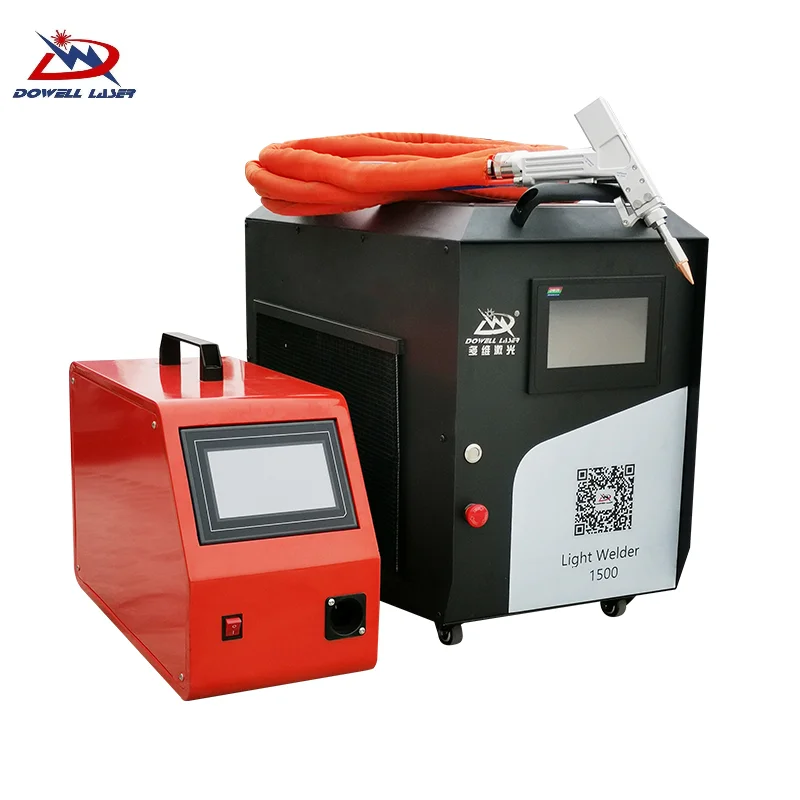

DO WELL laser welding machine,Laser Welder 500W 1000W 1500W 2000W 3000W
Handheld fiber laser welding machine has the best fiber laser beam for fast welding speed, high quality weld seam and no consumables.
The laser welding machine is used to weld carbon steel, stainless steel, aluminum, copper and other metal sheets.
Now laser welding machine price for sale, DOWELL new appearance design, more ergonomic design, more convenient to move.
The laser welding machine is used to weld carbon steel, stainless steel, aluminum, copper and other metal sheets.
Now laser welding machine price for sale, DOWELL new appearance design, more ergonomic design, more convenient to move.
Using a hand-held laser welding head, it can be easily used without professional welding technology, and it is suitable for small batches and multi-batch welding work.
Quick answers to common questions:
1. How long is the warranty period? Our warranty period is 3 years. If there is any problem during this period, we will solve itas soon as possible after contacting us. 2. How long is the cable? Different generators have different lengths. The cable length
of JPT is 7 meters, and the cable length of raycus and max is about 9 meters.
3. How thick can 500w-3000W be welded Can weld 1-5mm thick metal materials
4. Is there a wire feeder? We have a wire feeder to choose from. If you are interested, you can contact us and provide your email
address. We will send more detailed pictures to your email
5. Can aluminum and copper be welded? Yes, not only aluminum, copper, all metal materials can be welded
6. Packaging All our machines are packed in wooden boxes
7. Language interface:Support Simplified, Traditional, Russian, English, Japanese, Korean, German, Portuguese, Spanish, Arabic,
etc. 8 languages are optional, you can also set the language according to your needs
DO WELL
Laser Welding Machine 1000W 2000W 3000W (Optional laser cutting, laser cleaning)

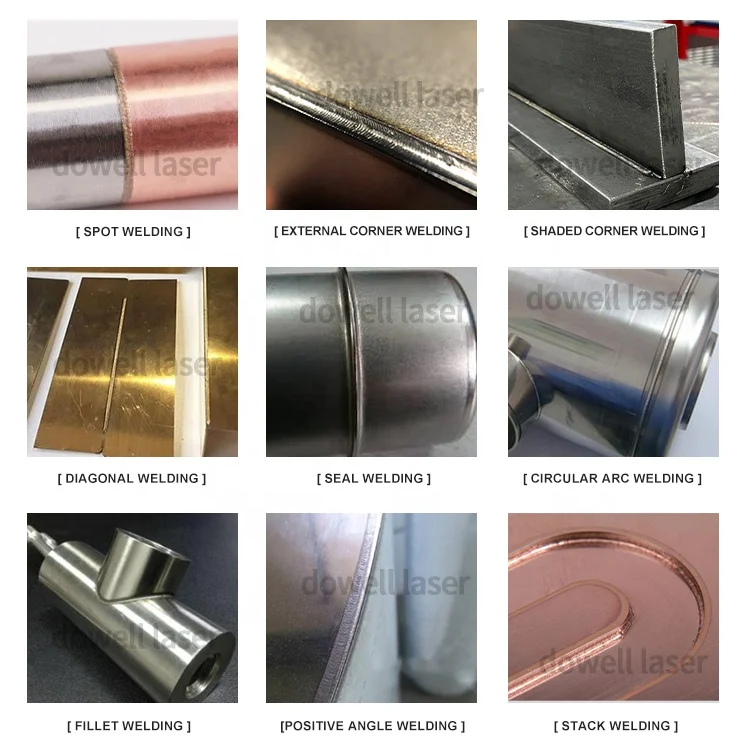

✦Applicable materials:
DOWELL laser welding machine is suitable for welding galvanized sheet, stainless steel, carbon steel, copper, aluminum, gold, silver, titanium, nickel, tin, and other metals and their alloys. The same precision welding between metals and dissimilar metals can be achieved.
DOWELL laser welding machine is suitable for welding galvanized sheet, stainless steel, carbon steel, copper, aluminum, gold, silver, titanium, nickel, tin, and other metals and their alloys. The same precision welding between metals and dissimilar metals can be achieved.
✦The welding seam is beautiful, the speed is fast, no consumables, no welding marks, no discoloration, and no grinding in the later stage. Various angle nozzles can be configured to meet the welding needs of different products.
Model.No | DW-500W | DW-1000W | DW-1500W | DW-2000W | DW-3000 | ||||
Operating Mode | Continuous/Modulation | ||||||||
Laser Wavelength | ±2% | ||||||||
Power Requirements | 220V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | ||||
Average consumed power | ≤2KW | ≤2.5KW | ≤3.5KW | ≤4.5KW | ≤6.5KW | ||||
Operating Environment Temperature Range | 15-35℃ | ||||||||
Working Environment Humidity Range | <70% No Condensation | ||||||||
Welding Thickness Range | 0.5-8mm metallic material | ||||||||
Welding Line Requirements | ≤0.5mm | ||||||||
Welding Speed | 0-120mm/s | ||||||||
Machine Size | 780mm×460mm×700mm | ||||||||
Shown as above pic:
1. Nozzle: Customer can change the corresponding nozzle according to different welding processes, and can twist the copper nozzle to adjust the focal length, and the adjustable range of the focal position is ±15mm
2. Wire feeding device: lightweight bend wire feeding structure, wire feeding Angle position can be adjusted conveniently.
3. Trachea interface: protective gas inlet.
4. Lead signal line: it is communicated with copper nozzles. When welding, contact with iron plate ground wire will produce a circuit, which plays a role of safety protection.
5. Protective lens mounting port: the protective lens is equipped with water-cooled structure, so the protective lens can last longer. It is recommended to wipe the dust of protective lens once a day with alcohol-free cotton swab.
6. Circulating water channel: cold water circulating structure is used to cool the reflector and gun body.
7. LCD: used to show whether the parameters and signal state set by the system are normal.
8. Gun handle: aluminum a process, light and light grip comfortable.

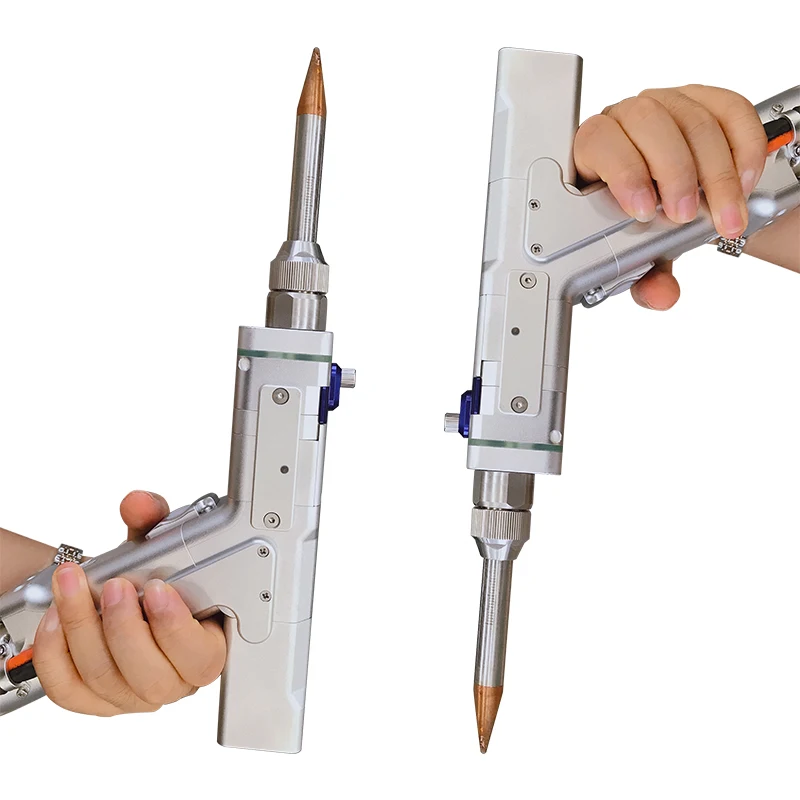

After changing the structure of head and the position of the trigger button, it can be used for both left and right hands
9. QBH protective cover: connect with the laser end, pay attention to cleaning during installation
to avoid dust entering the gun body.

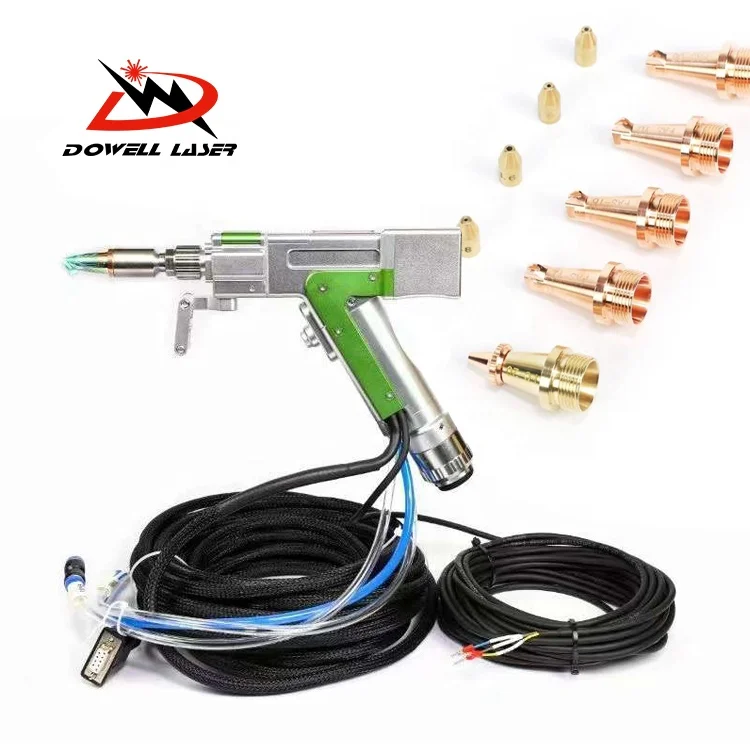

DOWELL new generation laser welding gun
Easy to use, stable and safe, no consumables, small size, low operation and maintenance costs.
Optional: QILIN/WSX/HW
control panel
DOWELL control system, LCD touch, easy to learn, supports 8 languages: English, Japanese, Korean, Russian, Spanish, etc. .
IPG/Raycus/MAX/JPT/RECI/GW
/JPT/Select brands according to
your needs
500W/1000W/1500W/2000W/3000W laser power
optional, three-year long warranty, high-quality beam,
high power stability, system stable 20um core diameter, higher electro-optical conversion efficiency

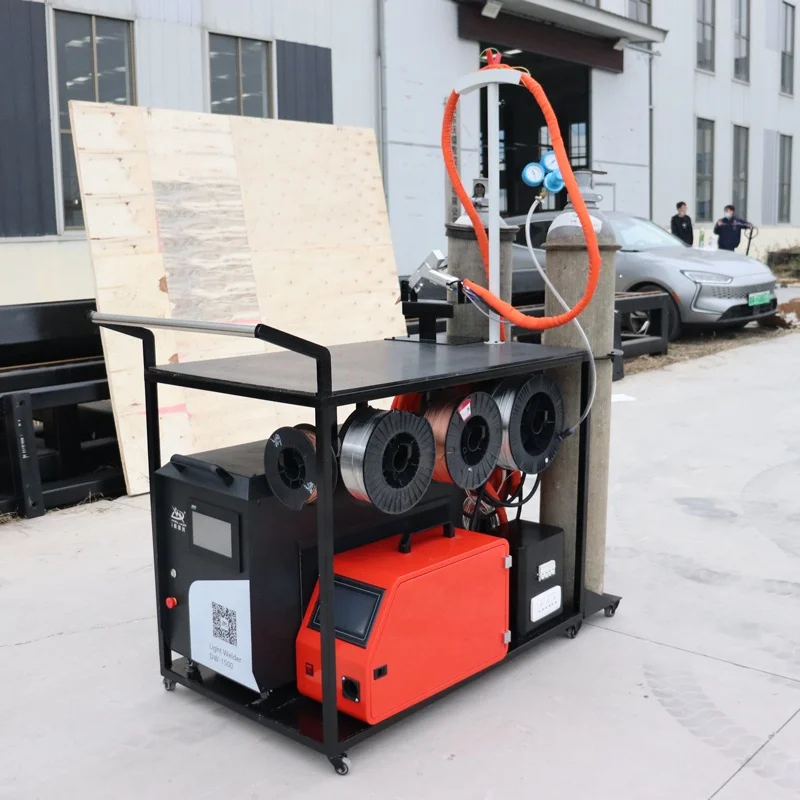

Automatic wire feeder
The machine is equipped with an automatic wire feeding device, which can easily adjust the parameters and provide a variety of options It can effectively make up for the welding seam produced in the welding process and make the welding joint more tightly.
✦We will give you 3 years warranty, so you don't have to worry about the after-sales.
✦We will also send you new parts if there's any parts broken by non-human issues.
Small 1000W 1500W 2000w 3kw lazer welder machine Hand held Portable Metal Aluminum Stainless Steel Fiber Laser Welding Machine
1000W 1500W 2000w 3kw Stainless Steel Hand held laser welders weld Metal Portable Fiber handheld Laser Welding machine for sale
Metal Stainless Steel Hand held laser welders weld 1000W 1500W 2000w 3kw Portable Fiber handheld Laser Welding machine for sale
1000W 1500W 2000w 3000W Hand held laser weld machine Metal Portable fiber laser welders handheld Laser Welding machine
FAQ
Q: Do you have CE documents and other customs clearance documents?
A: Yes, we have Original. First we will show you, after shipment we will give you CE/packaging
Customs Clearance List/Commercial Invoice/Sales Contract.
A: Yes, we have Original. First we will show you, after shipment we will give you CE/packaging
Customs Clearance List/Commercial Invoice/Sales Contract.
Q: Payment terms?
A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash etc.
Q: I don't know how to use it after receiving it, or there is a problem during use, what should I do?
A: We can provide cameras for Team Viewer/Whatsapp/Email/Phone/Skype until all your
Problem is over. If you need, we can also provide door-to-door service.
Q: Not sure which one is right for me?
A : Tell us the following information
1) Metal material for welding: choose the most suitable model.
2) Laser welding metal material thickness: the power of the laser generator.
3) Line of business: We sell many products and advise on this line of business.
Q: How long is the delivery time?
A: 3-7 days for normal machines, 12-14 days for customized machines.
A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash etc.
Q: I don't know how to use it after receiving it, or there is a problem during use, what should I do?
A: We can provide cameras for Team Viewer/Whatsapp/Email/Phone/Skype until all your
Problem is over. If you need, we can also provide door-to-door service.
Q: Not sure which one is right for me?
A : Tell us the following information
1) Metal material for welding: choose the most suitable model.
2) Laser welding metal material thickness: the power of the laser generator.
3) Line of business: We sell many products and advise on this line of business.
Q: How long is the delivery time?
A: 3-7 days for normal machines, 12-14 days for customized machines.
Q: How much is the cost if an engineer needs to be trained on-site after placing an order?
A: Choose to suit our needs.
1) If you come to our factory for training, you can study for free. And the seller also
You are at the factory 1-3 working days. (Each person's learning ability is different, but also according to specific circumstances)
2) If you need our technicians to teach you at your local factory, you need to bear the cost of the technicians
Business trip tickets / room and board / $100 per day.
If you are interested in our products, please let us know:
A: Choose to suit our needs.
1) If you come to our factory for training, you can study for free. And the seller also
You are at the factory 1-3 working days. (Each person's learning ability is different, but also according to specific circumstances)
2) If you need our technicians to teach you at your local factory, you need to bear the cost of the technicians
Business trip tickets / room and board / $100 per day.
If you are interested in our products, please let us know:
