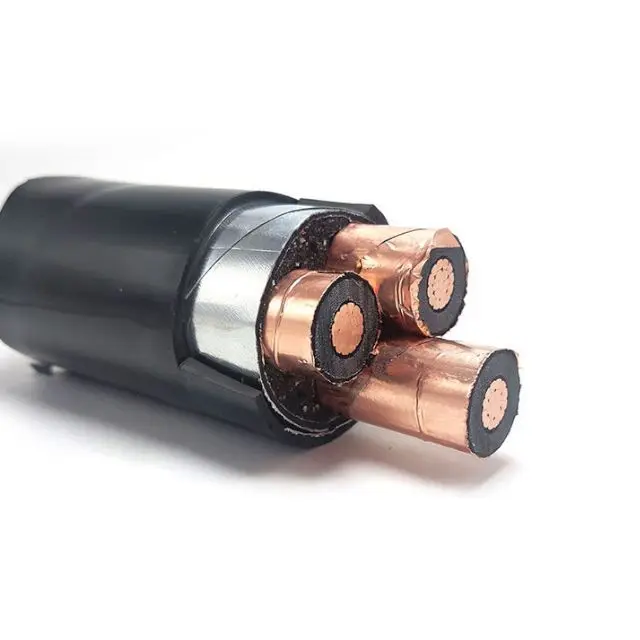

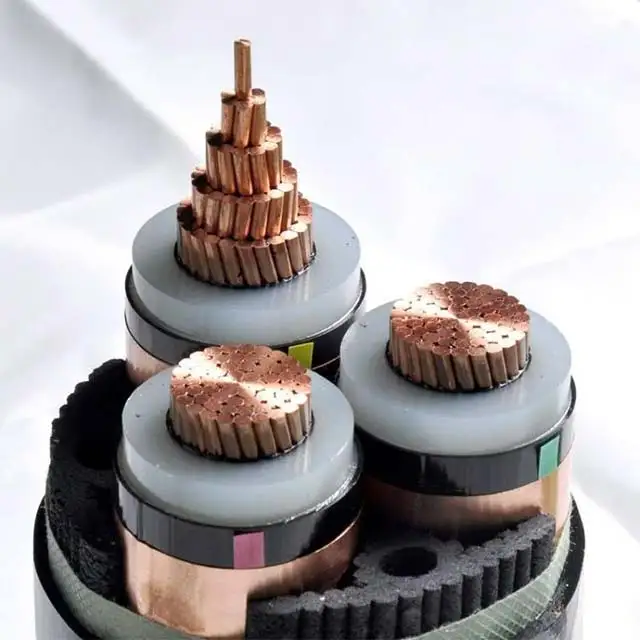

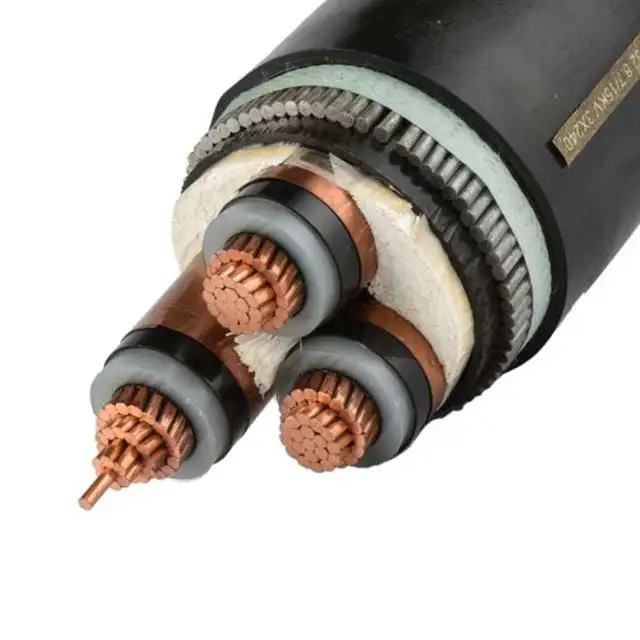

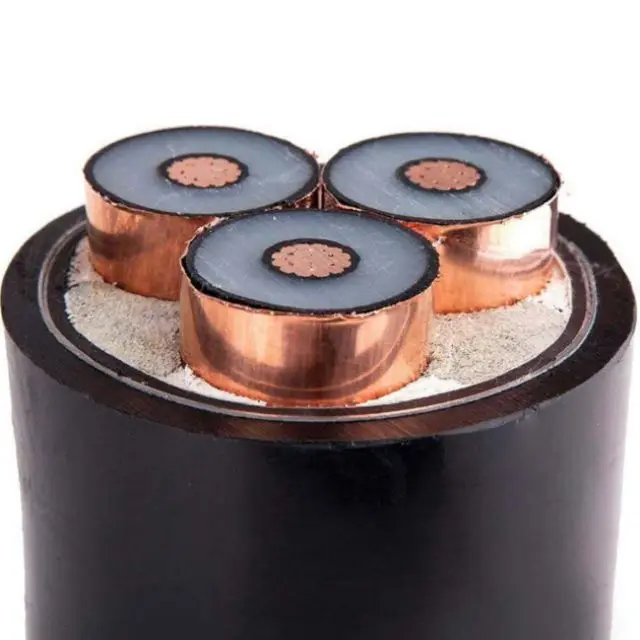

Медный проводник 11KV 3 ядром подземный 120 мм 150mm2 185 240 кабель с изоляцией из сшитого полиэтилена бронированный
- Категория: Power Cables >>>
- Поставщик: GUANGXI,LIFETIME,CABLE,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.82 $* | 0.17 $* |
| Aug-18-2025 | 0.19 $* | 0.47 $* |
| Jul-18-2025 | 0.53 $* | 0.56 $* |
| Jun-18-2025 | 0.17 $* | 0.77 $* |
| May-18-2025 | 0.98 $* | 0.5 $* |
| Apr-18-2025 | 0.75 $* | 0.32 $* |
| Mar-18-2025 | 0.71 $* | 0.16 $* |
| Feb-18-2025 | 0.4 $* | 0.60 $* |
| Jan-18-2025 | 0.25 $* | 0.95 $* |
Характеристики
1.executive standard
GB/T 12706.1-2020
2.product use
The product is suitable for power supply, transmission and distribution lines with rated AC voltage U0/U 26/35kV and below.
GB/T 12706.1-2020
2.product use
The product is suitable for power supply, transmission and distribution lines with rated AC voltage U0/U 26/35kV and below.
3.features
A) during normal operation of cable, the maximum conductor temperature shall be 70℃ for PVC insulation and 90℃ for XLPE insulation.
B) Maximum temperature of conductor during short circuit (maximum duration not exceeding 5 seconds) :
PVC insulation -- 160℃ for conductor cross section ≤300mm2, 140℃ for conductor cross section > 300mm2; Crosslinked PVC insulation at 250℃.
C) When laying cables, the ambient temperature shall not be less than 0℃, and the minimum allowable bending radius is as follows:
Single core cable: unarmored 20D, armored 15D
Multi-core cable: 15D for unarmored, 12D for armored
Where: D- actual outer diameter of cable.
D) Cable breaking force:
Aluminum core cable: 40×S (N)
Copper core cable: 70×S (N)
Note: S is the total cross-sectional area of the conductor
4.Product model and application
A) during normal operation of cable, the maximum conductor temperature shall be 70℃ for PVC insulation and 90℃ for XLPE insulation.
B) Maximum temperature of conductor during short circuit (maximum duration not exceeding 5 seconds) :
PVC insulation -- 160℃ for conductor cross section ≤300mm2, 140℃ for conductor cross section > 300mm2; Crosslinked PVC insulation at 250℃.
C) When laying cables, the ambient temperature shall not be less than 0℃, and the minimum allowable bending radius is as follows:
Single core cable: unarmored 20D, armored 15D
Multi-core cable: 15D for unarmored, 12D for armored
Where: D- actual outer diameter of cable.
D) Cable breaking force:
Aluminum core cable: 40×S (N)
Copper core cable: 70×S (N)
Note: S is the total cross-sectional area of the conductor
4.Product model and application
Model | Name | APPLICATION | ||
Copper core | aluminium core | |||
YJV | YJLV | XLPE insulated PVC sheathed power cable | Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force | |
YJY | YJLY | XLPE insulated PE sheathed power cable | Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force | |

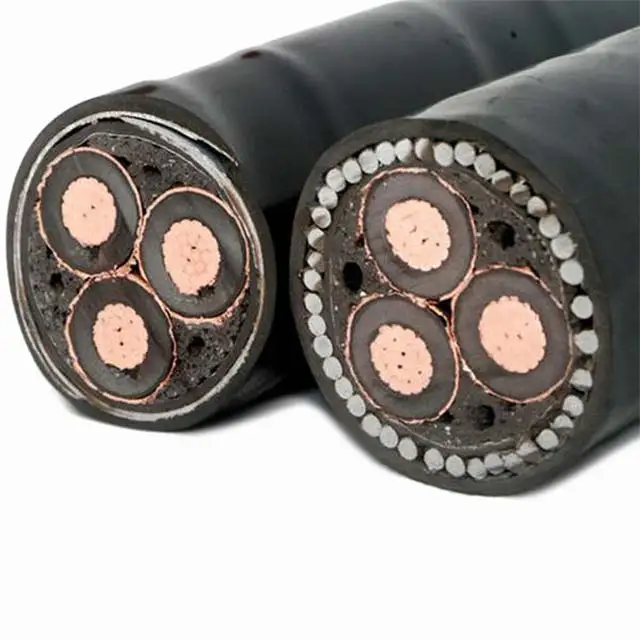

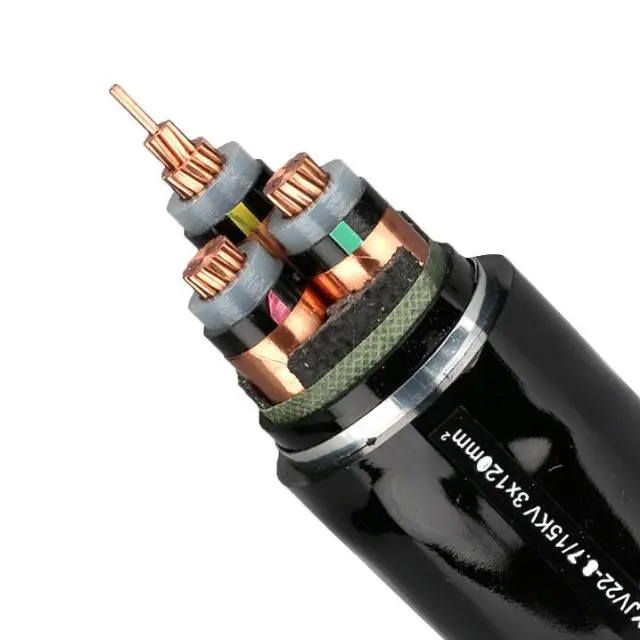

YJV22 | YJLV22 | XLPE insulated steel tape armored PVC sheathed power cable | Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force | |
YJV23 | YJLV23 | XLPE insulated steel tape armored PE sheathed power cable | Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force | |
YJV32 | YJLV32 | XLPE insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force | |
YJV33 | YJLV33 | XLPE insulated fine steel wire armored PE sheathed power cable | Can be laid at indoor, underground .Cable can under take mechanism outside force | |
