Коммерческая машина для производства бумажных соломинок FUYUAN factory/машина

Коммерческая машина для производства бумажных соломинок FUYUAN factory/машина

Категория: >>>
Поставщик: Henan,Fuyuan,Machinery,Manufacturing,Co.,Ltd.

Цена:6 220,00 $ - 7 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	7402.70 $*	7772.21 $*
Aug-19-2025	7340.5 $*	7707.26 $*
Jul-19-2025	6158.85 $*	6466.39 $*
Jun-19-2025	7215.15 $*	7576.56 $*
May-19-2025	6282.32 $*	6596.57 $*
Apr-19-2025	7091.7 $*	7446.6 $*
Mar-19-2025	7029.48 $*	7380.40 $*
Feb-19-2025	6966.55 $*	7314.5 $*
Jan-19-2025	6904.60 $*	7249.82 $*

Характеристики

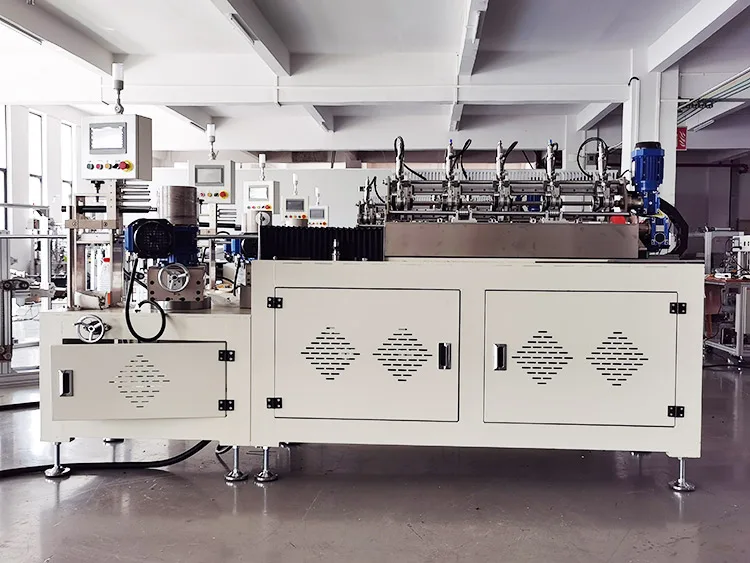

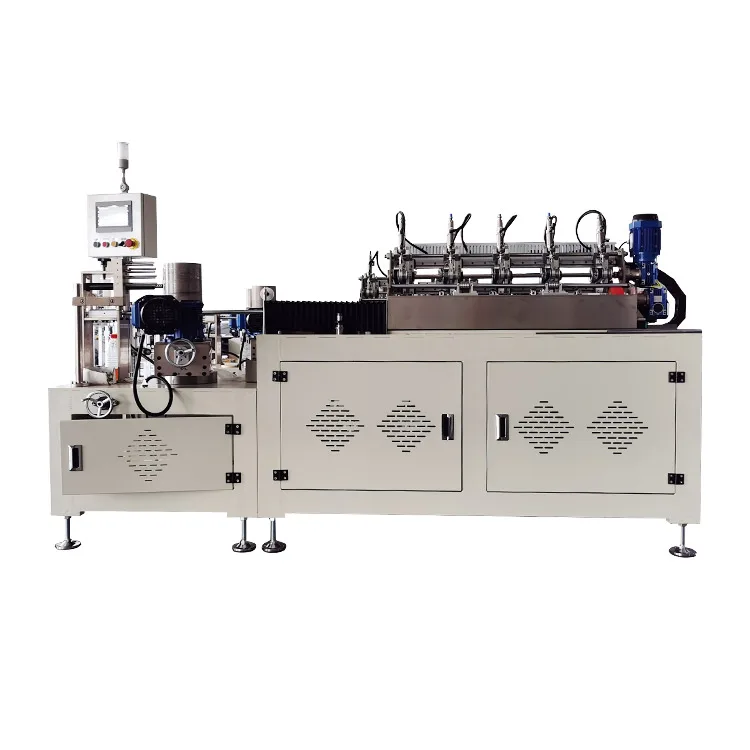

Product Introduction

The paper straw machine consists of 6 parts: 1 materials rack, 1 glue painting mechanism, 1 rolling machine, 1 cutting
machine, 1 transportation belt and 1 product collector. The machine works with high efficacy and high reliability, suitable
for the production of tiny paper tubes (inner diameter 5-12 mm), such as paper straws, ballpoint pen refills, yarn inner
tubes, etc.

Product Paramenters

Number of Layers	3 Ply
Coil Diameter	5-12mm
Coil Thickness	0.5-1mm
Winding Head	2 Heads
Number of Cutters	5 Pcs
Gluing Method	One Side Gluing
Rolling Speed	1-50m/min
Speed Control	Frequency Converter
Voltage	380V, 50Hz
Host size	340012001650mm
Total weight	1300kg

Intelligent Control

PLC controller, the host is equipped with frequency conversion speed regulation. Touch screen, easier to operate.

Food Grade Material

All accessories are made of food-grade stainless steel, which is rust-proof and wear- resistant, and has good corrosion resistance

to ensure product hygiene and improve service life.

High Efficiency

It can produce 50 meters of straws per minute, and the cutting length of straws can be adjusted freely.

Product Details

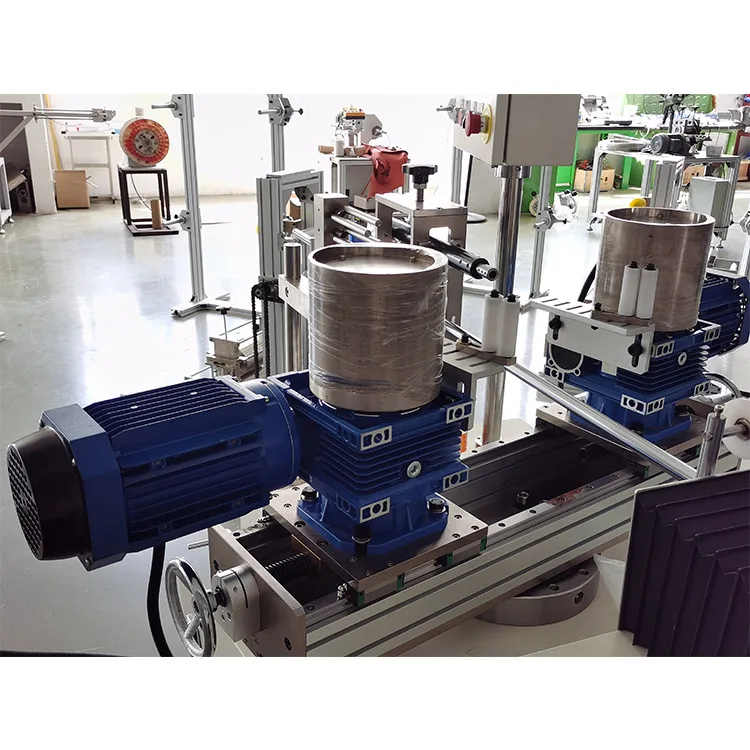

Forming Head

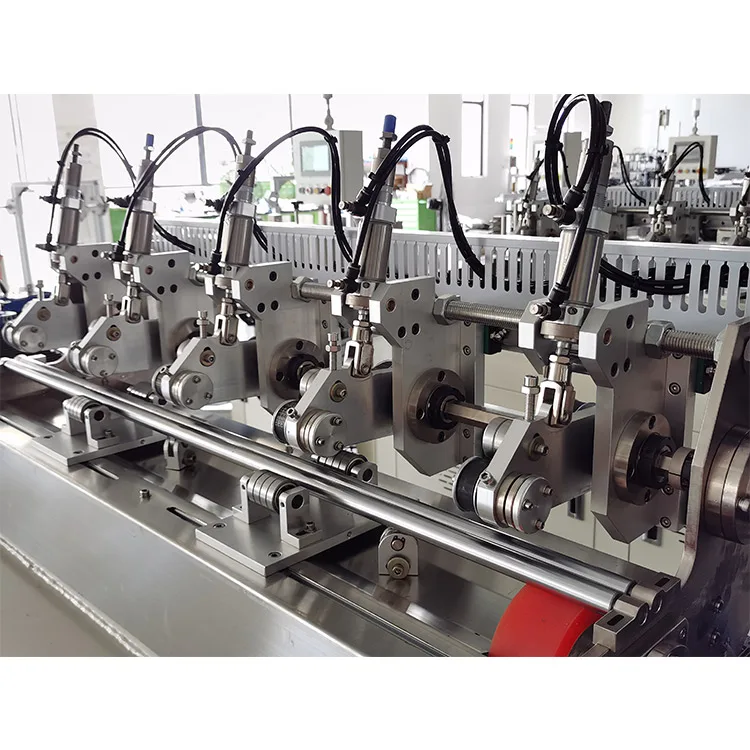

Cutting Head

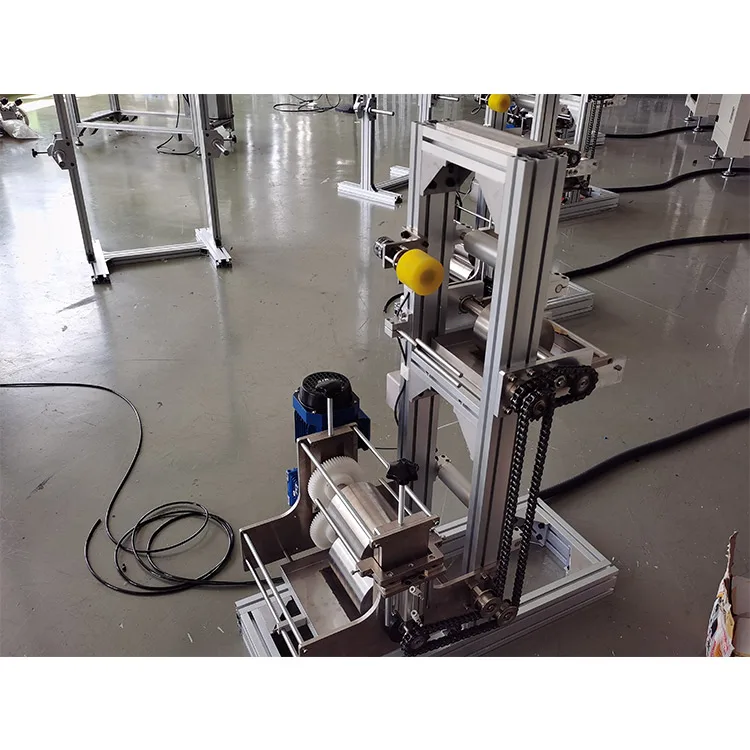

Raw Material Conveying Rack

Gluing Equipment

Product packaging

Packaging:

1. Fixed all the movable parts with plastic films.

2. Polystyrene foam plate wrapped around.

3. Wrapped with tighted plastic films several circles.

4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.

Shipment:

1. Sea transportation is from Qingdao port or other ports.

2. The delivery time is decided by your needed machines or machine parts. But it also follows your needs.

Pre-sales
1. Online all day, to ensure that all your questions are answered within two hours;
2. Give you professional advice and recommend the machine that suits you;
3. Arrange the time and invite you to visit our factory.
On-sales
1. one stop service We provide one stop service. a. Because we are a factory with more than 30 years of experience in
the production of rewinding machines, we have a more competitive price and quality can be guaranteed; b. We have a
very reliable freight forwarding company, and the delivery period is controllable; c. We have a professional engineer team
for your instalation and worker traning.
2.customized service All machines can be customized, like color, embossing, jumbo roll core diameter.
After-sales
One year warranty，we provide free machine parts within one year. Any question you can tell us if you have when
operate the machine.

Company Profile

Henan Fuyuan Machinery Manufacturing Co., Ltd located in Zhengzhou City, Henan Province. Our factory is founded in 1984 with rich experience in paper making machine and egg tray making machinery. Our main products include: pulping machine, toilet paper machine, cultural paper making machine, Kraft paper machine, corrugated medium paper machine, different capacity egg tray making production line and other grouped equipment. After nealy 40 years of development, our company has developed into a large enterprise integrating scientific research, production and trading, our factory covers an area more than 33,000 square meters, construction area more than 16,000 square meters, existing staff more than 200 workers, including 5 senior engineers, 22 engineers, and more than 38 technical staff. We are committed to provide customers with a complete solution for paper making project and paper egg tray making production line,welcome the friends to visit us over the world.
