Характеристики

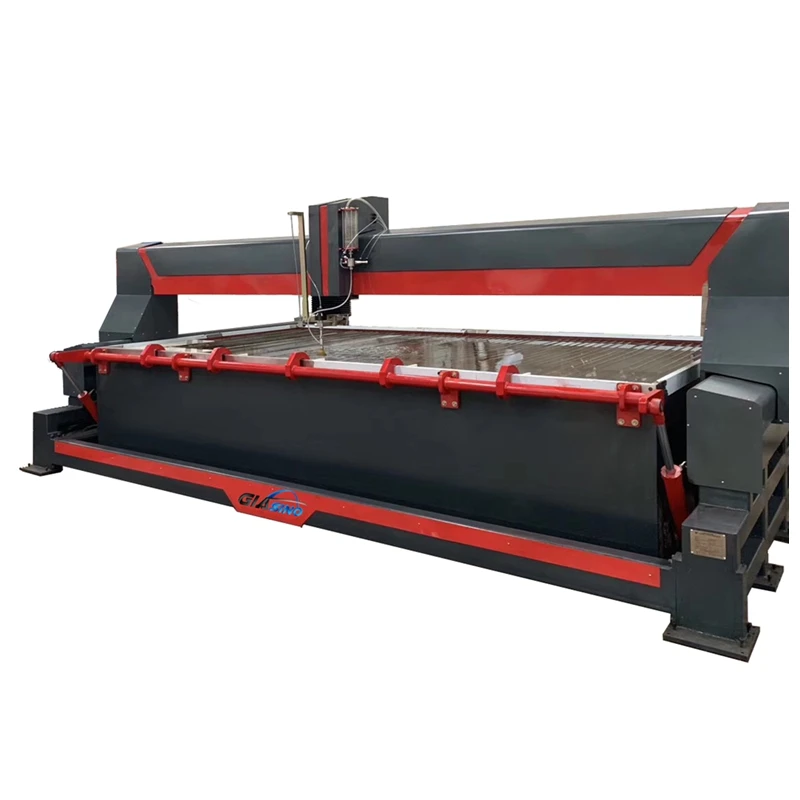

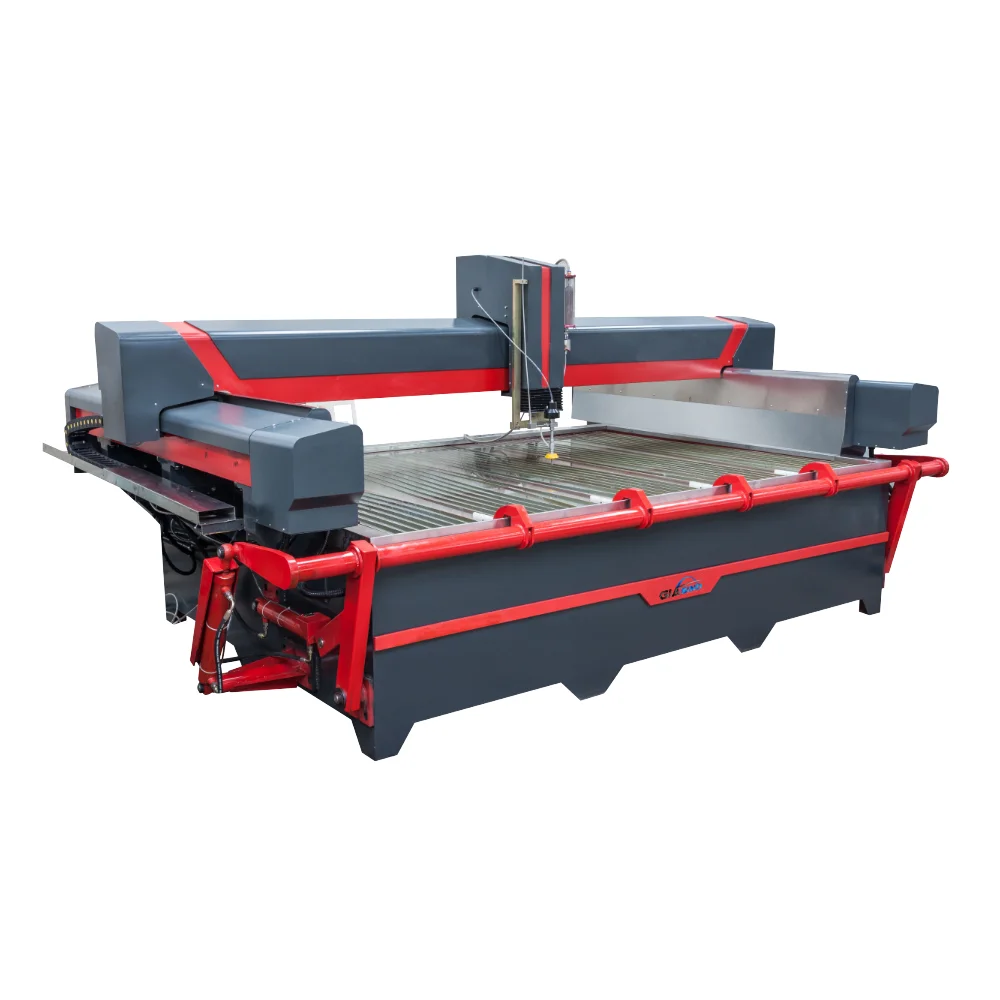

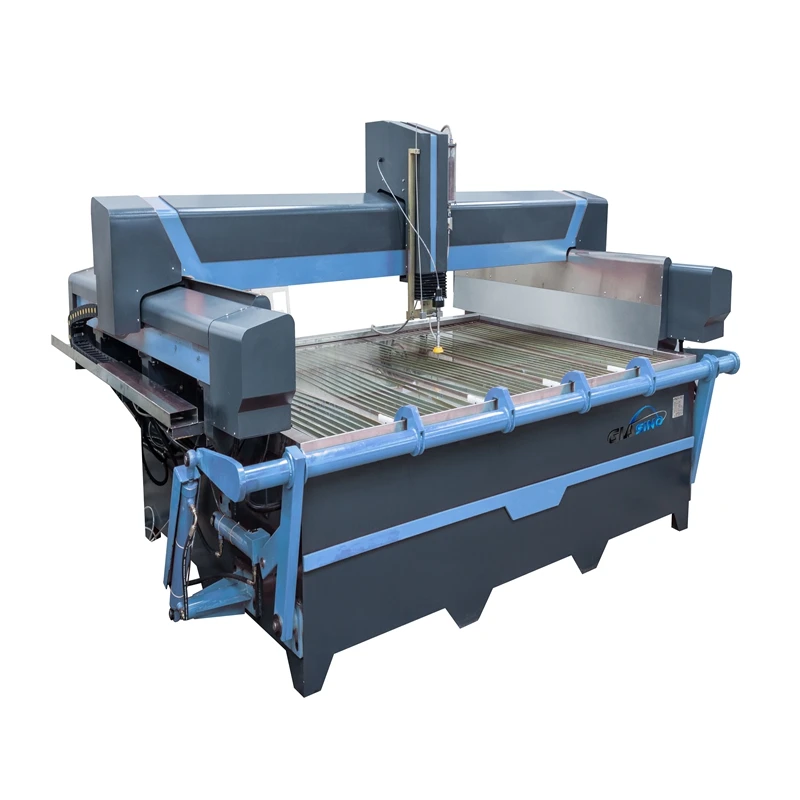

Glass Water Jet Cutting Machine
Product Description
Glass water jet cutting machine Product description:
Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture.
Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture.
Product Advantages:
1.Cutting accuracy is up to 0.1mm.
2.The main core components of Intensifier is made in USA.
3.The guide screw with oil-immersed structure different from the traditional dry structure. The linear guide rail and ball screw are immersed in the oil tank ,which can fully lubricate the guide screw and further isolate the water and abrasive,so as to maintain the cutting accuracy.
4.The high-power servo motor and the guide screw are connected directly by flexible coupling, which eliminates the gap of traditional belt connection and improves the cutting precision.
1.Cutting accuracy is up to 0.1mm.
2.The main core components of Intensifier is made in USA.
3.The guide screw with oil-immersed structure different from the traditional dry structure. The linear guide rail and ball screw are immersed in the oil tank ,which can fully lubricate the guide screw and further isolate the water and abrasive,so as to maintain the cutting accuracy.
4.The high-power servo motor and the guide screw are connected directly by flexible coupling, which eliminates the gap of traditional belt connection and improves the cutting precision.

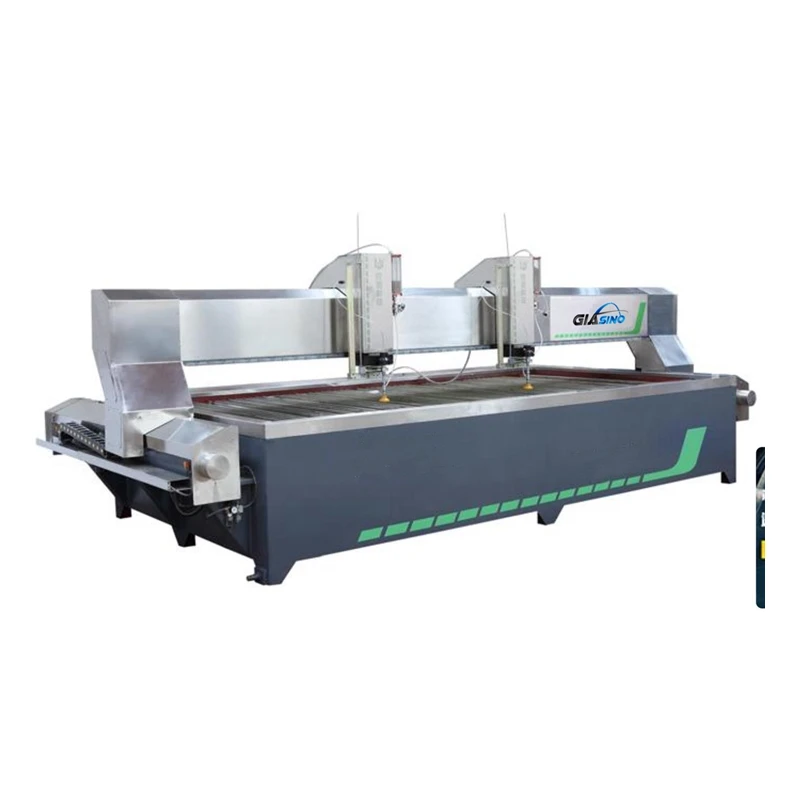

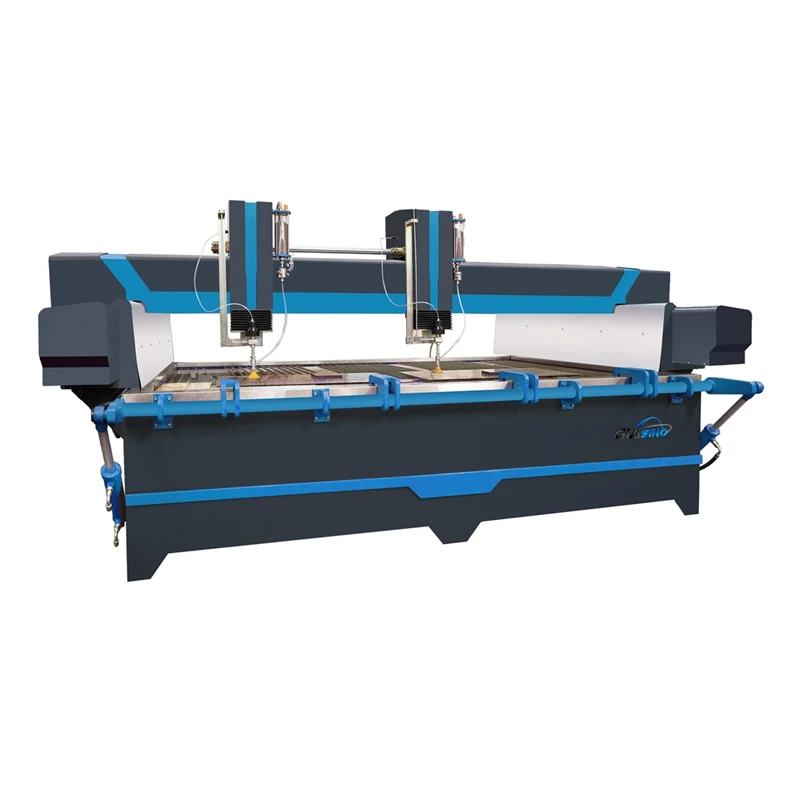

CNC WATERJET CUTTING MACHINE
✔Support non-standard customization
✔Provide free sample trial cutting service for you
✔Support non-standard customization
✔Provide free sample trial cutting service for you
Specification
High pressure system specifications | ||||||
Model | GS30018Z | GS38030Z | SS42037Z | |||
Max. Pressure | 300Mpa | 380Mpa | 420Mpa | |||
Continuous working pressure | 260Mpa | 340Mpa | 380Mpa | |||
Power | 18KW | 30KW | 37KW | |||
Maximum water flow | 3.7L/min | 3.7L/min | 3.7L/min | |||
Maximum nozzle diameter | 0.33mm | 0.33mm | 0.33mm | |||
Working power supply | 380V/50HZ | |||||
Spare Part
Concrete casting bed
After finite element analysis, the bed is welded in one body by making full use of the optimum stress point and supporting structure. After the aging treatment, concrete is poured into the bed body, which has strong stability and excellent shock absorption, greatly reduces the stress of the machine bed and maintains the long-term guarantee of accuracy
Direct connection transmission system
The high-power servo motor is directly connected with the large-diameter guide screw. Compared with the traditional synchronous pulley belt connection, it has less transmission loss, higher precision, better stability. High accuracy without the slightest error

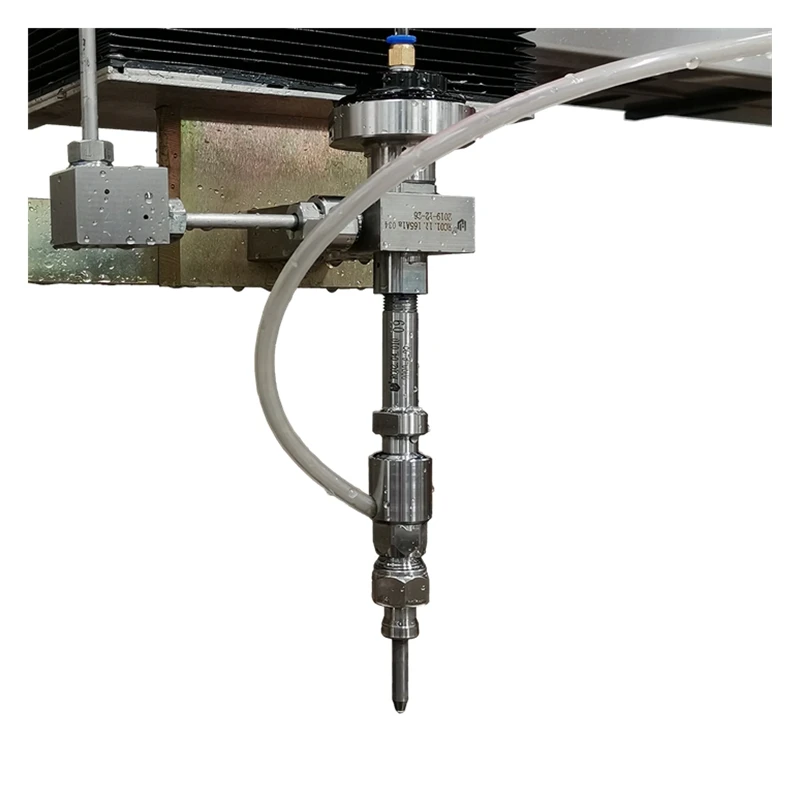

Intelligent 3D cutting
It can achieve fixed and variable angle 3D cutting within 75 degrees. The cutting head mechanism is made of aluminum alloy, with light weight, high strength and small load. The offset of the cutting position under the reaction of 380Mpa high pressure water is
less than 0.01 mm, and the cutting accuracy is extremely high
less than 0.01 mm, and the cutting accuracy is extremely high
