Электрический реактор растворителя с мешалкой из нержавеющей стали емкость для смешивания
- Категория: Reactors >>>
- Поставщик: ZHEJIANG,LEADTOP,PHARMACEUTICAL,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.62 $* | 0.43 $* |
| Aug-20-2025 | 0.91 $* | 0.92 $* |
| Jul-20-2025 | 0.8 $* | 0.62 $* |
| Jun-20-2025 | 0.36 $* | 0.63 $* |
| May-20-2025 | 0.74 $* | 0.55 $* |
| Apr-20-2025 | 0.86 $* | 0.25 $* |
| Mar-20-2025 | 0.50 $* | 0.43 $* |
| Feb-20-2025 | 0.24 $* | 0.4 $* |
| Jan-20-2025 | 0.41 $* | 0.35 $* |
Характеристики
Products Description
Usage:
Reactor is a closed vessel, which is used to perform a chemical reaction, distillation, crystallization, mixing, and isolation of materials etc. This is specially designed equipment with agitator and gearbox with electrical motor. Agitator is used for proper mixing, eddy formation, Vortex formation as per requirement. Agitator types are decided based on process requirement. Jacket / limpet coil is used for maintaining reaction conditions by providing utilities like steam, chilled water, cooling water, chilled brine and hot water. Solids are charged into reactor through Manhole / Nozzles manually and liquids are charged in to reactor by liquid transfer pipelines connected to reactor or manually through dosing flask. Solution or slurry is discharged from the reactor by nitrogen pressure or by pump, through bottom discharge valve.
Structure:
Structure:
The reactor is vertical type shell structure, top head and bottom end are the dish / ellipse head, the shell and the bottom end have the jacket and insulation layer with the mechanical mixer / magnetic mixer / pneumatic mixer.
Application
Features
1. Jacket can used the different media, like steam, chiller, cooling water, heating transfer oil etc. For the different process.
2. Contact material parts all mirror polish, it can fit to GMP.
3. Outside jacket, it can be use different insulation material,like PUF, glass Wool, Mineral Wool, AlSiO3 material etc. cladding ss sheet.
4. According to the different process, our company usethe different types mechanical seal for the reactor.
5. Different inside baffle design for the different process.
6. Differenttype mixers for the different process.
Technical Data
Model | FY300 | FY400 | FY500 | FY600 | FY1000 | ||||
Total Volume (L) | 300 | 400 | 500 | 600 | 1000 | ||||
Inside shell pressure (Mpa) | ≤0.2 | ||||||||
Jacket pressure (Mpa) | ≤0.3 | ||||||||
Motor power (kw) | 2.2 | 2..2 | 3.0 | 3.0 | 4.0 | ||||
Speed (rpm) | 18-200 | ||||||||
Dimension (mm) | φ900*2200 | φ1000*2220 | φ1150*2400 | φ1150*2500 | φ1400*2700 | ||||
Heat exchange area (㎡) | 2 | 2.4 | 2.7 | 3.1 | 4.5 | ||||
Model | FY2000 | FY3000 | FY5000 | FY6000 | |||
Total Volume (L) | 2000 | 3000 | 5000 | 6000 | |||
Inside shell pressure (Mpa) | ≤0.2 | ||||||
Jacket pressure (Mpa) | ≤0.3 | ||||||
Motor power (kw) | 5.5 | 7.5 | 11 | 15 | |||
Speed (rpm) | 18-200 | ||||||
Dimension (mm) | φ1580*3300 | φ1800*3600 | φ2050*4200 | φ2500*5000 | |||
Heat exchange area (㎡) | 7.5 | 8.6 | 10.4 | 20.2 | |||

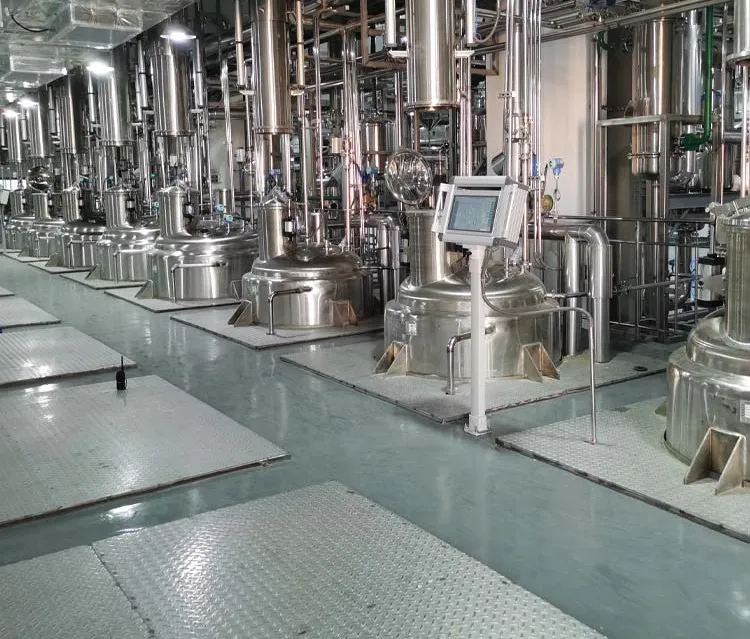

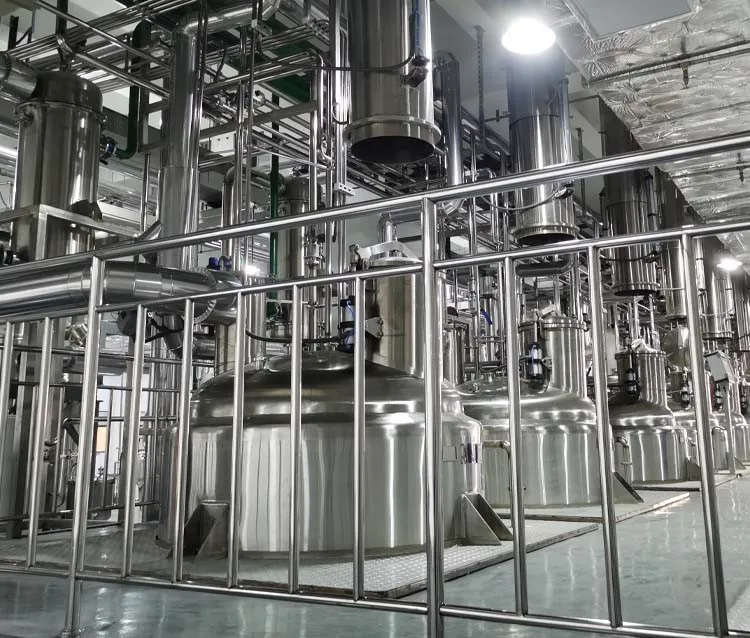

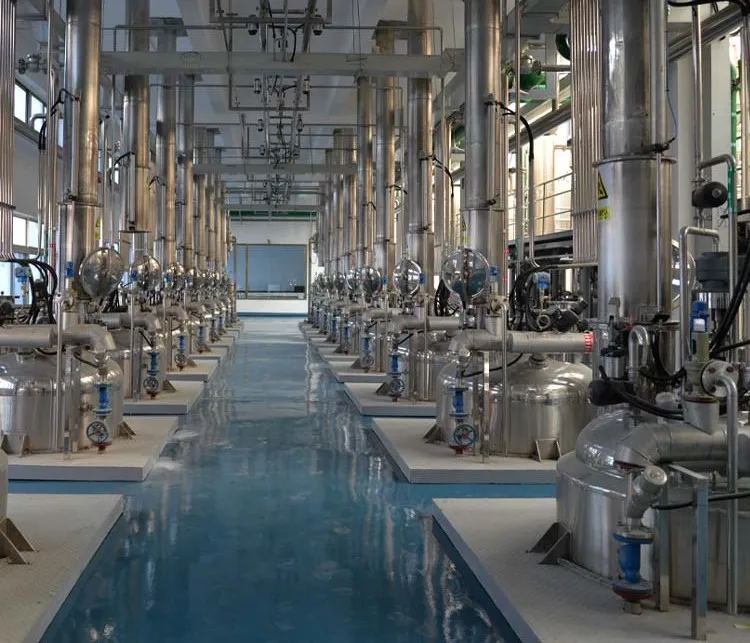

Workshop
Company Profile
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world. LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional,Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
