Zhuomao ZM-R5830 низкая стоимость BGA сварочный

Категория: Welding Equipment >>>
Поставщик: Shenzhen,Zhuomao,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.40 $*	0.25 $*
Aug-17-2025	0.62 $*	0.59 $*
Jul-17-2025	0.53 $*	0.6 $*
Jun-17-2025	0.84 $*	0.44 $*
May-17-2025	0.63 $*	0.17 $*
Apr-17-2025	0.64 $*	0.35 $*
Mar-17-2025	0.37 $*	0.15 $*
Feb-17-2025	0.7 $*	0.16 $*
Jan-17-2025	0.68 $*	0.32 $*

Характеристики

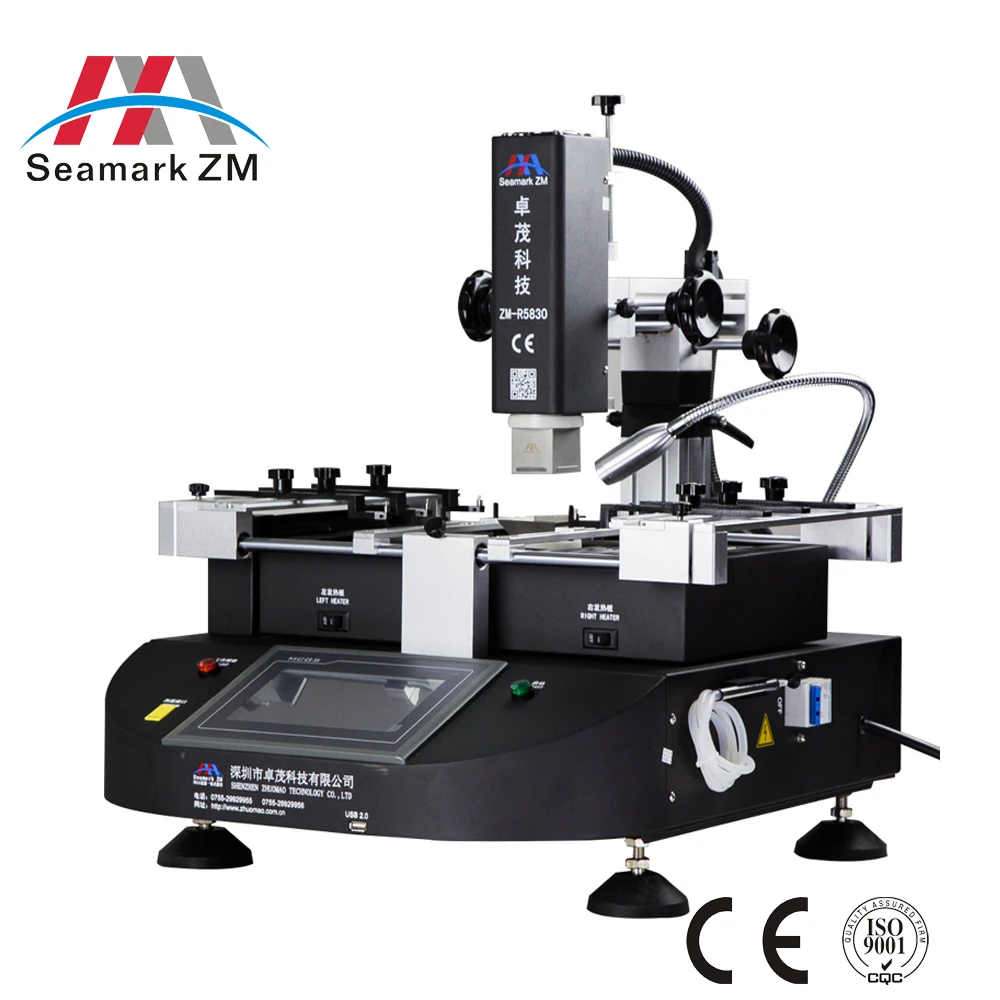

Zhuomao ZM-R5830 Low Cost BGA Welding Machine

Specification:

Bga rework machine

1. Hot air and Infrared BGA Rework Station
2. Original factory price
3.CE approved
4, One year Warranty

4-BGA rework station ZM-R583

6-BGA rework station ZM-R5830

product description of bga rework station

1	Total Power	4500W
2	Top heater	800W
3	Bottom heater	2nd heater 1200W,3rd IR heater 2400W
4	Power supply	AC220V±10% 50/60Hz
5	dimension	535×650×600mm
6	Positioning	V-groove, PCB support can be adjusted in any direction with external universal fixture
7	Temperature control	(K Sensor) closed loop, independent heating, precision within ±3°c.
8	PCB size	Max 355×335mm Min 50×50 mm
9	Electrical selection	Highly sensitive temperature control module+Touch screen (Taiwan)+Delta PLC
10	Weight	30kg

Main feature of bga rework station

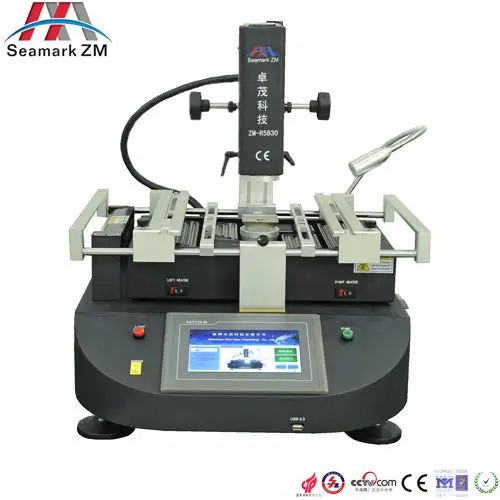

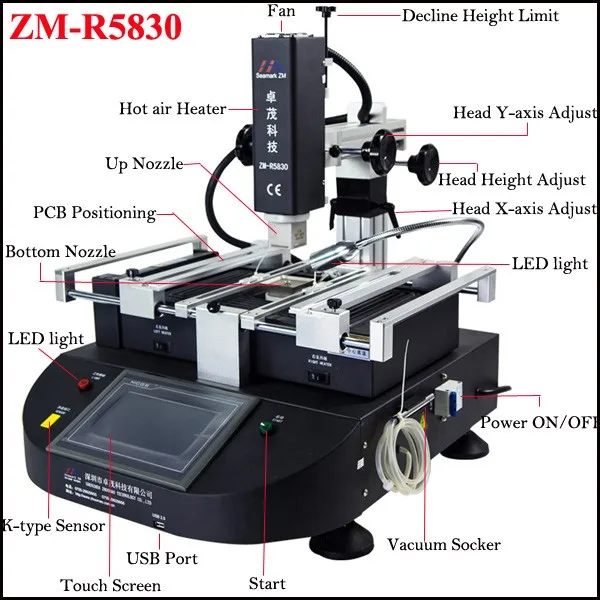

Zhuomao ZM R5830 automatic BGA Rework station

1,Adopt liner slide which makes X,Y,Z axis all can do precision adjustment or fast positioning, with high positioning accuracy and fast maneuverability.

2,high definition touch screen , PLC control, can save multiple groups profile, password protection and modify function, and can save multiple groups profile, equipped with instant temperature curve analysis function.

3,There are 3 independent heating areas from top to bottom. The 1st and 2nd are hot-air heaters, the 3rd is IR preheating, temperature controlled within ±3 .Top heater can be adjusted freely, second heater can be adjusted up and down, top and bottom temperature can control many groups and sections of temperature parameters at the same time; the third IR heater can be adjusted the power consumption.

4,Offer all kinds of hot-air nozzle, it can rotate 360°,With magnet, easy to install and change, customized is available; Bottom IR heater ensure an even heat for PCB board.

5 ,Choose imported high-precision K-type thermocouple, closed loop control and automatic temperature compensation system, combined PLC module for the precision control of temperature.

6. Use a V-groove equipped with a flexible fixture for PCB positioning to protect the PCB from deformation when heated or cooled, and it can rework for any BGA package size.

7,powerful cross-flow fan rapidly cool the PCB board to improve efficiency, Also built-in vacuum pump and external vacuum suction pen, pick up the chips rapidly.

8.After finishing desoldering & soldering, There is an alarming and alarming in advance.

9,CE certificate, with emergency stop and Automatic power-off protection device when abnormal accident happens,with a double over-heating protection control.

3 independent control heaters

top and bottom heaters are hot-air heating, the third IR preheating area(350x220mm) is infrared heating, temperature accuracy within ±3℃, the top and bottom heaters can set 8 segments rising temperature and 8 segments activity temperature, it can save 100 groups temperature curves for different BGA chips.

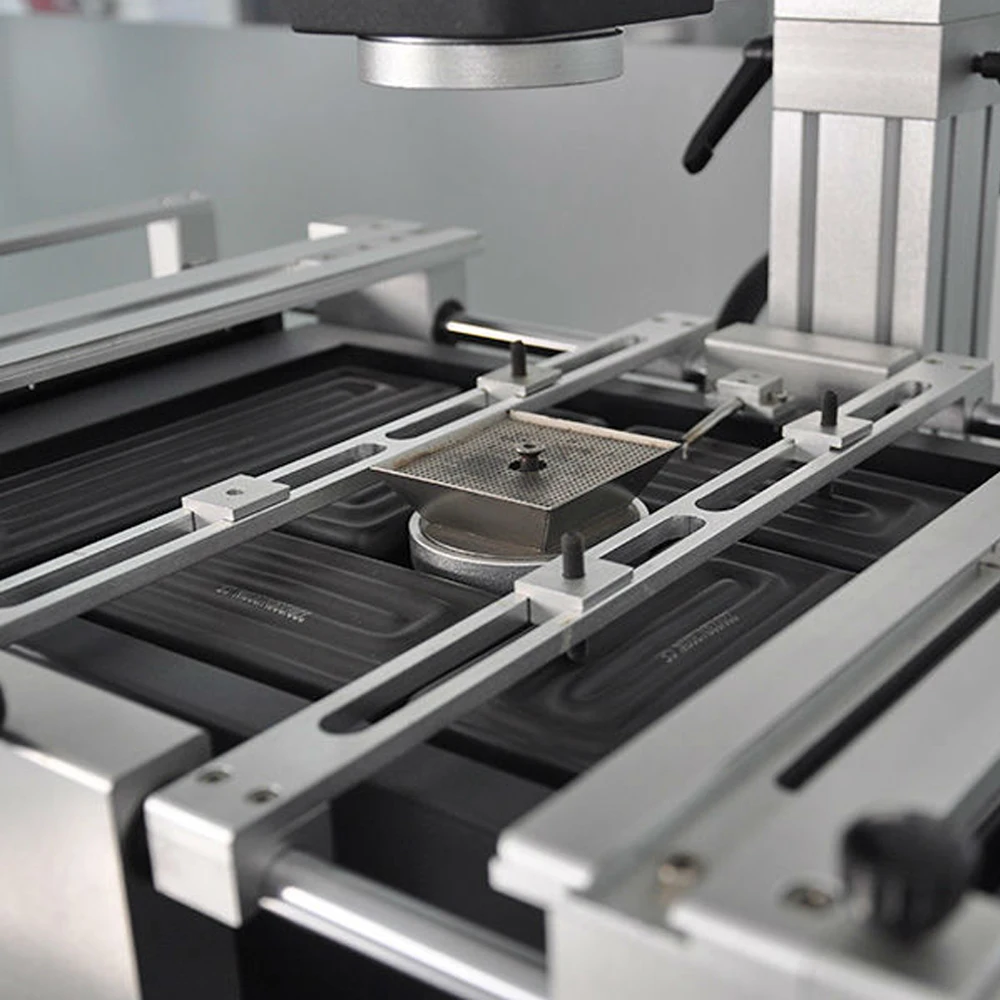

the top and bottom heaters can heat PCB from upper and bottom side. And the third IR heater can preheat the PCB board, to avoid PCB from deformation during repair process. The top and bottom heater heat independently;

the IR power consumptions of the third IR heater can be adjusted, make PCB board heating evenly, to avoid from deformation;

multi-functional hommization system

Adopt human-machine interface, High-precision K-type thermocouple with close-loop control, automatic temperature compensation system, precise temperature control, the temperature shown on the touch screen, top heater can be moved freely;

Adopted all kinds of BGA nozzles, with 360° rotation, easy for installation and replacement, customized is available;

There is BGA soldering support shelf to support PCB board;

Multi-functional PCB support shelf, can be moved along X axis,with rapid and easy PCB board positioning , suitable for all kind of PCB position;

powerful cross-flow fan cool the PCB board fast after desoldering and soldering, it can prevent the PCB board from deformation; with vacuum pump and external vacuum suction pen to pick up the chips conveniently.

Superior safety functions

With CE certification; after desoldering and soldering, there is alarming. when temperature goes out of control;the circuit will automatically power off, it is of double over-temperature protection function. Temperature parameter has a password to avoid fom arbitrary changes, with superior safe protection functions, it can protect PCB board’s components and the machine from damage at any abnormal situation.
