Многофункциональный тестер емкости литиевых батарей 2-100 В/1-60
- Категория: Battery Testers >>>
- Поставщик: Shenzhen,Honwally,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1251.26 $* | 1276.12 $* |
| Jul-17-2025 | 1015.83 $* | 1035.88 $* |
| Jun-17-2025 | 1231.21 $* | 1256.24 $* |
| May-17-2025 | 1221.62 $* | 1245.43 $* |
| Apr-17-2025 | 975.63 $* | 995.73 $* |
| Mar-17-2025 | 1202.81 $* | 1226.21 $* |
| Feb-17-2025 | 1192.18 $* | 1216.65 $* |
| Jan-17-2025 | 1182.87 $* | 1206.14 $* |
Характеристики
Product Description

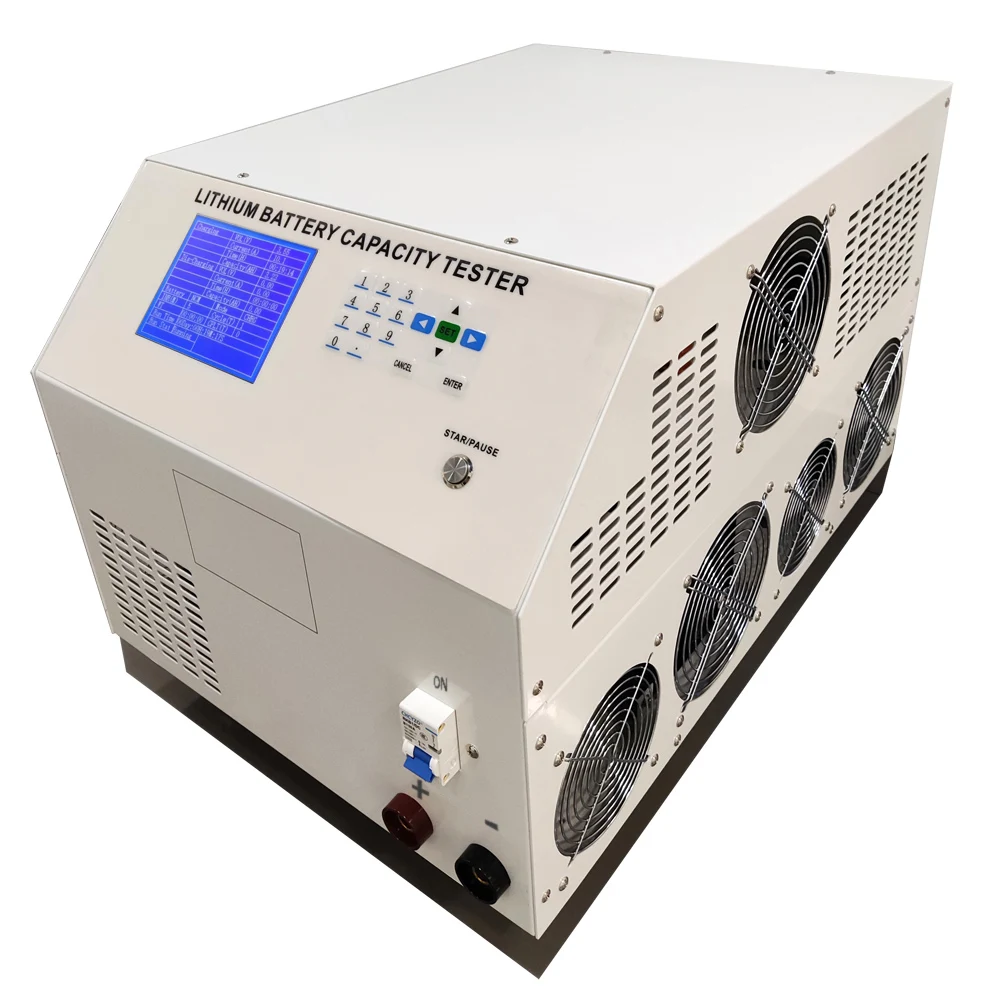

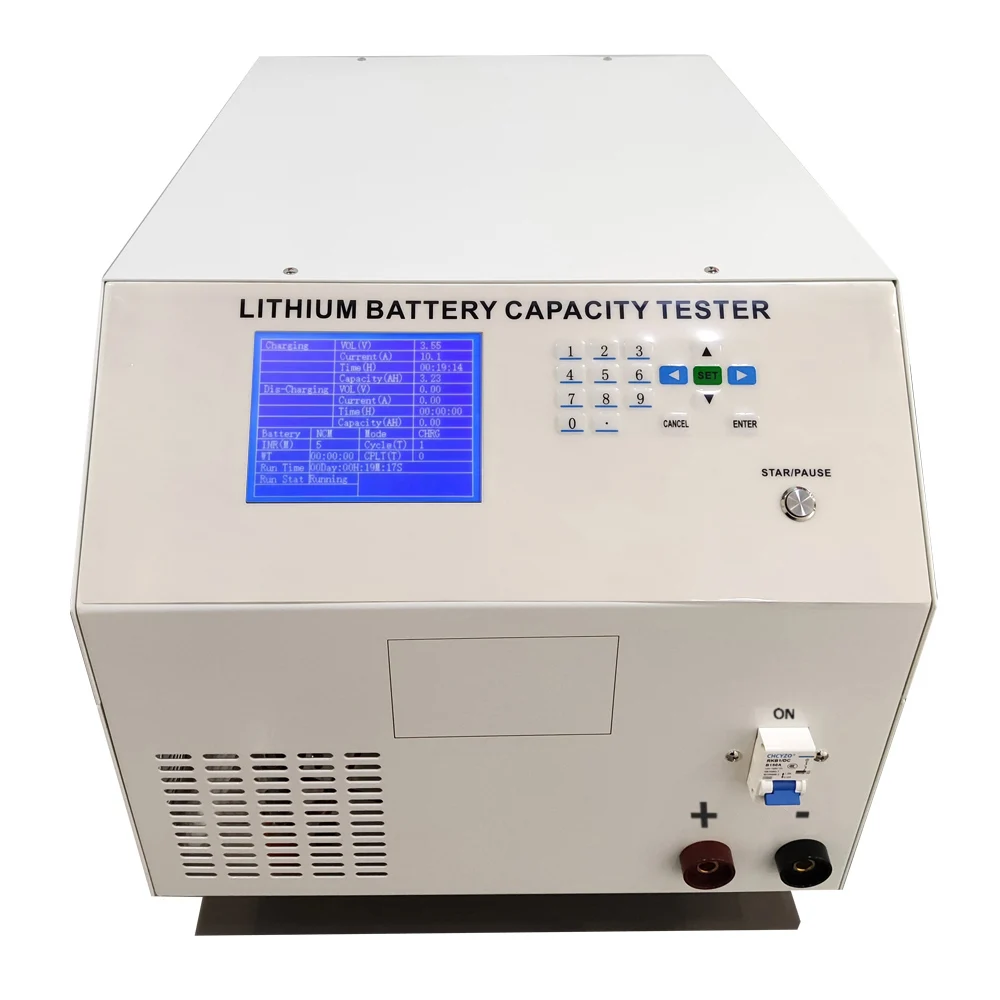

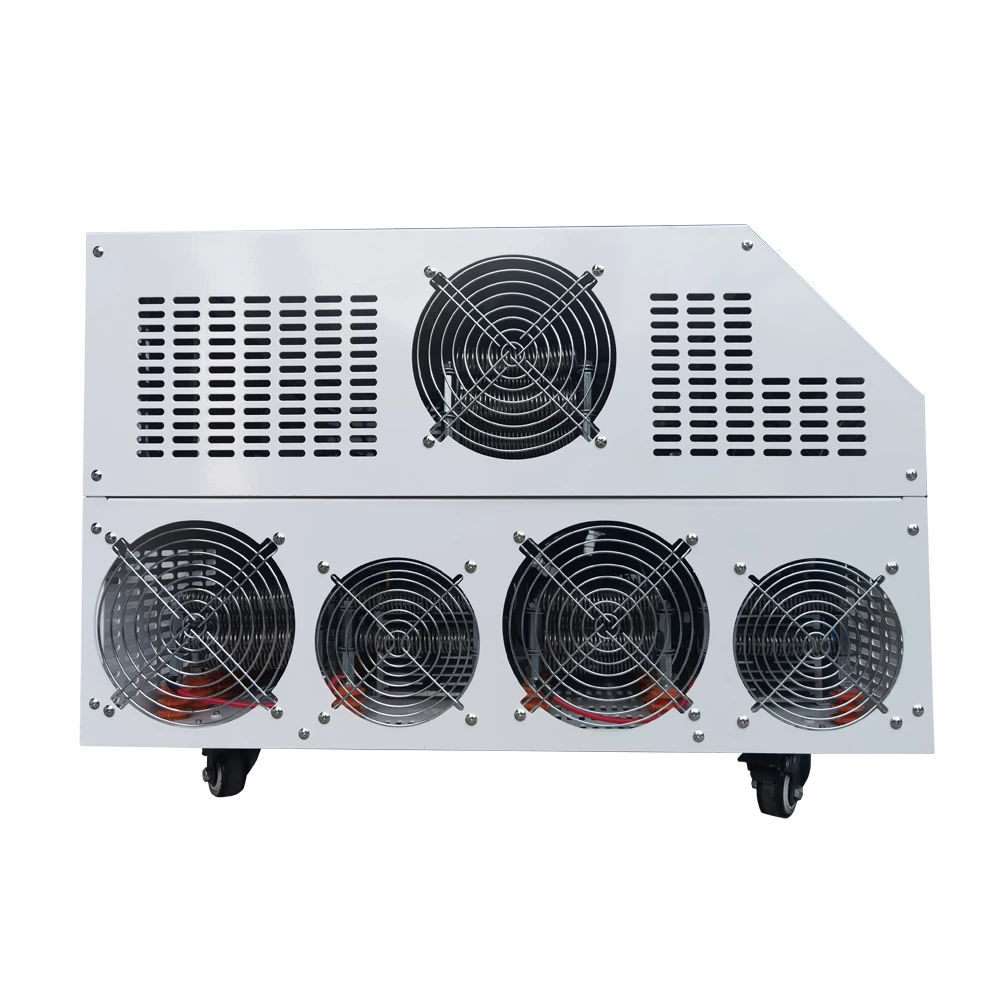

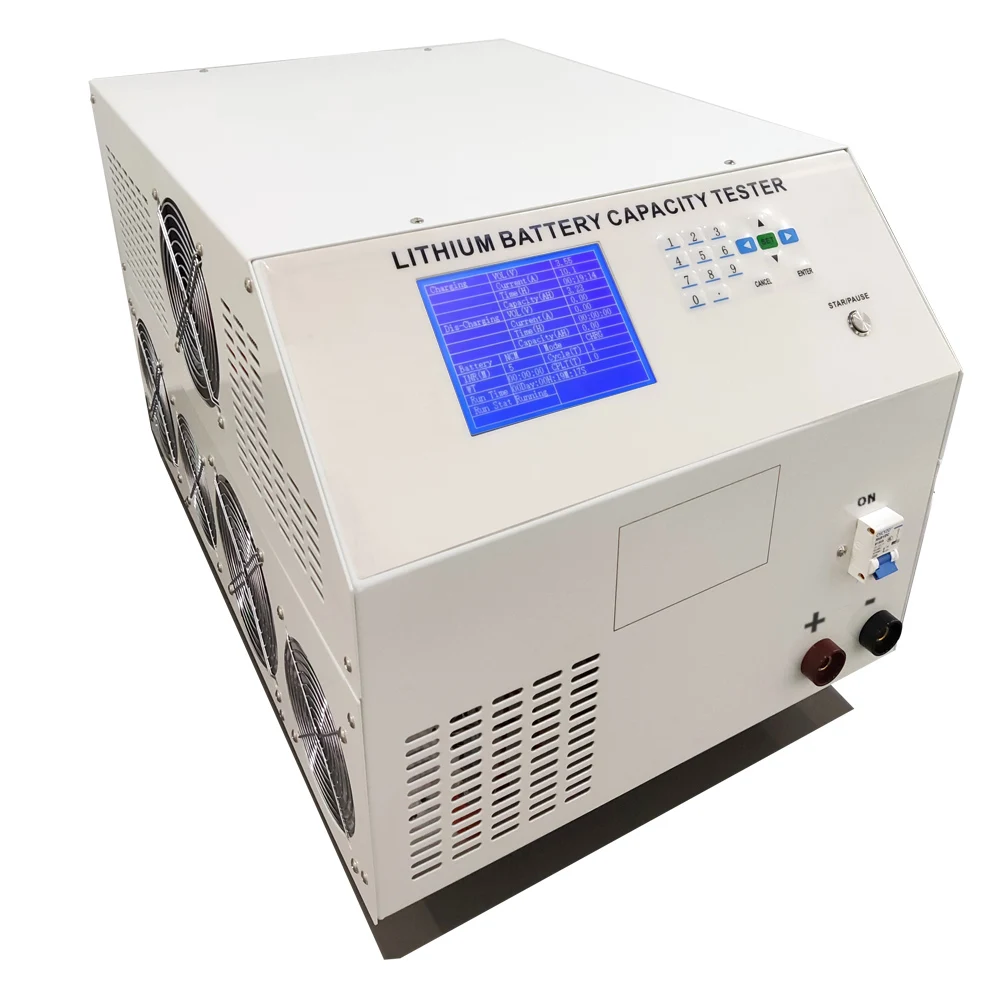

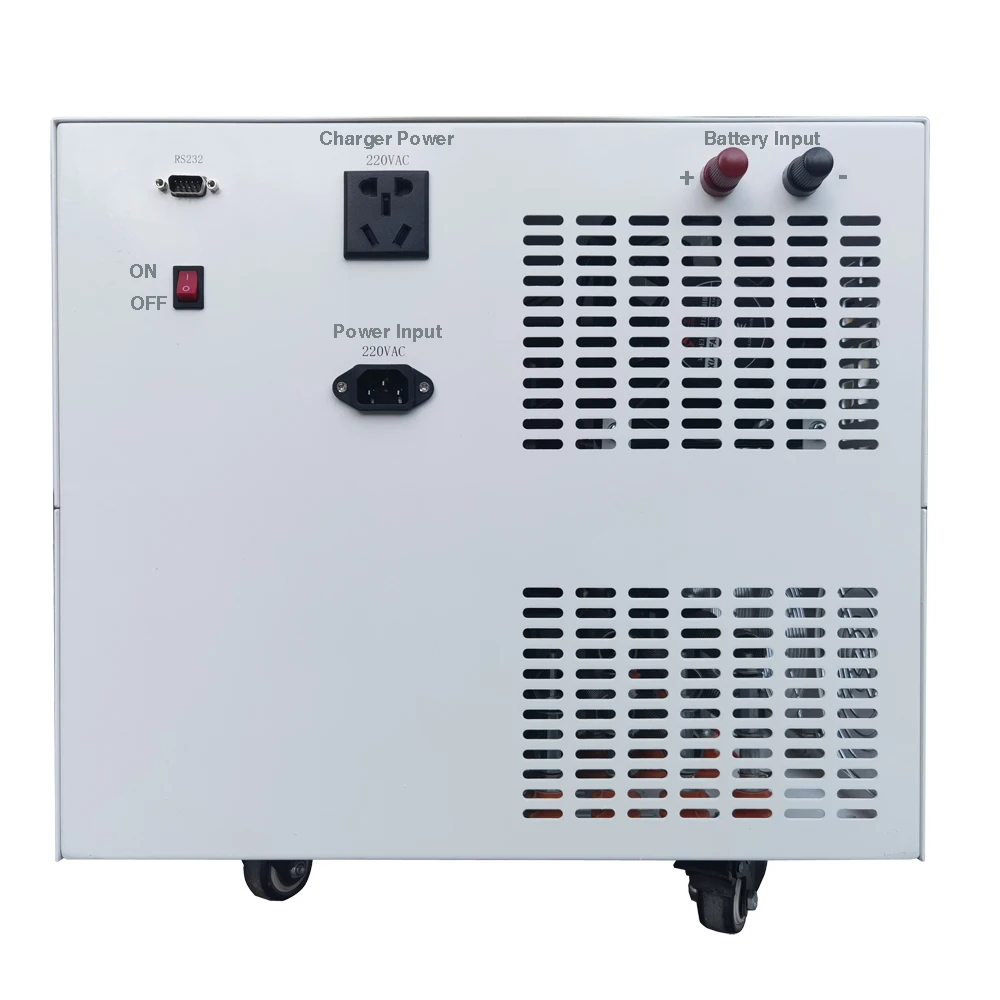

The New Model HF10080 2-100V / 1-60A Multi-Function Lithium Battery Pack Capacity Tester
Main Function:
1. Test Battery Pack Capacity;
2. Charge Battery pack;
3. Discharge Battery pack
4. Charge-discharge-charge automatic cycle
5. Test Battery Power Charger current
6. Test circuit board overcharge and over discharge parameters
7. Built-in Power Supply 1-90V / 1-15A or 20A
8. It can store 30 sets of recent test data in the equipment.
9.Support battery types: Lead-acid battery, Lithium-iron battery, Ternary battery and Li-Polymer battery
Technical Parameters:
| Model | HF10060 |
| Power Supply | AC 110V / 220V |
| Voltage input range | 2VDC-100VDC |
| Voltage accuracy | ±0.5%, two decimal places |
| Maximum discharge current | 60A |
| Step adjustment current | 1A |
| Maximum charging current | Internal charger model - 20A, External charger model - 30A |
| Current accuracy | ±1% to two decimal places |
| Discharge mode | constant current discharge |
| Discharge termination voltage | The minimum protection voltage of the battery pack-2V or low-voltage protection of the battery pack |
| Charging mode | Charging by external charger |
| Charge termination voltage | Current is less than 0.3A, the instrument opens the connection between the charger and the battery |
| Capacity measurement accuracy | ±0.05AH |
| Cooling method | dual-roller high-speed cooling fan cooling |
| Product Size | 603mm*428mm*426mm |
Lithium Battery pack capacity tester
80A Battery tester
battery tester machine
