Радиоантенна на крышу автомобиля грузовика
US $12.00-$15.00

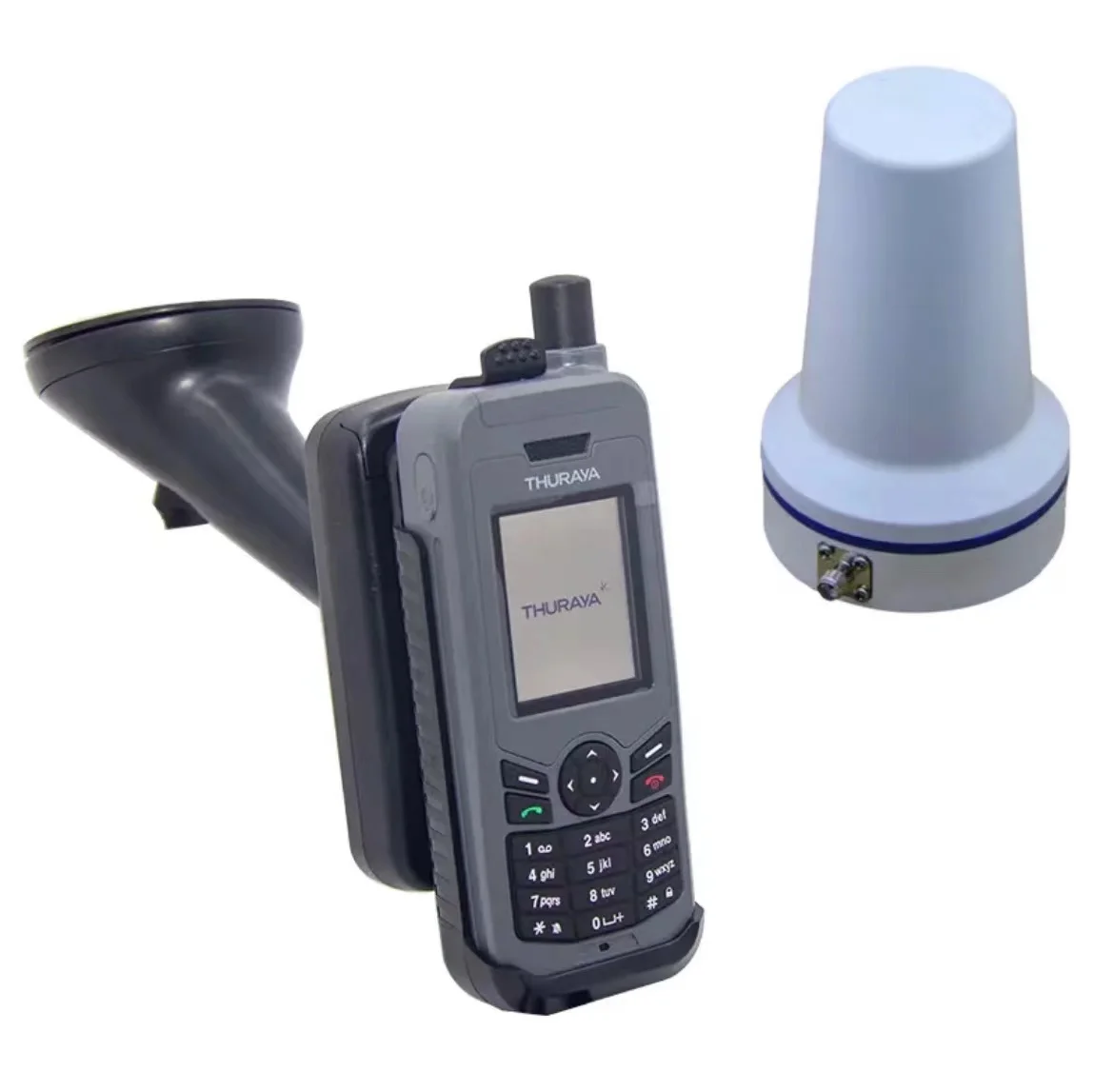

Профессиональная спутниковая телефонная антенна XT-Lite комплект оборудования для автомобильной
- Категория: Car Antenna >>>
- Поставщик: Chengdu,Bingxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.2 $* | 0.33 $* |
| Aug-15-2025 | 0.87 $* | 0.2 $* |
| Jul-15-2025 | 0.24 $* | 0.22 $* |
| Jun-15-2025 | 0.73 $* | 0.76 $* |
| May-15-2025 | 0.64 $* | 0.66 $* |
| Apr-15-2025 | 0.90 $* | 0.27 $* |
| Mar-15-2025 | 0.26 $* | 0.14 $* |
| Feb-15-2025 | 0.95 $* | 0.13 $* |
| Jan-15-2025 | 0.21 $* | 0.97 $* |
Характеристики
Product Description
Specification

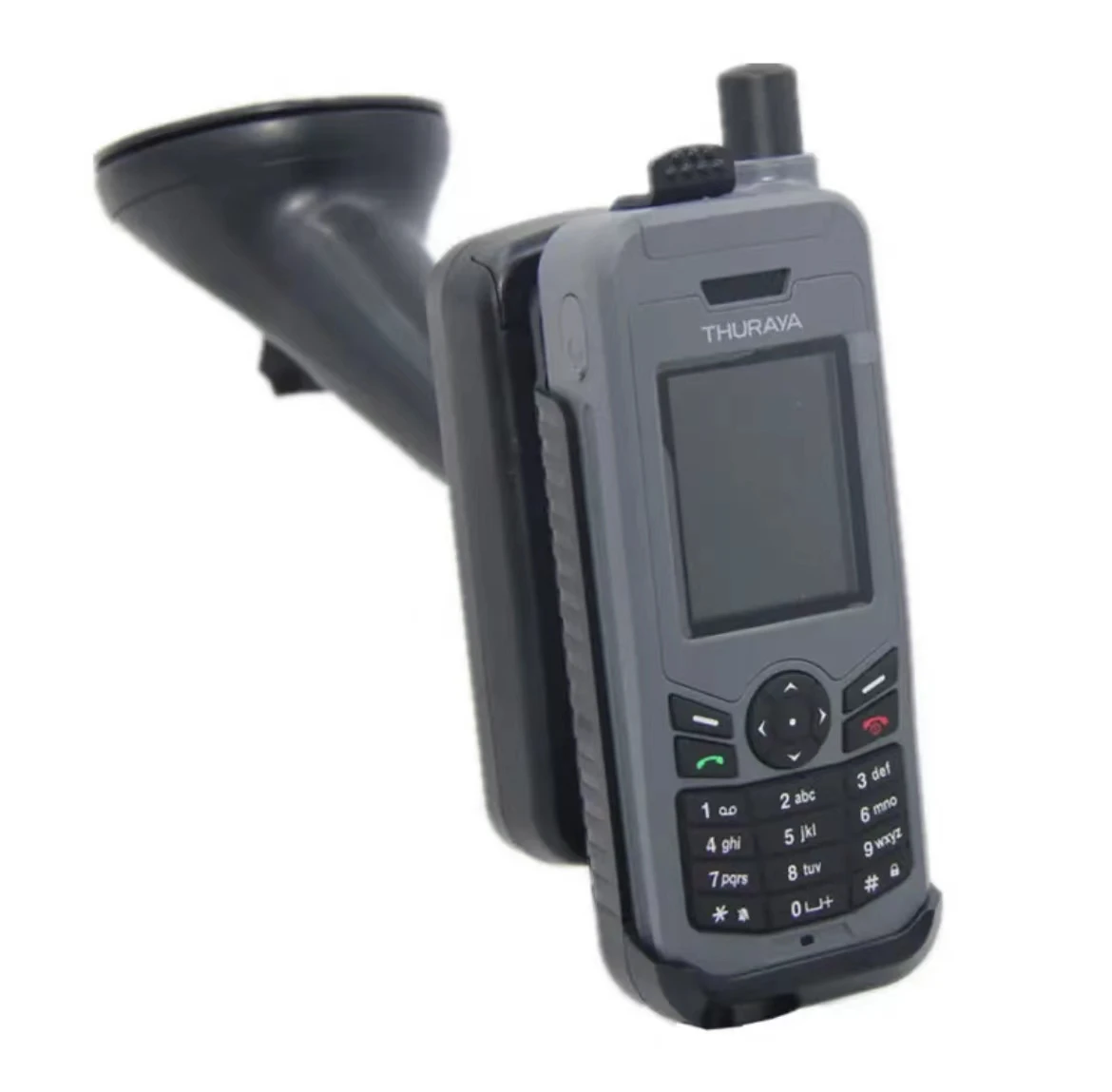

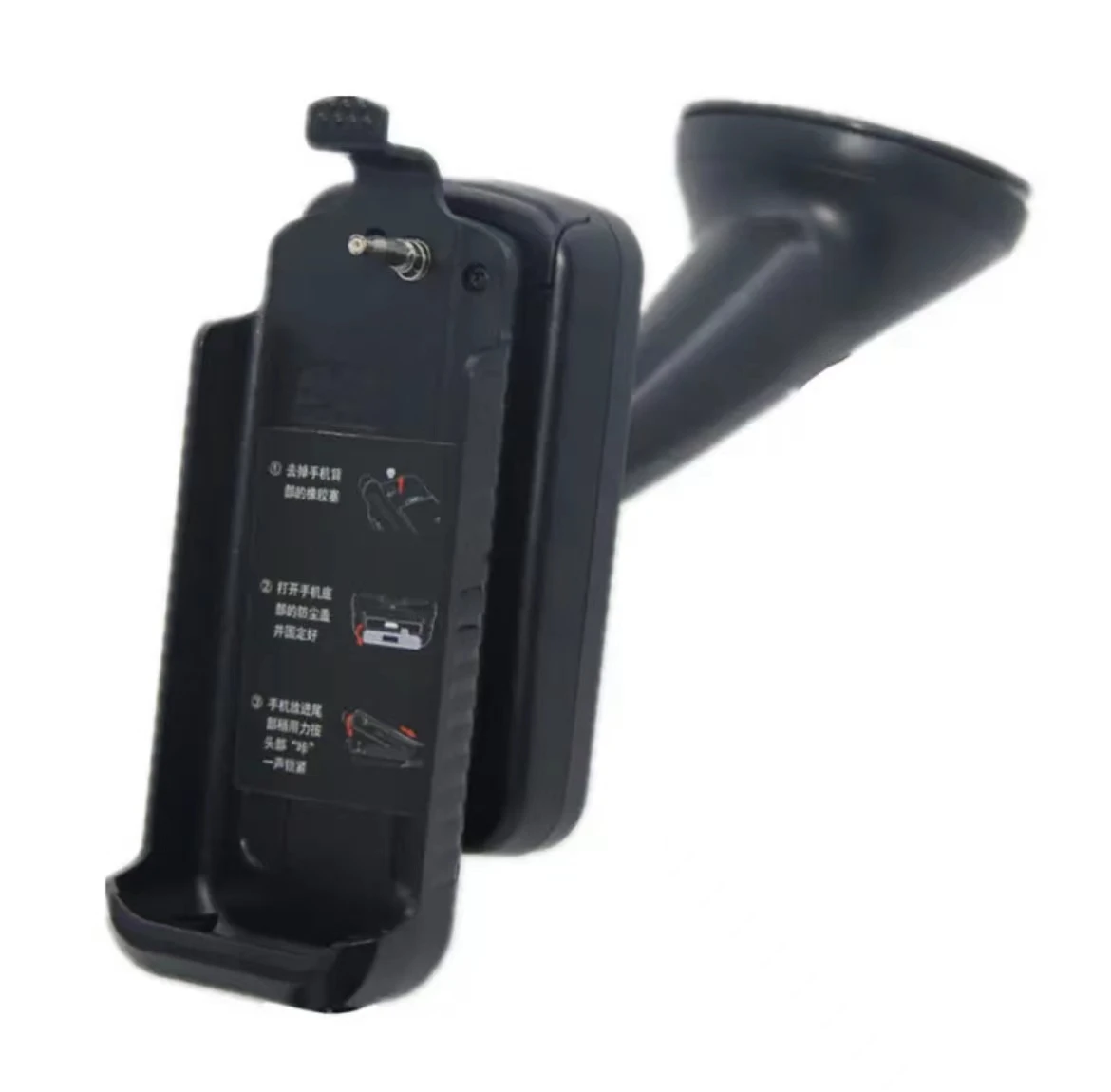

How of use | back clip integrated |
Support fixation | suction cup, adjustable Angle |
Weight | 240 g |
Back clip fixed method | card seat |
Connector | SMA |
Input voltage | 4pin, DC 5V |

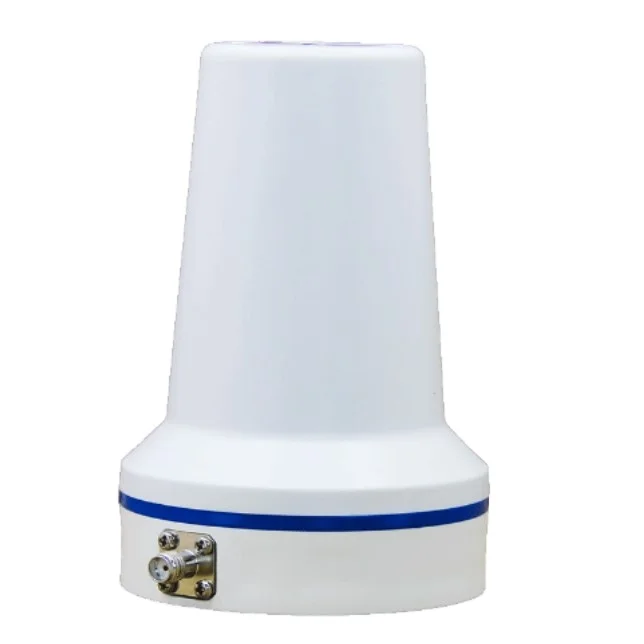

Antenna parameters | |

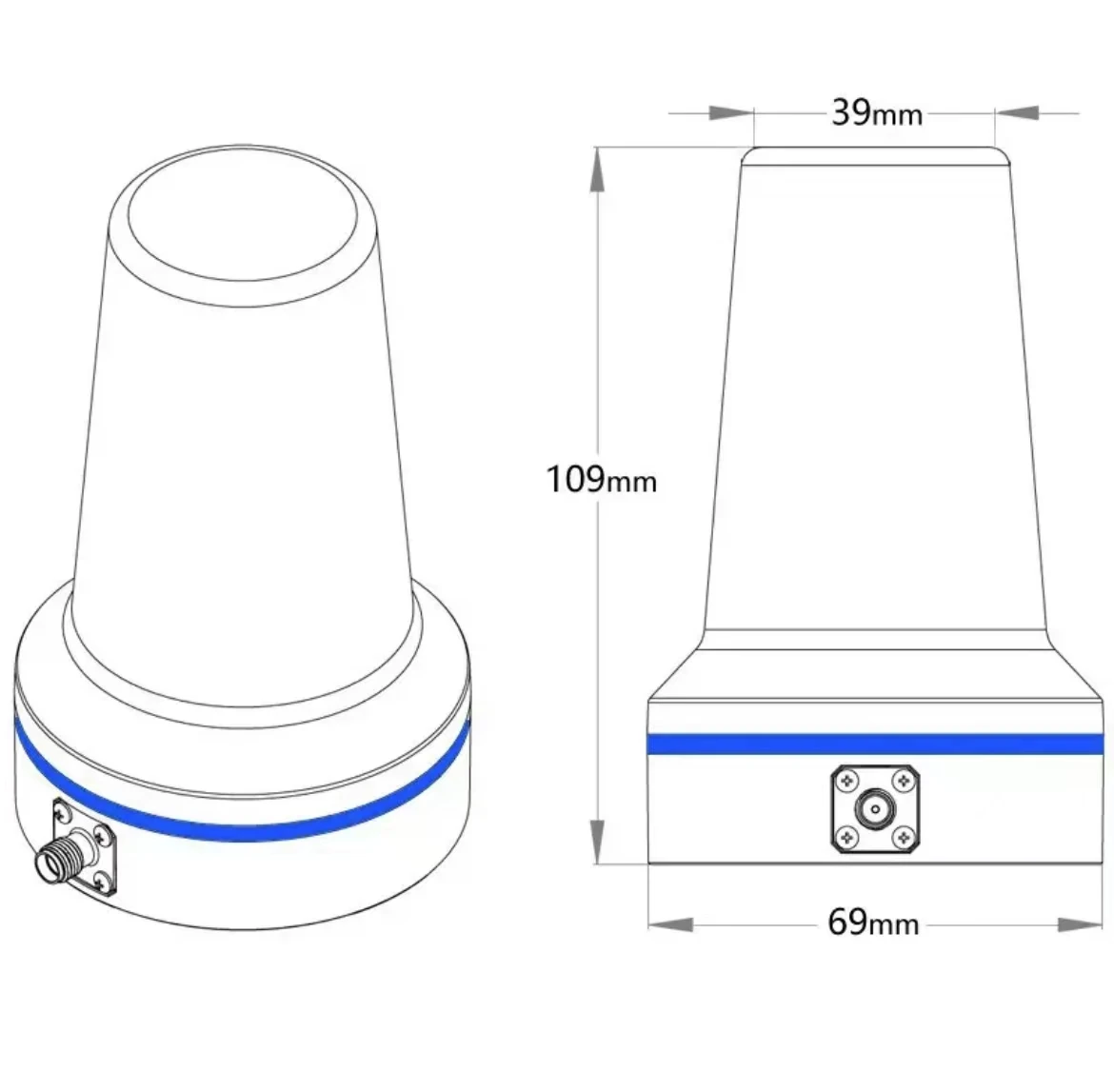

Antenna size | 109mm * 69mm (H * D) star vehicle |
Weight | 128 grams |
Fixed method | magnet suction top |
Emission frequency | 1525MHz-1660.5MHz |
Receive frequency | 1518MHz-1565MHz |
Operating temperature | -40℃ ~70℃ |
Storage temperature | -45℃ ~80℃ |
Vertex gain | greater than 4.5dBi |
Low elevation gain | greater than 2.5dBi |
Beamwidth | greater than 120° |
Standing-wave coefficient | less than 2 |
Polarization mode | left-handed circular polarization |
Axis ratio | less than 3 |
Antenna type | passive omnidirectional |
Protection level | IP66 (dust-proof and waterproof) |
