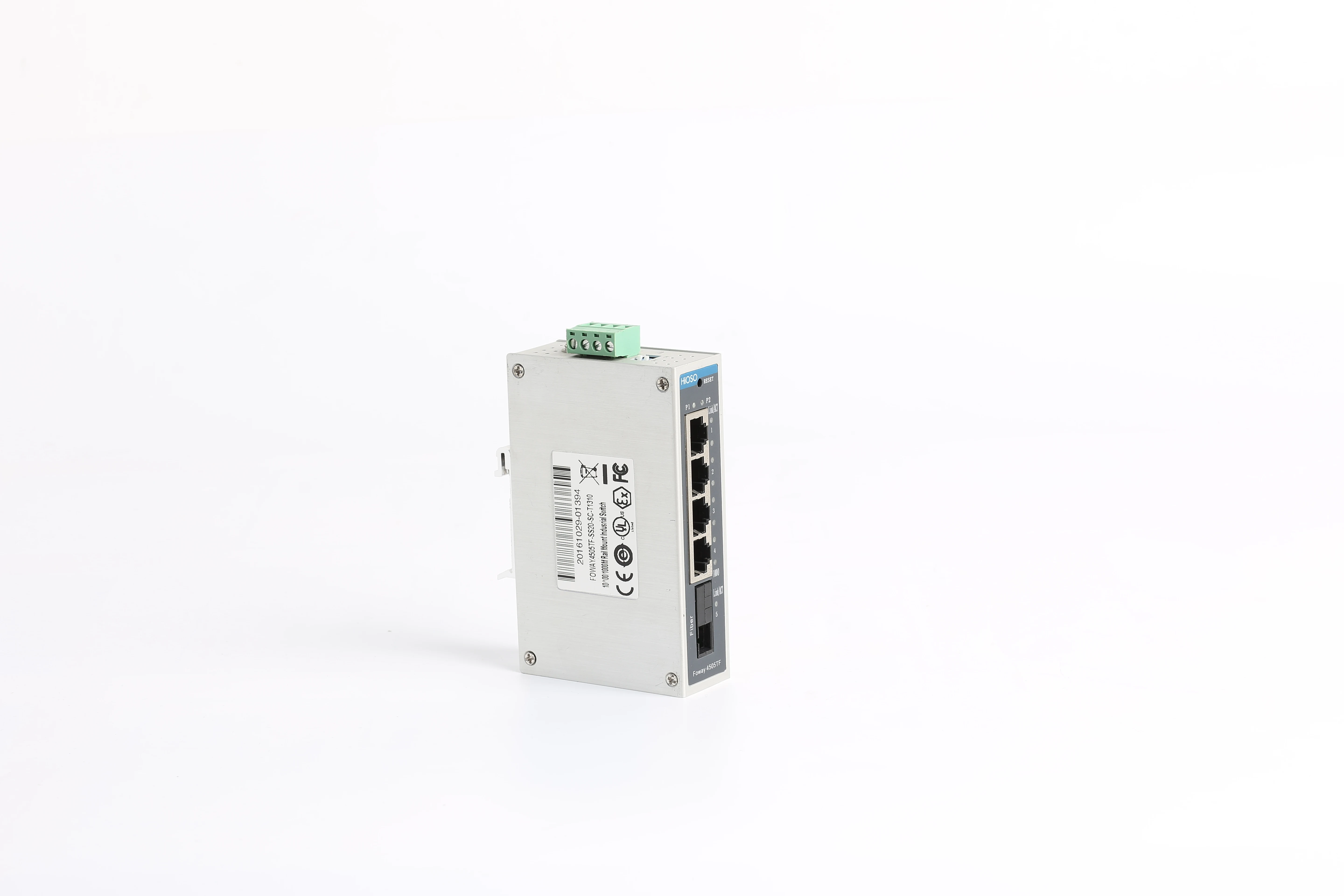

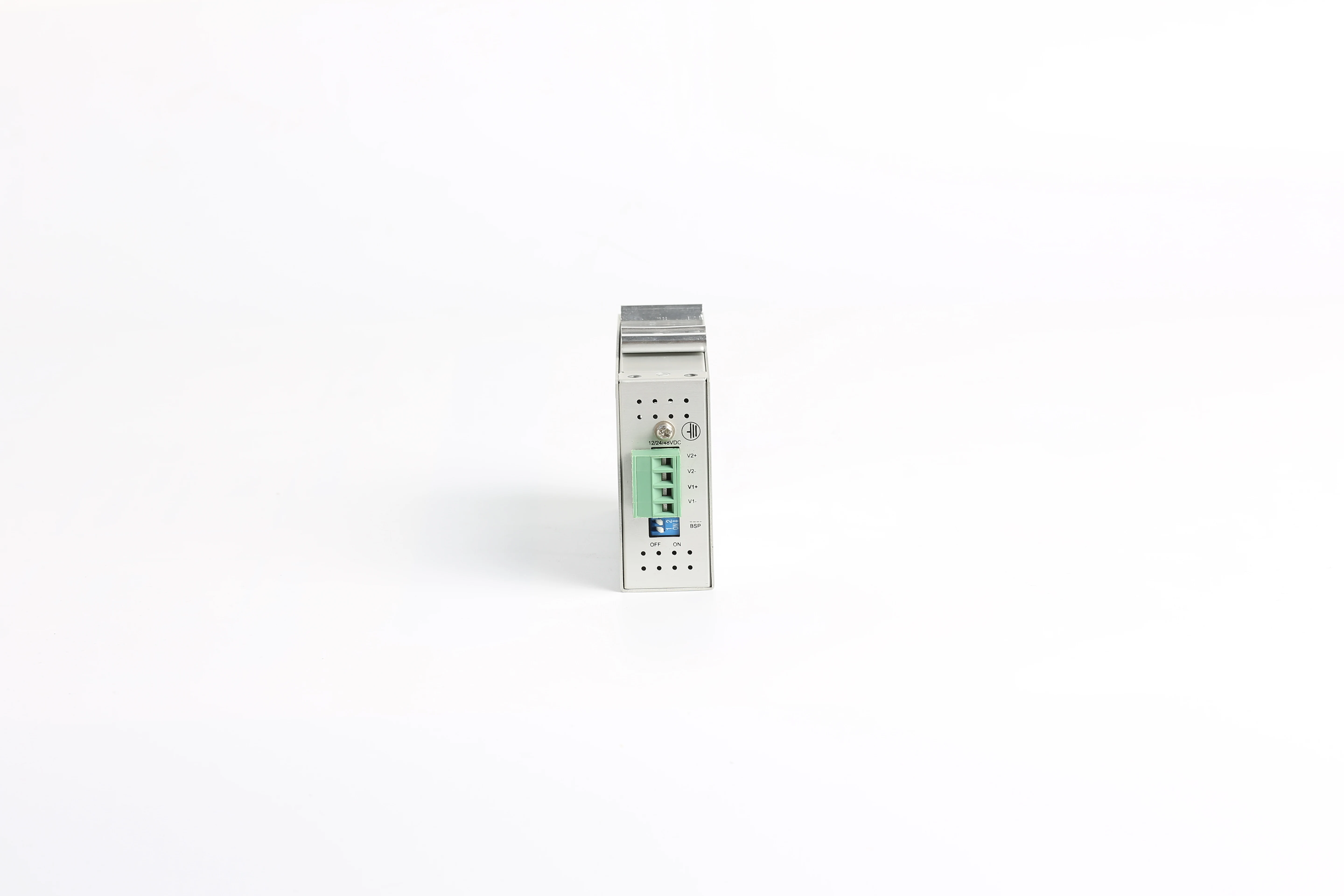

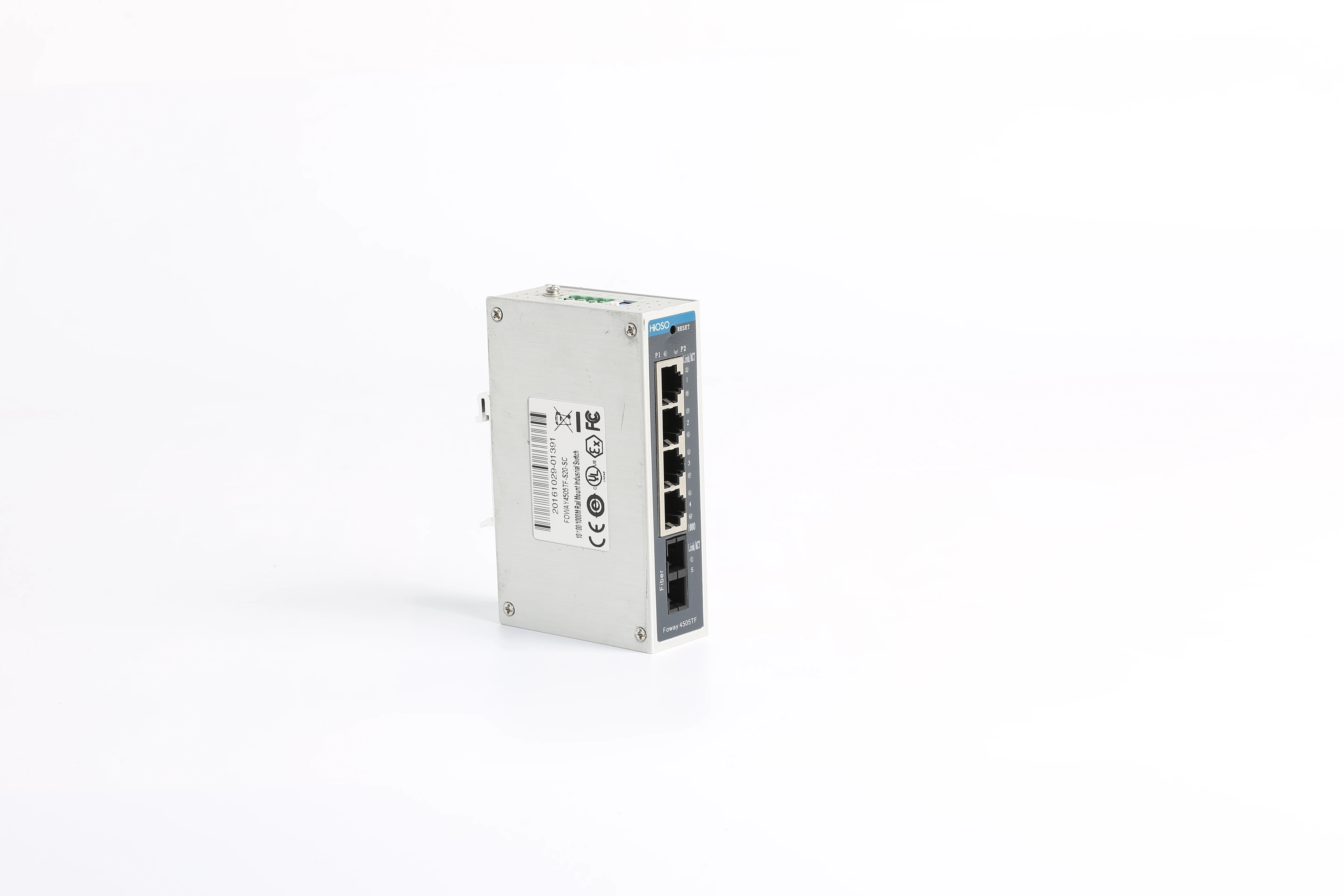

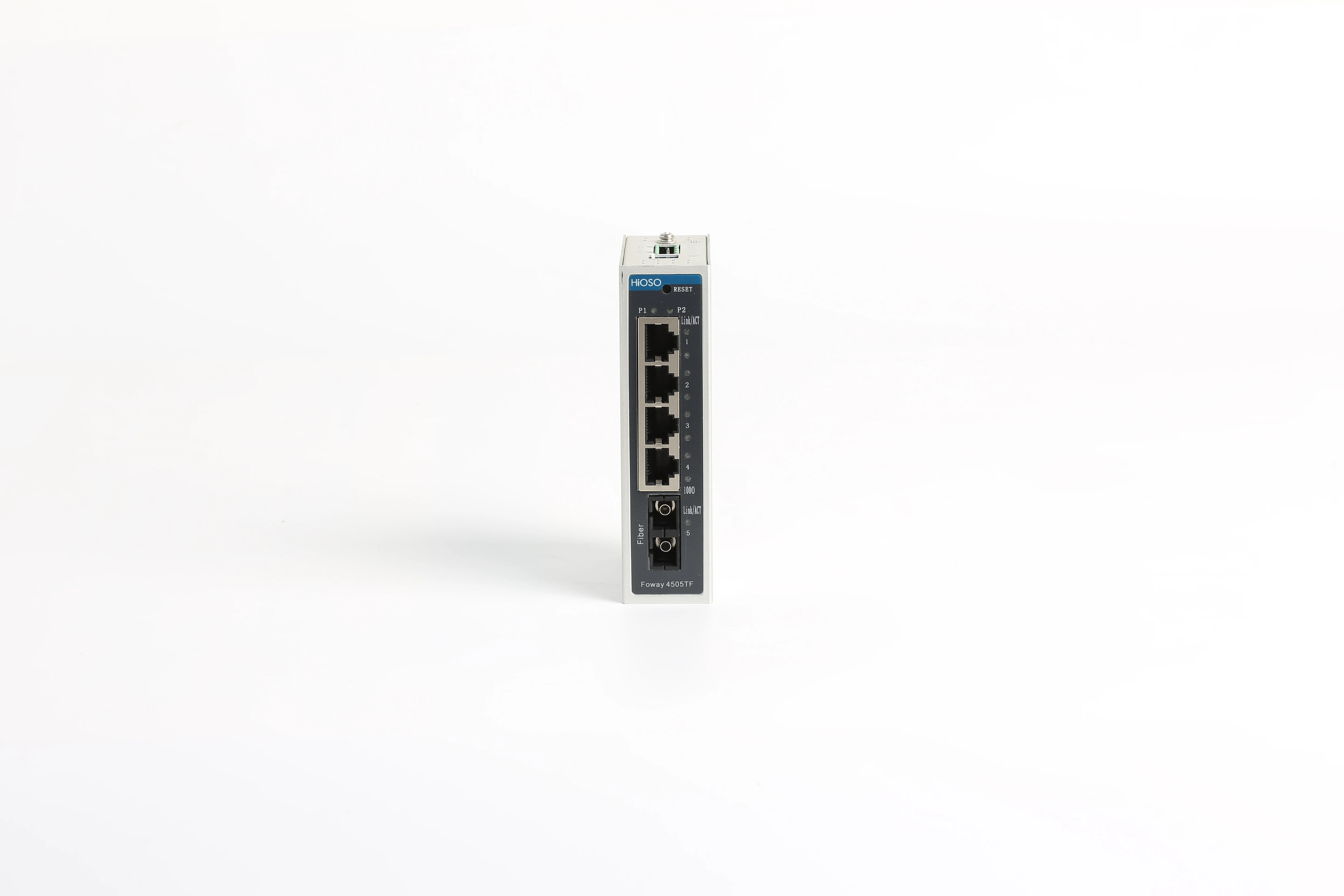

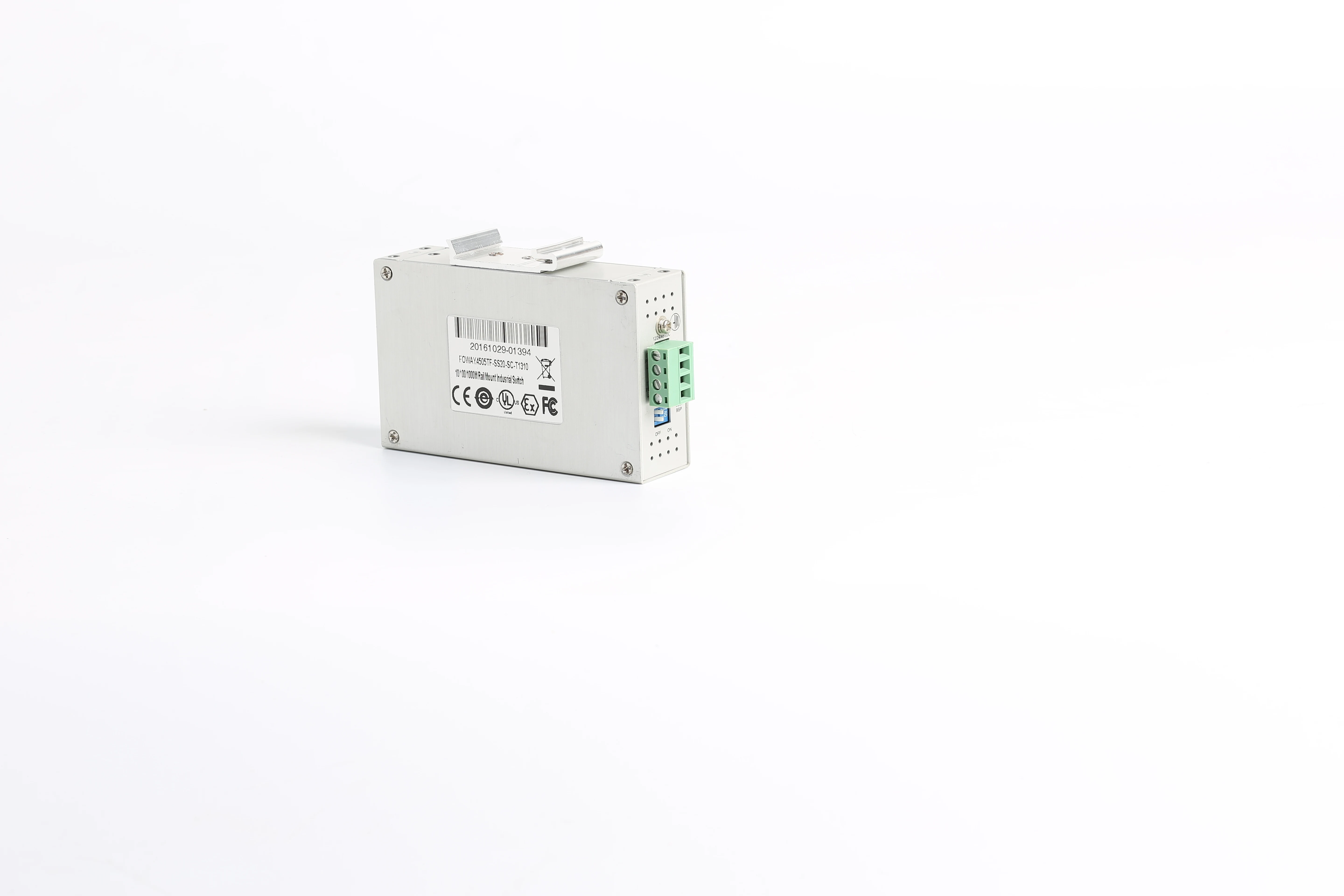

Гигабитный промышленной безопасности коммутатора Ethernet 10/100/1000 м 5-разъемное зарядное

Parameter

Specification

Access mode

10/100/1000Mbps

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3
ad Trunk, IEEE 802.3x Flow Control

Wavelength

850nm/1310nm/1490nm/1550nm

Transmission distance

1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm)
Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km; Category-5 twisted pairs: 100m

Port

4 RJ45 ports: 10/100/1000M; 1 1000M FX port: SC

Conversion mode

Medium conversion, storing and forwarding/straight-through

MAC address table

4K

Buffer space

2Mbit

Flow control

Full duplex state: flow control; half-duplex state: back pressure mode

Delay

1us

Bit error rate

<1/1000000000

MTBF

100,000 hours

LED

FX Link(fiber link/action),TP1/2/3/4 1000M (twisted pair rate 1000M) ,TP1/2/3/4 Link (twisted pair link/act;P1 (power supply P1
connected) ,P2(power supply P2 connected)

Power

12/24/48 VDC，18 ~ 30VAC input

Power consumption

4W

Operating temperature

Normal:-10~60°C ;-T(wide range temperature: -40~75°C

Operating humidity

5%~90%

Storage temperature

-40~85°C

Storage humidity

5%~95% (non-condensing)

Installation

Din rail installation, wall mounting installation

Dimensions

115mm×30mm×70mm (height * width * depth)

No

Product code

NMS

Ports

Power

1

Foway4505TF-M2-SC

No

4GE+1 1000M multi-mode fiber port SC

DC12-48V

2

Foway4505TF-S20-SC

No

4GE+1 1000M dual-fiber single-mode 20km

DC12-48V

3

Foway4505TF-S220-SC-T1310

No

4GE+1 1000M single-fiber single-mode 20km

DC12-48V

4

Foway4505TFM-M2-SC

YES

4GE+1 1000M multi-mode fiber port

DC12-48V

5

Foway4505TFM-S20-SC

YES

4GE+1 1000M dual-fiber single-mode 20km

DC12-48V

6

Foway4505TFM-SS20-SC-T1310

YES

4GE+1 1000M single-fiber single-mode 20km

DC12-48V
