High resolution NDIR CO2 detection SA1200P indoor air quality detector/monitor/meter  0-5000ppm



WHAT IS THE IMPORTANCE OF CO2 MONITOR?
CO2 is not an air pollutant, but it can still have a negative effect on us when levels are too high.
When levels rise, we tend to get sleepy and have trouble focusing, and some people even develop headaches.
For this reason, it is important for occupants to have CO2 monitor to stay at a healthy level.





Product description

High resolution NDIR CO2 detection SA1200P indoor air quality detector/monitor/meter  0-5000ppm

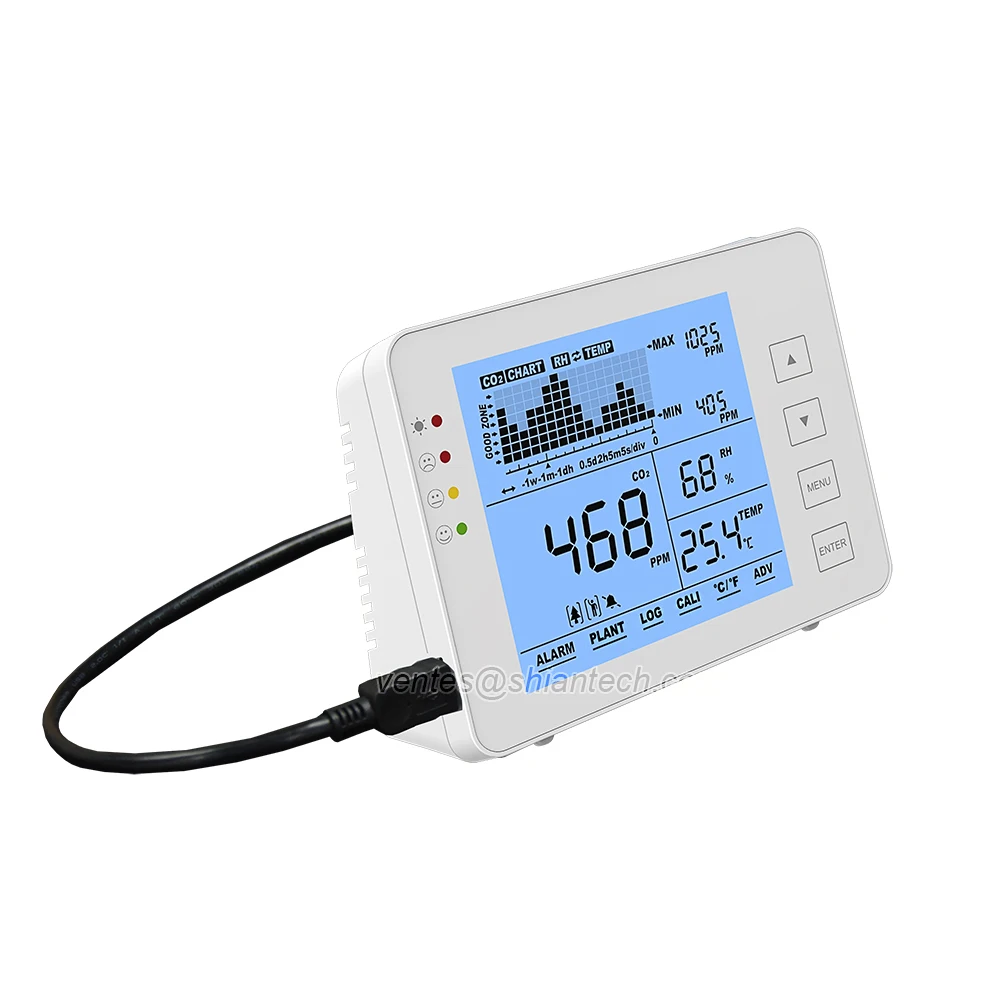

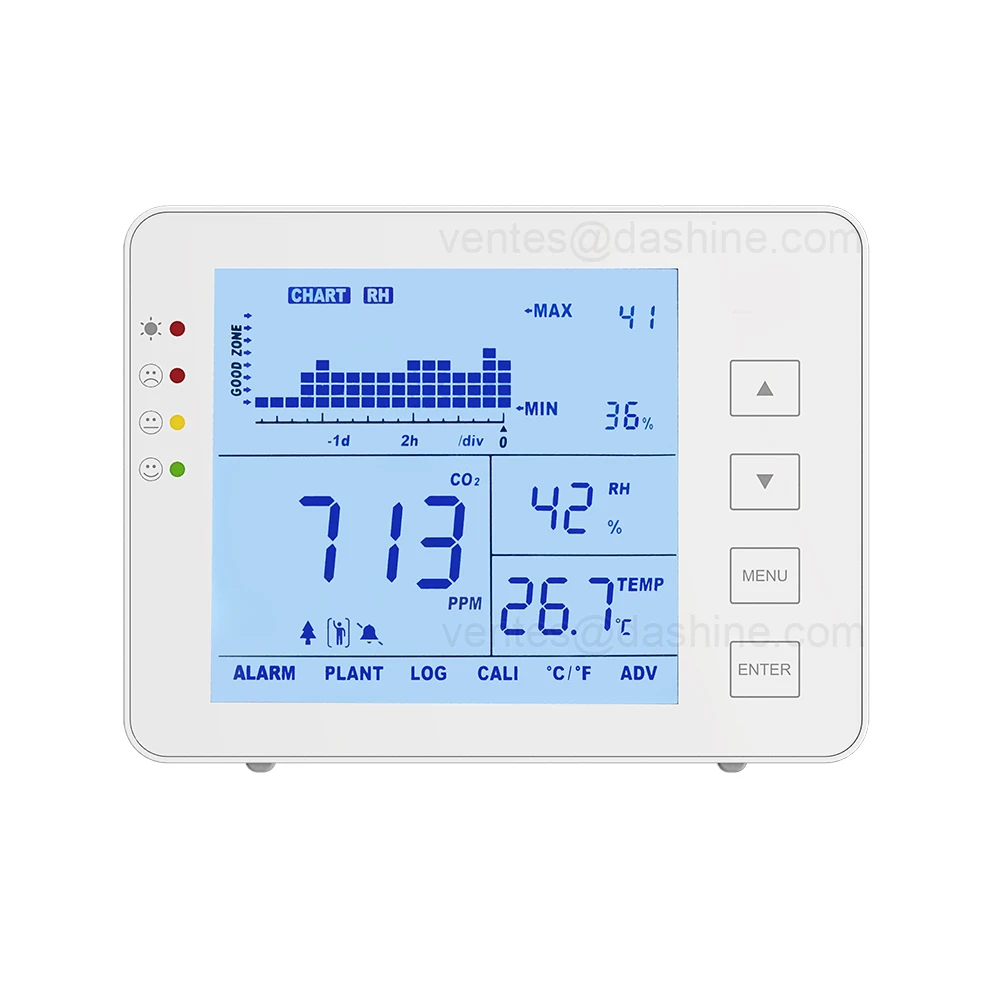

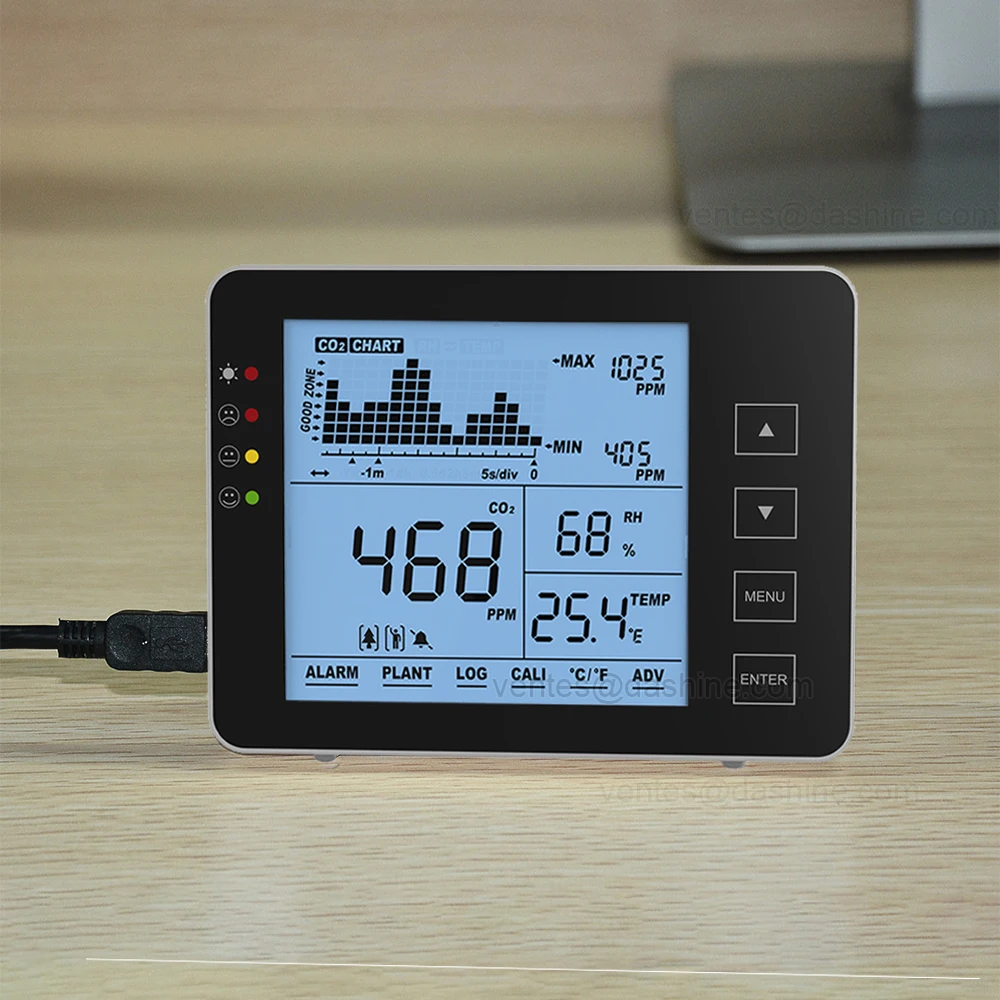

SA1200P co2 air quality monitor indoor is a desktop and wall mountable instrument that measures CO2 concentration in air.
- The instrument displays the real-time value of CO2 concentration in ppm, temperature and relative humidity.
- The measured CO2 value in ppm (parts-per-million) will be displayed on the LCD with tee states indication: Good (0 to 800ppm), Normal (800 to 1200ppm), Poor (>1200ppm). Programmable alarm setting by users.
- It has built-in storage for real-time value display, history MIN/MAX value data recall, from 1min to 1week.
- Powered by USB, or optional AC adapter.

- CE certificate. (EN 55032:2015; EN55035:2017)



Features

High resolution NDIR CO2 detection SA1200P indoor air quality detector/monitor/meter  0-5000ppm

- Monitor CO2 Carbon Dioxide concentrations
- Maintenace free NDIR (non-dispersive infrared) CO2 sensor, high precision and high sensitivity.
- Automatic Baseline Calibration (ABC) with disable feature for use in areas with continuously elevated CO2 levels (>400ppm)
- Triple LCD simultaneously displays CO2, Temperature and Humidity
- Visible and Audible CO2 warning alarm when concentration level exceeds high or low user set point
- Min/Max CO2 value monitor
- Desktop or wall mount, patent structure design ODM & OEM
- Complete with Universal usb cable and optional AC adapter



Indoor Air Quality Detector Application
-Schools
-Greenhouses
-Office buildings
-Factories
-Hospitals
-Hotels
-Transportation lines
-Places where CO2 is generated at high levels

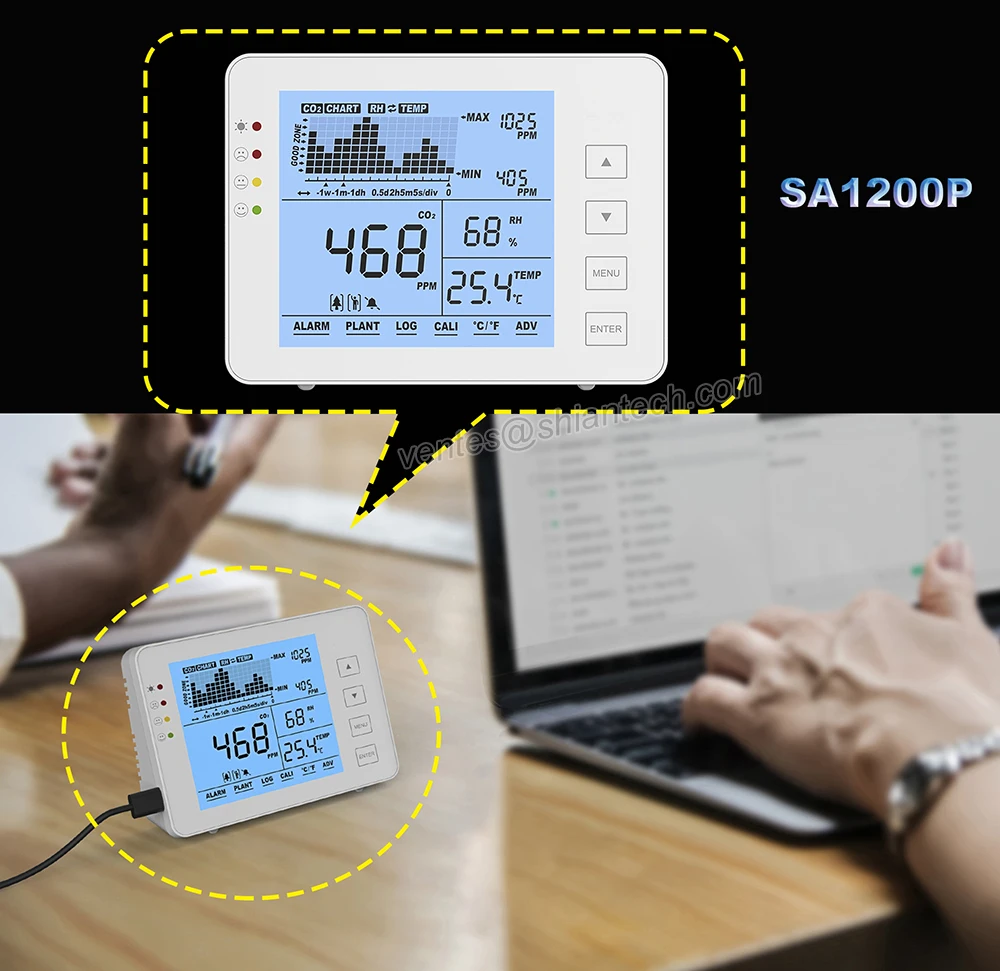

Product Display & Installation

This Indoor Air Quality detector SA1200P can be installed for Wall mount, Desktop and Wall Hanging.

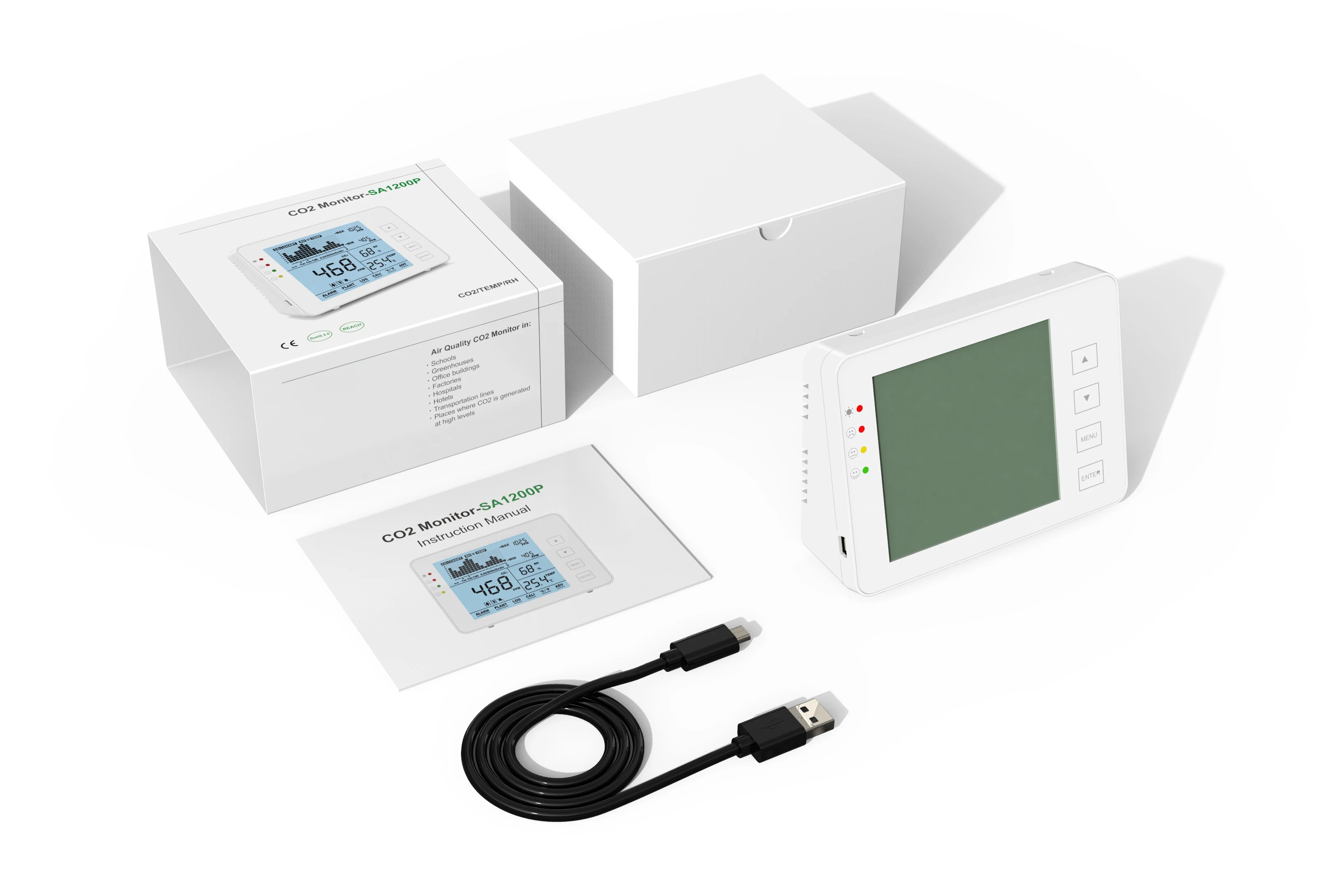

Package list

CO2 Monitor Unit SA1200P
USB Cable for Power
User’s Manual
AC Adapter (Optional)



Specifications

Typical test and conditions: Ambient Temp: 23±3℃, RH=50%~70%, Altitude=0~10 meters

Measurement	Specifications
Operating Temperature	32℉~122℉ (0℃~50℃)
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Operating & storage RH	0-95%(non-condensing)
CO2 Sensor
Measuringe range	(0-5000)ppm
Display resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Accuracy	(0~3000)ppm: ± 50ppm or ± 5% of reading (take the Maximum)
	(>3000)ppm:  ± 7% of reading
Repeatability	20ppm at 400ppm
Temp compensation	±0.1% of reading per ℃ or ±2 ppm per ℃, referenced to 25℃
Response time	2 min for 63% of step change or < 4.6 min for 90% step change
Warm-up time	<20 seconds
Temperature Measurement
Operating temperature	32°F ~ 195°F (0°C ~90°C)
Display resolution	0.1°F (0.1°C)
Response time	<20 minutes (63%)
RH Measurement
Measuring range	5~95%
Accuracy	±5%
Display resolution	1% Main interface display, 0.1% Max/Min display
Power consumption	160mA Peak, 40mA average at 5.0V

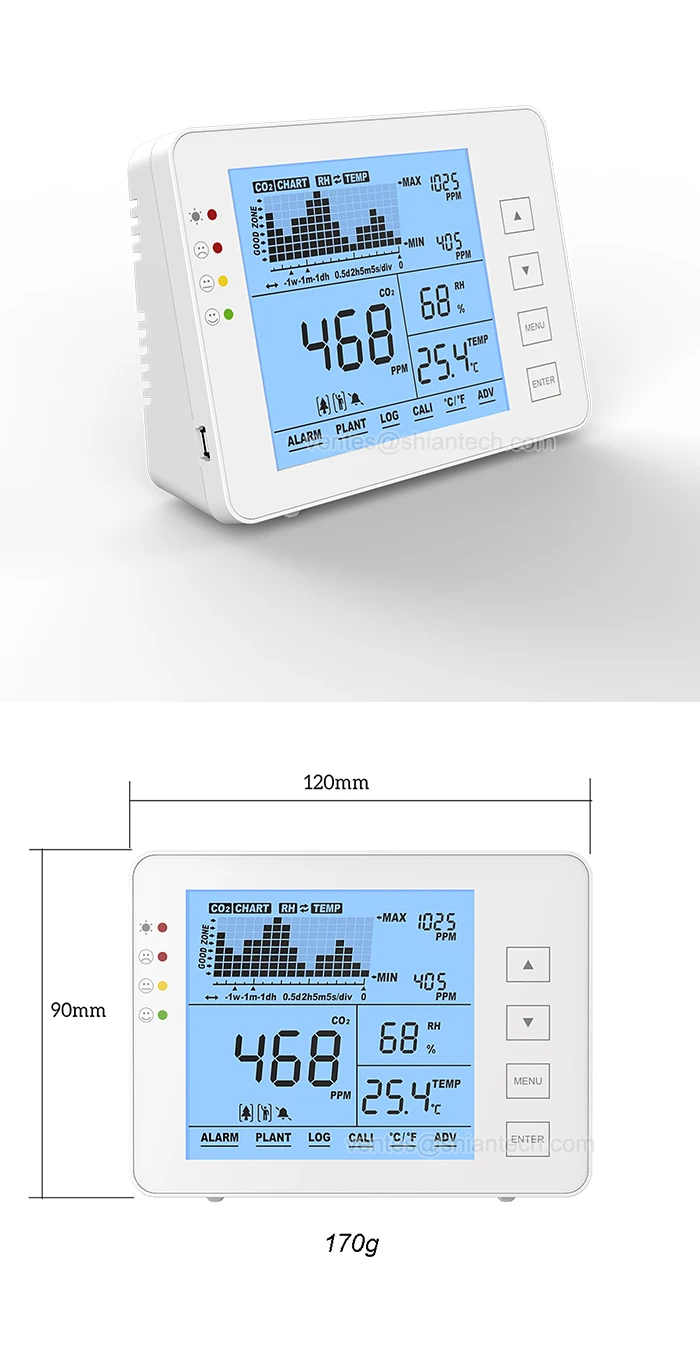

Dimension	120*90*33.5mm  (4.7*3.5*1.3 inch)
Weight	150g ( 5.3 oz)  device only, not including AC adapter

We're looking for distributors all over the world, Price Liberally.
Rebate. (If the total amount is up to 500 sets/year, we will send several extra devices for free.)
OEM. (Can print company name on the back label of device. Print company logo on the front look of device, if the quantity is big.)
Change the color of device.
Change other accessories, if need.



About us

Design & Moulding with 14 years’ experience, we make solidest and most practical products

Stricter quality inspection--we persue higher accuracy

Customization--we customize the exact product in your heart

Beijing Shi’an Tech Instrument Co., Ltd is grown out of Beiijing Dashiweye Technology Co., Ltd, and it’s engaged in designing and manufacturing portable gas detectors.
