Манометр для воздушного компрессора Yong heng
US $8.00-$16.00
Высокоточный масляный сепаратор воздушного компрессора F115 * OD90 H135 для кВт 10 л.с. запасные
- Категория: Industrial Compressor Parts >>>
- Поставщик: Zhejiang,Shanhai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 70.40 $* | 71.47 $* |
| Jul-20-2025 | 57.42 $* | 58.69 $* |
| Jun-20-2025 | 69.3 $* | 70.79 $* |
| May-20-2025 | 68.64 $* | 69.72 $* |
| Apr-20-2025 | 54.89 $* | 55.37 $* |
| Mar-20-2025 | 67.14 $* | 68.93 $* |
| Feb-20-2025 | 67.1 $* | 68.41 $* |
| Jan-20-2025 | 66.19 $* | 67.19 $* |
Характеристики

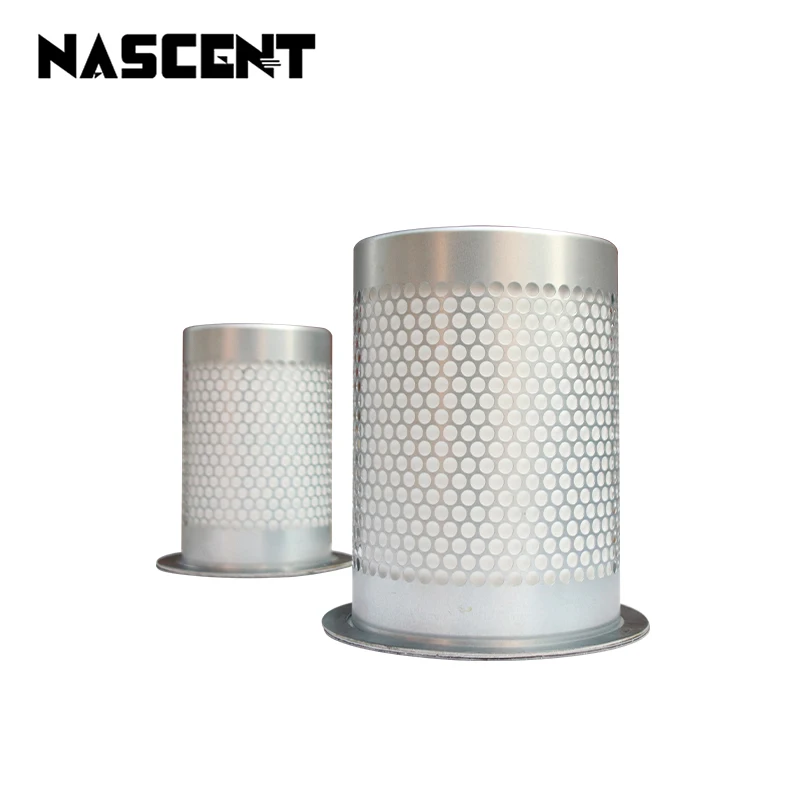

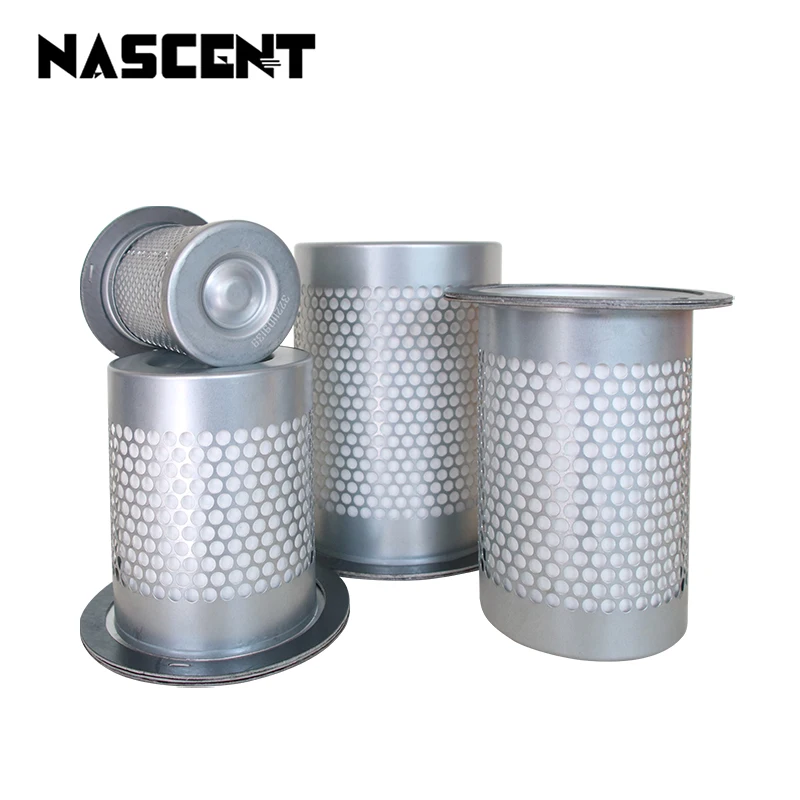

High Precision Air Compressor Oil Separator F115*OD90*H135 For 7.5kw 10hp Spare Parts
Products Description
High efficiency screw air compressor spare parts: oil separator
Type | Compressor Oil Separator Core |
Dimension | Standard |
Working Temperature | Customized |
Work Pressure Different | Customized |
Material | Ultra-fine lass fiber composite filter from USA HV & Lydall |
Oil mist particles | ≤0.01μm |
Oil Content | 3~6ppm |
Initial presure difference | ≤0.02MPa |
Lifespan | 2000 hours |
MOQ | 1 pieces |
Delivery Time | Around 3-5 days after order confirmed |
Advantages | 1. Adopt imported glass-fiber media 2. High filtration efficiency over 99.9% |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Product Paramenters
Serial No. | Name | Model | Suitable Screw Compressor |
02.06.000-003001 | OIL SEPARATOR | 10HP 3221109139/d1=90, d2=115, h=135 | 7.5KW |
02.06.000-003002 | OIL SEPARATOR | 20HP 3221113167/d1=135, d2=170, h=160 | 11-15KW |
02.06.000-003003 | OIL SEPARATOR | 30HP 3221113204/d1=135, d2=170, h=200 | 22KW |
02.06.000-003004 | OIL SEPARATOR | 50HP 3221117230/d1=170, d2=355, h=305 | 37KW |
02.06.000-003005 | OIL SEPARATOR | 100HP SMMA530/d1=300, d2=355, h=305 | 55-75KW |
02.06.000-003006 | OIL SEPARATOR | SMMA716G/B/d1=135, d2=170, h=160 (20-16) | 15KW/16KG |
02.06.000-003007 | OIL SEPARATOR | 150HP SMMA540/d1=300, d2=355, d3=220, h=400 | 110-132KW |
02.06.000-003008 | OIL SEPARATOR | SMMA720G/B/d1=135, d2=170, h=200 (30-16) | 22KW/16KG |
02.06.000-003009 | OIL SEPARATOR | SMMA023G/B/d1=170, d2=200, h=230 (50-16) | 37KW/16KG |
02.06.000-0030011 | OIL SEPARATOR | SMJF113G/d1=90, d2=115, h=135 (10-16) | 7.5KW/16KG |
02.06.000-0030012 | OIL SEPARATOR | 220HP SMBS545/d1=300, d2=355, H=450 | 110KW TWO-STAGE |
02.06.000-0030013 | OIL SEPARATOR | 100HP SMMA530G-16kg/d1=300, d2=355, h=305 | 55KW-16KG |

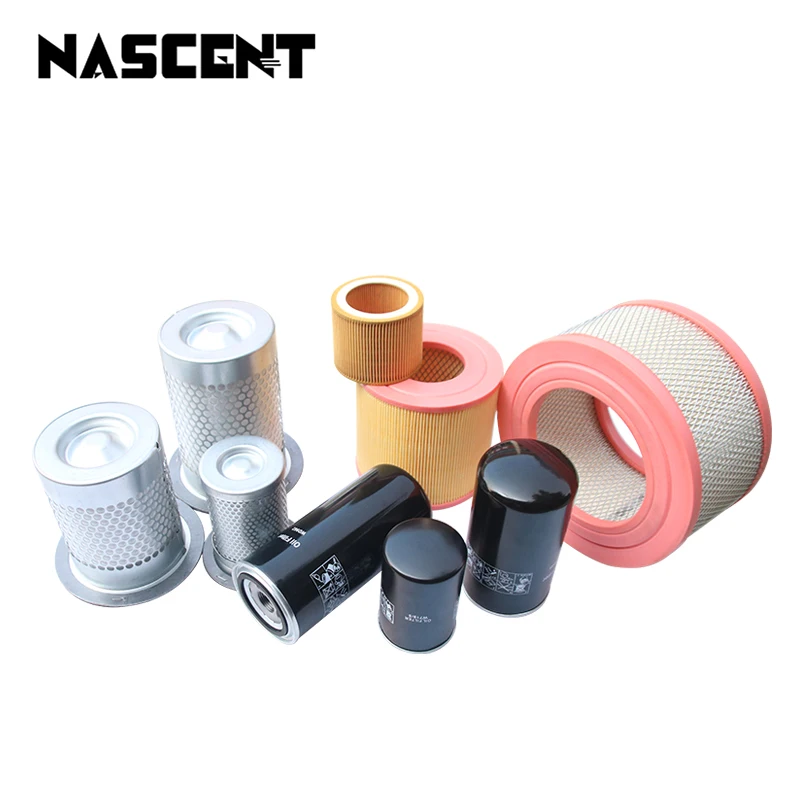

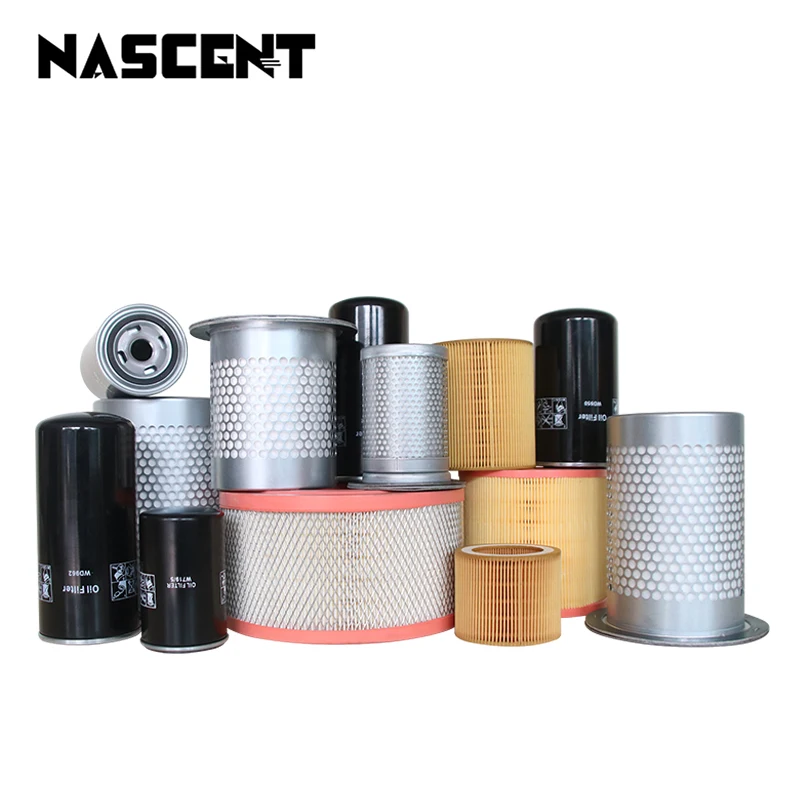

We produce air intake filter elements, oil separators, oil filters and compressed gas filters for screw air compressors. We also produce alternative products for other well-know brand filter elements.
