Промышленный пылесборник пылесос MF9030
US $185.00-$190.00
Гидравлический фильтрующий пресс для вина масла химических веществ медицины химической
- Категория: Filtration Equipment >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4760.15 $* | 4998.74 $* |
| Aug-15-2025 | 4720.67 $* | 4956.29 $* |
| Jul-15-2025 | 3960.62 $* | 4158.0 $* |
| Jun-15-2025 | 4640.45 $* | 4872.12 $* |
| May-15-2025 | 4040.97 $* | 4242.29 $* |
| Apr-15-2025 | 4560.59 $* | 4788.96 $* |
| Mar-15-2025 | 4520.61 $* | 4746.59 $* |
| Feb-15-2025 | 4480.1 $* | 4704.21 $* |
| Jan-15-2025 | 4440.52 $* | 4662.14 $* |
Характеристики
Product Features

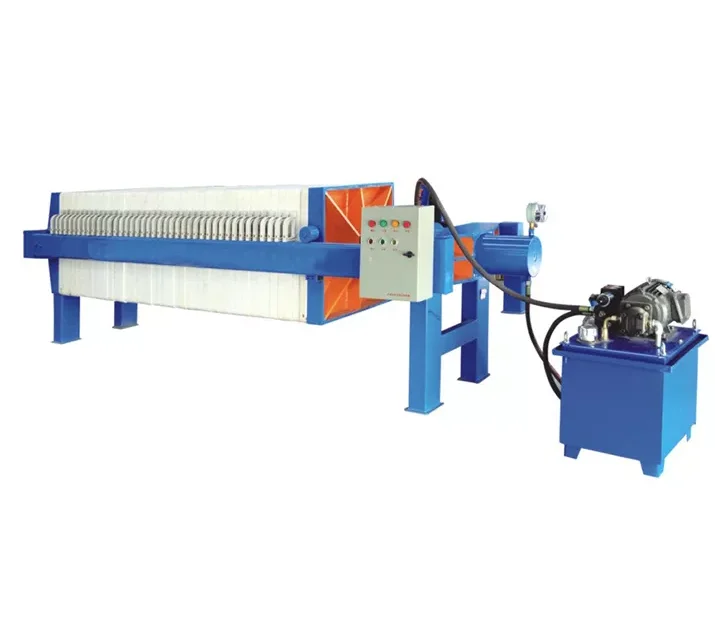

Press filter is a kind of mechanical equipment that uses a special filter medium to exert a certain pressure on the object to make the liquid dialysis out. It is a common solid-liquid separation equipment. It was used in chemical production in the early 18th century and is still widely used in chemical, pharmaceutical, metallurgy, dyes, food, brewing, ceramics, environmental protection and other industries.
Production Process
Filter Press—Working Principle
Chamber filter press takes filter cloth as the medium to separate solid and liquid. It is a separating machine with wide rang of particle size. The filter cloth spreads in a filter board surface, it is supported by the swelling groove of filter board, when the filter board is clamped, filter cloth turns to sealing materials, and the cavity between every two filter board forms a separated filter room. During the filter processing, the materials come through the central opening into filter room, the filtrate flow by the feeding pressure, flow out of the filter board after converged. Chamber filter press can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.Plate and frame press filter separates solid from the liquid in filter form. It is a separating machine with wide rang of particle
size. Materials come through the filter room that made up of filter board and filter frame,under the pressure of feeding materials, the filtrate flow through the medium that made up of filter board and filter frame-fiber gap of the filter cloth,arriving at the pattern surface, flow out of the filter board after converged. The solid that left in the filter frame forms filter cake. Plate and frame filter can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow..
Chamber filter press takes filter cloth as the medium to separate solid and liquid. It is a separating machine with wide rang of particle size. The filter cloth spreads in a filter board surface, it is supported by the swelling groove of filter board, when the filter board is clamped, filter cloth turns to sealing materials, and the cavity between every two filter board forms a separated filter room. During the filter processing, the materials come through the central opening into filter room, the filtrate flow by the feeding pressure, flow out of the filter board after converged. Chamber filter press can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.Plate and frame press filter separates solid from the liquid in filter form. It is a separating machine with wide rang of particle
size. Materials come through the filter room that made up of filter board and filter frame,under the pressure of feeding materials, the filtrate flow through the medium that made up of filter board and filter frame-fiber gap of the filter cloth,arriving at the pattern surface, flow out of the filter board after converged. The solid that left in the filter frame forms filter cake. Plate and frame filter can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow..
Specification
Model | XAZGEFQD40/800 | ||
Filtering pressure | MPa | ≤0.6 | |
Rubber membrane squeezing pressure | MPa | ≤1.0 | |
Filtering temperature | ℃ | -10~90 | |
Total chamber volume | m³ | 0.6 | |
Filter area | m² | 40 | |
Designed depth of chamber | mm | 30 | |
Qty of filter/membrane plate | PC | 19/20+2 | |
Maximum hydraulic protecting pressure | Mpa | 29 | |
Maximum hydraulic pressing pressure | Mpa | 25 | |
Max. stroke distance of pressing board | mm | 800 | |
Diameter of hydraulic Cylinder | mm | 200 | |
Drip tray motor power | KW | 0.55 | |
Cloth washing system lift motor power | KW | 1.1 | |
Host hydraulic station motor power | KW | 4.0 | |
Belt Conveyor motor power | KW | 2.2 | |
Total equipment weight | KG | 4950 | |
Product Description

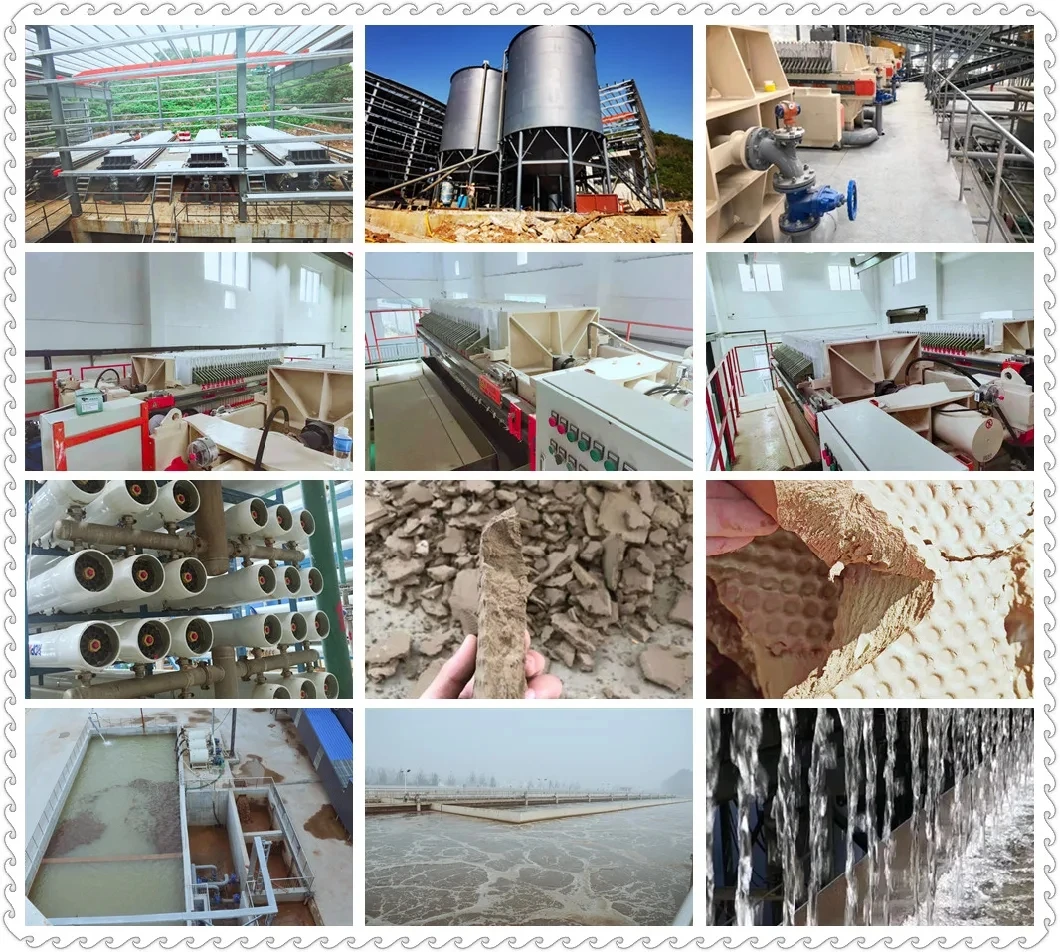

Product Application
Packing & Delivery
Company Profile
Henan Yugong Machinery Co., Ltd. located in China's national central city--Zhengzhou, with abundant resources and convenient transportation. Our company is a integrated large-scale manufacturing enterprise.
Our company experienced 15 years of high-speed development, gathering large number of talents and winning sound reputation and credibility. Our product quality, rapid and healthy development ensured by convenient transportation network, advanced management concepts, and comprehensive management system.
Henan Yugong Machinery Co., Ltd.: Take the reforming as the motive force, science and technology oriented, culture as the soul, continuously strengthen and improve enterprise management toward scientization, informatization, modernization. We sincerely expect to cooperate with various circles, achieve mutual benefit and win-win situation.
Our company experienced 15 years of high-speed development, gathering large number of talents and winning sound reputation and credibility. Our product quality, rapid and healthy development ensured by convenient transportation network, advanced management concepts, and comprehensive management system.
Henan Yugong Machinery Co., Ltd.: Take the reforming as the motive force, science and technology oriented, culture as the soul, continuously strengthen and improve enterprise management toward scientization, informatization, modernization. We sincerely expect to cooperate with various circles, achieve mutual benefit and win-win situation.
