Завод OEM низкоуглеродистая сталь Q235 оцинкованная h-образные балки Индивидуальный размер h-образный
- Категория: Steel H-Beams >>>
- Поставщик: Shandong,Pulda,Metal,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 655.89 $* | 688.31 $* |
| Aug-16-2025 | 649.33 $* | 681.79 $* |
| Jul-16-2025 | 545.32 $* | 572.92 $* |
| Jun-16-2025 | 638.82 $* | 670.53 $* |
| May-16-2025 | 556.79 $* | 584.64 $* |
| Apr-16-2025 | 627.81 $* | 658.86 $* |
| Mar-16-2025 | 622.96 $* | 653.34 $* |
| Feb-16-2025 | 616.58 $* | 647.45 $* |
| Jan-16-2025 | 611.32 $* | 642.72 $* |
Характеристики

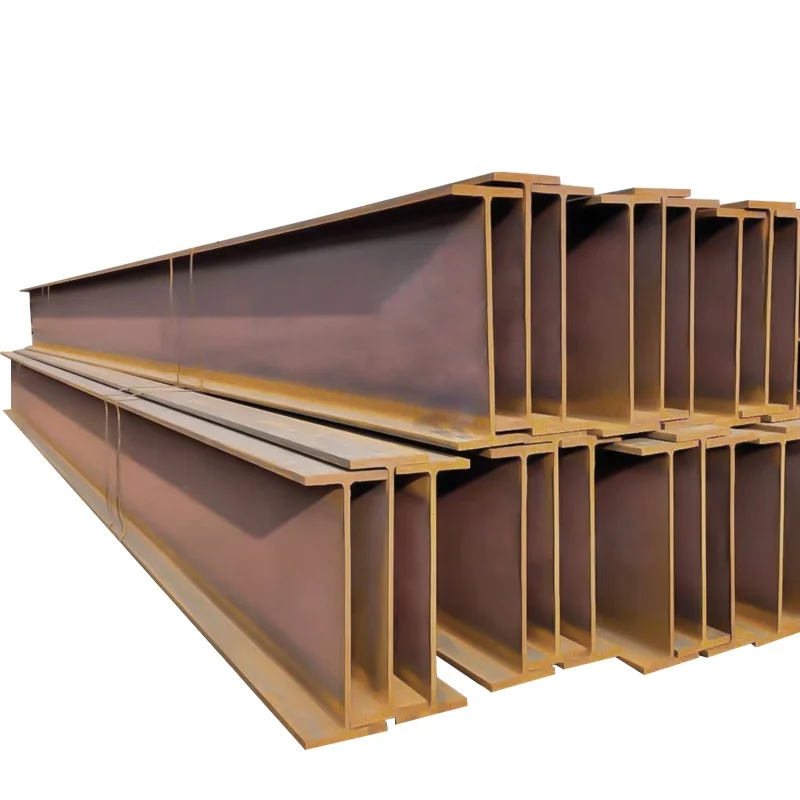

H-beam is named due to its shape. The parallel pieces are known as flanges, which are wider than I-beam – hence the name wide flange beam – and the line drawing included piece is called the web. Wide flange beam is also known as H-beam due to their distinctive shape, similar to a capital letter “H” when viewed at the cross section. This shape is very efficient for carrying loads of weight without bending.
H-beams are structural support materials that are primarily used for building. Able to bear excessive amounts of pressure, they ensure structural integrity and stability.
The thickness of the H-beam will determine the type of jobs it is best suited for. It is important to consider the force applied, the weight carried and the tension and compression. Smaller sizes are normally used for jobs where the amount of pressure and weight will be minimal, while larger thicker sizes of steel wide flange beams are used to support structures that bear massive amounts of weight.
H-beams are structural support materials that are primarily used for building. Able to bear excessive amounts of pressure, they ensure structural integrity and stability.
The thickness of the H-beam will determine the type of jobs it is best suited for. It is important to consider the force applied, the weight carried and the tension and compression. Smaller sizes are normally used for jobs where the amount of pressure and weight will be minimal, while larger thicker sizes of steel wide flange beams are used to support structures that bear massive amounts of weight.
Size | Wgt. Per Ft. | (A) Section Depth (In.) | (B) Web Thk. | (C) Flange Width | (D) Flange Thk. | |
W | 4 | 13 | 4.16 | 0.28 | 4.06 | 0.375 |
W | 5 | 16 | 5.01 | 0.26 | 5 | 0.36 |
19 | 5.15 | 0.27 | 5.03 | 0.43 | ||
W | 6 | 9 | 5.9 | 0.17 | 3.94 | 0.215 |
12 | 6.03 | 0.23 | 4 | 0.28 | ||
15 | 5.99 | 0.23 | 5.99 | 0.26 | ||
16 | 6.28 | 0.26 | 4.03 | 0.405 | ||
20 | 6.2 | 0.26 | 6.02 | 0.365 | ||
25 | 6.38 | 0.32 | 6.08 | 0.455 | ||
W | 8 | 10 | 7.89 | 0.17 | 3.94 | 0.205 |
13 | 7.99 | 0.23 | 4 | 0.255 | ||
15 | 8.11 | 0.245 | 4.015 | 0.315 | ||
18 | 8.14 | 0.23 | 5.25 | 0.33 | ||
21 | 8.28 | 0.25 | 5.27 | 0.4 | ||
24 | 7.93 | 0.245 | 6.495 | 0.4 | ||
28 | 8.06 | 0.285 | 6.535 | 0.465 | ||
31 | 8 | 0.285 | 7.995 | 0.435 | ||
35 | 8.12 | 0.31 | 8.02 | 0.495 | ||
40 | 8.25 | 0.36 | 8.07 | 0.56 | ||
48 | 8.5 | 0.4 | 8.11 | 0.685 | ||
58 | 8.75 | 0.51 | 8.22 | 0.81 | ||
67 | 9 | 0.57 | 8.28 | 0.935 | ||
W | 10 | 12 | 9.87 | 0.19 | 3.96 | 0.21 |
15 | 9.99 | 0.23 | 4 | 0.27 | ||
17 | 10.11 | 0.24 | 4.01 | 0.33 | ||
19 | 10.24 | 0.25 | 4.02 | 0.395 | ||
22 | 10.17 | 0.24 | 5.75 | 0.36 | ||
26 | 10.33 | 0.26 | 5.77 | 0.44 | ||
30 | 10.47 | 0.3 | 5.81 | 0.51 | ||
33 | 9.73 | 0.29 | 7.96 | 0.435 | ||
39 | 9.92 | 0.315 | 7.985 | 0.53 | ||
45 | 10.1 | 0.35 | 8.02 | 0.62 | ||
49 | 9.98 | 0.34 | 10 | 0.56 | ||
54 | 10.09 | 0.37 | 10.03 | 0.615 | ||
60 | 10.22 | 0.42 | 10.08 | 0.68 | ||
68 | 10.4 | 0.47 | 10.13 | 0.77 | ||
77 | 10.6 | 0.53 | 10.19 | 0.87 | ||
88 | 10.84 | 0.605 | 10.265 | 0.99 | ||
100 | 11.1 | 0.68 | 10.34 | 1.12 | ||
112 | 11.36 | 0.755 | 10.415 | 1.25 |
Q1: Are you trading company or manufacturer ?
A: We are a factory. Our factory locates in Shandong Province. If you would like to visit our factory, just inform us in advance, we warmly welcome all of our clients to visit us.
Q2: How long is your delivery time?
A: Generally, it is 10-15 days after receiving the deposit.
Q3: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, etc.
Q5: What is your sample policy?
A: We can supply free samples if we have ready parts in stock, but the courier cost are charged. Q6: what is your main products?
A: Our main products are listed as follows: Precision steel pipe, Hot Rolled steel pipe, Cold Drawn steel pipe, Seamless steel pipe, Alloy steel pipe, Bearing steel pipe, Welded pipe, Spiral pipe, Galvanized pipe etc.
A: We are a factory. Our factory locates in Shandong Province. If you would like to visit our factory, just inform us in advance, we warmly welcome all of our clients to visit us.
Q2: How long is your delivery time?
A: Generally, it is 10-15 days after receiving the deposit.
Q3: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, etc.
Q5: What is your sample policy?
A: We can supply free samples if we have ready parts in stock, but the courier cost are charged. Q6: what is your main products?
A: Our main products are listed as follows: Precision steel pipe, Hot Rolled steel pipe, Cold Drawn steel pipe, Seamless steel pipe, Alloy steel pipe, Bearing steel pipe, Welded pipe, Spiral pipe, Galvanized pipe etc.
