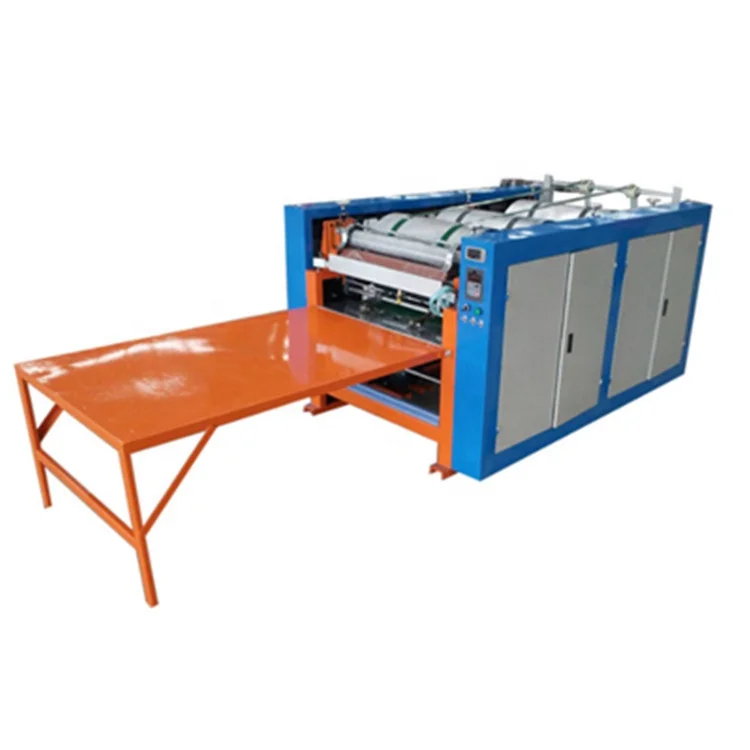

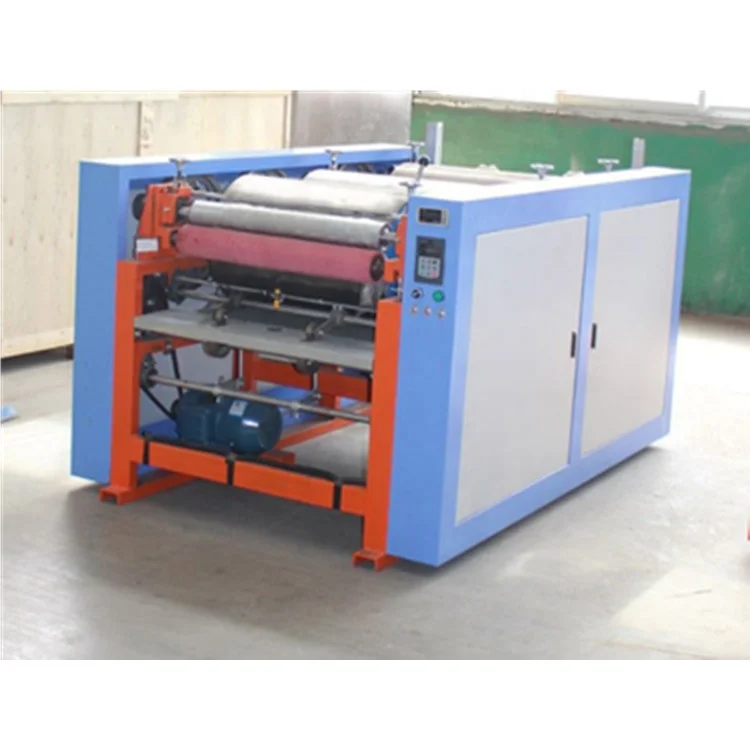

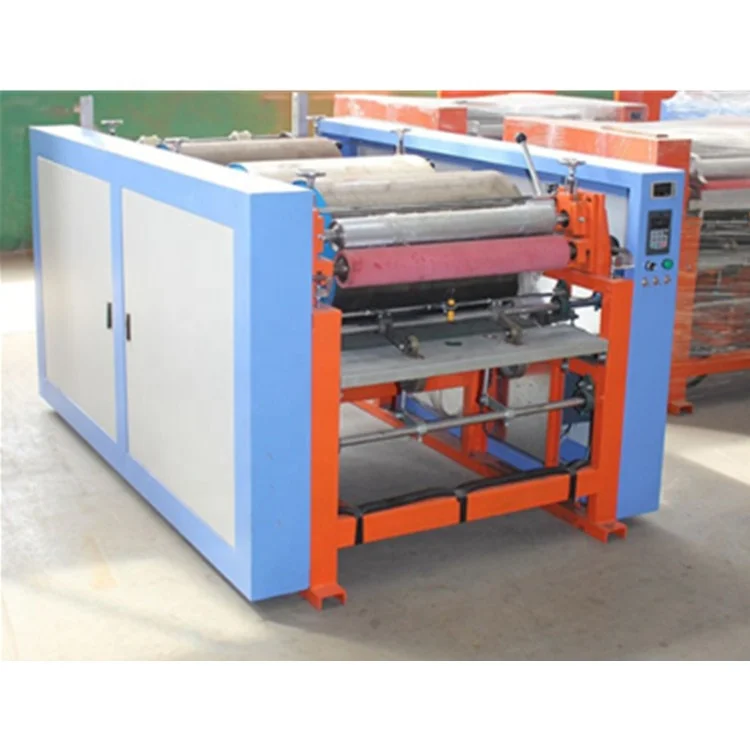

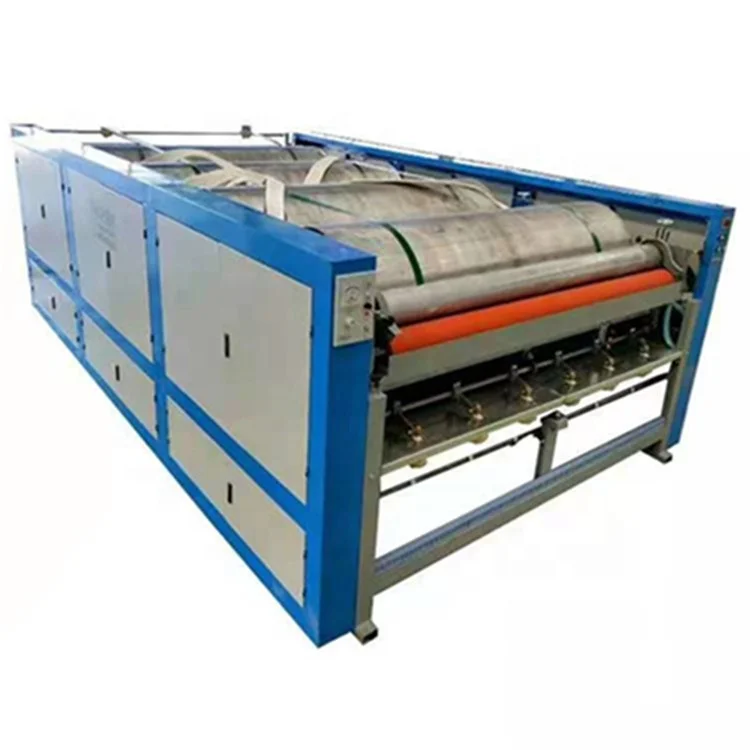

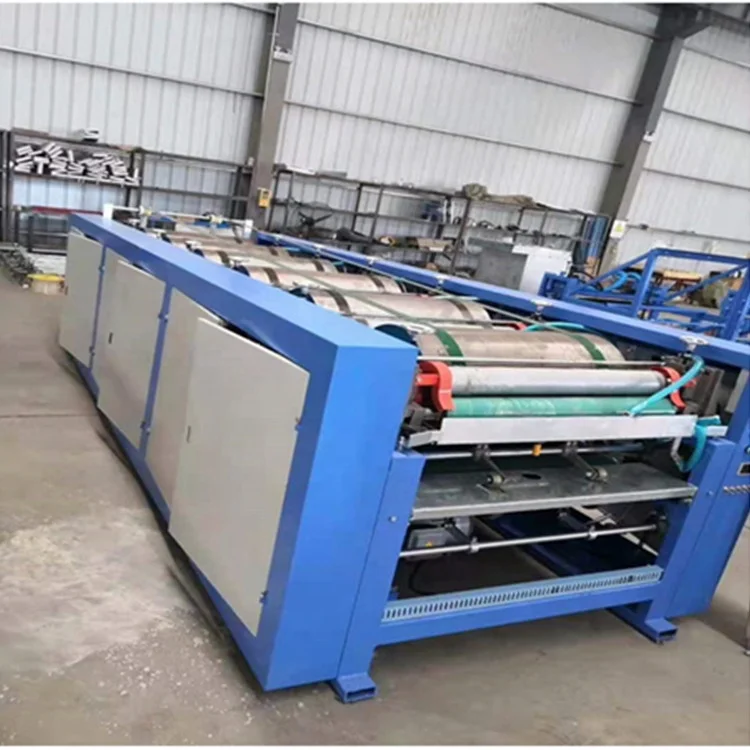

pp woven bag 1-5 colors  printing machine



Introduction



Woven bag printing machine is a machine used to print words and images on woven bags, which belongs to a kind of printing machine. It is used for the printing of words and patterns indicated by various and woven bag materials. Its working cycle is: part feeding → positioning → plate dropping → falling to the ink plate and rising back to the ink plate → ink scraping stroke → rising to the ink plate → falling back to the ink plate → plate lifting → ink return stroke → releasing positioning → receiving. In the continuous cycle action, as long as the function can be realized, the time occupied by each action should be as short as possible, so as to shorten the synchronization of each work cycle and improve work efficiency.





Features

1. Low noise and power saving;

2. Simple operation, soft pneumatic and accurate color registration;

3. The counter can set the printing quantity according to the requirements;

4. Anilox roller transfer ink, uniform ink color, save ink and enhance printing smoothness;



Parameters

Power	2.2kw
Voltage	220/380V
Plate making thickness	4-5mm
Printing speed	2000-3000 pcs / h
Number of operators	2
Max incoming width	800mm
Max printing width	650 mm
Max printing length	1300 mm
Weight	500kg
