Подземная буровая установка для бурения глубоких пород FYX180/Буровая водяных скважин
- Категория: >>>
- Поставщик: Shaanxi,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 15501.14 $* | 16276.75 $* |
| Aug-20-2025 | 15371.48 $* | 16140.17 $* |
| Jul-20-2025 | 12896.54 $* | 13541.43 $* |
| Jun-20-2025 | 15110.38 $* | 15866.33 $* |
| May-20-2025 | 13156.90 $* | 13814.39 $* |
| Apr-20-2025 | 14850.4 $* | 15593.24 $* |
| Mar-20-2025 | 14719.58 $* | 15455.66 $* |
| Feb-20-2025 | 14589.27 $* | 15318.83 $* |
| Jan-20-2025 | 14459.39 $* | 15182.30 $* |
Характеристики
Product Description

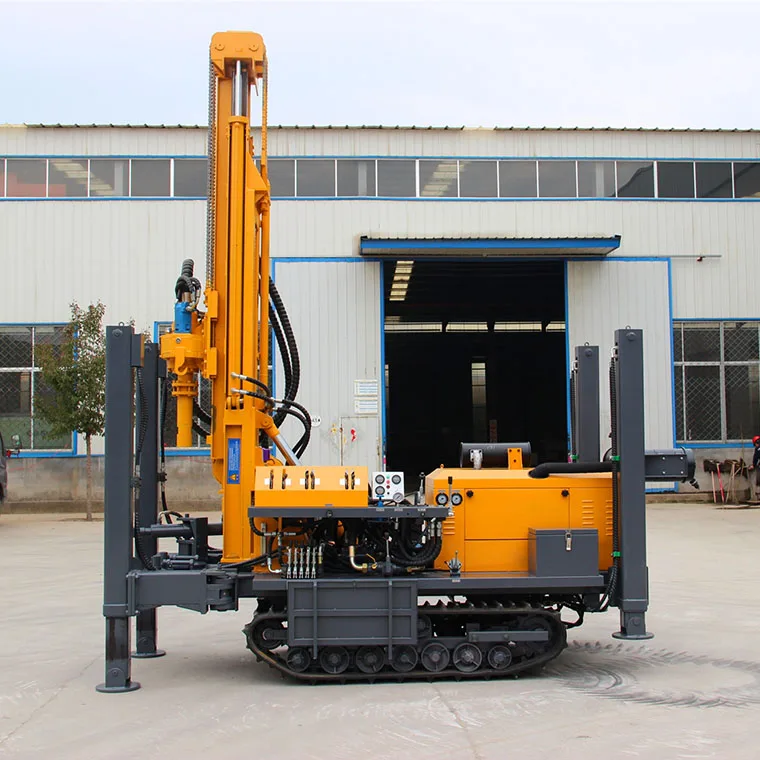

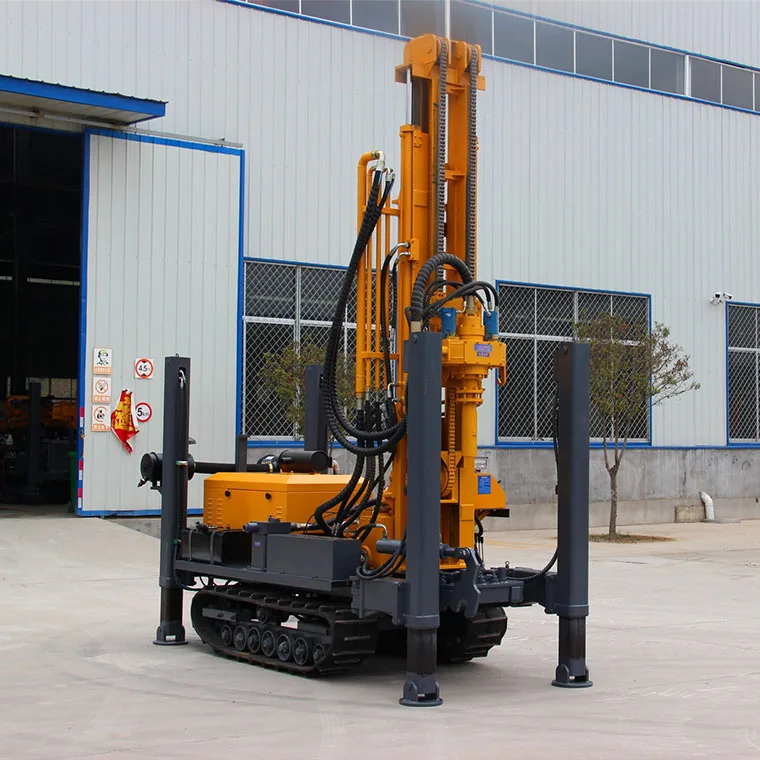

FYX180 underground deep water well drilling rig machine
The penumatic water well drilling rig adopt super hydraulic transmission, CNC control, automatic drilling experience
water well drilling rig machine
1. Equipped with 55KW Yuchai brand turbocharged engine with strong power;

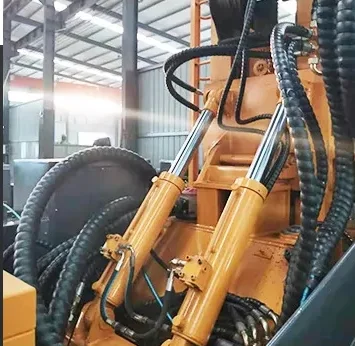

2. Patented design compound boom, double cylinder lifting;3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

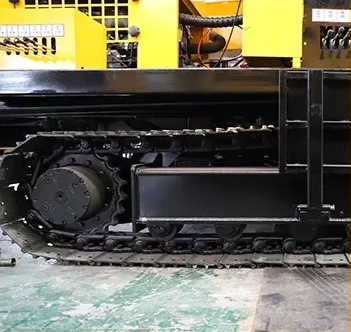

4. Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks, high flexibility, less damage to hard roads.
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design,simple maintenance and low cost.
6. The operating system is simple and easy to operate7. Easy to load and unload on the truck
8. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump
FYX 180 rubber crawler water well drilling rig | FYX 180 rubber crawler water well drilling rig | Rated Pressure(bar) | Diesel engine brand | |||
The weight（T） | 4.5 | Drill pipe diameter（mm） | Φ76 Φ89 | |||
The hole diameter（mm） | 140-254 | Drill pipe length（m） | 1.5m 2.0m 3.0m | |||
Drilling depth（m） | 180 | Rig lifting force（T） | 12 | |||
One-time advance length（m） | 3.3 | Rapid rise speed（m/min） | 20 | |||
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 | |||
Climbing angles（Max.） | 30 | Width of loading（m） | 2.4 | |||
Equipped capacitor（kw） | 55 | Hoisting force of winch（T） | — | |||
Using air pressure（MPA） | 1.7-2.5 | Swing torque（N.m） | 3200-4600 | |||
Air consumption（m³/min） | 17-31 | Dimension（mm） | 3950×1630×2250 | |||
Swing speed（rpm） | 45-70 | Equipped with hammer | Medium and high wind pressure series | |||
The penetration efficiency（m/h） | 10-35 | High leg stroke（m） | 1.4 | |||
The engine brand | Quanchai engine | |||||
