Supmeter светодиодный цифровой Весовой индикатор контроллер для пайки упаковочный пакет
- Категория: Instrument Parts & Accessories >>>
- Поставщик: Changsha,Supmeter,Technological,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 100.57 $* | 105.33 $* |
| Aug-16-2025 | 99.19 $* | 104.16 $* |
| Jul-16-2025 | 83.27 $* | 87.25 $* |
| Jun-16-2025 | 97.73 $* | 102.23 $* |
| May-16-2025 | 85.22 $* | 89.9 $* |
| Apr-16-2025 | 96.26 $* | 101.64 $* |
| Mar-16-2025 | 95.10 $* | 100.44 $* |
| Feb-16-2025 | 94.71 $* | 99.84 $* |
| Jan-16-2025 | 93.9 $* | 98.11 $* |
Характеристики
Product Description
Main Features
EMC design with high anti-jam for industrial environment.
DC24V power input with reverse polarity protection.
32-bit ARM CPU with 48MHz clock & high arithmetic speed.
6+8 Red LED digital tubes for English&digit display.
24-bit ∑-△ADC with internal resolution 1/1,000,000.
High sampling frequency 400Hz.
Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
Auto Zero Tracking.
Fall Value Auto Correction.
Auto Pause for Deviation Alarm.
Auto Re-feed for Negative Deviation Alarm.
Target Batch Count & Target Batch Weight Control.
3-speed[high/medium/low] feeding control by DOs or AOs.
Definable AO/COM[Communication Port].
Recipe Number: 1.
Technical Specifications
Power Supply: DC24V±20%, Max. 5W.
Loadcell Excitation Voltage/Current: DC9V/120mA.
4 Loadcells[350Ω] connectable.
Weighing Signal Input Range: 0~22.5mV.
6 Normally Open Switch Inputs [DI].
8 Normally Open Transistor Outputs [DO]: DC24V, 250mA.
1 Analog Signal Output [AO]: 4~20mA, 0.05%FS.
Accuracy Grade: III.
Verification Accuracy: 0.03%.
COM1: RS232.
COM2: RS485.
Connect Host IPC[Modbus] & Remote Display.
Outline Size [W×H×D]: 110 × 62 × 150 mm.
Panel Cut-out Size [W×H]: 94 × 47 mm.
Operating Temperature: -25℃~+45℃.
Protection Level of Front Panel: IP65.
Static Weighing Accuracy: 0.2%~0.5%.
Packing Accuracy: 0.2%~0.5%.

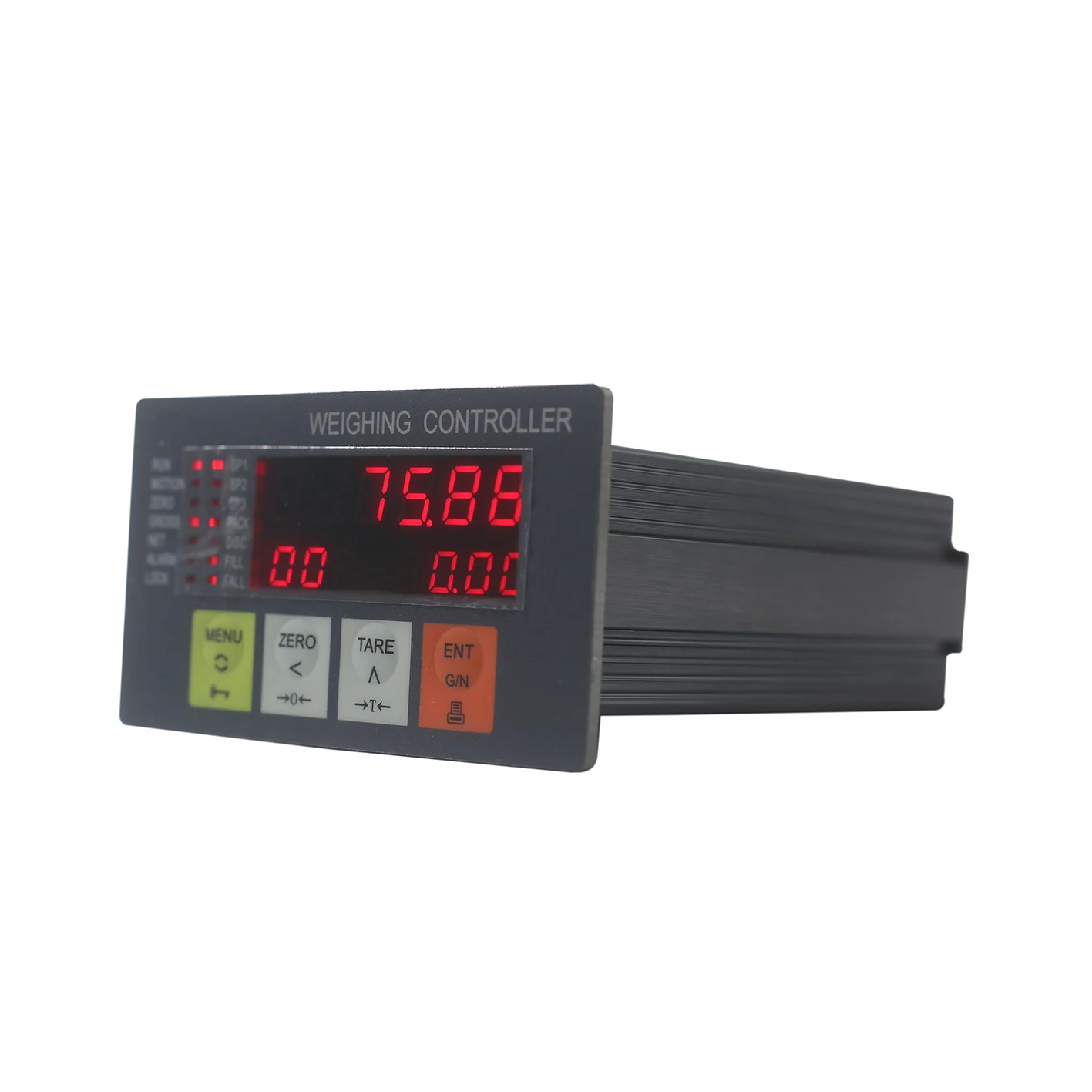

Detailed Images
Dimensions | ||
Outline Size W×H×D[mm] | 110×62×150 | |
Front Panel Size W×H[mm] | 110×62 | |
Box Body Size W×H[mm] | 93×46 | |
Panel Cut-out Size W×H[mm] | 94×47 | |

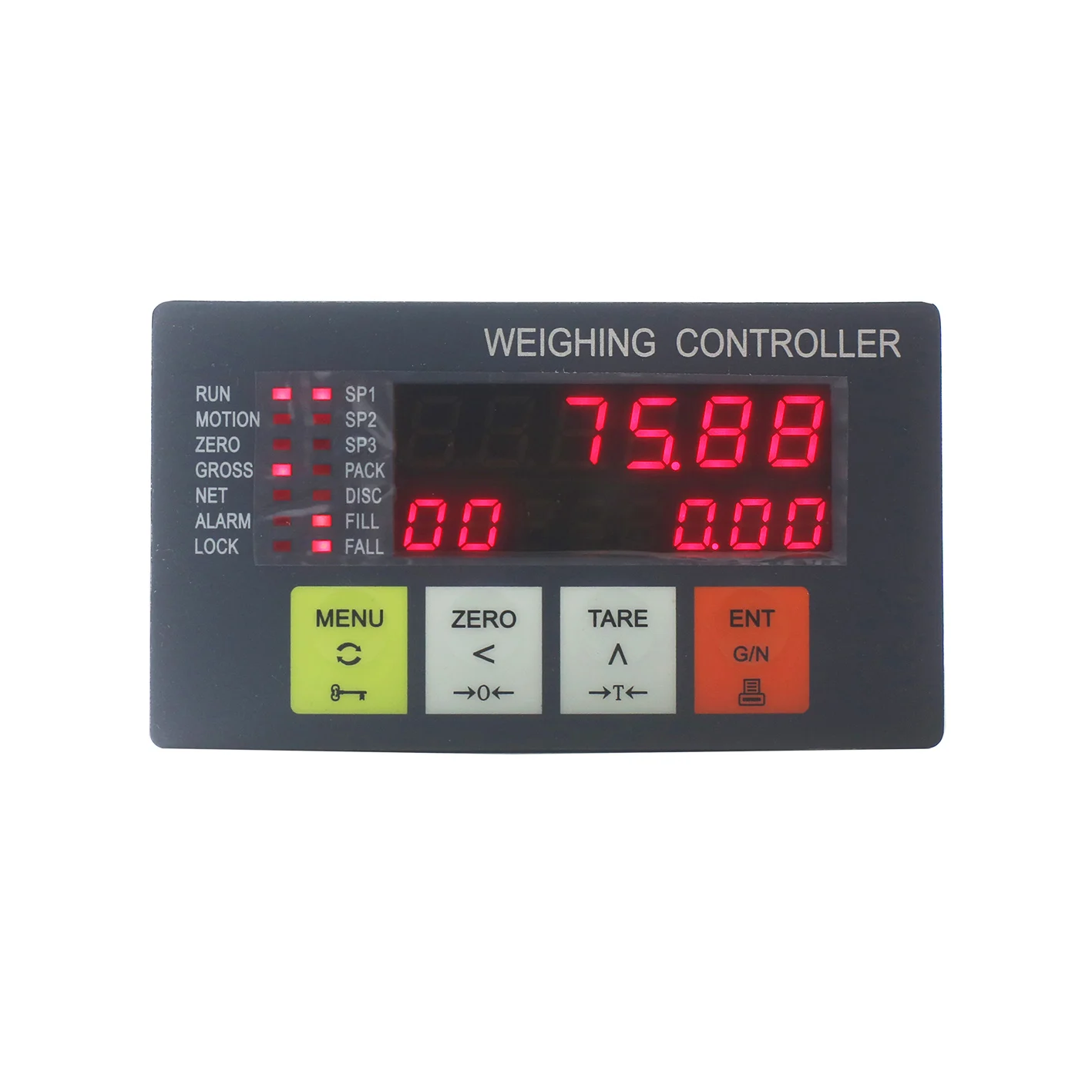

Menu Operation | ||||||
Key Name | Description | |||||
[MENU] | Enter Main Menu. Exit. | |||||
[ENT] | Enter / Save / Alarm Acknowledge. | |||||
[◄] | Cursor shifts left. Display the previous option. | |||||
[►] | Cursor shifts left. Display the next option. | |||||
[▲] | Display the next interface or option. Digit input: +1 ( 0~9 loop). | |||||
[▼] | Display the previous interface or option. Digit input: -1 ( 0~9 loop). | |||||
Quick Operation | ||||||
[MENU] [] * | Key-locking. Key-unlocking. | |||||
[◄] ([SET]) | Recipe parameters setting. | |||||
[◄] [ZERO] [→0←] * | [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight. [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight. The controller will switch to Gross Weight display. | |||||
[▲] [TARE] [→T←] * | [≡tArE≡]: Manual Tare without Power-down Protection. [-PStr-]: Preset Tare Weight with Power-down Protection. [-rStr-]: Clear Tare Weight with Power-down Protection. The controller will switch to Net Weight display. | |||||
[ENT] [G/N] | Gross Weight / Net Weight display switch. | |||||
Application
Single-hopper-weighing Mode
Double-hopper-weighing Mode
Bag-weighing Mode
Single-weighing-hopper Ration Packing Scale
