Фенольная PRE-INSULATED доска трубопровода замена товара из искусственной кожи пу PIR/минеральная
- Категория: Heat Insulation Materials >>>
- Поставщик: Fujian,Tenlead,Advanced,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 650.96 $* | 683.77 $* |
| Aug-19-2025 | 644.28 $* | 676.90 $* |
| Jul-19-2025 | 541.79 $* | 568.66 $* |
| Jun-19-2025 | 633.14 $* | 665.82 $* |
| May-19-2025 | 551.95 $* | 579.30 $* |
| Apr-19-2025 | 622.80 $* | 653.14 $* |
| Mar-19-2025 | 617.58 $* | 648.86 $* |
| Feb-19-2025 | 612.33 $* | 643.59 $* |
| Jan-19-2025 | 606.60 $* | 636.90 $* |
Характеристики

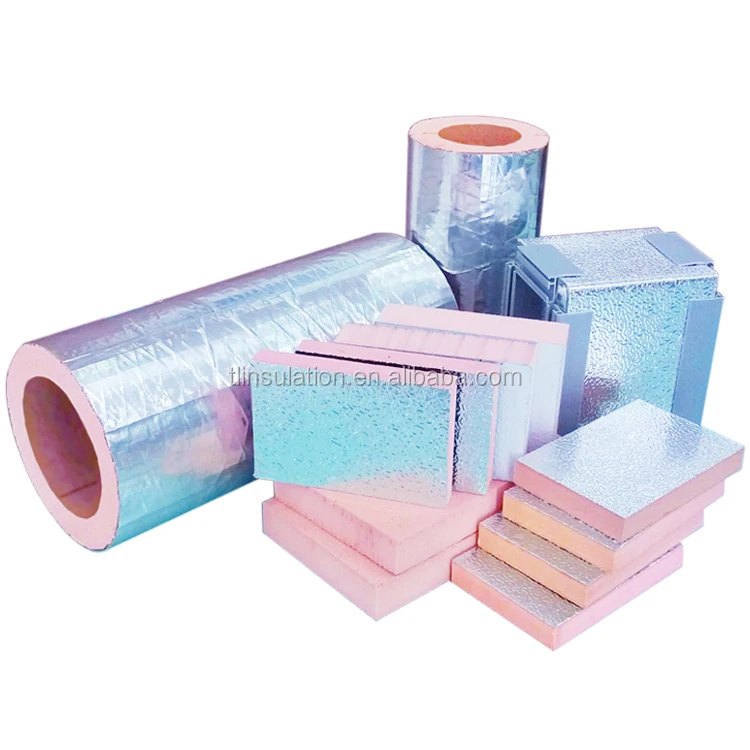

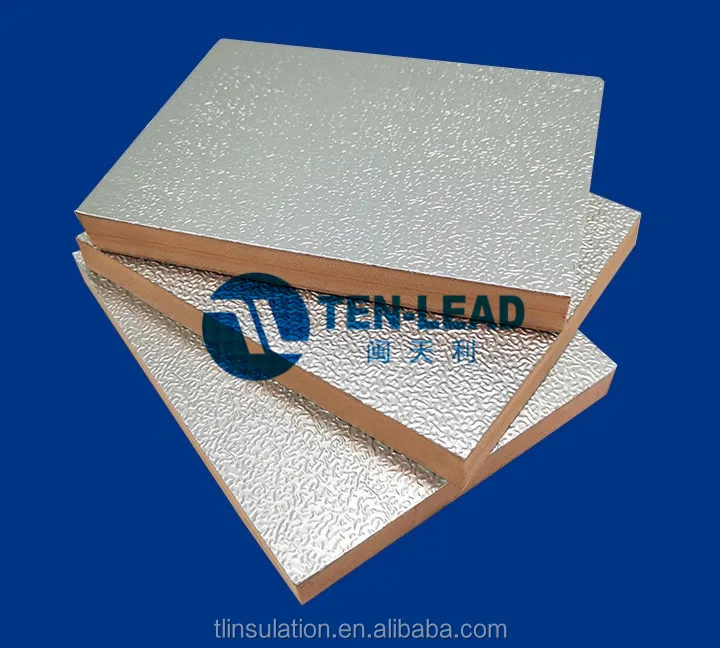

PHENOLIC PRE-INSULATED BOARD
Phenolic foam is a versatile insulation product with enhanced insulation and fire retardant properties.
It is manufactured in a range of thicknesses and densities individually designed for different applications.
Due to its complex formula manufacture phenolic foam is limited to very few specialist manufacturers. SAT Insulation is the only manufacturer in the Middle East.
Ideal applications are :

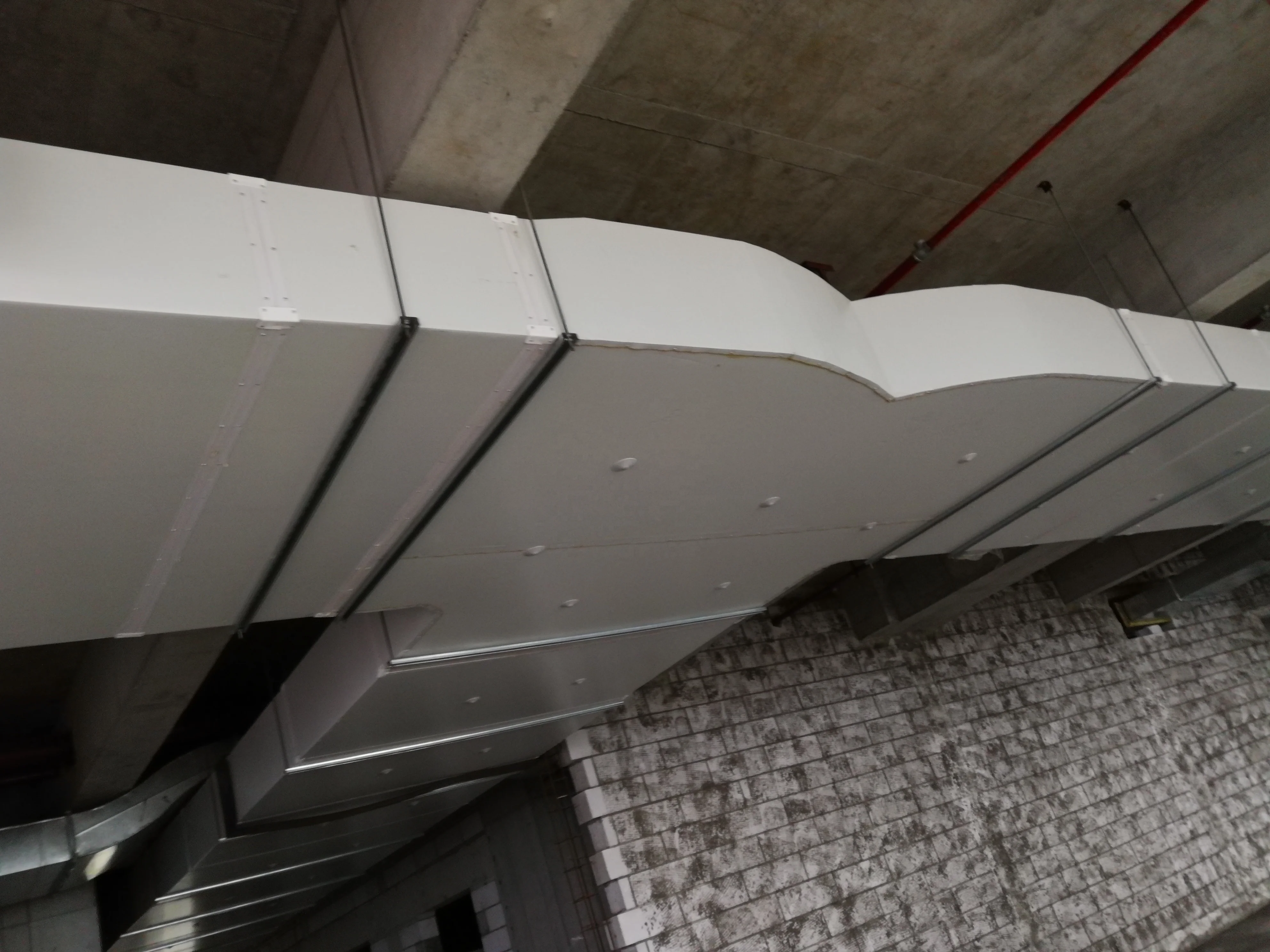

- Pre-insulated ducts (high density)
- Non carcinogenic alternative to bulk insulation (low density)
- Wall / Ceiling panels (low density)
PHENOLIC – SPECIFICATION
| Property | Description | Unit Value | Standard |
|---|---|---|---|
| Dimension | Thickness | 21.00 mm ±1mm | |
| Length | 4000 mm | ||
| Width | 1200 mm | ||
| Panel Facing | Scrim foil with glass-fiber mesh – 20 micron Aluminum foil | ||
| Inner Face | 60micron lacquered Hygienic Aluminum foil Metal Embossed | ||
| Outer Face | |||
| Density | 60 kg/M3 ±5 | ASTM D 1622:03 | |
| Thermal Conductivity | 0.0204W/(m.K) | ASTM C518:2010 | |
| Compressive Resistance | 351.5 (kPa) | ASTM D1621:00 | |
| Water Vapor Transmission of Materials | Transmission | 0.0 g/h.m2 | ASTM E96:2000 |
| Permeance | 0.0 g/Pa.s.m2 | BS:4370 | |
| Water Absorption | Transmission | 0.25% | ASTM C209:1998 |
| Permeance | |||
| Dimensional Stability | Length | 0.0% | ASTM D2126:1999 |
| Width | 0.0% | ||
| Thickness | 0.5% | ||
| Ph Value | 6.47 | ISO 8975 | |
| CFC | CFC Free | SGS/J00202F-DB07 | |
| Halogen | Halogen Free | SGS/J00202F-DB07 | |
| Apparent Closed Cell | 95% | ASTM D 2856 | |
| Reaction to Fire | Class '0' | BS 476 -Part 6 & 7 | |
| Fire Performance | C- S3- d0 | BS EN 13823:2002 | |
| BS EN ISO 11925:2002 | |||
| Flame Spread Index (FSI) | 14.64 / Class 1 | ANSI/UL 723 – ASTM E 84-04 – BS 476-Part 7 | |
| Smoke Development Index (SDI) | 13.10 | ANSI/UL 723 – ASTM E 84-04 | |
| Warringtomfire Certificate | Certificate No. ME0021 | BS 476 -Part 6 & 7 | |
| Civil Defense Approval | Reg. No: 43693 | License No: 209489 |
Company Information
Fujian Tenlead Advanced Material Co., Ltd. locating in Fujian province, China, started doing independent research and development in Phenolic Foam insulation materials since 1998, and continuously focuses on the technology improvement and market promotion for Phenolic Foam materials.
During the more than 20 years in Phenolic Foam business, company production started from simple mold foaming to multiple large-scale modern assembly lines. Meanwhile, the products developed from simplify to diversify, which is the evolution processes of Phenolic Foam industry, also is the development and growth processes of Fujian Ten-lead company.
Fujian Tenlead Advanced Material Co., Ltd. has strong manufacturing ability. We are equipped with synthesis workshop for Phenolic resin up to 200,000 tons annually. At the same time, we possess multiple foaming assembly lines, which can not only satisfy the production demand of different kinds of products, but also provide the guarantee for customer requirement.
Fujian Tenlead Advanced Material Co., Ltd. takes product quality seriously. We have our own R&D labs and testing equipment. We have R&D department and quality management department to customize the most suitable products and application solutions for our customers.
Looking forward to the future, Fujian Tenlead will continue to focus on the development, production and sales of Phenolic Foam insulation materials, providing customers with the highest quality of Phenolic Foam materials and becoming the leader in the Phenolic Foam industry!
