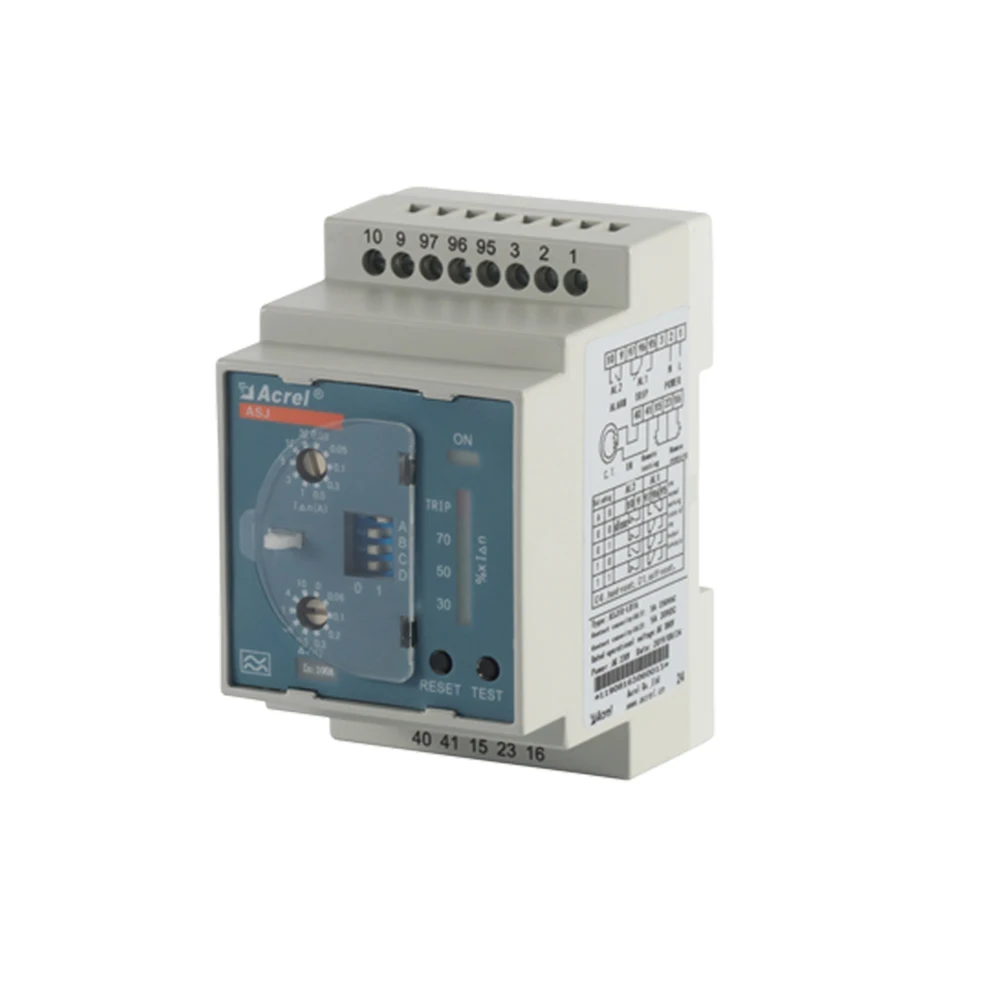

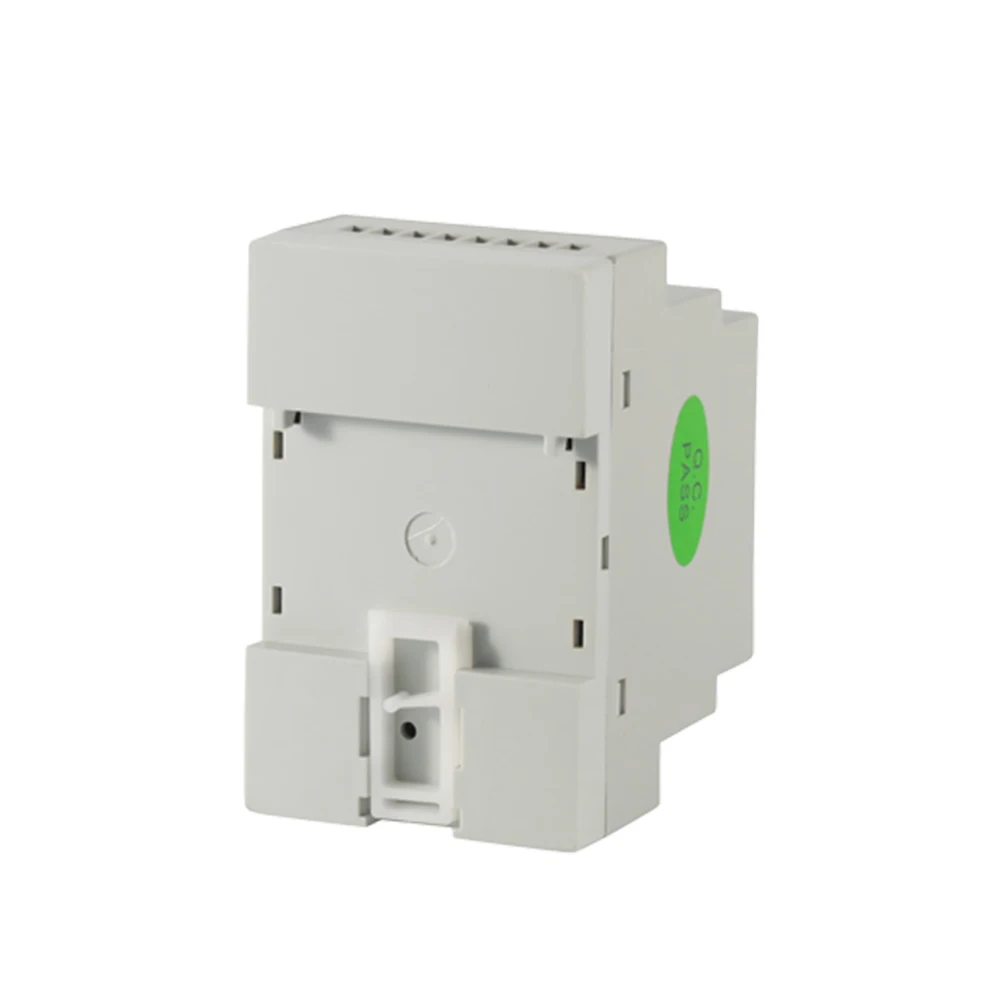

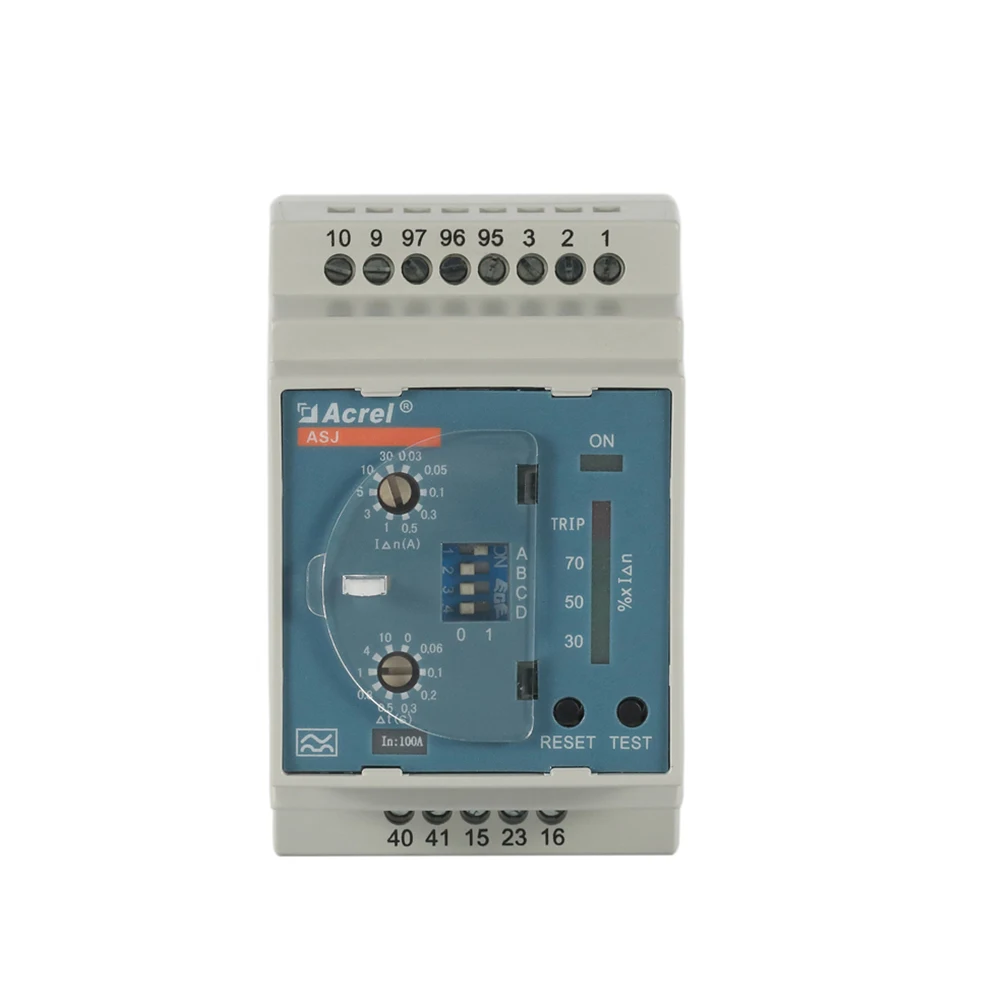

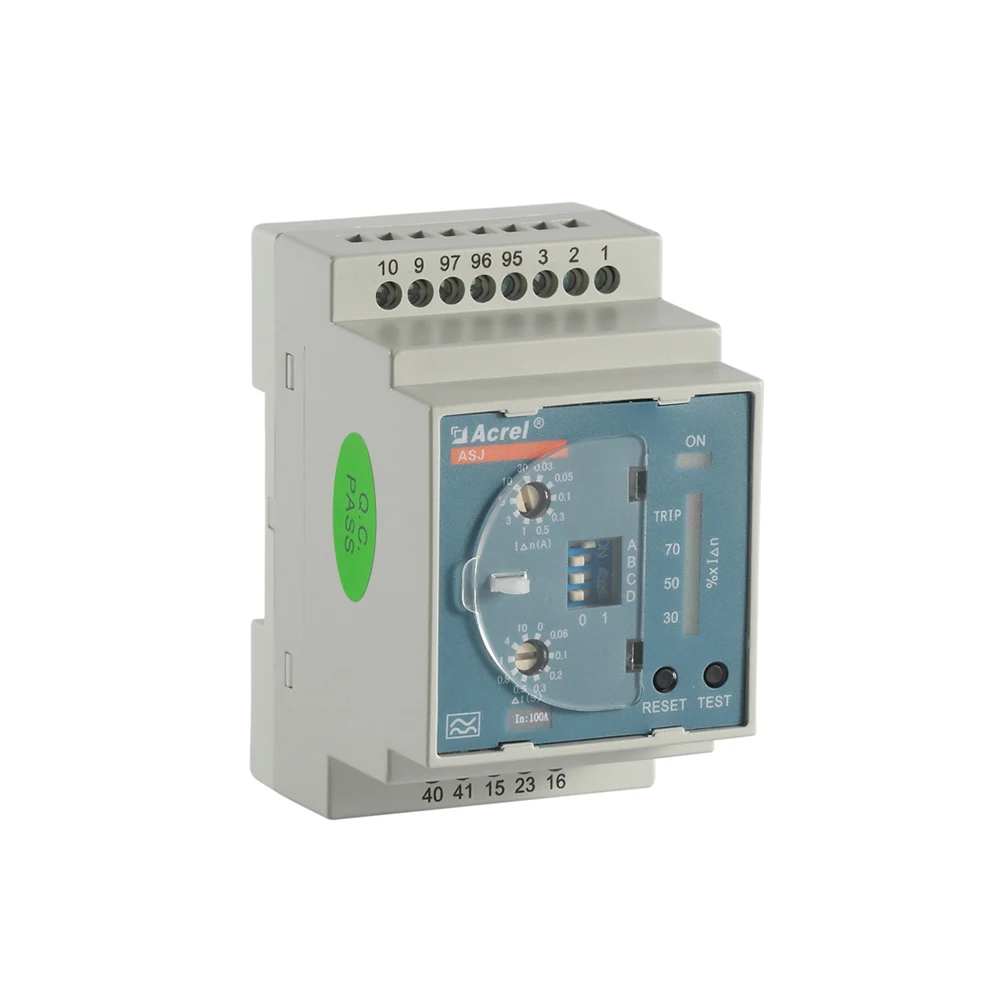

Серия ASJ автоматический выключатель для контроля остаточного тока реле утечки заземления постоянного
- Категория: Relays >>>
- Поставщик: Jiangsu,Acrel,Electrical,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.87 $* | 0.78 $* |
| Aug-16-2025 | 0.6 $* | 0.66 $* |
| Jul-16-2025 | 0.76 $* | 0.33 $* |
| Jun-16-2025 | 0.49 $* | 0.77 $* |
| May-16-2025 | 0.57 $* | 0.10 $* |
| Apr-16-2025 | 0.47 $* | 0.48 $* |
| Mar-16-2025 | 0.79 $* | 0.72 $* |
| Feb-16-2025 | 0.56 $* | 0.50 $* |
| Jan-16-2025 | 0.57 $* | 0.98 $* |
Характеристики
Product Details
● The measurement of A-type after-current;
● The streamer display of current percentage;
● The setting of rated residual action current;
● The setting of non-driving time of limitation;
● Two-pair relay output;
● Possessing the function of on-the-spot and long-distance testing and resetting.
● The streamer display of current percentage;
● The setting of rated residual action current;
● The setting of non-driving time of limitation;
● Two-pair relay output;
● Possessing the function of on-the-spot and long-distance testing and resetting.
Parameters
Technical Parameter | Value | ||
Input | Rated residual operated current I△n | 0.03,0.05,0.1,0.3,0.5,1,3,5,10,30(A) | |
Limitation non driving time | 0,0.06,0.1,0.2,0.3,0.5,0.8,1,4,10(S) | ||
Rated non-action residual current | 50%I△n | ||
Frequency | 50Hz±5Hz | ||
Tripping accuracy | -20% ~ -10%I△n | ||
Output | Output mode | 1 normal changeover contact | |
Contact capacity | AL1:8A 250VAC 5A 30VDC AL2:6A 250VAC 5A 30VDC | ||
Reset mode | Local,remote,automatic | ||
Auxiliary power supply | Voltage range | AC/DC85~270V | |
Power consumption | ≤5W | ||
Power frequency withstand voltage | The effective value of alternating current between the power supply, input and output: 2kV/1min | ||
Wiring

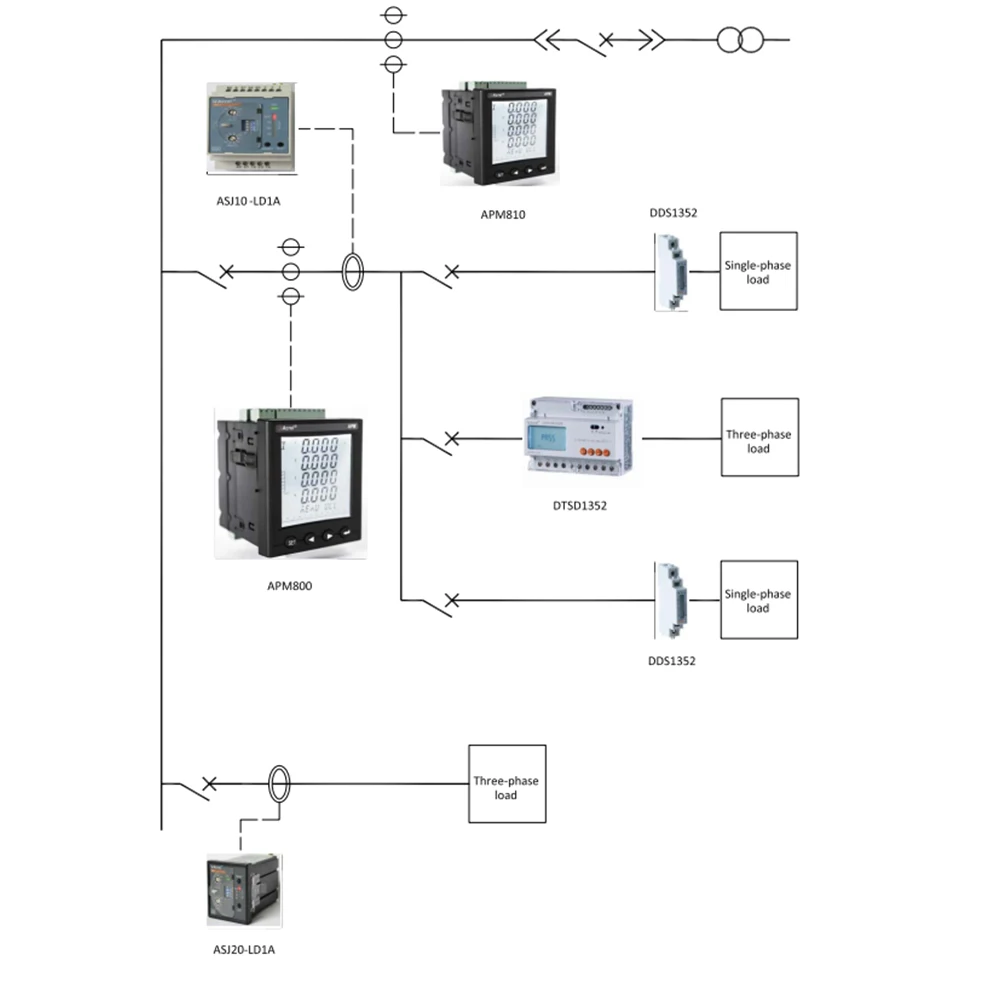

Connection Mode
