Промышленный взрывозащищенный двигатель IP54 с скоростью фиксации и инвертором VSD поворотный винтовой воздушный компрессор PM сушилкой fresee воздушным
- Категория: Industrial Compressors & Parts >>>
- Поставщик: Linhai,Jin,Hai,Coating,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.93 $* | 0.44 $* |
| Aug-20-2025 | 0.42 $* | 0.86 $* |
| Jul-20-2025 | 0.55 $* | 0.74 $* |
| Jun-20-2025 | 0.89 $* | 0.83 $* |
| May-20-2025 | 0.75 $* | 0.46 $* |
| Apr-20-2025 | 0.60 $* | 0.53 $* |
| Mar-20-2025 | 0.80 $* | 0.95 $* |
| Feb-20-2025 | 0.96 $* | 0.41 $* |
| Jan-20-2025 | 0.59 $* | 0.42 $* |
Характеристики
Product Description

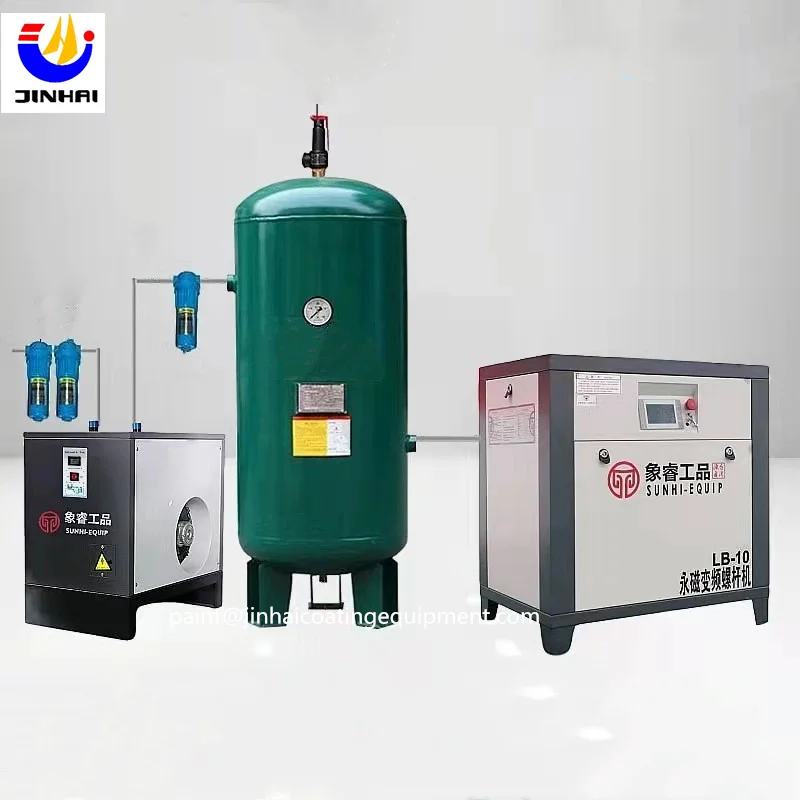

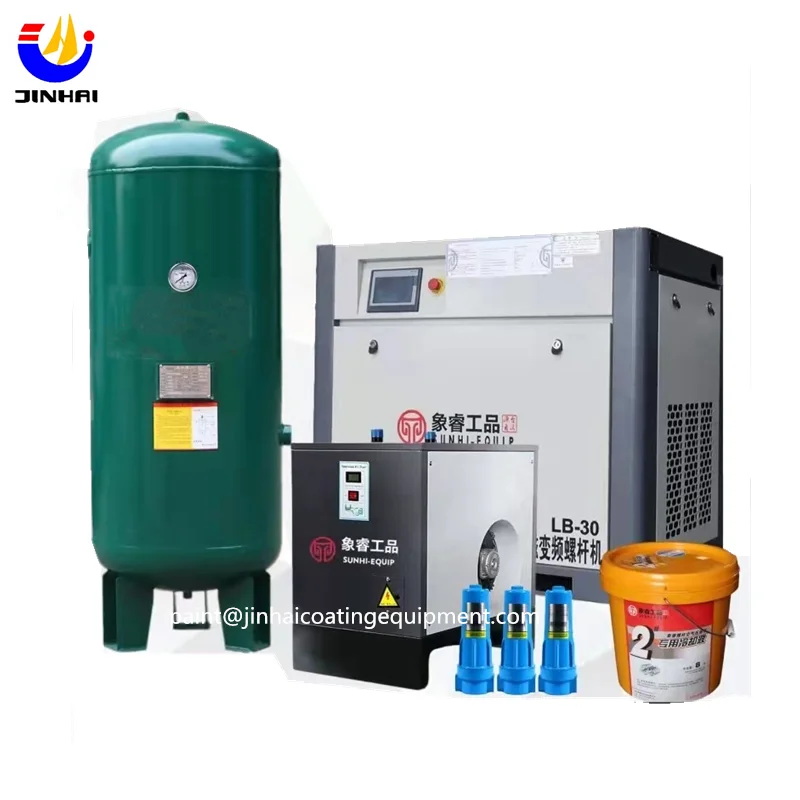

Industrial IP54 Explosion Proof Motor Fix Speed and VSD inverter PM Rotary Screw Air Compressor with Frezze Dryer & Air tank
Compressor air solution
Air to Your Needs
Rapid air out
Convenient installation
Mute low noise
40% energy saving power
Convenient installation
Mute low noise
40% energy saving power
Free from worry
Details Images

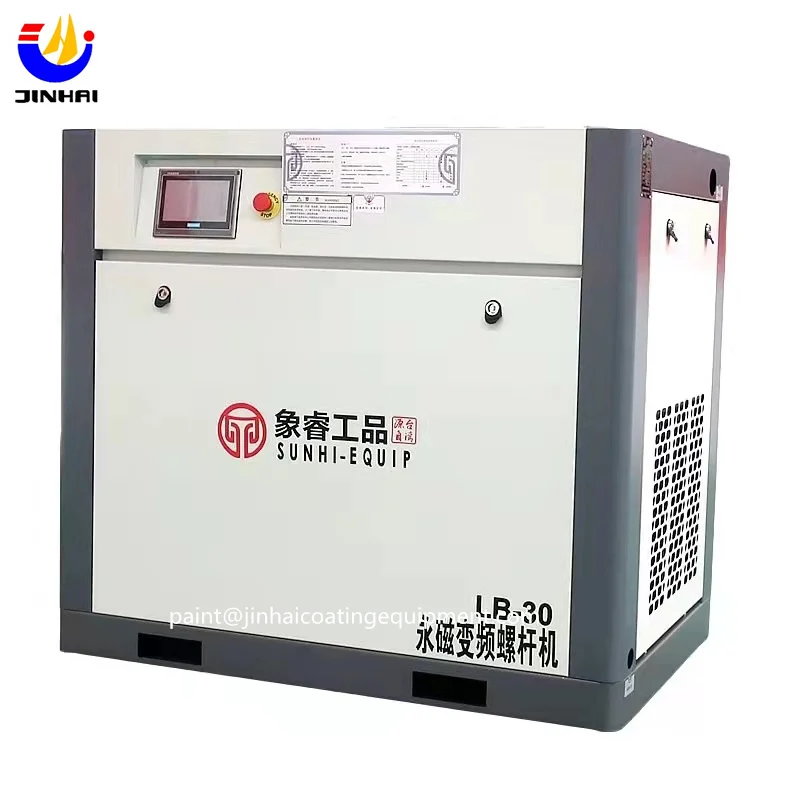

Permanent Variable Speed Drive (VSD) Compressor
Innovative
The new PM design has an upright, compact layout. This save valuable floor and work space, eases maintenance access, and reduces the total cost of the transportation for customer.
Efficient
VSD technology helps user save much more power. Especially when the machine delivers only 30%-80% of its full capacity, compared with power-frequency unit, 15% -50% more power could be saved. Compared with reqular inverter, 10%-20% could be saved.
Reliable
Low maintenance : fewer components compact construction much stable.
Based on the unique combination of proven technologies and existing components, optimally brought together by JINHAI's experience and know-how.
Smart
Easy monitoring and maintenance.
Touch controlle.
Obvious status.
No attended working with 24 hours.
Techincal Specification | ||||||||||
Model | Air delivery m³/min | Noise level dB | Connection outlet size | |||||||
Model | 8bar | 10bar | 12bar | |||||||
LB-10(7.5kW/10HP) | 1.1 | 0.9 | 0.8 | 60±2 | G 1/2" | |||||
LB-15 (11kW/15HP) | 1.5 | 1.3 | 1.1 | 62±2 | G 3/4" | |||||
LB-15 (15kW/20HP) | 2.3 | 2.1 | 1.9 | 62±2 | G 3/4" | |||||
LB-30(22kW/30HP) | 3.6 | 3.2 | 2.7 | 64±2 | G 1" | |||||
LB-50(37kW/50HP) | 6.2 | 5.6 | 5.0 | 66±2 | G 1-1/2" | |||||

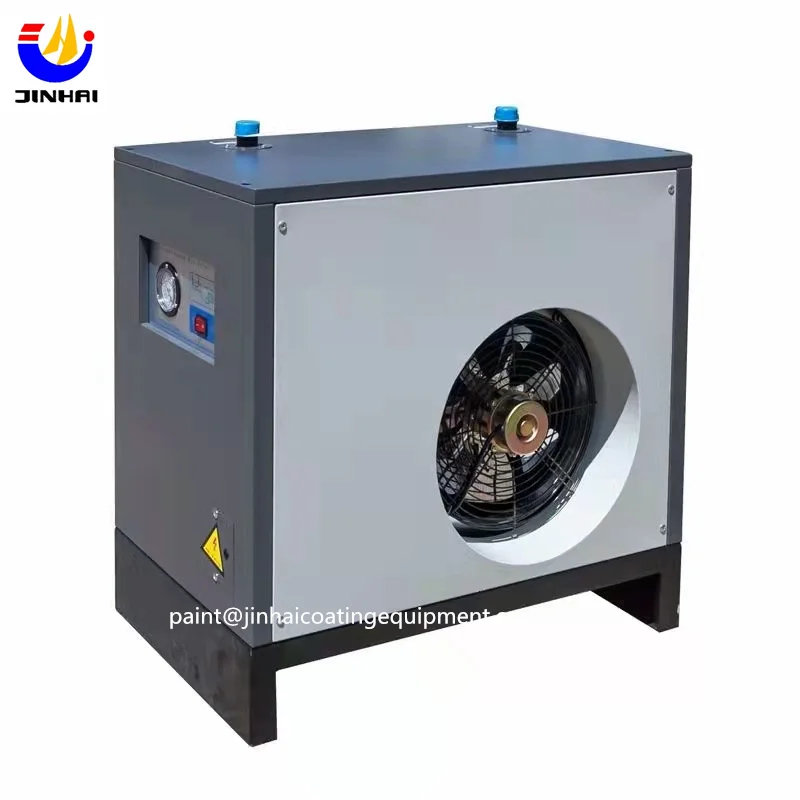

Freeze Dryer
One-stop operation
Saving space
Erase the trouble to build a specialized room for air system.
Electronic drain
Additional energy savings with the dryer.s no-loss electronic drain.
Integrated fine filters
Optional filters can be added to obtain air quality up to class 1 level (﹤0.01ppm).
Refrigerant compressor
Use of energy - efficient refrigerant R134a reduces operating costs.
Environmentally friendly characteristics.
Pressure dew point of 2℃.
Refrigerant gauge
The condition of refrigerant is easy to see through point position.
Techincal Specification | ||||||||
Model | Cooling capacity | Compressor power Kw | Fan power Kw | Connection outlet size | ||||
SH-10A | 1.3 | 0.58 | 60 | DN25 | ||||
SH-20A | 2.5 | 0.73 | 90 | DN25 | ||||
SH-30A | 3.6 | 0.9 | 90 | DN40 | ||||
SH-50A | 5.2 | 1.2 | 90 | DN40 | ||||
Air tank
Air storage tank
Air receiver tank
Gas storage tank
Material: Q235B
Operating temperature: 150 ℃
Techincal Specification | ||||||||||
Model | Capacity | Pressure (bar) | Inlet & Outlet Thread | |||||||
0.3m³ | 300L | 8 | 10 | 13 | DN25 | |||||
0.6m³ | 600L | 8 | 10 | 13 | DN40 | |||||
1.0m³ | 1000L | 8 | 10 | 13 | DN40 | |||||
2.0m³ | 2000L | 8 | 10 | 13 | DN50 | |||||

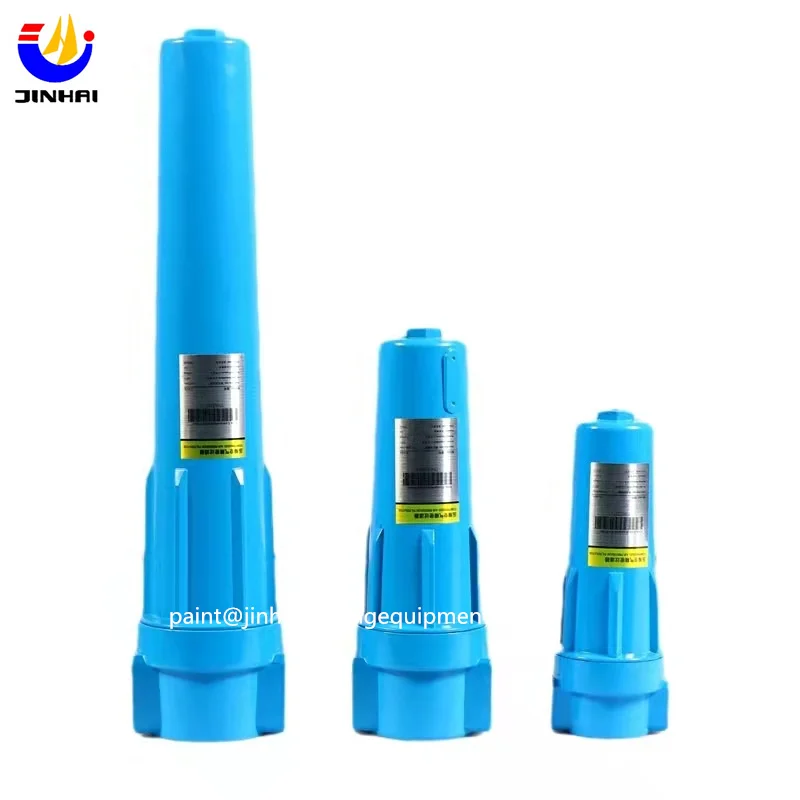

Air line filter
• Capacity:1.2~25 m³/min
• Max. pressure: 16 bar
• Max.working temperature:80℃
• Differential pressure: 0.07 bar
•Filter element service: 6000 hours
•Air filter with differential pressure indicator and sight glass
• Filter housing internal with anti-corrosion treatment.
• Max. pressure: 16 bar
• Max.working temperature:80℃
• Differential pressure: 0.07 bar
•Filter element service: 6000 hours
•Air filter with differential pressure indicator and sight glass
• Filter housing internal with anti-corrosion treatment.
Company Introduction
JINAHI is professional manufacturer and export that is concerned with the design, development and production of different kinds of powder coating equipment. Covering Electrophoresis Line, Liquid Paint Line, Dip Device, Powder Coating Line, Spray Booth Oven, Powder Gun Spare Parts, Powder Coating Machine, etc. We own a development technology team with rich experience and professional sale & service team in powder coating industrial, that enable us give the best quality powder coating equipment and competitive price to customer from all over the world.
Our Services & Strength
Each piece of equipment is built to meet your specific needs. Also make sure you get the best results. Enable our customers to catch up the latest equipment, increase profits and maintain their competitiveness in the word of trade.
FAQ
Is it safe to order from JINHAI?
Yes,100% sure you are safe to order from us. JINHAI exported to many countries and we are the famous factory produce powder coating equipment more than 10 years in China.
How to delivery?
By sea for big order ,by courier for small order ,by airlines.
How to pay?
We accept the paypal ( but credit card not accepted),Western Union ,Bank transfer , money gram,etc.
Which model should I choose?
When spray specially metallic powders, according to your product shapes and the coating job details. For example, need to change colors often or only few colors, then choose the box feed unit or hopper feed unit. The small hopper unit is good for lab test or small work.
Can I customized the machines?
Yes, we are a professional team for powder coating equipments, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
What should I offer if I want to customized the machine?
a. Your factory available for the equipment dimension by L x W x H
b. Your max workpiece or product weight and size by L x W x H
c. Your product surface condiation(with oil or dust?) and some pictures if possible
d. Your output capacity(for machine line)
e. Your industrial electric power in V-Phase-Hz.
Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
Yes, we are a professional team for powder coating equipments, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
What should I offer if I want to customized the machine?
a. Your factory available for the equipment dimension by L x W x H
b. Your max workpiece or product weight and size by L x W x H
c. Your product surface condiation(with oil or dust?) and some pictures if possible
d. Your output capacity(for machine line)
e. Your industrial electric power in V-Phase-Hz.
Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
