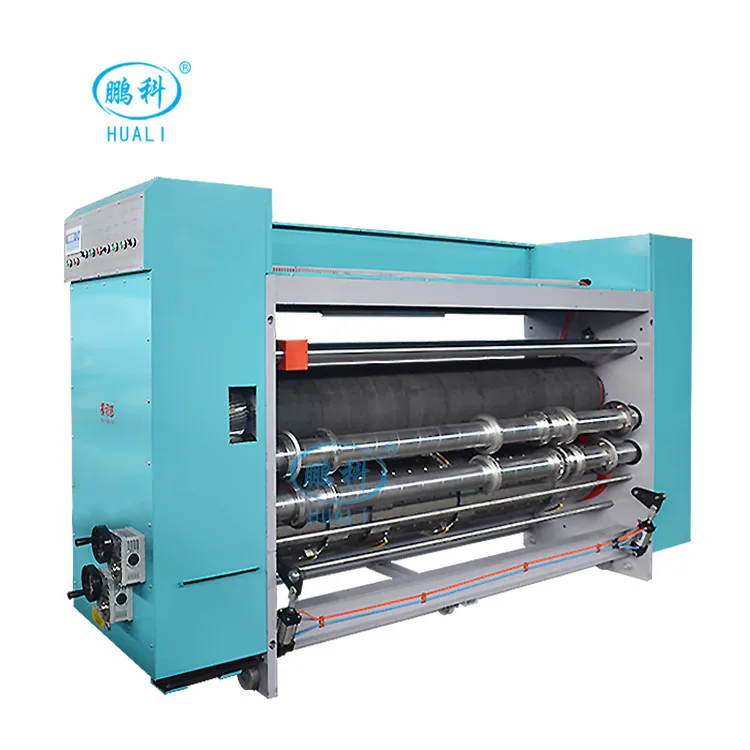

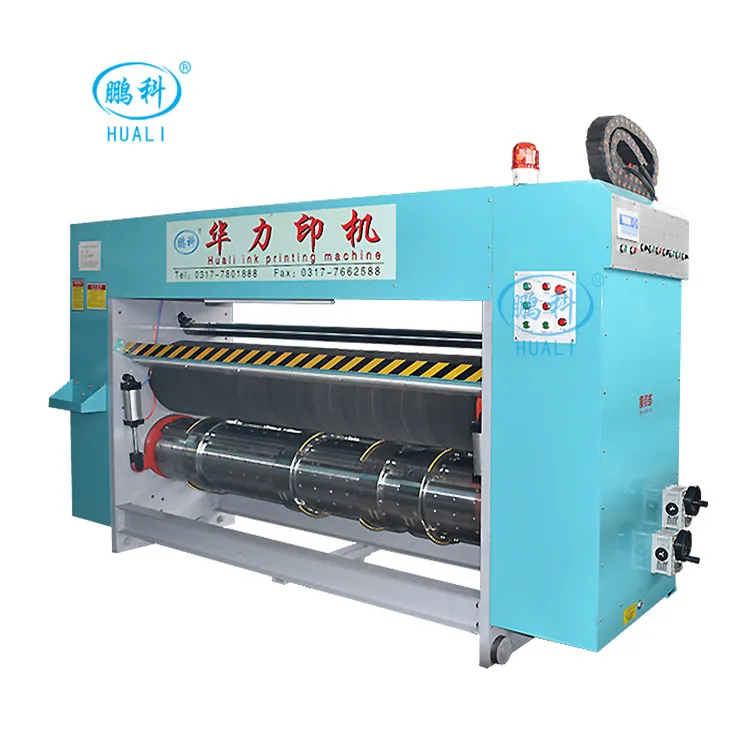

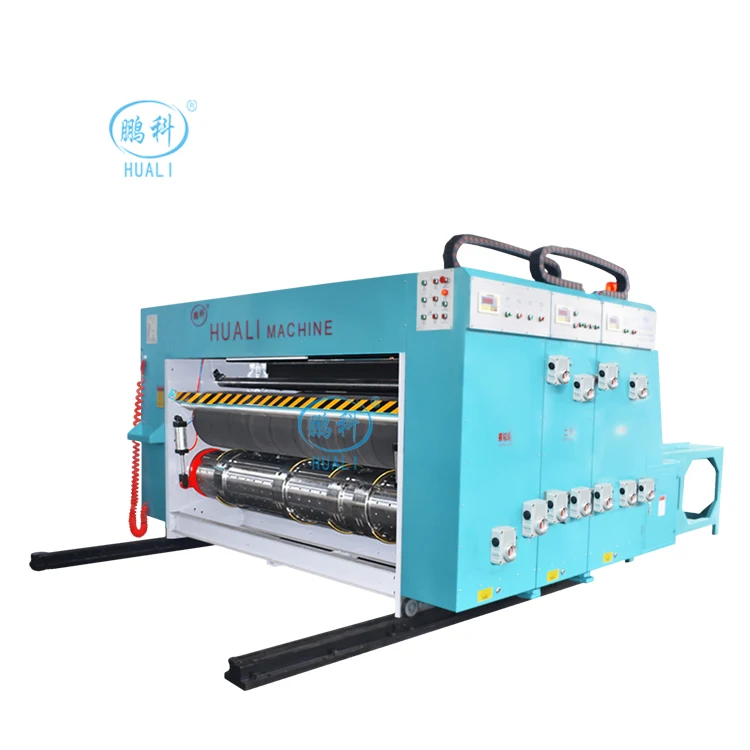

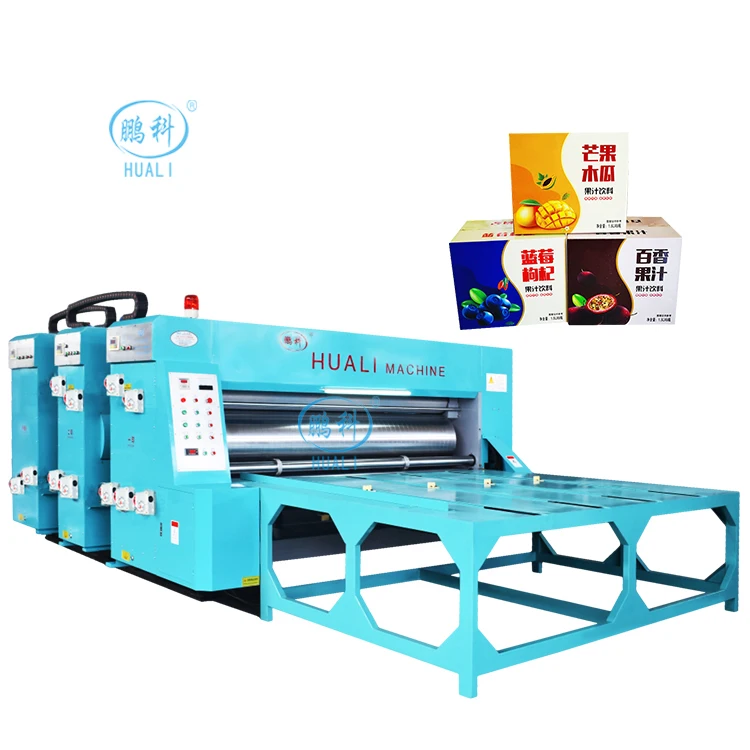

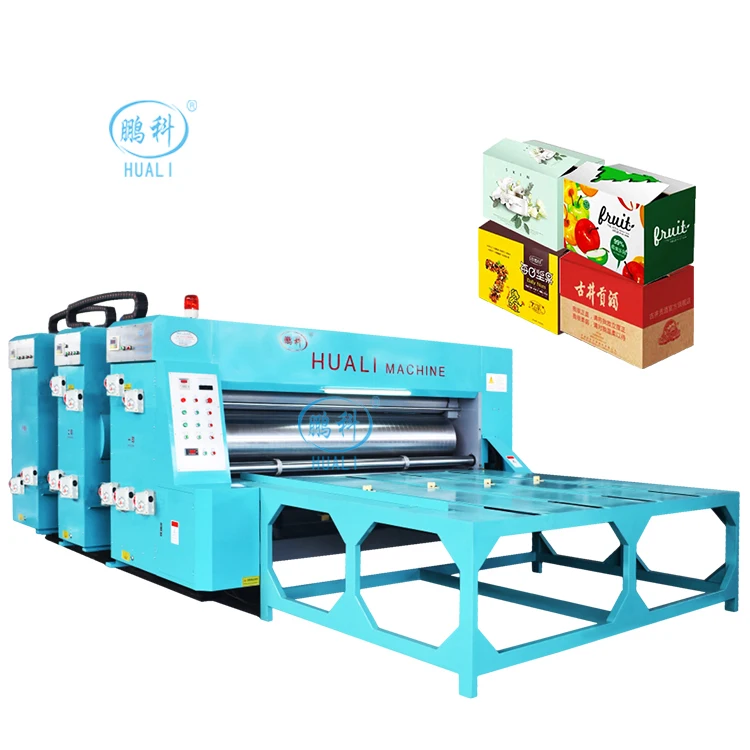

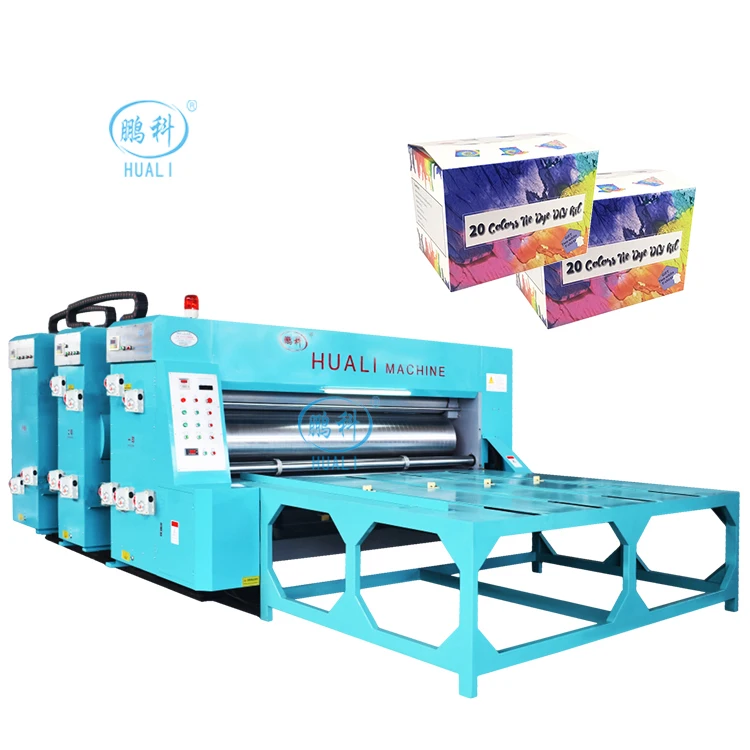

Цепной Печатный долбежный станок для резки гофрированный полуавтоматический принтер
- Категория: >>>
- Поставщик: Dongguang,County,Huali,Carton,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 24990.16 $* | 26240.46 $* |
| Aug-16-2025 | 24780.1 $* | 26019.8 $* |
| Jul-16-2025 | 20790.48 $* | 21830.4 $* |
| Jun-16-2025 | 24360.54 $* | 25578.86 $* |
| May-16-2025 | 21210.15 $* | 22271.49 $* |
| Apr-16-2025 | 23940.73 $* | 25137.50 $* |
| Mar-16-2025 | 23730.88 $* | 24917.82 $* |
| Feb-16-2025 | 23520.82 $* | 24696.65 $* |
| Jan-16-2025 | 23310.5 $* | 24476.39 $* |
Характеристики
Frequency conversion adjust airflow and pressure to suit different sizes of cardboard and curved cardboard.
High adjust of slot box is the inner gear mechanism independent drive box control.
The rubber cushion roll has a 40mm turning transverse structure with mechanical rotary,so that the die cutter does not repeatedly cut a position to improve the service life of the rubber cushion.
Color group |
to be configured according to user’s needs | |||
2 |
Printing paper | A,B,C,A/B,B/C and A/B/C type corrugated paperboard(the maximum interval 11mm) | ||
3 |
Width of machine inside | 2600mm | 2800mm | 3000mm |
4 |
max.paper size | 1200×2400mm | 1400 ×2600mm | 1600×2800mm |
5 |
Max.printing size | 1200×2300mm | 1400 ×2500mm | 1600×2600mm |
6 |
Skip feeding paper | 1400×2400mm | 1600 ×2600 | 1800×2800 |
7 | positive knife Min.paper size negative knife | 350×720mm 350×740mm | 400 ×720mm 400 ×740mm | 450 ×720mm 450 ×740mm |
8 |
Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
9 |
Design speed(piece/min) | 180pcs/min | 150pcs/min | 150pcs/min |
10 |
Economic speed(piece/min) | 80-160pcs/min | 80-130pcs/min | 80-100pcs/min |
11 |
Tinted precision | 4( color) ±0.5mm | 4( color) ±0.5mm | 4( color) ±0.5mm |
12 |
Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm |
13 |
Max.slotting depth | 7×300mm | 7×350mm | 7×400mm |
increase the blade, increase the slot depth | ||||
14 | positive knife Min. Slot distance negative knife | 170×170×170×170mm 280×80×280×80mm | 170×170×170×170mm 280×80×280×80mm | 170×170×170×170mm 260×90×280×80mm |
15 |
Max.die-cutting size | 1200×2300mmmm | 1400×2500mm | 1600×2700mm |
16 |
Printing plate diameter(contain plate thickness) | 405mm | 480mm | 530mm |
