Коммутаторы с SFP + интерфейсами 8 портов 10G управление промышленным
- Категория: Network Switches >>>
- Поставщик: Shenzhen,3C-Link,Opto,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 171.4 $* | 174.85 $* |
| Jul-20-2025 | 139.24 $* | 142.67 $* |
| Jun-20-2025 | 169.20 $* | 172.77 $* |
| May-20-2025 | 167.76 $* | 170.62 $* |
| Apr-20-2025 | 134.30 $* | 137.86 $* |
| Mar-20-2025 | 165.90 $* | 168.62 $* |
| Feb-20-2025 | 163.90 $* | 166.18 $* |
| Jan-20-2025 | 162.23 $* | 165.40 $* |
Характеристики

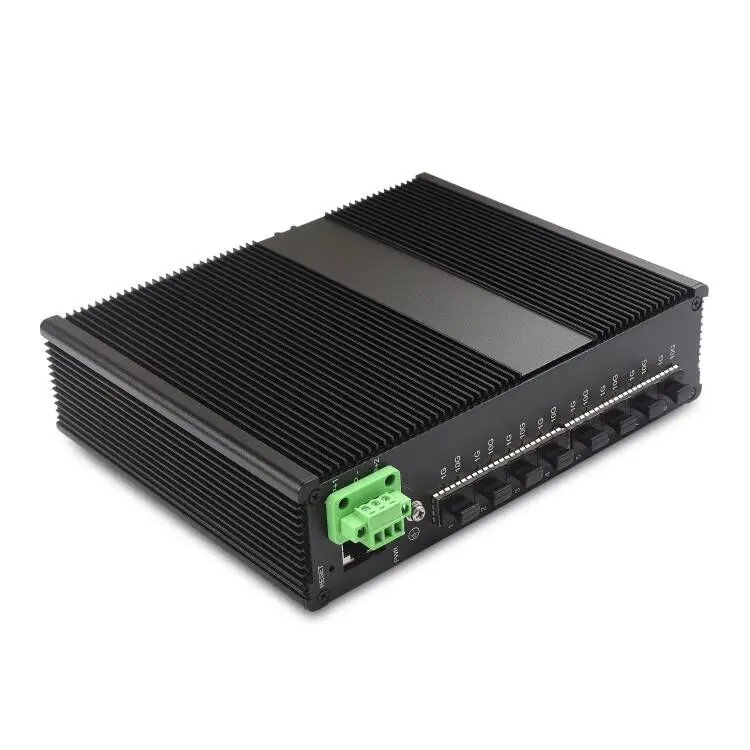

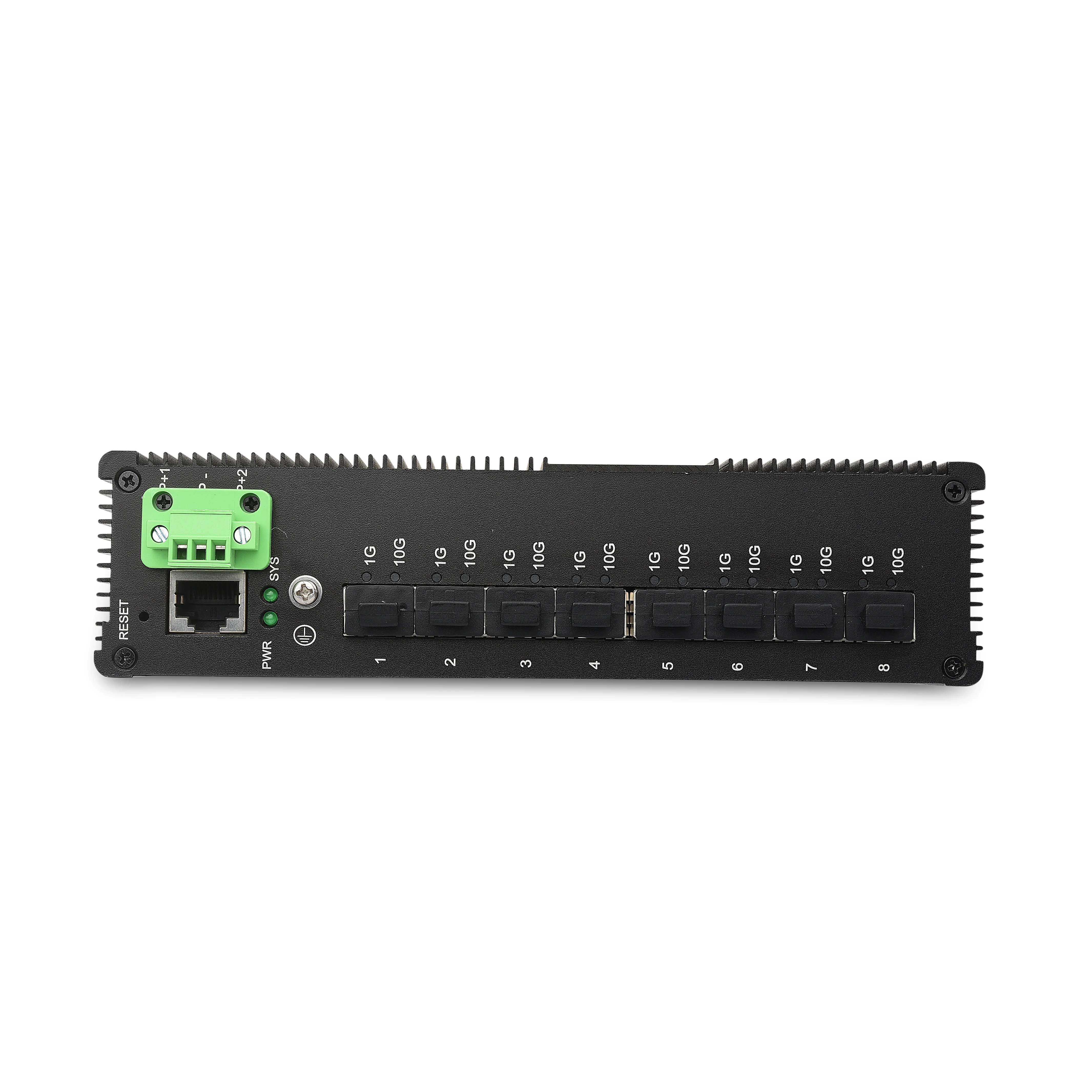

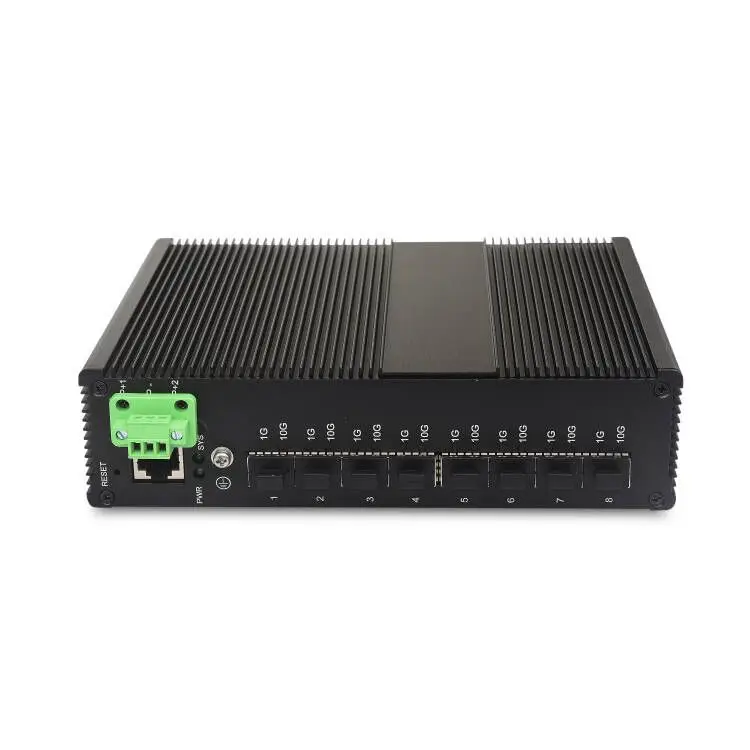

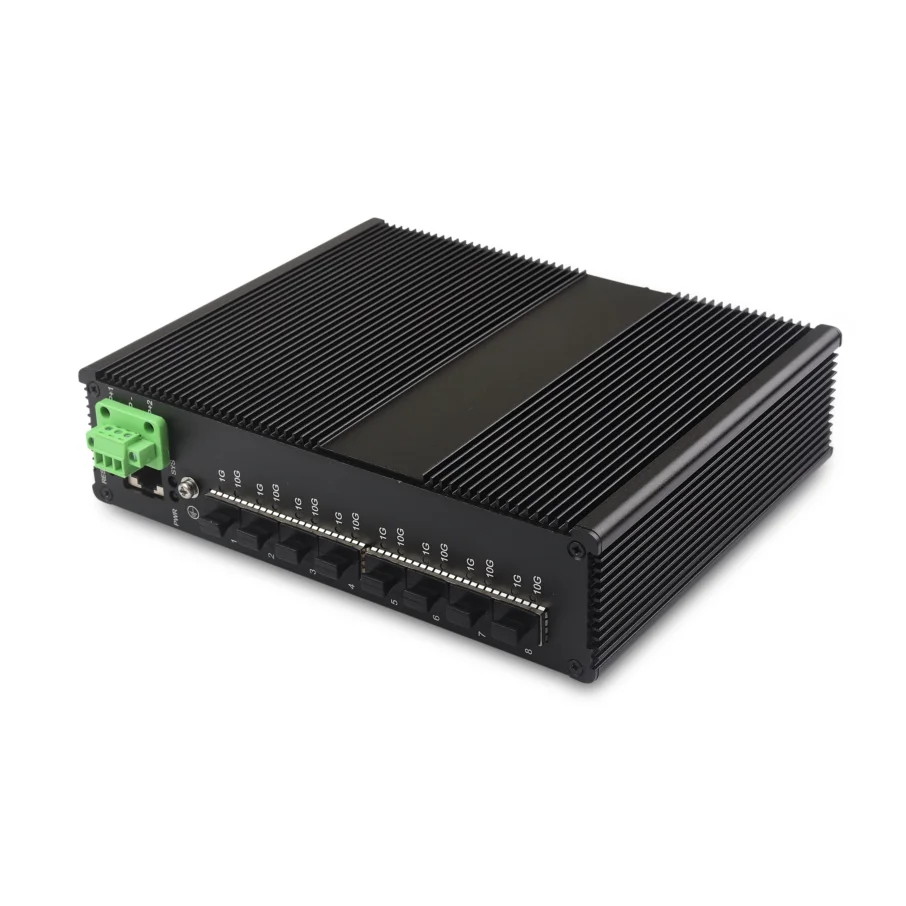

Switches with SFP+ interfaces 8 Ports 10G SFP+ Management Industrial Ethernet Switch
3C-LINK 3CI-SFP08TM is an 8-port, 10G per port, layer 2+ switch that comes with all SFP+ ports. These 10 gig switches with enterprise-class features ensure network efficiency and peak performance for large businesses. Cloud or on-premises management is available based on network architecture, administrative permissions, technical aptitude, and budget
- Full-featured layer 2+ switching
- 8 10G SFP+ ports to serve high-bandwidth devices
- 200 Gbps switching capacity for improved performance
- high speeds & high capacity
- Security - access control list/port security; 802.1X & RADIUS authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad link aggregation (LACP) supports traffic load balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- Voice VLAN for fast, reliable deployment of VoIP services
Model | 3CI-SFP08TM |
Interface Characteristics | |
Ports | 8*1/10G SFP+ fiber slot ports (Data) 1*Console RS232 port (9600,N,8,1) |
Optical Fiber Port | 1/10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 500M(1.25G), 0 ~ 300M (10G);single mode: 1310nm / 0 ~ 40KM, 1550nm/ 0 ~ 120KM. |
Chip Parameter | |
Network Management Type | L2 |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T | |
IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-SR/LR | |
IEEE802.3x | |
Forwarding Mode | store-forward mode and cut-through mode |
Switching Capacity | 200Gbps (Non-blocking) |
Forwarding Rate@64byte | 178.56Mpps |
MAC Address Table | 16K |
Buffer Memory | 24M |
LED Indicator | Power: PWR (yellow), system:SYS (yellow), Fiber port : L/A (green) |
Reset Switch | Yes, one key to restore factory settings |
Power | |
Total PWR / Input Voltage | 60W (AC100-240V) |
Power Consumption | Standby<10W, Full Load<36W |
Power Supply | Built-in power supply, AC 100~240V 50-60Hz 1.0A |
Physical Parameter | |
Operation TEMP/ Humidity | -20~+50°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity | -40~+70°C, 5%~95% RH Non condensing |
Dimension (L*W*H) | 439*473*43.5mm |
Net /Gross Weight | <3.0kg / <3.8kg |
Installation | Desktop type |
Certification & Warranty | |
Lightning protection / protection level | Port Lightning Protection : 6KV 8/20us |
Protection Level: IP30 | |
Certification | CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
Warranty | 1 year warranty, lifetime maintenance |
| 3CI-SFP08TM | L2 managed full 10G Ethernet core switch with 8*1/10G SFP+ fiber slot ports. Industrial Ethernet Switch. DC12-48VDC is default. |
