Z00mli0n 220hp гусеничный бульдозер с Cumins
- Категория: Bulldozers >>>
- Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 81515.86 $* | 85591.33 $* |
| Aug-16-2025 | 80830.87 $* | 84872.92 $* |
| Jul-16-2025 | 67815.10 $* | 71206.79 $* |
| Jun-16-2025 | 79460.31 $* | 83433.25 $* |
| May-16-2025 | 69185.14 $* | 72644.67 $* |
| Apr-16-2025 | 78090.76 $* | 81995.37 $* |
| Mar-16-2025 | 77405.8 $* | 81275.92 $* |
| Feb-16-2025 | 76720.76 $* | 80556.90 $* |
| Jan-16-2025 | 76035.12 $* | 79837.85 $* |
Характеристики
Best Sale Z00mli0n Crawler Bulldozer
Contact
Eva Song
Mobile / Whatsapp / Wechat/ Facebook: +86178 6567 5208
Email:eva@maxizm.com
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Add: Suite 1811, Block A, Yihe International, No. 10 Hong Kong Middle Road, Qingdao, China.
Web: http://www.maxizm.com
Mobile / Whatsapp / Wechat/ Facebook: +86178 6567 5208
Email:eva@maxizm.com
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Add: Suite 1811, Block A, Yihe International, No. 10 Hong Kong Middle Road, Qingdao, China.
Web: http://www.maxizm.com
Products Description
The power system of ZD220 series bulldozer is equipped with CUMINS NT855-C280 (BC3) engine with a turbocharger, boasting globally perfect after-sales service system, high reliability, long service life, low fuel consumption and less noise. Even if working on the highland of 3000m above sea level, it can ensure that the rated output power remains unchanged. Precise and reliable electronic monitoring system enables operators to know the equipment operation condition in real time. The machine features user-friendly design, comfortable operation and attractive appearance.
According to different working conditions and environments of bulldozers, work equipment like straight-tilt blade, U-blade,
R-blade, angle blade and winch can be equipped. Falling object protective structure (FOPS) and roll-over protective structure (ROPS) are optional. In addition, air conditioning system, centralized lubrication system, engine cold start device and automatic track tensioning device are available to meet different users' demands. This bulldozer is widely used in the earthwork constructions of building, roadbuilding, water conservancy, agriculture and national defense.
ZD220-3 bulldozer for hot area is equipped with air conditioning system and water tank specially designed for desert areas.
Special ventilation and heat dissipation design is made for the engine protective cover. The UV protective film for cab window and UV protective layer for hose are optional. It can work in about 50°C high-temperature environment.
Performance Parameters
Items | Units | ZD220-3/6 | ZD220S-3/6 | ||
Engine | Manufacturer | / | CUMMINS | CUMMINS | |
Model | / | NT855-C280/NT855-C235 | NT855-C280/QSNT855-C235 | ||
Displacement | L | 14 | 14 | ||
Rated Speed | r/min | 1800 | 1800 | ||
Rated Power | kW | 175~187 | 175~187 | ||
Electric Generator | / | 28V、35A | 28V、35A | ||
Fuel Consumption Rate | g/kW·h | ≤208 | ≤208 | ||
Starter Motor | / | 24V、11kW | 24V、11kW | ||
Undercarriage | Width of Track Shoe | mm | 560 | 910 | |
Pitch | mm | 216 | 216 | ||
Track Gauge | mm | 2000 | 2250 | ||
Length of Track On Ground | mm | 2730 | 3480 | ||
Ground Clearance | mm | 405 | 510 | ||
Number of Track Shoes (per side) | piece | 38 | 45 | ||
Working Device | Blade Type | / | Straight tilt blade | Swamp straight tilt blade | |
Width | mm | 3725 | 4365 | ||
Height | mm | 1315 | 1271 | ||
Max. Lift of Blade Above Ground | mm | 1210 | 1300 | ||
Max. Drop of Blade Below Ground | mm | 538 | 550 | ||
Blade Capacity | m³ | 6.4 | 6.8 | ||
Dimensions and Weight | Operating Weight | kg | 23600 | 26050 | |
Length (without ripper) | mm | 5460 | 5590 | ||
Length (with multi/single-shank ripper) | mm | 6811/7273 | / | ||
Width | mm | 3725 | 4365 | ||
Height（to top of muffler） | mm | 3395 | 3435 | ||

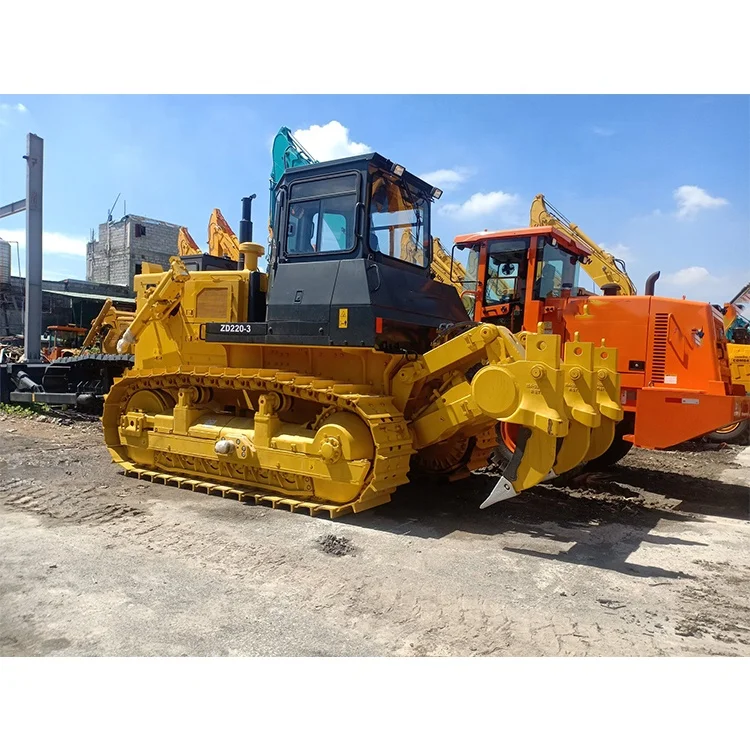

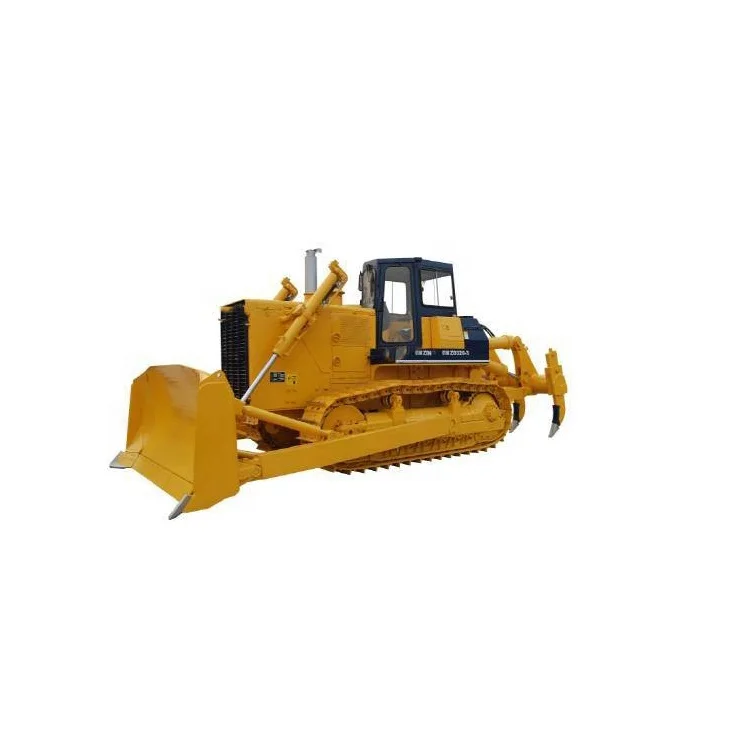

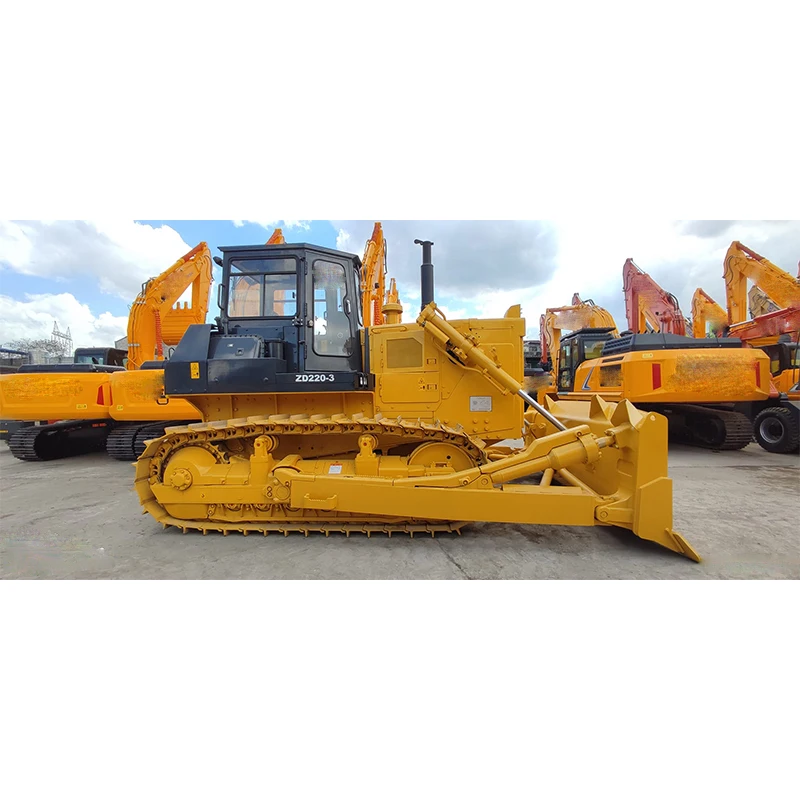

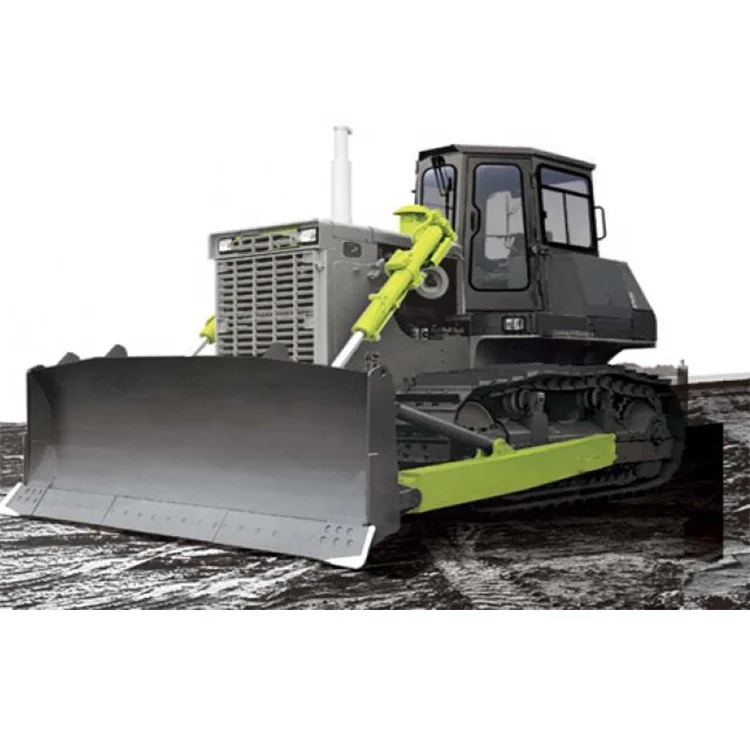

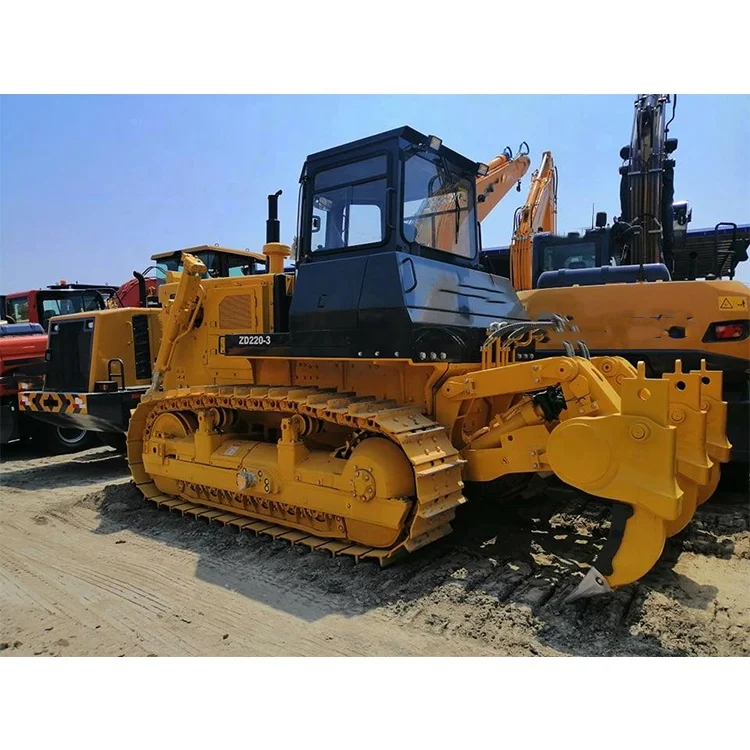

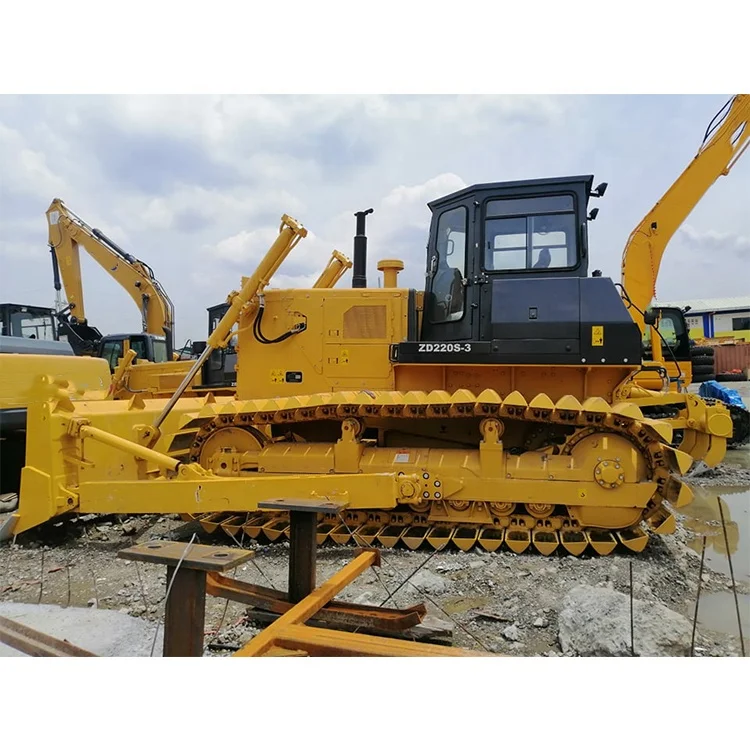

Details Images
