Product Description
Specification
Overview

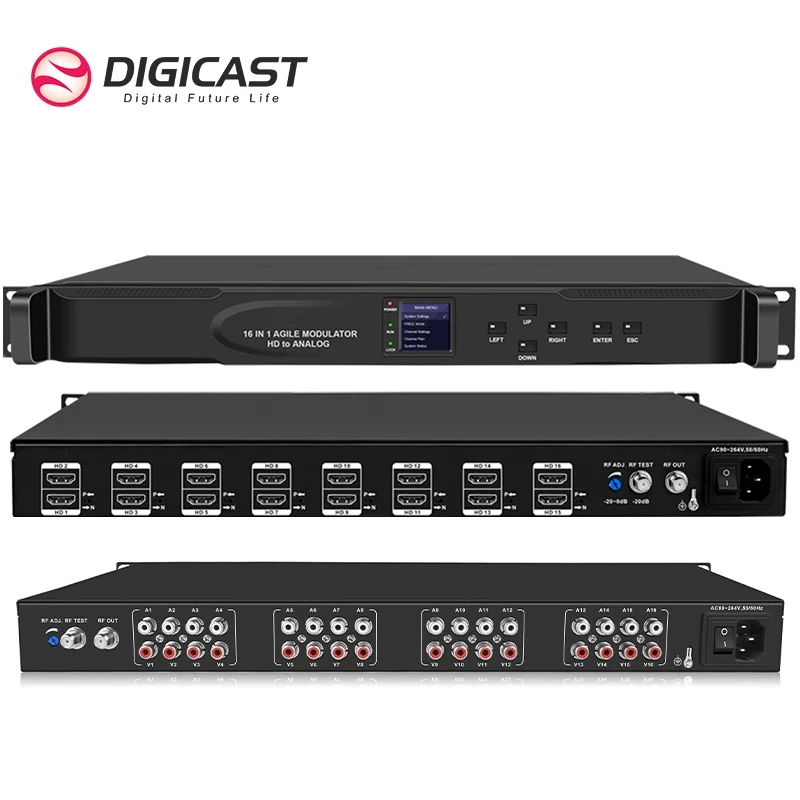

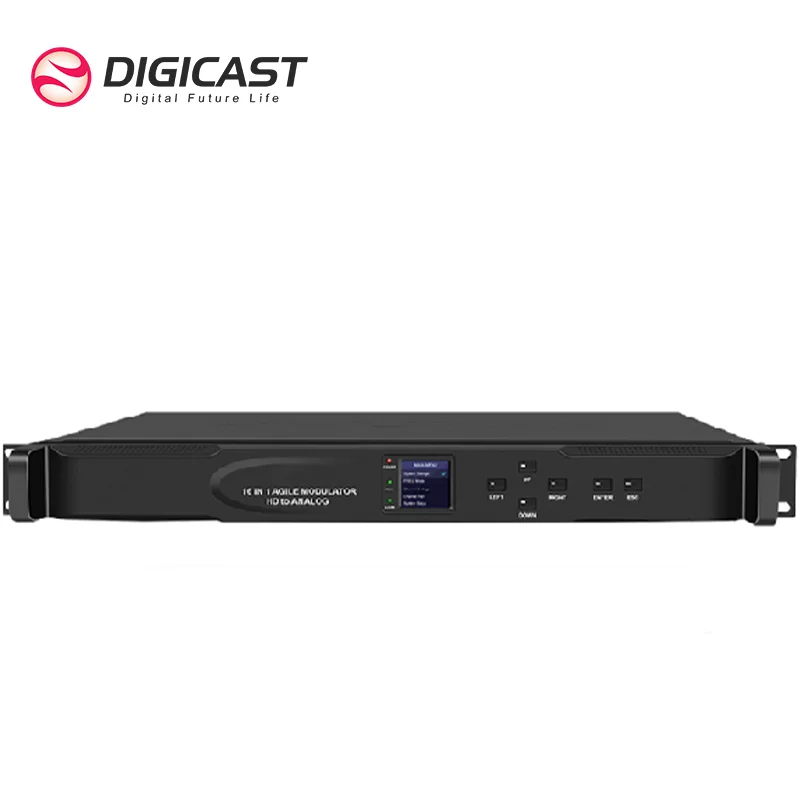

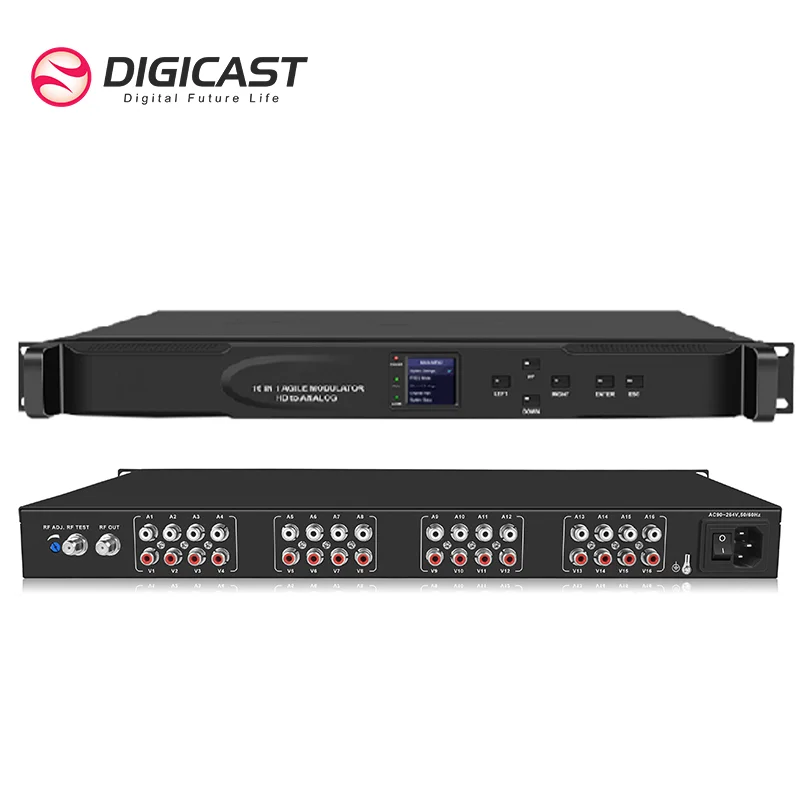

DMB-6100C is a professional quality agile modulator with 16 output channels in 1RU size.
It is SAW filtered and microprocessor controlled with an output capability of 860MHz. Setup and tuning are easy and simple by the front panel. The unit offers high performance, low cost and compact design for the system operators.
It is SAW filtered and microprocessor controlled with an output capability of 860MHz. Setup and tuning are easy and simple by the front panel. The unit offers high performance, low cost and compact design for the system operators.
Features
* Converts HD video and audio signals to analogy NTSC or PAL channel
* Rack mountable 1RU rack space with less space and less shipping cost
* High picture quality thanks to the 16 HDMI/CVBSinputs
* Internal fans cooling system for long life span
* Support HDCP
* SAW filtering for maintenance free adjacent channel configuration
* Double I.F loop for superior in band C/N
* Fewer cables and connector but greater reliability
* Front panel accessible level controls for easy set-up and adjustment
* Rack mountable 1RU rack space with less space and less shipping cost
* High picture quality thanks to the 16 HDMI/CVBSinputs
* Internal fans cooling system for long life span
* Support HDCP
* SAW filtering for maintenance free adjacent channel configuration
* Double I.F loop for superior in band C/N
* Fewer cables and connector but greater reliability
* Front panel accessible level controls for easy set-up and adjustment
CVBS to ANALOG MODULATIONS

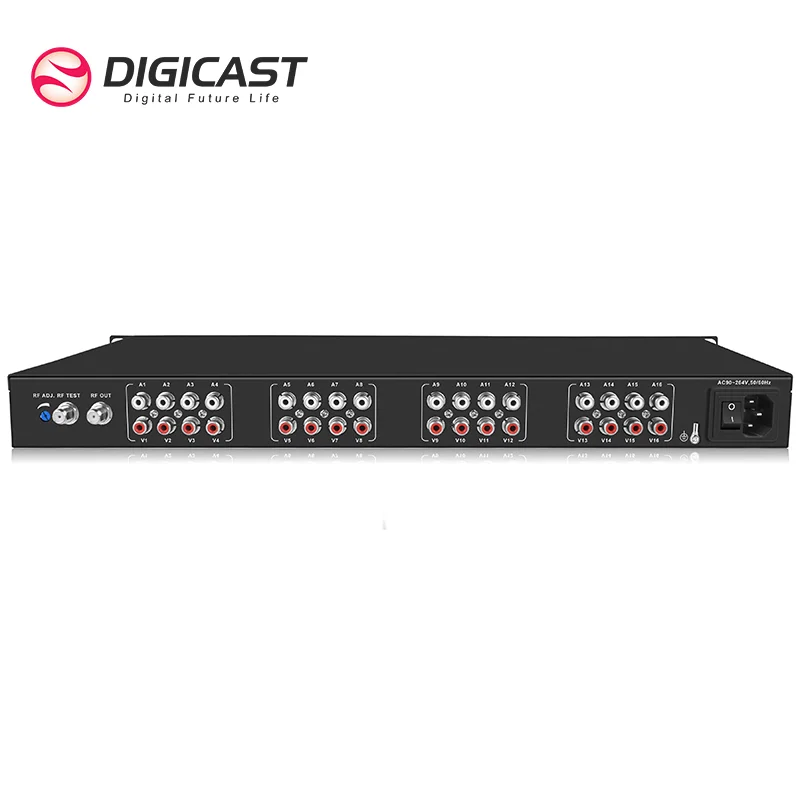

INPUT:
VIDEO:
* Input Level: 0.6-1.5Vp-p (87.5% Modulation)
* Input Connector: Red RCA
* Bandwidth: 6M, 7M, 8M
* Video C/N: 60dB
AUDIO:
* Input Level: 0.8Vp-p (25KHz Dev.)
* Input Connector: White RCA
RF OUTPUT:
* Output Frequency: 45~860 MHz
* Output Connector: F Connector
* Output Level: 110dBμV (Adj.)
* A / V Ratio: ≥ 35 dB
* Frequency Stability: ± 5 dB
* Test Point: -20 dB
INPUT:
VIDEO:
* Input Level: 0.6-1.5Vp-p (87.5% Modulation)
* Input Connector: Red RCA
* Bandwidth: 6M, 7M, 8M
* Video C/N: 60dB
AUDIO:
* Input Level: 0.8Vp-p (25KHz Dev.)
* Input Connector: White RCA
RF OUTPUT:
* Output Frequency: 45~860 MHz
* Output Connector: F Connector
* Output Level: 110dBμV (Adj.)
* A / V Ratio: ≥ 35 dB
* Frequency Stability: ± 5 dB
* Test Point: -20 dB
