Тактовый переключатель CenterMcx 4 5x4 5 мм smt тактильный
- Категория: Slide Switches >>>
- Поставщик: Shenzhen,Centermcx,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.26 $* | 0.65 $* |
| Aug-19-2025 | 0.94 $* | 0.28 $* |
| Jul-19-2025 | 0.86 $* | 0.11 $* |
| Jun-19-2025 | 0.41 $* | 0.96 $* |
| May-19-2025 | 0.37 $* | 0.49 $* |
| Apr-19-2025 | 0.42 $* | 0.30 $* |
| Mar-19-2025 | 0.23 $* | 0.6 $* |
| Feb-19-2025 | 0.81 $* | 0.43 $* |
| Jan-19-2025 | 0.58 $* | 0.8 $* |
Характеристики
Products Description

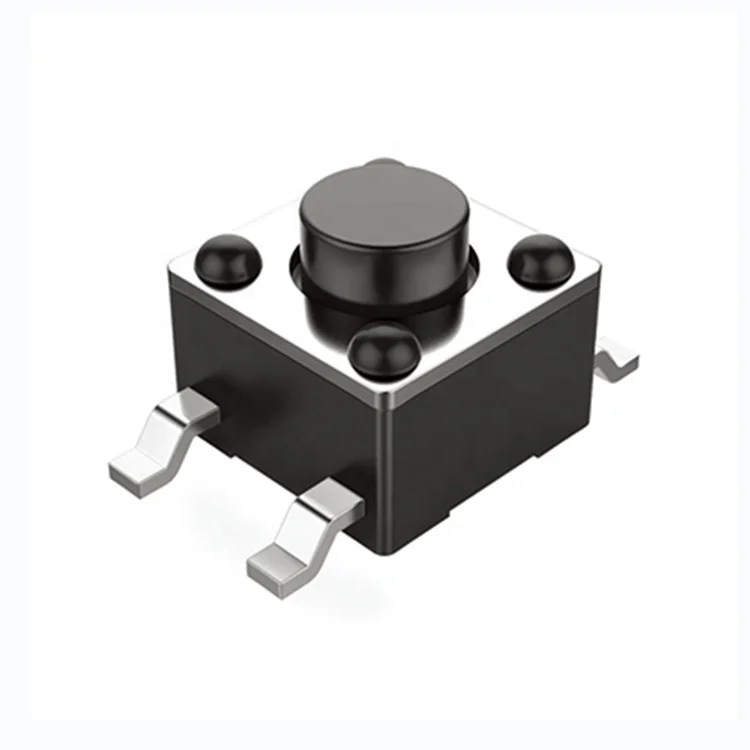

This is a push button tactile switch for general usage,ans is a typical surface mount with 4.5x4.5mm compact size and 4 G bend footprint. A variety actuator height and operating force options are available.
SMD Push Button Switch
The SMD type, short for surface mount device, not only saves the installation space, but also improves production efficiency through reflow soldering machine and reel & tape packing. Top push SMD button switch provides more stable handing and mounting stability. The operating life will also be greatly improved.
Because of the improvement of the production efficiency, the production cost is greatly reduced, so that the tactile switch has
became one of the most widely used push button switches.
Because of the improvement of the production efficiency, the production cost is greatly reduced, so that the tactile switch has
became one of the most widely used push button switches.
Multiple Driving Forces and Actuator Height Are Available
There are five operating forces of 100gf，160gf，200gf, 250gf and 300gf to choose from. And there also 4.3-19mm actuator height to choose from. The designers can select the suitable tact switch according to different application conditions.
Specification
Model Number: | TS-45VS01 |
Rating | 50mA 12V DC |
Travel | 0.5±0.1mm |
Operating Temperature | -30oC - +85oC |
Life Time | 100,000 Cycles |
Certifications | RoHs, Reach |
Initial Contact Resistance | 500 mΩ Max |
Insulation Resistance | 100MΩ min 100V DC |
Recommend Products
Company Profile
Shenzhen Centermcx Technology Co., Ltd.established in 2009, is specializing in the micro coaxial cable assy, low-voltage
differential signal LVDS wire harness,FPC flat flexible printed circuit cable, high speed SFP+ cable assy, and so on. All products have passed the CE, CQC and REACH, and other safety certification and environmental protection materials. The company has now formed a comprehensive service system integrated by the R&D, production and domestic trade and export. We satisfy all customers with advanced products, competitive prices, and fast delivery. Welcome to inquiry.
differential signal LVDS wire harness,FPC flat flexible printed circuit cable, high speed SFP+ cable assy, and so on. All products have passed the CE, CQC and REACH, and other safety certification and environmental protection materials. The company has now formed a comprehensive service system integrated by the R&D, production and domestic trade and export. We satisfy all customers with advanced products, competitive prices, and fast delivery. Welcome to inquiry.
Our Advantages
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
