Sunro Солнечная энергия один провод 4 мм 6 8 2 5 10 1000 в 1500 В Dc Pv солнечный кабель для солнечных
- Категория: Power Cables >>>
- Поставщик: Shanghai,Seanro,Solar,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.83 $* | 0.99 $* |
| Aug-16-2025 | 0.37 $* | 0.81 $* |
| Jul-16-2025 | 0.90 $* | 0.3 $* |
| Jun-16-2025 | 0.28 $* | 0.87 $* |
| May-16-2025 | 0.50 $* | 0.70 $* |
| Apr-16-2025 | 0.73 $* | 0.25 $* |
| Mar-16-2025 | 0.99 $* | 0.87 $* |
| Feb-16-2025 | 0.28 $* | 0.95 $* |
| Jan-16-2025 | 0.85 $* | 0.64 $* |
Характеристики
Products Description

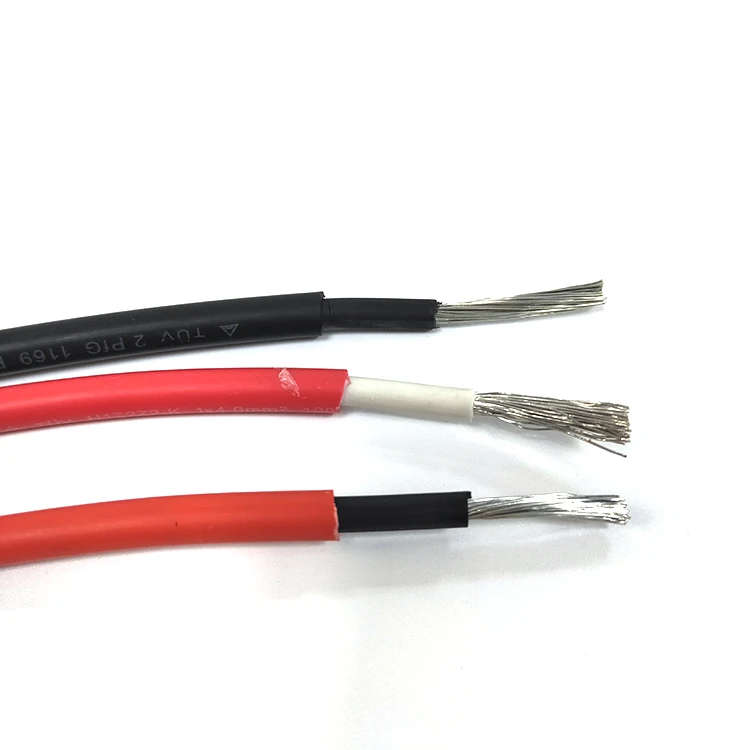

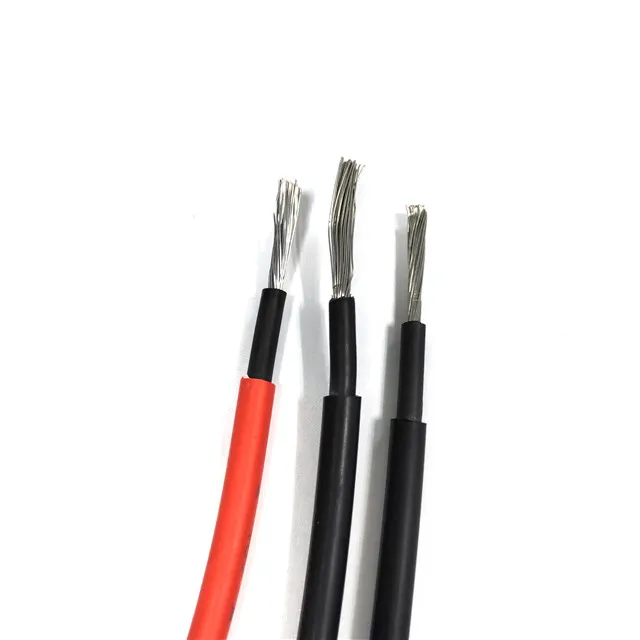

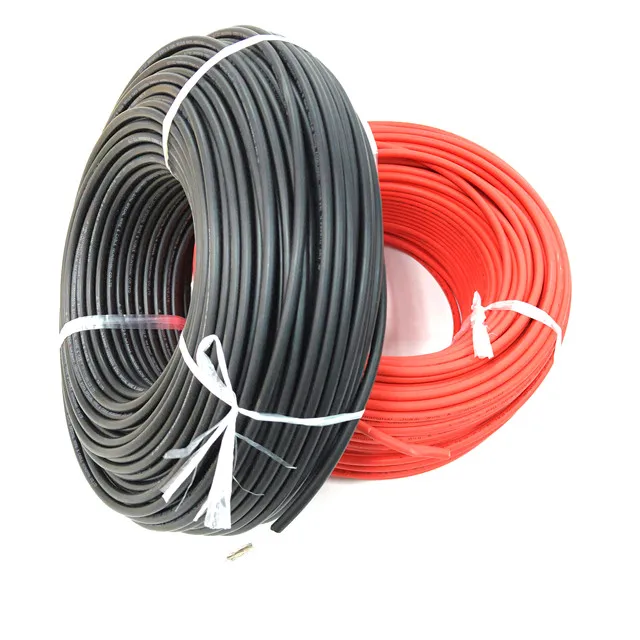

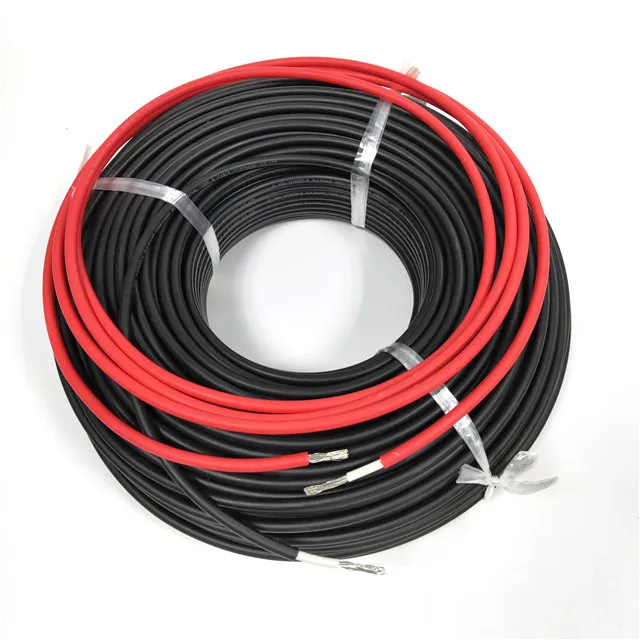

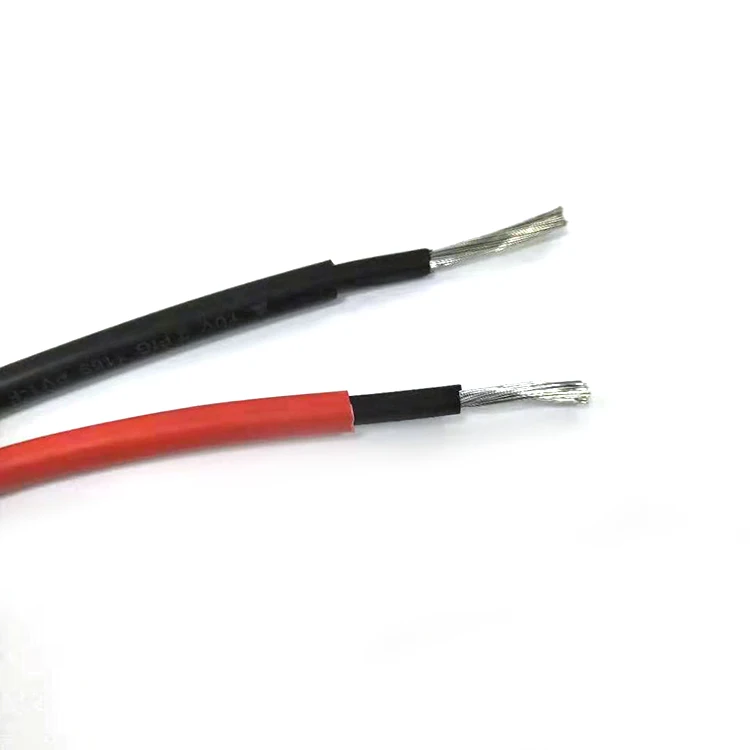

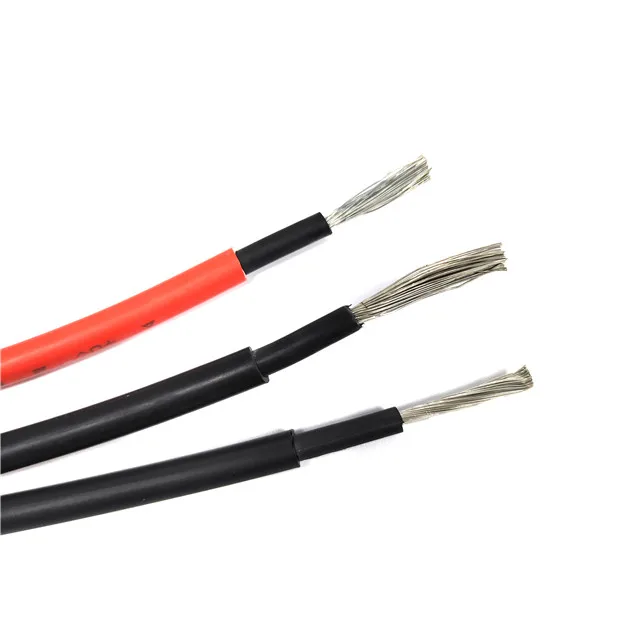

Sunro Solar Power Single Wire 4mm 6mm 8mm 2.5mm 10mm 1000v 1500v Dc Pv Solar Cable for Solar Energy Systems
Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion,
UV, ozone and hydrolysis.
These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
They operate at DC voltage and provide long life in exposed conditions.
UV, ozone and hydrolysis.
These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
They operate at DC voltage and provide long life in exposed conditions.
Technical data
Nominal voltage | U0/U=600/1000V AC,1000/1800V DC | Test voltage | 6500V,50HZ,5min |
Max. conductor temperature | -40℃ up to +125℃ | Ambient temperature | -40℃up to +90℃ |
Max. Short circuit temperature | 280℃ | Bending radius | fixed installation>4×Φ Occasionally moved>5×Φ |
1. Conductor: Tinned copper.
2. Insulation: XLPE/XLPO
3. Sheath: XLPE/XLPO
4.Fire-resistance performance:IEC 60332-1
5.Approvals:TUV 2PfG 1169/08;EN50268-2
6.Application standards:UNE211 23;UNE 20.460-5-52,UTE C 32-502
2. Insulation: XLPE/XLPO
3. Sheath: XLPE/XLPO
4.Fire-resistance performance:IEC 60332-1
5.Approvals:TUV 2PfG 1169/08;EN50268-2
6.Application standards:UNE211 23;UNE 20.460-5-52,UTE C 32-502
Model Type
Size(n/mm2) | Conductor Construction (n/mm) | Finished Cable OD(mm) | Max DC Resistance @20C(ohm/KM) | Curent (A) (underground installation) |
1*4 | 52/0.30±0.008 | 4.85 | 5.09 | 52 |
1*6 | 78/0.30±0.008 | 5.55 | 3.39 | 67 |
2*4 | 52/0.30±0.008 | 4.85*10.00 | 5.09 | 44 |
2*6 | 78/0.30±0.008 | 5.55*10.00 | 3.39 | 57 |
Our advantage
More details
Certifucations
Feedback from customers
Company Introduction
Shanghai SeanRo Solar Power Co., Ltd.
Shanghai SeanRo Solar Power Co., Ltd. is a high-tech enterprise integrating research and development, manufacturing and sales, dedicated to solar photovoltaic industry. Now the company mainly produces solar pane. At the same time, we develop, configure and sell photovoltaic power station system, , solar inverter, solar cable,solar flood light, solar related products.Since its establishment, the company has been striving for the world's new energy industry with the aim of "pursuing excellence and creating a green future". Its products are selling well in Europe, North America, South America, Australia, Africa, middle East, Southeast Asia and other countries and regions, and has been widely praised by customers. We sincerely welcome businessmen and customers at home and abroad to visit us!!!
Main products and business:
Solar panel, solar inverter, solar cable, solar connector, solar flood light, solar rails, solar battery, PV combiner box
packing＆shipping
Contact Us
FAQ
Q1. How can I place order?
A: You can contact us by email about your order details, or place order on line.
Q2. How can I pay you ?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using.
Q3. what is the package of the cable ?
A: The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirment.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: You can contact us by email about your order details, or place order on line.
Q2. How can I pay you ?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using.
Q3. what is the package of the cable ?
A: The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirment.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
