Сетевой видеорегистратор Dahua 3 слоя агрегацией переключатель AS6600-24XF2QF 24 порта
- Категория: Network Switches >>>
- Поставщик: Beijing,Sinlay,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.91 $* | 0.22 $* |
| Aug-17-2025 | 0.32 $* | 0.23 $* |
| Jul-17-2025 | 0.19 $* | 0.24 $* |
| Jun-17-2025 | 0.36 $* | 0.61 $* |
| May-17-2025 | 0.47 $* | 0.7 $* |
| Apr-17-2025 | 0.45 $* | 0.27 $* |
| Mar-17-2025 | 0.20 $* | 0.60 $* |
| Feb-17-2025 | 0.57 $* | 0.92 $* |
| Jan-17-2025 | 0.99 $* | 0.23 $* |
Характеристики

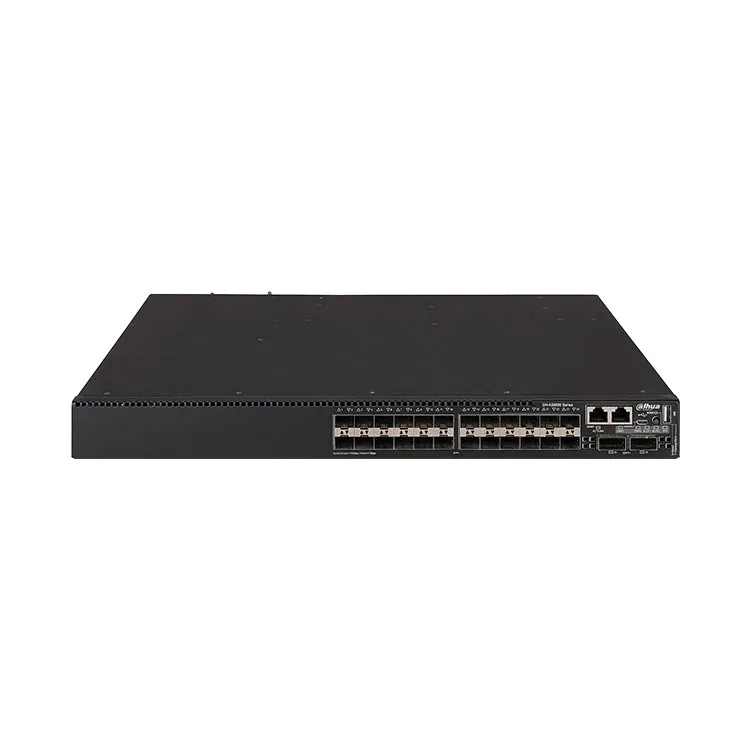

Dahua 3 Layer Link Aggregation Switche AS6600-24XF2QF 24 Port Optical Fiber Switch
Products Description
AS6600-24XF2QF
> AS6600 series 10 Gigabit Layer 3 managed switch.
> Excellent switching capacity.
> High-density ports with line-rate forwarding up to 10 GE/40 GE.
> Dual pluggable power supplies and fan trays.
> IRF2 intelligent resilient architecture.
> Features VxLAN technology, intelligent operation, and high-density
> Provides multi-chassis link aggregation and MACsec encryption.
> AS6600 series 10 Gigabit Layer 3 managed switch.
> Excellent switching capacity.
> High-density ports with line-rate forwarding up to 10 GE/40 GE.
> Dual pluggable power supplies and fan trays.
> IRF2 intelligent resilient architecture.
> Features VxLAN technology, intelligent operation, and high-density
> Provides multi-chassis link aggregation and MACsec encryption.
Hardware | ||
Included Power Adapter | Yes | |
PoE | No | |
Optical Port | 24 | |
Optical Port Speed | 10 Gbps | |
Optical Port Uplink Speed | 40 Gbps | |
Description of Function Slots | Port 1-24: 24 × SFP + 1/10 Gbps; | |
Port 25-26: 2 × QSFP + 40 Gbps | ||
Debugging | 1 × Console | |
1 × MGT | ||
1 × Micro USB | ||
1 × USB | ||
Hot Plug | Yes | |
Power Supply | Built-in dual power supplies: 100–240 VAC, 50/60 Hz, 4 A | |
Operating Temperature | –5 °C to +45 °C (+23 °F to +113 °F) | |
Operating Humidity | 5%–95% (RH) | |
Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | |
Storage Humidity | 5%–95% (RH) | |
FAN | 2 | |
Power Consumption | Full load: 183 W; | |
Idle: 43 W | ||
Performance | ||
Layer | Layer 3 | |
Management Type | Yes | |
Smart Managed Switch | No | |
MTBF | 62.8 years | |
Switching Capacity | 980 Gbps | |
Packet Forwarding Rate | 705 Mpps | |
Packet Buffer Size | 1.25 Mbit | |
Jumbo Frame | 10k Byte | |
MAC Table Size | 128K | |
VLAN Number | 4K | |
VLAN Interface | 1K | |
IPv4 Routes | 64K | |
Dynamic ARP | 64K | |
Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae | |
Features | ||
Spanning Tree Protocol | STP/RSTP/MSTP | |
PVST | ||
RRPP | ||
Routing | Static routing | |
IPV6 policied routing | ||
RIPv1/v2/ng | ||
OSPFv2/v3 | ||
IS-ISv4/v6 | ||
BGP4/4+ | ||
ECMP | ||
Policy based routing | ||
VLAN Function | Port-based VLAN | |
MAC-based VLAN | ||
Protocol-based VLAN | ||
Subnet-based VLAN | ||
QinQ, flexible QinQ | ||
VLAN Mapping | ||
Voice VLAN | ||
MVRP | ||
Link Aggregation | Static link aggregation | |
Dynamic link aggregation | ||
Multi-chassis link aggregation | ||
GE port aggregation | ||
10GE port aggregation | ||
IEEE 802.3x Flow Control | Yes | |
Multicast | IGMP Snooping v1/v2/v3 | |
PIM Snooping | ||
Multicast VLAN | ||
IGMP v1/v2/v3 | ||
PIM-DM, PIM-SM, PIM-SSM | ||
MSDP | ||
Reliability | IRF | |
VRRP | ||
DLDP | ||
LLDP | ||
VCT | ||
ARP | Dynamic ARP Inspection | |
ARP anti-attack | ||
ARP source suppression | ||
Routing | Static routing | |
RIPv1/v2/ng | ||
OSPFv2/v3 | ||
IS-ISv4/v6 | ||
BGP4/4+ | ||
ECMP | ||
Policy-based routing | ||
DHCP Function | DHCP Client | |
DHCP Snooping | ||
DHCP Relay | ||
DHCP Server | ||
DHCP Snooping option82 | ||
DHCP Relay option82 | ||
DHCP Snooping Trust | ||
DHCP Snooping entry backup | ||
Security | Multi-level user management and password protection | |
802.1X authentication | ||
RADIUS authentication | ||
SSH 2.0 | ||
Port isolation | ||
HWTACACS | ||
IP/Port/MAC binding | ||
IP Source Guard | ||
HTTPS | ||
Triple authentication | ||
QoS/ACL | The flexible queue scheduling algorithm includes SP, WDRR, and SP + WDRR (can be set based on the port and queue at the same time) | |
Two-way ACL policy (ingress and egress) | ||
IPv6 | ICMPv6 | |
TRACEROUTE V6 | ||
TELNET V6 | ||
SSH2 V6 | ||
ND/ND snooping/ND proxy/ND detection | ||
SAVI | ||
IPV6 PORTAL | ||
PMTU | ||
DNS CLINET FOR IPV6 | ||
SNMP FOR IPV6 | ||
RIPng/OSPF V3/IS-ISv6/BGP4+ | ||
IPV6 policy-based routing | ||
MLD SNOOPING v1/v2 | ||
IPv6 PIM DM/PIM SM/PIM SSM | ||
VRRP V3 | ||
DHCPv6 snooping/DHCPv6 client/DHCPv6 relay/DHCPv6 server | ||
IPv6 port binding | ||
BFD for IPV6 (static routing, OSFPv3, BGP+) | ||
Equipment Management | Load update files and update using FTP | |
Configure through CLI, Telnet, Console port | ||
SNMPv1/v2/v3 | ||
System logs, multi-level alarms, and debug information; | ||
NTP | ||
Power supply, fan, and temperature alarms | ||
Ping and Tracert | ||
LLDP | ||
Port loopback detection | ||
General | ||
Statics Protection | Air discharge: 8 kV | |
Contact discharge: 6 kV | ||
Lighting Protection | Surge protection: 6 kV | |
Net Weight | ≤4.5 kg (9.92 lb) | |
Product Dimensions | 440 mm × 360 mm × 43.6 mm | |
(17.32" × 14.17" × 1.72") (L × W × H) | ||
Packaging Dimensions | 590 mm × 480 mm × 135 mm (23.22" × 18.90" × 5.31") (L × W × H) | |
Casing Material | Sheet metal | |
Installation | Desktop mount; rack mount | |
Certifications | CE | |
Similar Model
Company Profile
\tBejing Sinlay technology limited is a young ,creative and energetic company located in beijing.with a strong focus on service and providing innovative,high quality and competitively priced products including Hikvision/dahua CCTV Camera,IP Video solutions and so on.
Our products are sold far to Europe, America, Southeast Asia and other countries and regions. High quality, good price, on time delivery and sincere service are our value and promises to our customers. As an enterprise integrating manufacture and sales, we have confidence to launch more competitive products to cope with severe competition. Sinlay is your sincere partner!
FAQ
01
How to confirm whether the product is Dahua and Hikvision genuine English version?
You can download software in the official website of Dahua and Hik vision,only Dahua and Hik vision genuine product is compatible with the software.And we promise all of our products are Dahua and Hik vision genuine products.
02
When will you ship my order？
Ordinary,once we get confirmation for payment,we will ship order within 1-2 days.
03
Can I install the IP camera by myself?
Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need.
04
How is your after-sale service?
Three engineers work more than five years we will respond your technical support within 24 hours.
05
Do you support drop shipping?
Yes,your drop shipping is aviable.
06
How about warranty?
Two years warranty.
