Антиизносостойкая мозаика Al2O3 глиноземная керамическая плитка

Антиизносостойкая мозаика Al2O3 глиноземная керамическая плитка

Категория: Ceramics >>>
Поставщик: Zibo,Zawa,New,Materials,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.40 $*	0.24 $*
Aug-19-2025	0.83 $*	0.9 $*
Jul-19-2025	0.99 $*	0.54 $*
Jun-19-2025	0.70 $*	0.63 $*
May-19-2025	0.42 $*	0.46 $*
Apr-19-2025	0.71 $*	0.73 $*
Mar-19-2025	0.91 $*	0.35 $*
Feb-19-2025	0.39 $*	0.71 $*
Jan-19-2025	0.3 $*	0.3 $*

Характеристики

Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet

Technical Data

Technical Data of Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet

Category	92 Series	95 Series	ZTA	ZrO2
Al2O3	≥92%	≥95%	≥74%	/
ZrO2+Ye2O3	/	/	≥23.5%	≥95%
Density	≥3.60g/cm3	≥3.65g/cm3	≥4.15g/cm3	≥6g/cm3
Mohs hardness	9	9	9	9
Water absorption%	≤0.02	≤0.02	≤0.01	0
Bending Strength MPa	255	275	500	900
Compression strength MPa	≥850	≥900	1400	2200
Fracture Toughness MPam 1/2	3.65	3.75	5.5	7
Wear Volume	≤0.55cm3	≤0.50cm3	≤0.15cm3	≤0.10cm3

Brief introduction

Brief introduction of Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet

Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet is formed by isostatic pressing with super fine alumina particles after spray granulation, and sintered in our 60m long tunnel kiln at extremely high temperature.

The Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet is very safe and reliable in the case of high temperature corrosion, high temperature wear or high temperature melting corrosion. Under the same working and mining conditions, its service life is ten to twenty times of that of cast stone, wear-resistant alloy cast steel, steel plastic, steel rubber and other materials.

2 _

Advantages of Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet

High hardness: The alumina wear-resistant ceramic sheet has a Rockwell hardness of more than HRA90, and its hardness is second only to diamond, far exceeding the wear resistance of wear-resistant steel and stainless steel.

Excellent wear resistance: its wear resistance is equivalent to 30 times that of manganese steel and 20 times that of high chromium cast iron. According to the customer's follow-up survey, under the same working conditions, the service life of the equipment can be extended by at least ten times.

Light weight: Its density is about 3.6g/cm3, which is only half of steel, which can greatly reduce equipment load.

Application

Application of Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet

Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet is installed on the impact areas of conveying systems, coal pulverizing systems, ash discharge and dust removal systems of thermal power, steel, smelting, machinery, coal, mining, chemical industry, cement, port and wharf, etc.

Specification

Specification of Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet

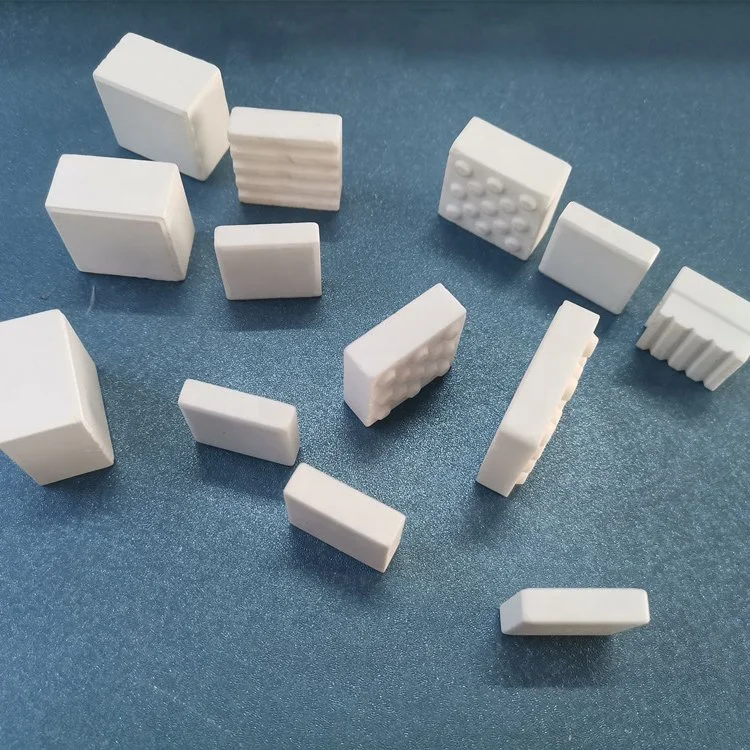

The specification and shape of Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet is various based on different working conditions or customers’ requirements. The following is our size range for your reference.

Specification	Length	Width	Thickness
Plain tile (without hole)	50-228	25-100	6-80
Welding tile (with hole)	50-228	30-100	10-80
Pipe tile	50-228	20-100	8-80

Packaging & Shipping

Package of Anti-wear Mosaic Al2O3 Alumina Ceramic Wear Tiles Lining Sheet !

Our Services

What is the company’s strength?

1. Over 15-year old factory with stable product quality

2. Factory sell directly, no more middle step

3. Competitive price with good delivery time

4. Professional international sales team will give you all round services from price quotation, order arrangement, packing to quality control, from vessel booking ,documents making to custom clearance.

5. Long-term stock preparation based on market demand
