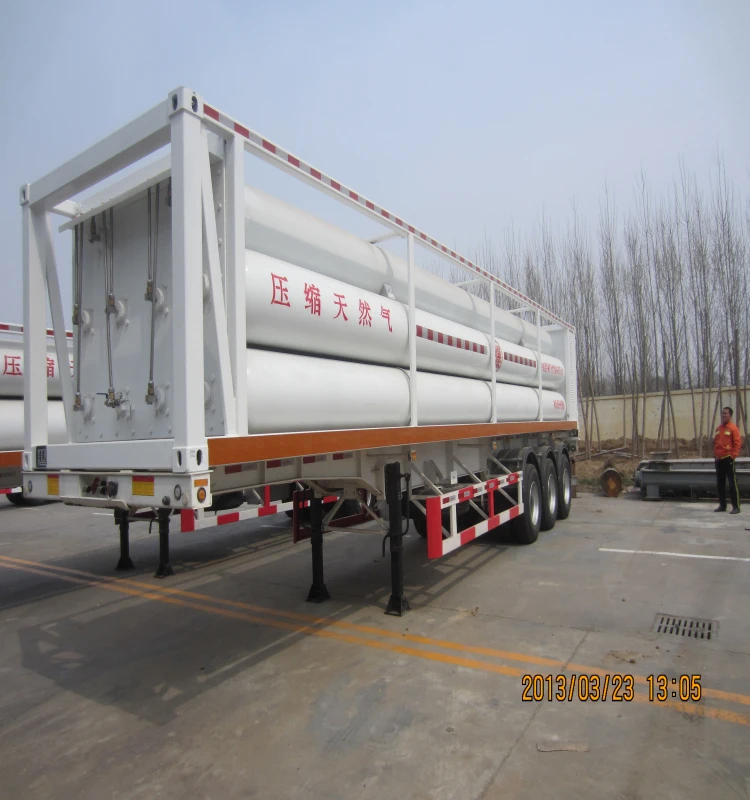

Новейшие технологии бесшовные 40Ft 15-Tube Cng с газовыми трубками
- Категория: Special Transportation >>>
- Поставщик: Shandong,Hongqiao,Energy,Equipment,Technology,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.20 $* | 0.12 $* |
| Aug-19-2025 | 0.81 $* | 0.8 $* |
| Jul-19-2025 | 0.81 $* | 0.31 $* |
| Jun-19-2025 | 0.96 $* | 0.40 $* |
| May-19-2025 | 0.41 $* | 0.96 $* |
| Apr-19-2025 | 0.19 $* | 0.31 $* |
| Mar-19-2025 | 0.30 $* | 0.52 $* |
| Feb-19-2025 | 0.72 $* | 0.53 $* |
| Jan-19-2025 | 0.15 $* | 0.41 $* |
Характеристики
Products Description
Specification
15-tube bundle container | ||||||||||
Execution standard : ISO11120 Cylinder-design , structure and test of seamless and reusable steel tube with a capacity between 150 L to3000 L .ISO 668 Classification , dimensions and ratings of series 1 container | ||||||||||
Bundle Container | Item | Data | Cylinder | Item | Data | |||||
Type | GSJ15-2450-CNG-25 | Working pressure | 25MPa | |||||||
Container quality | 41820Kg | Working temperature | -50~65℃ | |||||||
Filling quality | 8335Kg | Main material | 30CrMoLX | |||||||
Rated weight | 50155Kg | cylinder QTY | 15 | |||||||
Filling medium | CNG | Total volume | 36.75M3 | |||||||
Gas tightness test pressure | 25MPa | Pressure for water pressure test | 37.5MPa | |||||||
Pipeline water pressure test pressure | 37.5MPa | Dimension(mm) | 559x11570 | |||||||
Filling amount | 11576Nm3 | Design temperature | 65℃ | |||||||
Dimension (mm) | 12192x2438x2490 | Medium property | Explosive | |||||||
Transporting | Highway combined transport | |||||||||
Design service life | Fifteen years | |||||||||
Bursting discs | Burst pressure | 37.5MPa | ||||||||
Bursting disc device discharge aperture | ≥20 | |||||||||
Related Product
Company Profile
Shandong Hongqiao Energy Equipment Technology Co., Ltd. is committed to the sales of clean energy equipment such as natural gas and hydrogen energy. After years of continuous development, a series of equipment products for the storage, transportation, charging and use of compressed gas, high-pressure liquefied gas and low-temperature liquefied gas have been formed; gas (oil) boilers; pressure and atmospheric pressure special vehicle series products; gas filling station , gasification station, hydrogen refueling station, overall design and construction of large tank farms. At the same time, cooperate with China Special Equipment Inspection and Research Institute to carry out inspection, maintenance and transformation service projects of mobile containers and fixed containers, and provide customers with high-quality value-added services.
The company takes protecting the environment as its own responsibility, and takes the R&D, manufacturing and installation of green and clean energy equipment as its leading role. With excellent product quality and professional technical services, the sales performance has increased year by year, and it has been exported to Southeast Asia, West Asia, Northern Europe, Western Europe, America, Africa and other places. , Middle East and other countries and regions, has become a clean energy equipment manufacturing enterprise providing first-class technology, first-class equipment and excellent quality.
The company's products involve large-volume steel seamless gas cylinders, gas storage cylinder sets, tube bundle containers, CNG mobile skid-mounted gas filling stations, LNG gas cylinders for vehicles, welded insulated gas cylinders, T75 tank containers, LNG cryogenic storage tanks, Cryogenic pump skids, LNG modular skid-mounted gas stations, cryogenic liquid transport vehicles, complete sets of equipment for gas stations, construction of the whole station, etc.
The company takes protecting the environment as its own responsibility, and takes the R&D, manufacturing and installation of green and clean energy equipment as its leading role. With excellent product quality and professional technical services, the sales performance has increased year by year, and it has been exported to Southeast Asia, West Asia, Northern Europe, Western Europe, America, Africa and other places. , Middle East and other countries and regions, has become a clean energy equipment manufacturing enterprise providing first-class technology, first-class equipment and excellent quality.
The company's products involve large-volume steel seamless gas cylinders, gas storage cylinder sets, tube bundle containers, CNG mobile skid-mounted gas filling stations, LNG gas cylinders for vehicles, welded insulated gas cylinders, T75 tank containers, LNG cryogenic storage tanks, Cryogenic pump skids, LNG modular skid-mounted gas stations, cryogenic liquid transport vehicles, complete sets of equipment for gas stations, construction of the whole station, etc.
