Product Description


HYBRID COMBINER COUPLER

Hyrbid Combiner is commonly used in combine two or more singals in micorwave signals on the same frequency band. Its main function is to achieve a multi-channel broadband microwave signal, and to ensure that the isolation between the output signal, and reduce the signal interference. Mainly used in repeater station or base station for combing or splitting power, als can be used in indoor distribution system.


Key Featrures:

1. Wide Frequency Range (698-2700 / 800-2700MHz/ 698-3800MHz)
2. Low VSWR, Low Insertion Loss and Low PIM (-140/-150dBc)
3. 3:1,3:2, 3:3 4:1, 4:2 and 4:4 combiners are available
4. N, 7 /16 DIN Female Connectors are available
5. Indoor and Outdoor Use (IP65 / IP67 / IP68)
6. RoHS Compliant, SGS, ISO9001 Certificate



698-2700MHz 2x2 Hybrid Coupler
Frequency Range
698-2700
VSWR
≤1.25
Coupling(dB)
3.1 ±0.55
Isolation(dB)
≥24
Power Rating
200W (average)
PIM3
≤-150dBc@2*43dBm
Connector Type
DIN-Female
Impedance
50 Ω
Operating Temperature
-30~+65
Finish
Black paint
Relative Humidity
5%-95%
Dimensions(mm)
156*85*34(Connectors Included)
Net Weight (KGS)
0.60
Application
Indoor & Outdoor, IP65

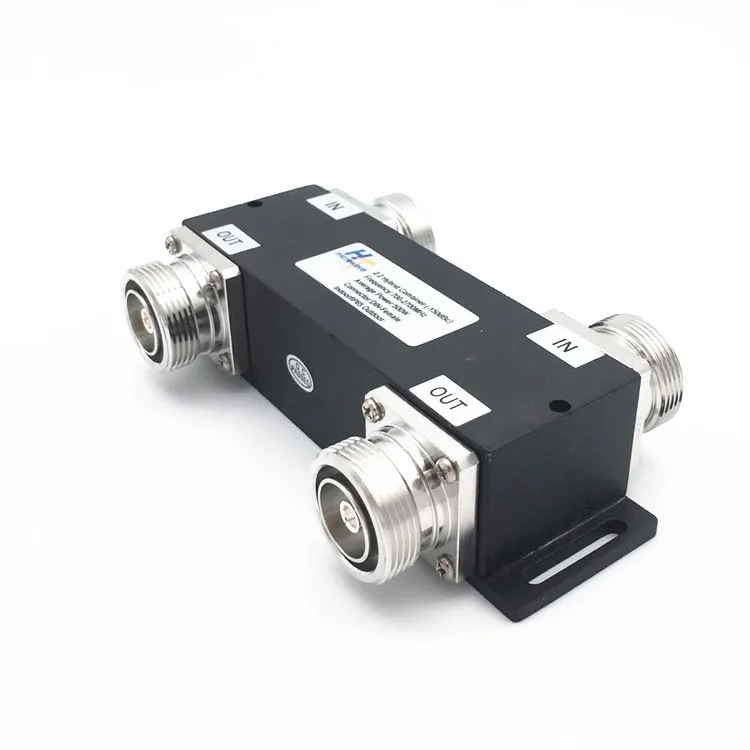

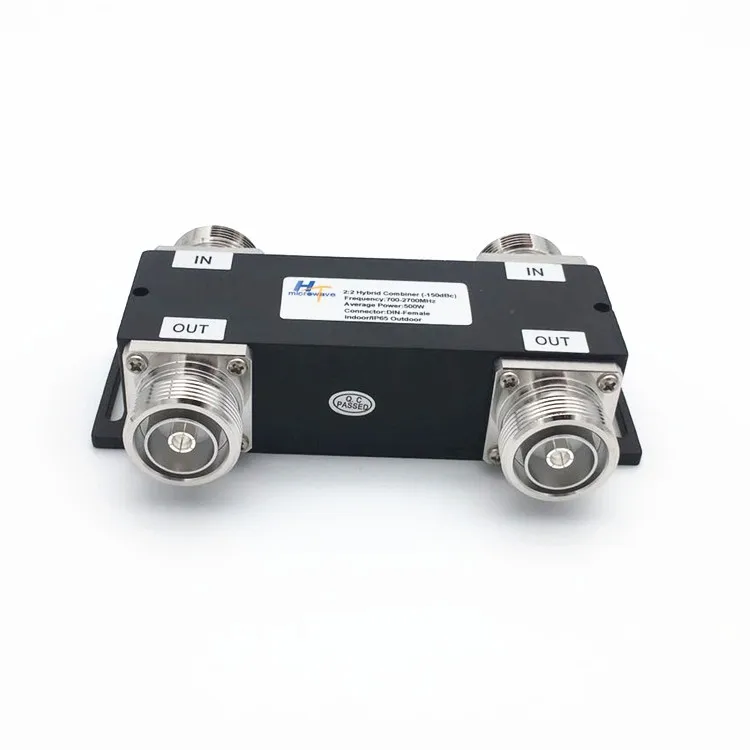

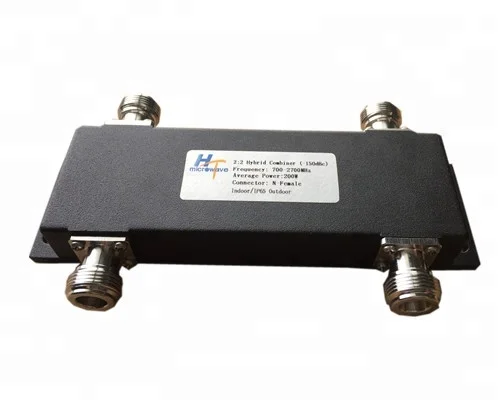

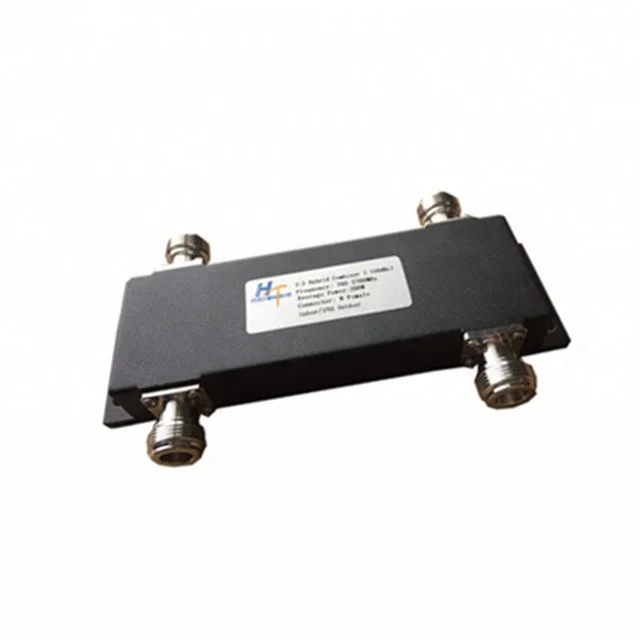

Detailed Images




Related Products








Our Company


HeFei HTMICROWAVE Technology CO.,LTD is a new and high-tech enterprise which focus on Microwave Technology Research, RF Microwave Component and System Industry Development. We are a global and professional manufacturer and system integrator provider for Wireless Network Coverage and optimization solutions.

Our main products are Power Splitter, Directional Coupler, 3dB Hybrid Coupler, Hybrid Combiner, RF Coaxial Attenuator, Dummy Load, Cable Assembly, Connector and Adapter, RF Antenna, Filter, Duplexer and Triplexer. Customers' designs (OEM / ODM) are also available.

With years of export experience along with excellent quality, advanced service and competitive prices, our company has won numerous customers' trust and support. We welcome worldwide customers to contact us for further discussion and cooperation.







Certifications




Packing & Delivery


Packing Information:

Each piece packed in an opp bag, each opp bag packed in a small inner box,small boxes put in one standard exporting carton, then cartons packed in one pallet.





FAQ


1.Can we get a free sample firstly?
Yes,free sample for approval is available to our customers.

2.Are you a trader or manufacturer?
We are original professional manufacturer for IBS/DAS RF Microwave Components since 1992.

3.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.

4.OEM/ODM Service is available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.

5. What's your company advantage?
We have our own R&D, production, sell and the rich experience technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.

6.Please let us know more details about Trade Terms, Payment Term and Lead time.
Payment Terms: 100% TT in advance before shipment, Paypal and Western Union for the sample order
Trade Terms:FOB Shanghai/Ningbo/ShenZhen,CIF.
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Lead time: Sample order,1-3 Business Days; Bulk Order, 7-15 Business Days after the deposit.

7.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintenance service, just charge components cost fee and labor fee.
