Литий-ионный аккумулятор для электровелосипеда 48 В 10 Ач 13 15 17 5 h 20 24
- Категория: Electric Bicycle Battery >>>
- Поставщик: Shenzhen,Yuchuangyuan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.49 $* | 0.50 $* |
| Aug-18-2025 | 0.64 $* | 0.61 $* |
| Jul-18-2025 | 0.96 $* | 0.41 $* |
| Jun-18-2025 | 0.58 $* | 0.55 $* |
| May-18-2025 | 0.91 $* | 0.81 $* |
| Apr-18-2025 | 0.68 $* | 0.49 $* |
| Mar-18-2025 | 0.31 $* | 0.69 $* |
| Feb-18-2025 | 0.31 $* | 0.9 $* |
| Jan-18-2025 | 0.84 $* | 0.63 $* |
Характеристики
Specification
Item | Parameters | ||||
Nominal Voltage | 48V | ||||
Nominal Capacity | 10-24Ah(can be customized) | ||||
Discharge | normal current | 1C | |||
Max continuous current | 2C (≤5min) | ||||
cut-off voltage | 35.7V | ||||
Charge | normal charge current | 0.5C | |||
Charge mode | CC/CV with professional charger | ||||
cut-off voltage | 54.6±0.1V | ||||
Inner Resistance | ≤80mΩ | ||||
Discharging Inner resistance | |||||
Charge Temperature | 0℃~+45℃ | When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection. | |||
Discharge Temperature | -20℃~+60℃ | ||||
Humidity Range | RH≤85% | ||||
Protection Function | Over charge protection,Over discharge protection,Over current protection,Balanced function | ||||
Shell Material | Aluminum alloy | ||||
Weight | 6.2±0.1kg | ||||
Dimension(L*W*H) | 495*110*75（mm） | ||||
Cycle Life | Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500 cycles.( capacity retention rate≥80%) | ||||
Product Instructions

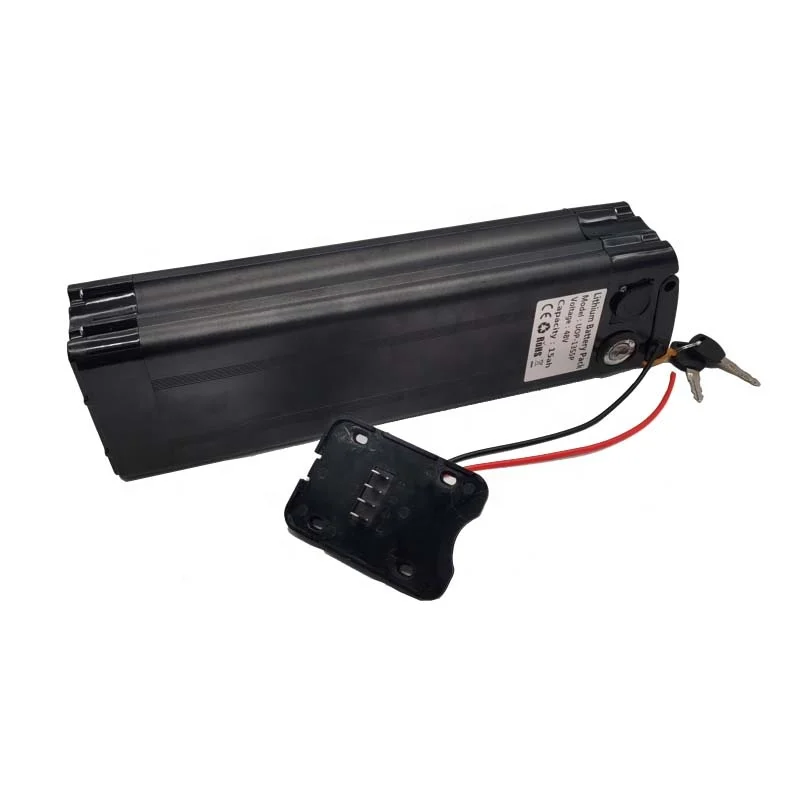

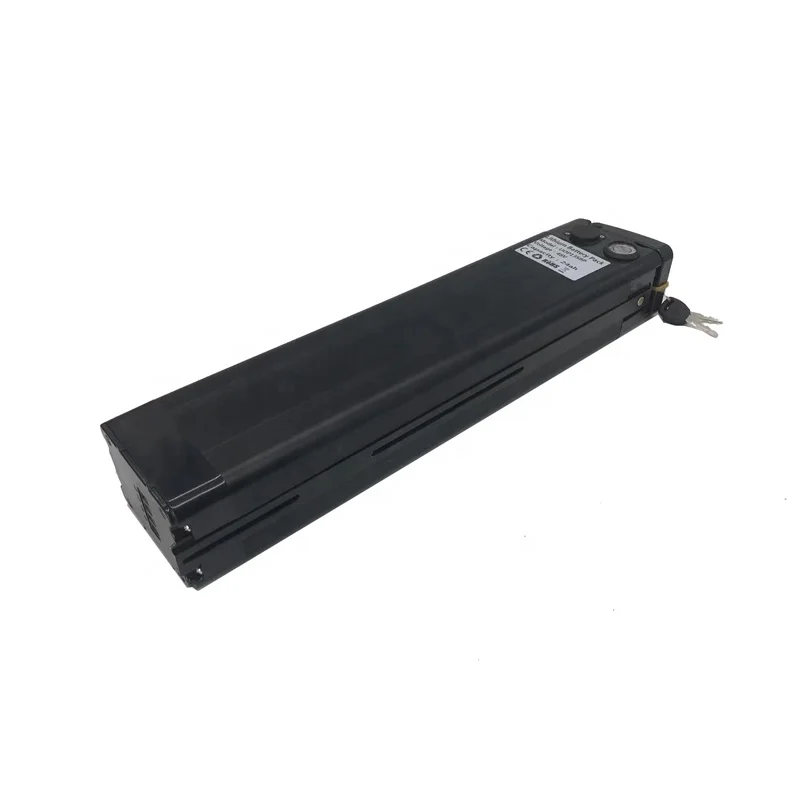

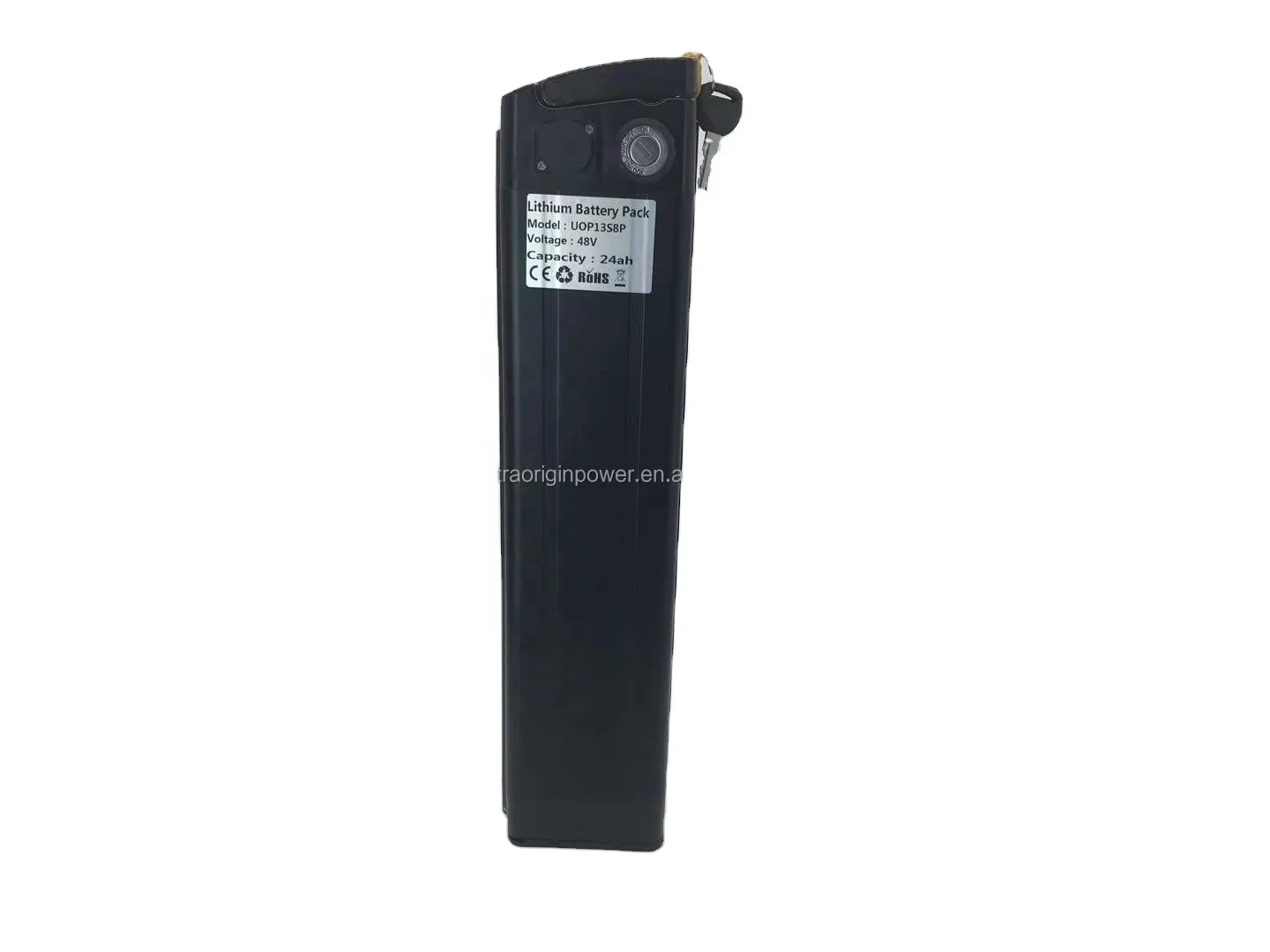

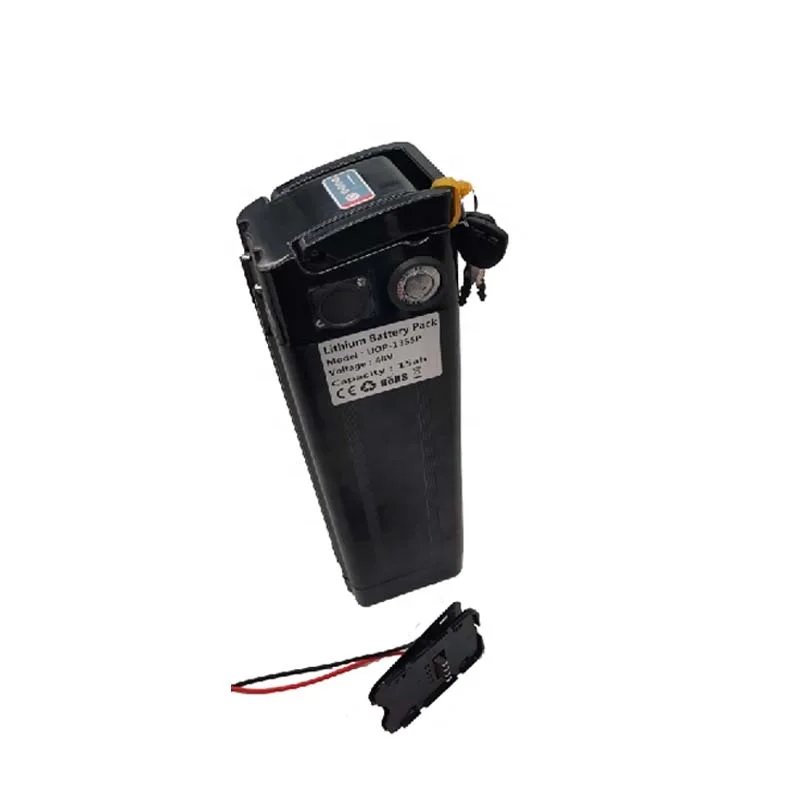

Silver fish type ebike battery
Bottom discharge type, with 2pin dischare plug
Availability
Features
1.USB output optional, can charge for your mobile and other devices with 5V input;
2.A Grade Cell(Brand Cell also available) to ensure the battery quality,each cell was tested before assembling;
3.High quality BMS to ensure the battery in high performance, and with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection functions ;
4.Each battery pack was strictly tested before delivery;
5.Accept customized project;
6.With at least more than 500times cycle life;
7.It can run well under different temperature environment condition;
8.No memory effects.;
9.Full capacity battery, 100% quality testing .
10.Chargeable battery,environmental friendly.
Applications
1. Many different electric vehicles:e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair;
2. Small medical equipment and portable equipment, robot, etc.
Product Display
Related Product
Company Profile
Shenzhen Yuchuangyuan Technology Co., LTD. headquartered in Shenzhen, is a professional new energy company specializing in manufacturing, developing, marketing of lithium batteries. The founders of the company have more than 10 years of related experience in the battery field. Our main product range: 3.2V/3.7V/7.4V/12V/14.8V/24V/36V/48V/52V/60V/72V/
96V lithium battery packs, customization is also welcomed.
All of our products have strict quality inspection procedures, with CE, RHOS, MSDS, UN38.3 and other internationally recognized certificates. So far, we have built a strong worldwide customer base in more than 50 countries, products have been selling to USA, Canada, Europe, Southeast Asia and other countries/regions.
96V lithium battery packs, customization is also welcomed.
All of our products have strict quality inspection procedures, with CE, RHOS, MSDS, UN38.3 and other internationally recognized certificates. So far, we have built a strong worldwide customer base in more than 50 countries, products have been selling to USA, Canada, Europe, Southeast Asia and other countries/regions.
Factory Show
Our Advantages

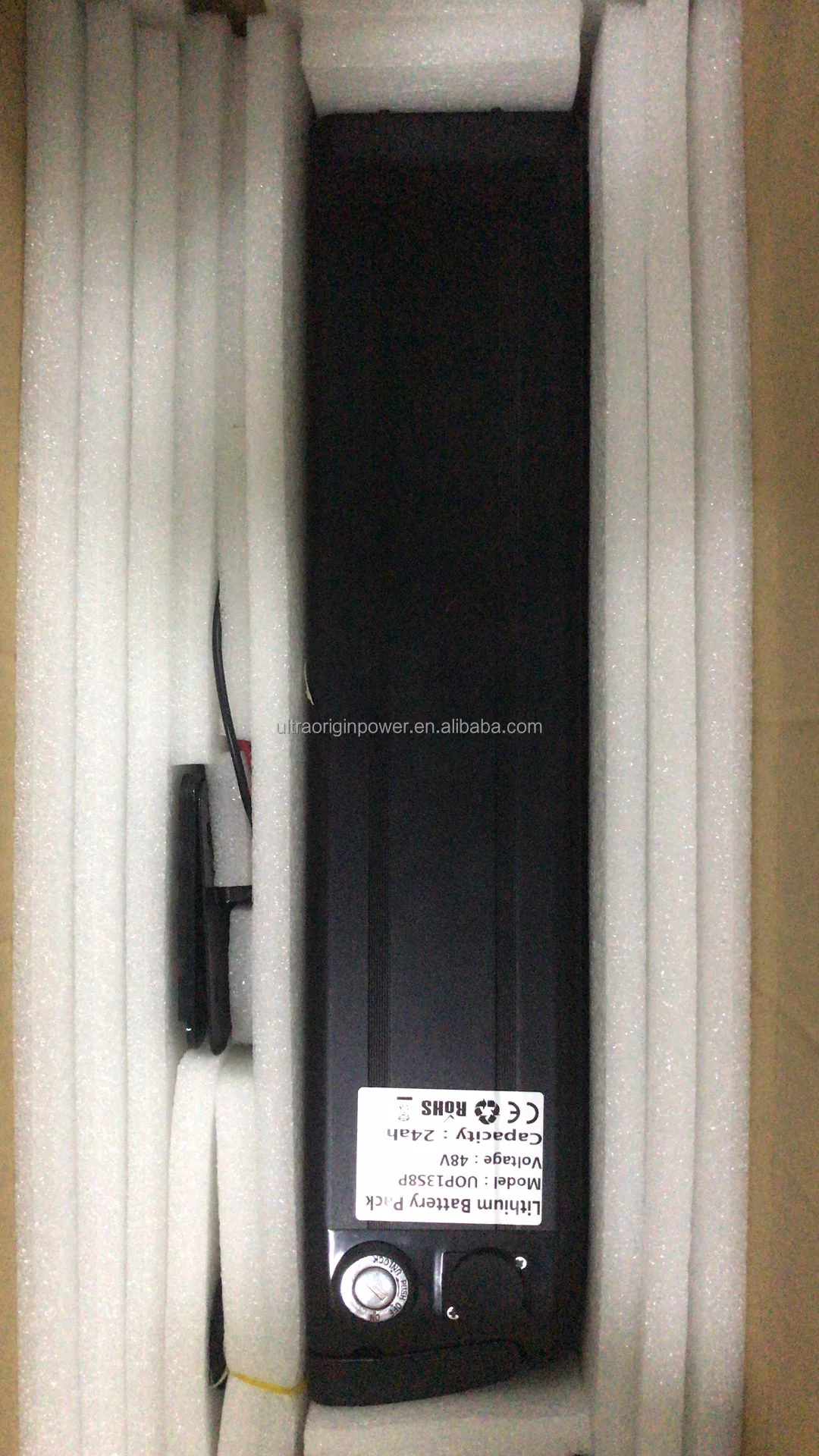

Packing&Delivery
