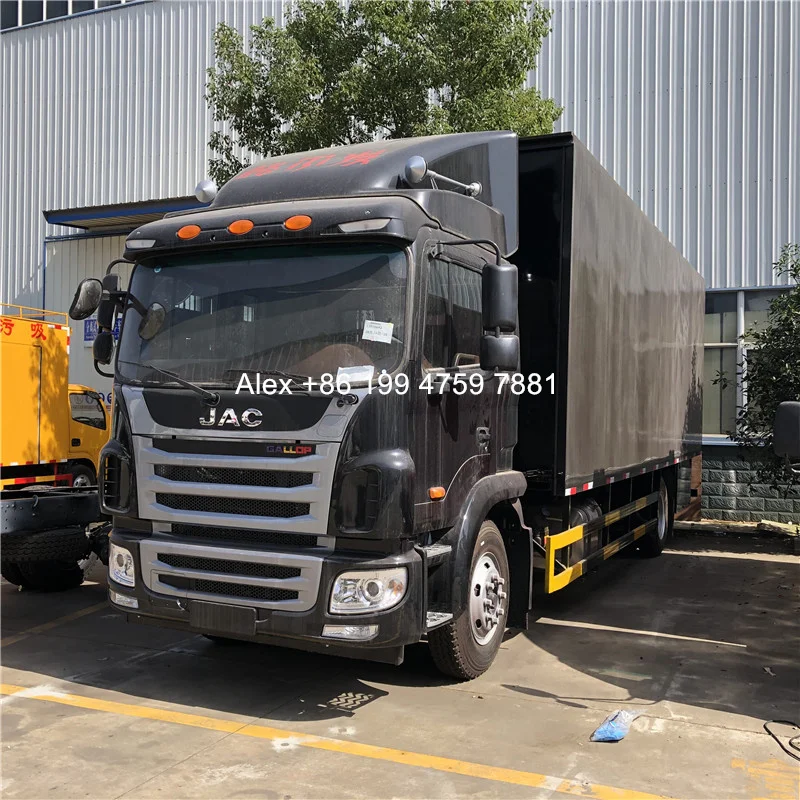

4x2 JAC 7-8m мобильный сценический грузовик для

The upper body is an integral van structure, and the hydraulic cylinder system is fixed on the chassis frame. The body design is easy to ventilate, easy to drain, and maximally convenient for maintenance. Both sides of the body can be unfolded, and several storage boxes are set up to store various maintenance tools and performance materials. The storage box should be equipped with several turnover boxes.

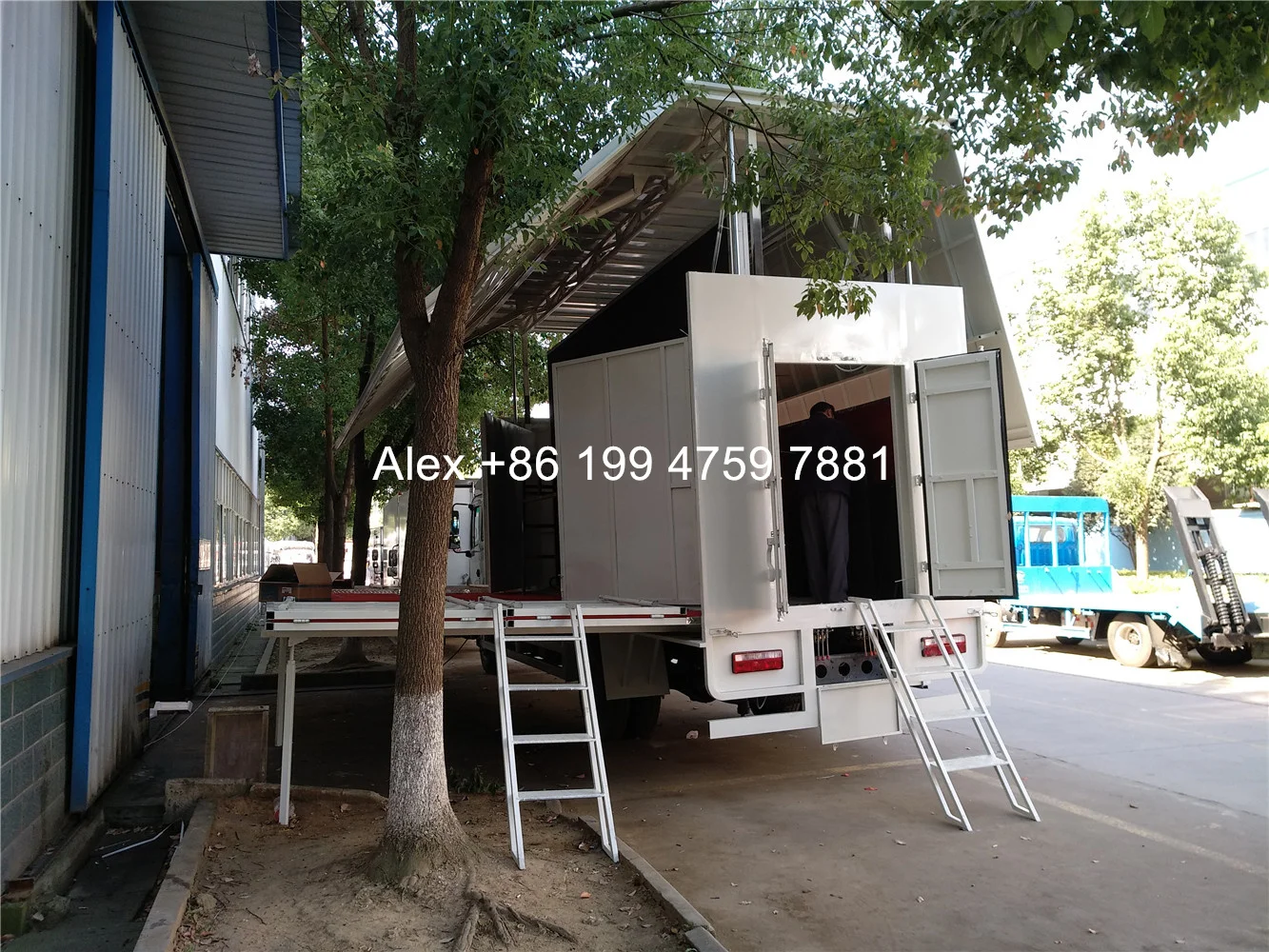

Outside the box: There is a rear door at the rear of the box, which is made of steel plate. The side door is closed, waterproof and dustproof, the door switch is smooth, there is no noise, and the internal equipment can be accessed after the door is opened.
Inside of the car body: The interior of the car body is reasonably designed, enough space is arranged for the on-board equipment, and the equipment is placed firmly, which meets the needs of convenient use and maintenance

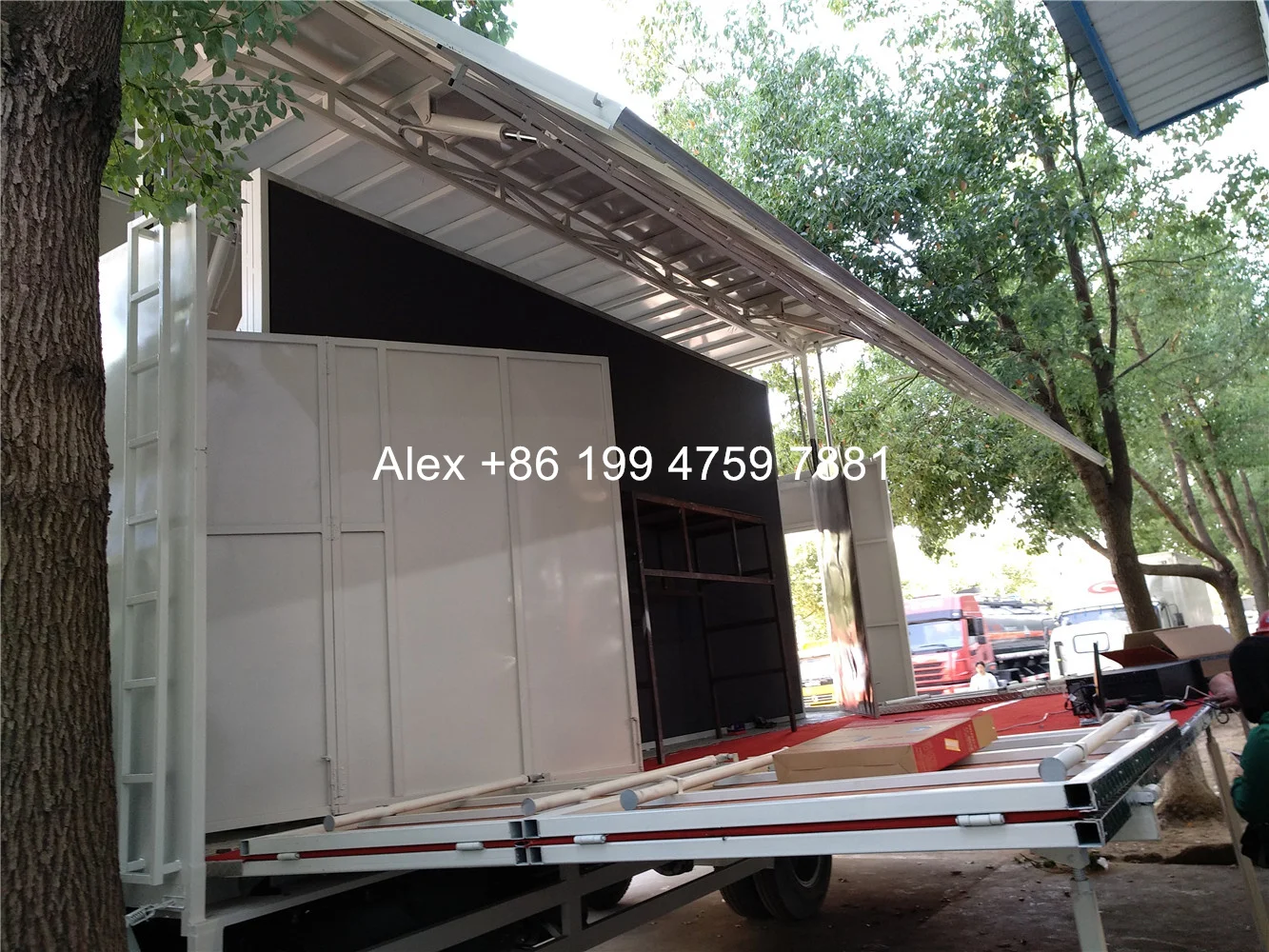

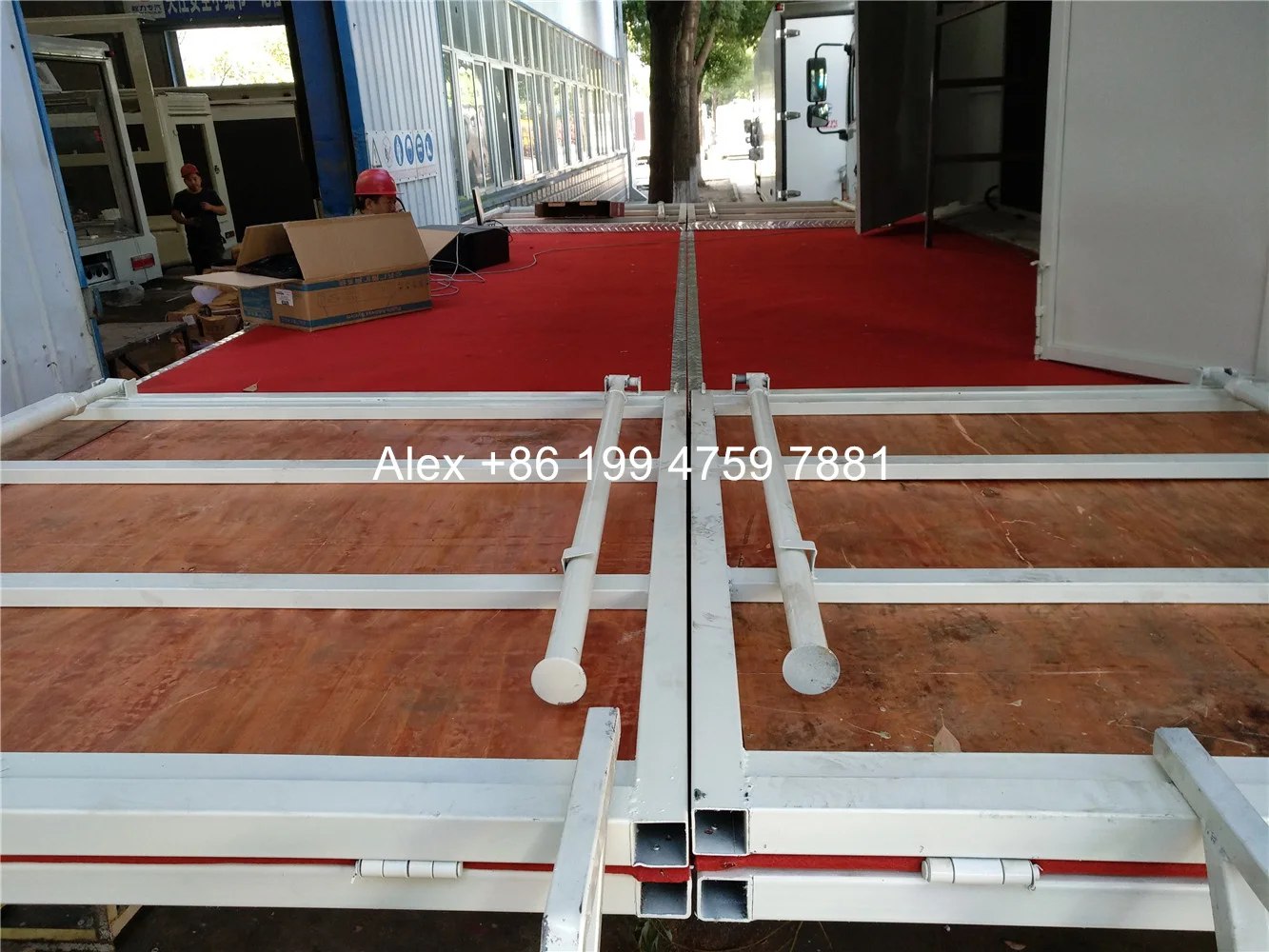

The vehicle is equipped with lighting stand, curtain hook, stage ladder, hydraulic bridge-level bamboo plywood stage board, sun visors before and after the left and right boxes are unfolded, four hydraulic cylinders on the underside of the box bottom plate, and the front and rear after the stage is unfolded screens, internal indoor advertising screens, LED colorful spotlights, large audio and power amplifier equipment, power supplies and more than 10 hydraulic systems for protection. The stage can be used for publicity and performance activities anywhere and at any time;
Each system of the stage car adopts hydraulic cylinders, guide columns, cold-rolled steel plates, and square steel welding of Jiugongge, which are linked by hydraulic cylinders to form a series of special vehicles. The stage car integrates all the equipment and systems in one carriage. The stage formed after unfolding can show the best way of performance to the public, and its convenient image is directly reflected in front of the viewers.
Box door material The box door is made of high-quality composite sheet structure, which is light and beautiful, and has good sealing performance.

Hydraulic system High performance hydraulic cylinder system is adopted. To make the structural support power system of the mobile stage car
The length of the cargo box is 4.2 meters.

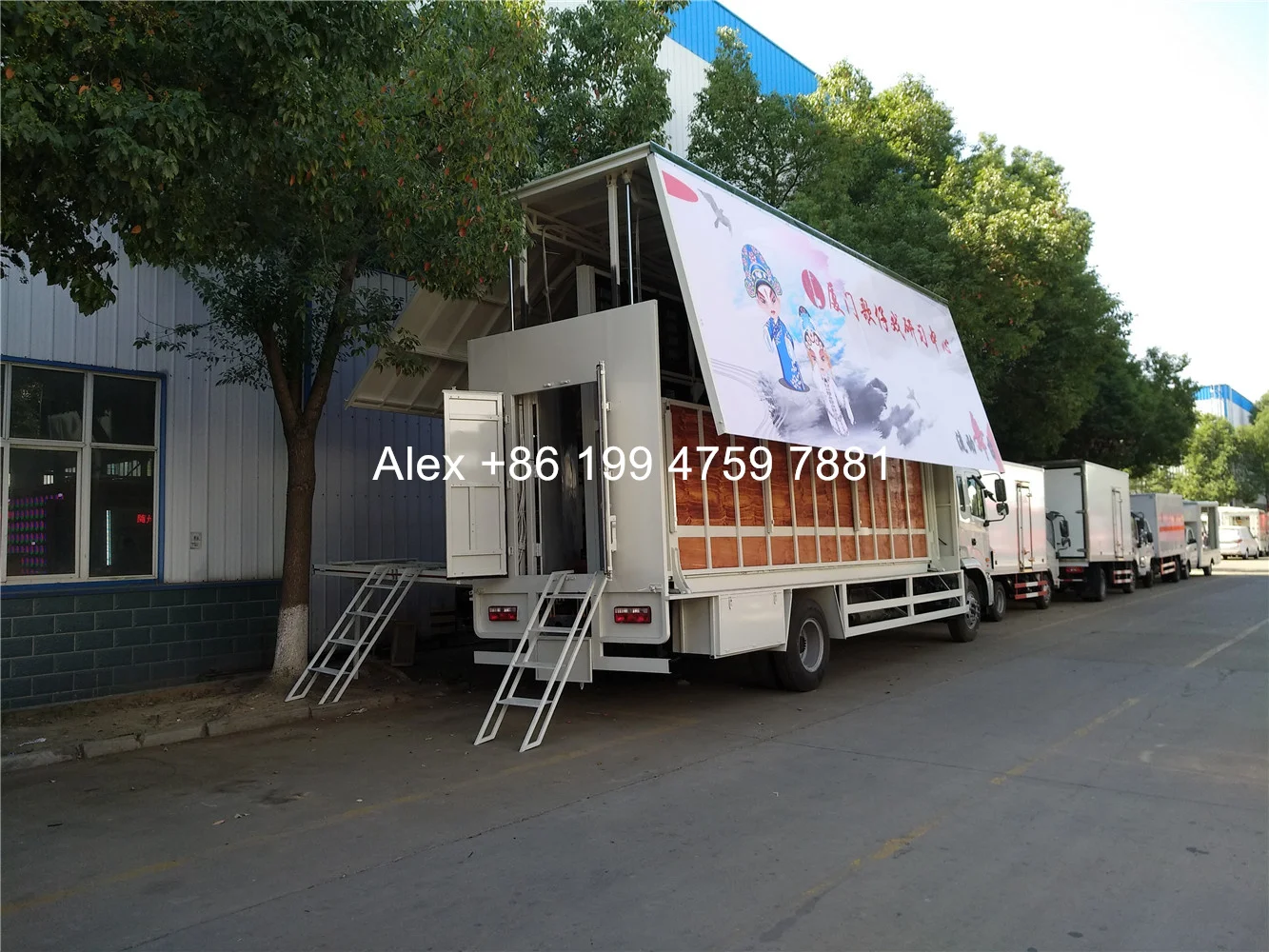

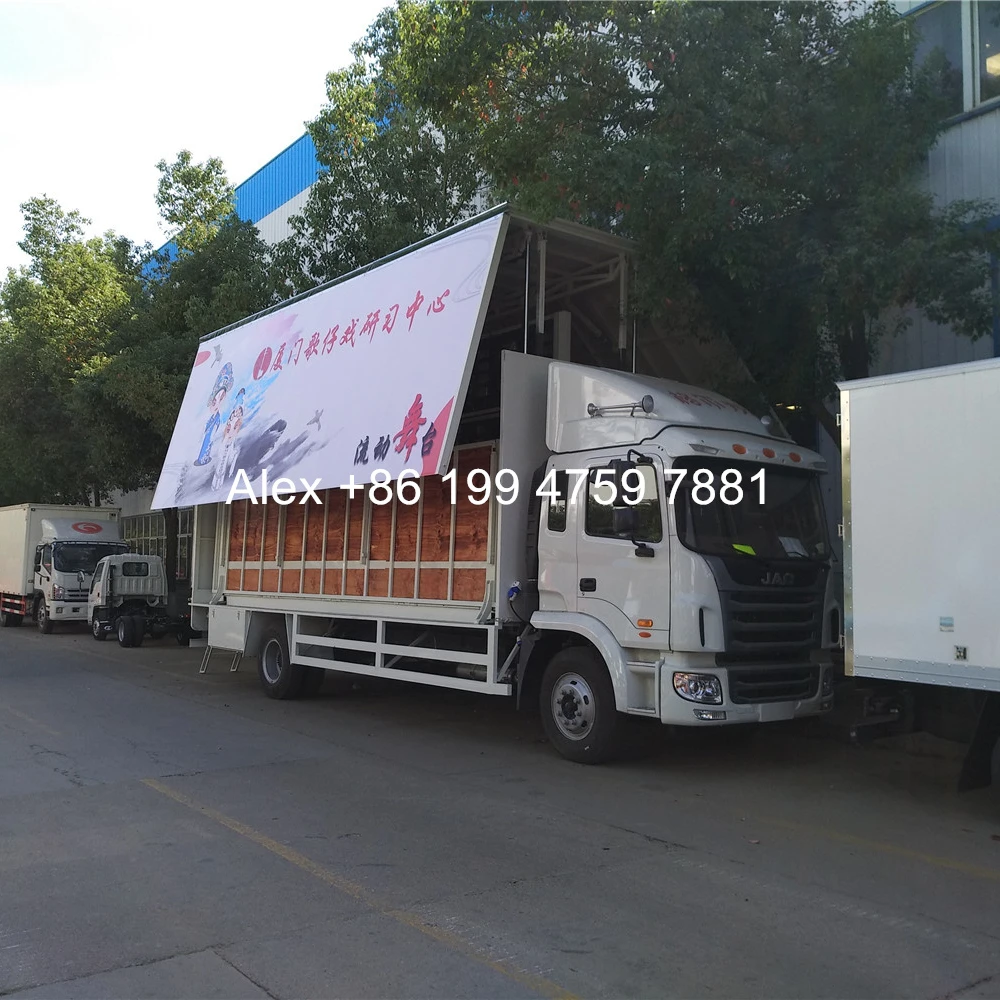

♥ The side is unfolded. One side of the box is unfolded to form the stage. The top of the box is lifted up or half-lifted to form the top of the stage. Using 8 oil cylinders, the top and one side of the box can be raised and lowered to form the top of the stage. The main stage is 18 -24 square meters, using 12 oil cylinders
♥ Double-sided deployment, the top can be raised and lowered, the box is unfolded on both sides, the box height is 3.3 meters, the main stage is 24 square meters, and 16 oil cylinders are used
♥ The three sides are unfolded, the two sides of the box are unfolded, the rear door is downward, the main stage area is 30 square meters, and 17 oil cylinders are used.

The length of the cargo box is 5.2 meters.

♥ The side is unfolded, and the stage area is 24-28 square meters.
♥ Double-sided expansion, the stage area is 32-36 square meters
♥ The three sides are unfolded, and the stage area is 40 square meters

The length of the cargo box is 6.2 meters.

♥ The side is unfolded, and the stage area is 40 square meters.
♥ Double-sided expansion, the stage area is 60 square meters
♥ The three sides are unfolded, and the stage area is 80 square meters

The shipping methods include: Ro-Ro, bulk shipping, 20ft container, 40ft container, 40HQ container, flat rack container, open top, platform container, express, etc.

Itruck is a global leading special purpose vehicle manufacturer, located in center of China – Suizhou city, Hubei Province. It covers an area of 670,000 square meters, with over 800 workers and 80 technical engineers.

Over 10 years, Itruck has dedicated to special vehicles manufacturing and accumulated lots of experience on special vehicles’ manufacturing and management. Itruck products cover tanker series, sanitary series, garbage truck series, civic utility series, construction series, semi-trailer series, buses, caravans, etc., widely

used in environment and sanitation, virescence, architecture, transportation, oil mining and many other fields.

Itruck vehicles have been shipped to:

Asia: Myanmar, Vietnam, Cambodia, Sri Lanka, Philippines, Pakistan, Indonesia, Bangladesh, Afghanistan,

Mongolia, Laos, Armenia, Uzbekistan, Kazakhstan, Kirgizstan......

Africa: Malawi,CapeVerde,Malawi,Somalia,Angola,Nigeria,Ghana,Gambia,SierraLeone,Guinea,Mali,

Chad, Algeria, Egypt, Ethiopia, South Sudan, Tanzania, Zambia, Mozambique, South Africa, Botswana,

Morocco, Congo, Congo(K), ......

Europe: Gibraltar, Moldova, Albania......

Middle East: Jordan, Iraq, Qatar, Lebanon, UAE......

Oceania: PNG, Palau, Cook Islands......

Latin America: Saint Kitts and Nevis, Chile, Venezuela, Panama, Colombia, Peru, Bolivia, Uruguay, Trinidad & Tobago.
