M12 код 8 цилиндрический штепсельный соединитель Водонепроницаемый Литой с 2 м
- Категория: Connectors & Terminals >>>
- Поставщик: Dongguan,Cableforce,Connector,Co.,Limited.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 4.60 $* | 4.87 $* |
| Jul-17-2025 | 3.79 $* | 3.80 $* |
| Jun-17-2025 | 4.72 $* | 4.30 $* |
| May-17-2025 | 4.27 $* | 4.29 $* |
| Apr-17-2025 | 3.69 $* | 3.7 $* |
| Mar-17-2025 | 4.74 $* | 4.7 $* |
| Feb-17-2025 | 4.82 $* | 4.84 $* |
| Jan-17-2025 | 4.93 $* | 4.65 $* |
Характеристики
Products Description

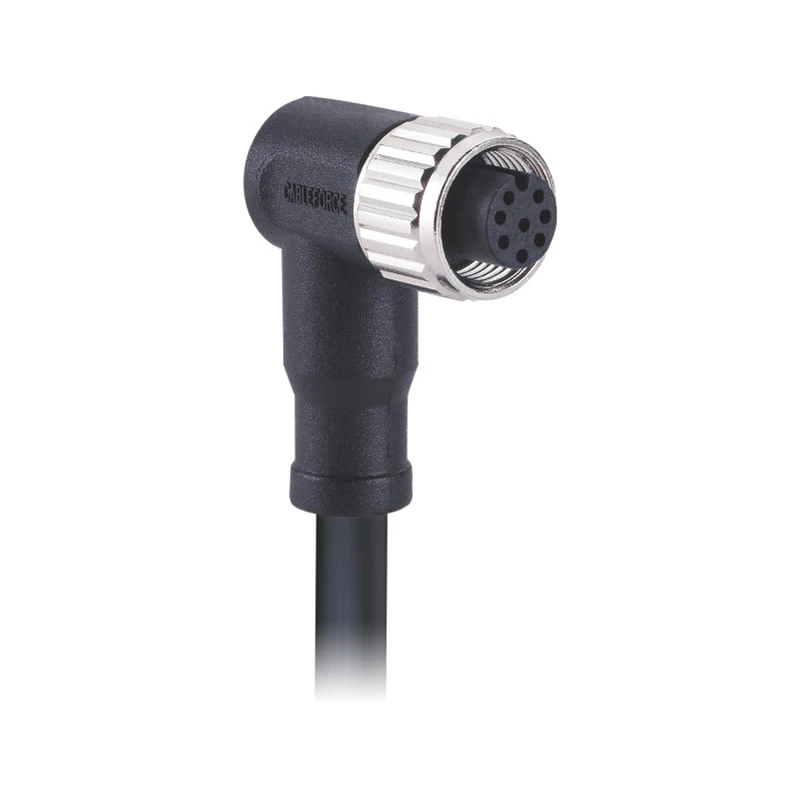

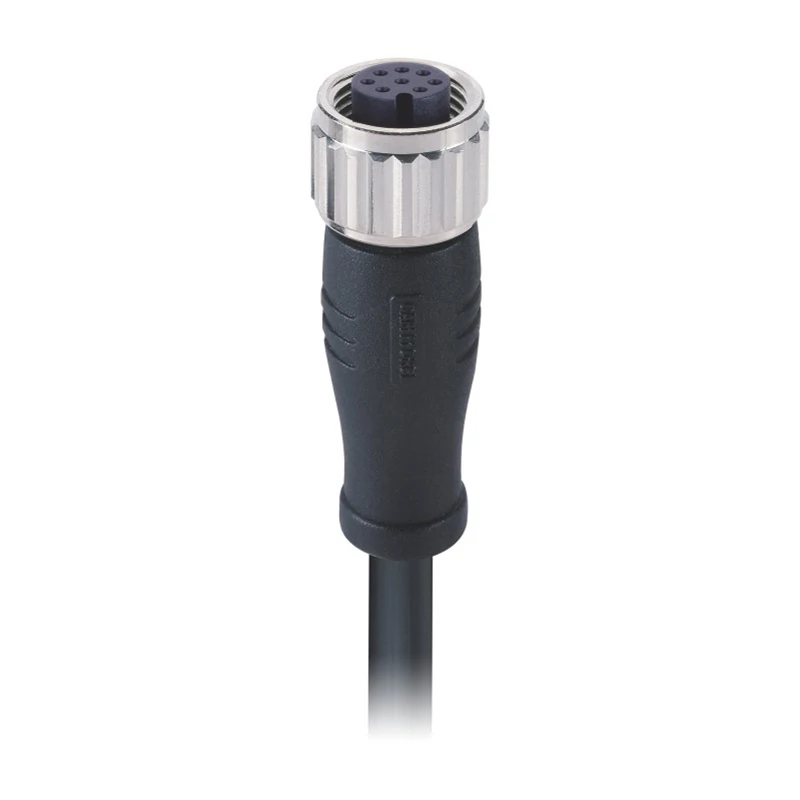

M12 A Code Female 8 Pin Circular Connector Waterproof Molded with 1M PVC Un-Shielded Cable
Contacts poles | 2Pin | 2Pin+3Pin | 3Pin | 4Pin | 5Pin | 8Pin | 12Pin | 17Pin |
Rated current | 12A | 16A, 4A | 4A | 4A | 4A | 2A | 1.5A | 1.5A |
Rated voltage | 630V | 250V | 250V | 250V | 60V | 30V | 30V | 30V |
Impulse voltage | 5000V | 2500V | 2500V | 2500V | 1500V | 800V | 500V | 500V |
● Reference standard: IEC 61076-2-101
● Termination: Soldering
● Wire gauge: 0.25mm²(AWG 24)
● Rated temperature: Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
● Insulation resistance: ≥100MΩ
● Contact resistance: ≤5mΩ
● Over-molding: TPU
● Contact carrier: TPU+GF
● Screw nut: Brass, CNC, Nickel-plated
● Contact: Male: Brass, Female: Phosphor bronze
● Contacts plating: Au(Gold)
● O-ring: FKM, Silicon
● Protection degree: IP67, IP68
● Pollution degree: 3
● Wire length options: 0.5, 1, 2, 3, 5 meter or as your requests
● 360° Shielded or Un-Shielded versions are available
● Optional cable material: PVC, PUR, LSZH, Ethernet, Profinet
● IP67, IP68, IP69K and UL approvals
● All the connectors can be customized, please Click Here to contact us to get what you need~

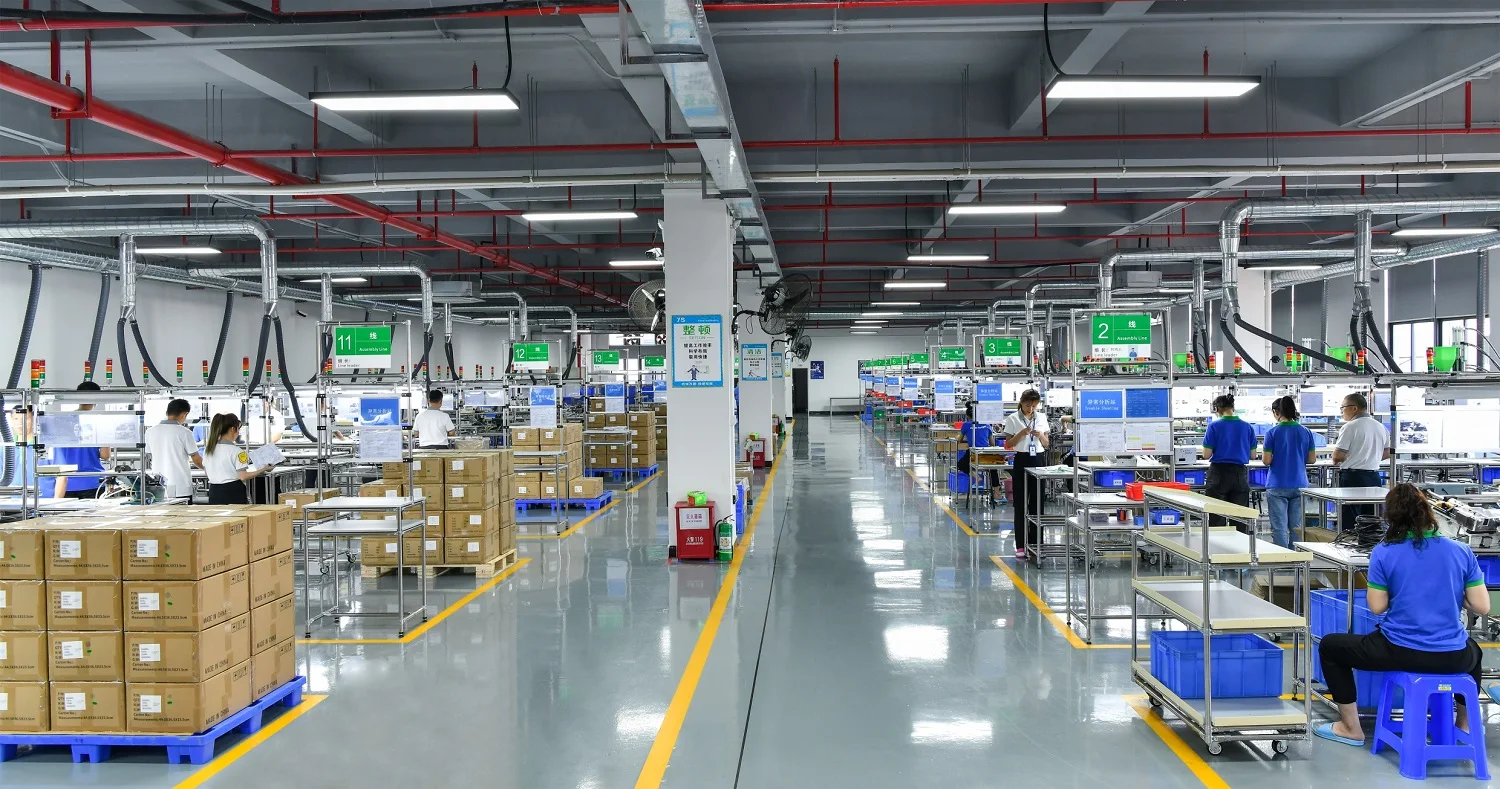

Company Profile
