Домашняя аккумуляторная система 48 В 52 Ач 10 кВтч гибридный инвертор для хранения солнечных батарей домашние


Поделиться:


Цена:576,00 $ - 635,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 685.23 $* 719.31 $*
Aug-15-2025 680.57 $* 714.77 $*
Jul-15-2025 570.33 $* 599.76 $*
Jun-15-2025 668.90 $* 701.44 $*
May-15-2025 582.73 $* 611.65 $*
Apr-15-2025 657.5 $* 690.31 $*
Mar-15-2025 651.37 $* 684.99 $*
Feb-15-2025 645.66 $* 677.40 $*
Jan-15-2025 639.93 $* 671.44 $*

Характеристики





We have prepared enough goods in our warehouse in Europe this winter, so we can get your energy security in the shortest time by placing an order.
And we also have a huge heart warming activity. As long as customers buy a household energy storage system, the factory will give away a high-quality portable multi-functional outdoor power supply. Buy more and get more free. Unlimited.




Security
Backup Protection

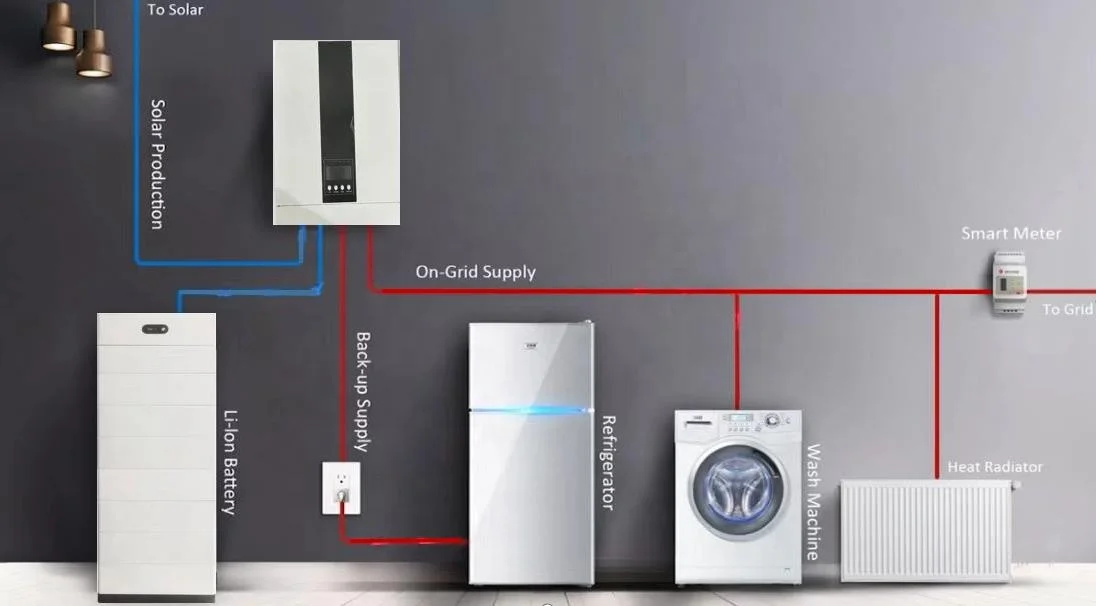

Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.
Power Lithium Lifepo4 Solar Power wall Home Battery 48V 100Ah 200Ah 400Ah 5Kwh 10Kwh 20Kwh Solar Energy Systems
Power Storage ESS Lithium Battery Solar Energy Storage is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios. The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. And the leader chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability, and also provide the best solutions for industrial applications.




Design
Modern and Compact

With easy installation and a minimalist design, Power storage wall complements a variety of home styles. The compact, all-in-one construction features versatile mounting options for indoor or outdoor spaces.

A. The best combination scheme is: 4-8 pack batteries + PDU and base
48V 100Ah 200Ah 400Ah or 10kWh 15kWh 20kWh 25kWh ......

B. 5 years real warranty period, which can be extended to 10 years on life span under 80% DOD.
Real factory, reliable after-sales service without false guarantee!!!
C. Super Light Weight.
Comply with the local labor law in Europe. The single person installation and construction do not exceed 30 kg. We have developed a battery pack of only 25 kg each, which can be installed by one person and operated easily by women. We have independently developed a plug and socket connection mode, which can be installed by stacking blocks together, reducing huge manual installation costs and complexity. The installation is economical and fast.

D. Best safety on lifepo4 battery.
Functions:
--Overcharge detection function --Over discharge detection function
--Over current detection function --Short detection function
--Temperature detection function --Balance function
--Communicate function RS485,CANBUS --Alarm function

E. Match all hybrid and off grid inverter brands in the world.




High-voltage stacked energy storage battery
Number of modules
 4
 5
6
 8
Mode
 Ground HV-10K
Ground HV-12.5K
Ground HV-15K
GroundHV-20K
Capacity
 52Ah
Nominal Voltage
192V
 240V
 288V
 384V
Battery Type
LiFeP04
Connection
 1P60S
 1P75S
 1P90S
 1P120S
Voltage Working Range
171V-225V
213.75V-281.25V
 256.5V-337.5V
 342V-450V
Working Temperature("C)
Charge: 0C~+55CDischarge:-20C~+60C
Nominal Capacity(kWh)
9.984kWh
 12.48kWh
14.976kWh
19.968kWh
Max. Charge Current(A)
 35A
Max.Discharge Current(A)
 35A
Weight
 ~105kg
 ~129kg
 ~152.3kg
 ~199.5kg
Dimension(W'D*L)
220x606x900mm
220x606x1070mm
 220x606x1240mm
220x606x1580mm
IP Protection
 IP65
Transportation SOC
 30%
Storage
 -10°C~+35C
Temperature("C)Cycle Life
>6000.25℃0.5C85%DOD
Recycleable
 Fully recyclable at the end of life
Istallation
Floor Installation




High-voltage stacked energy storage battery
Can be connected in series to 10KWh / 12.5KWh / 15KWh / 17.5KWh / 20KWh

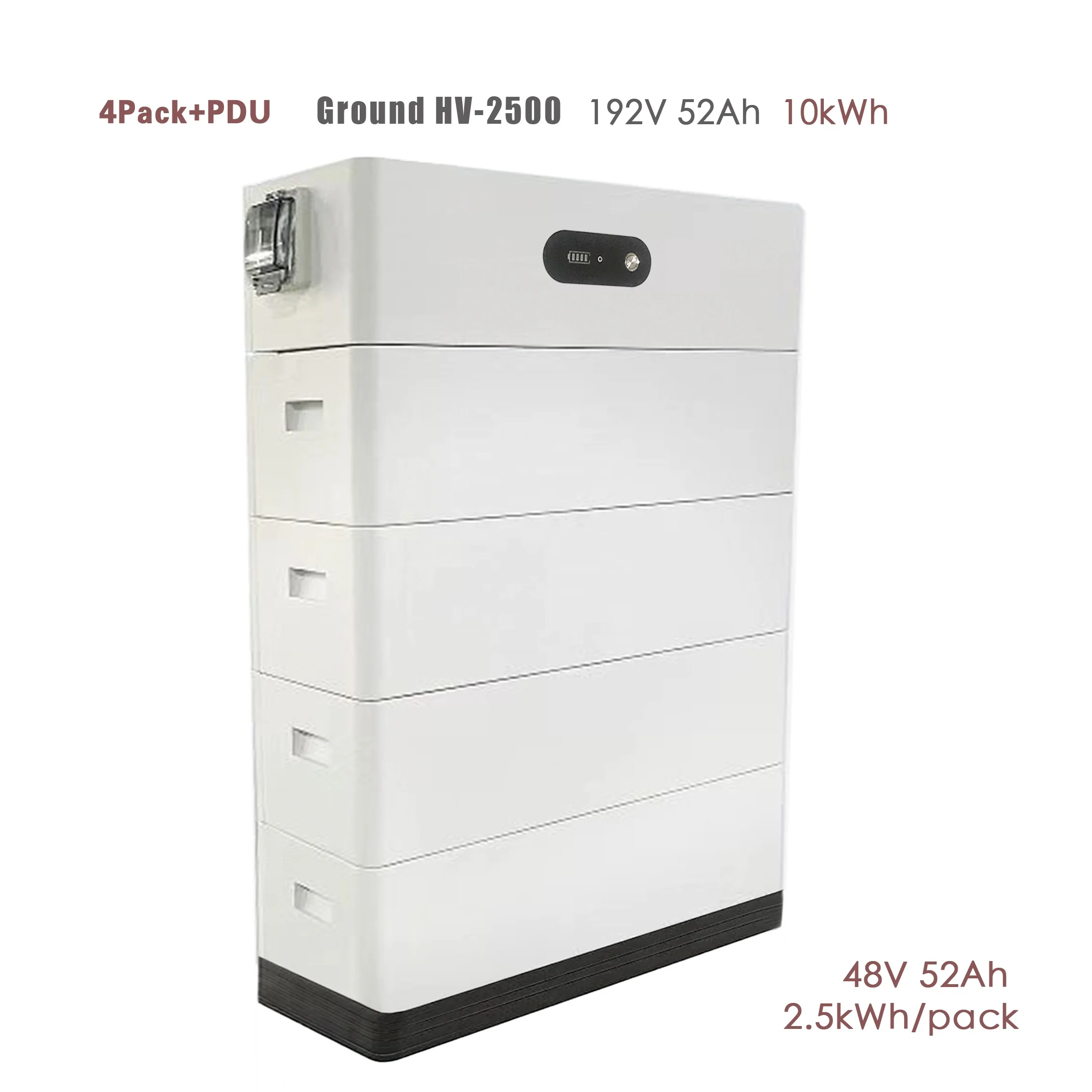

Ground HV-2500 (48V 52Ah 2.5kWh/pack)

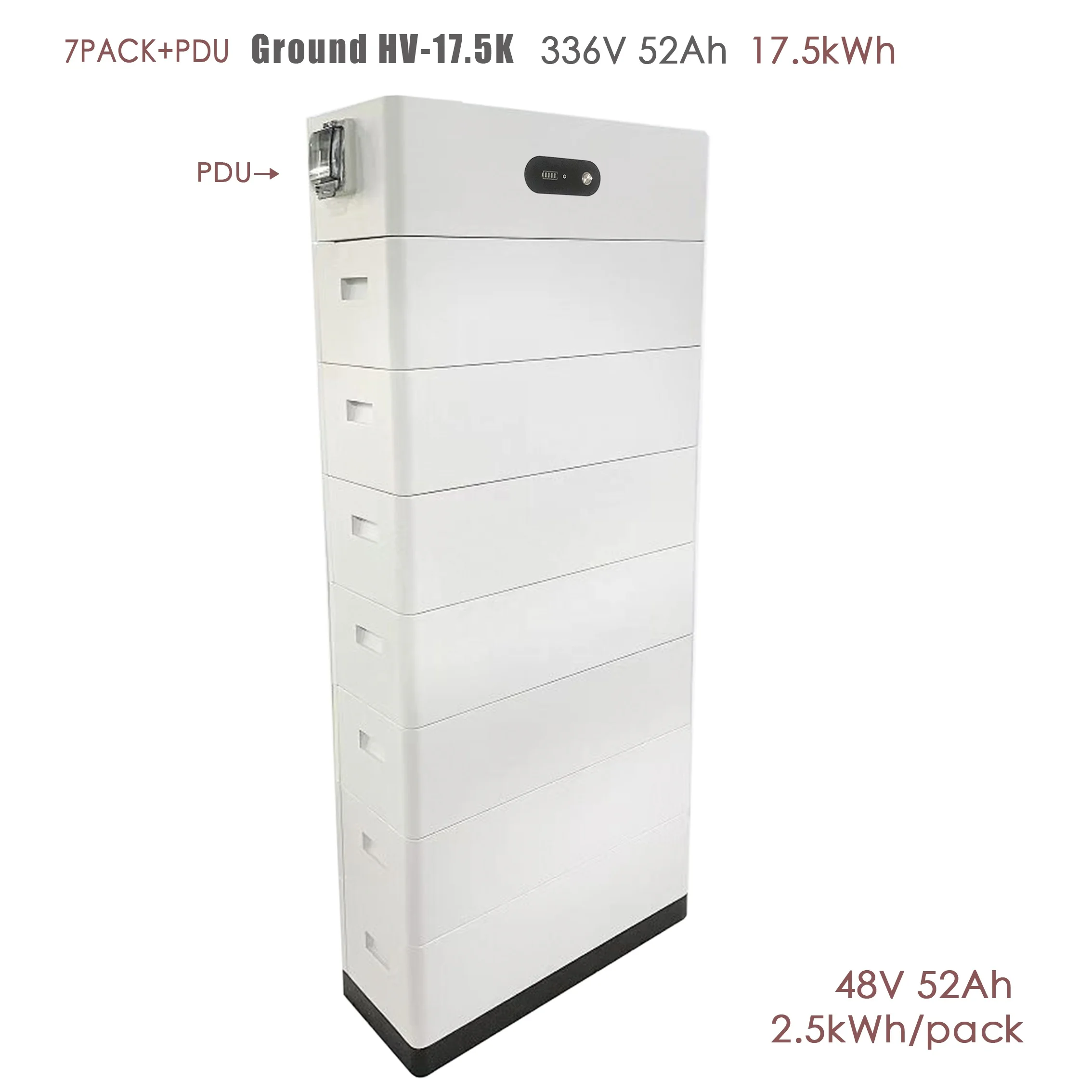

A complete energy storage system is composed of a PDU, n battery packs and a base.
pack : 23.5kg 220*606*170mm
PDU+base : 11kg 220*606*220mm
Can be combined into:10kWh/12.5kWh/15kWh/17.5kWh/20kWh...

Features
1. Good extendibility , 2.5kWh each, easy extend to 10kWh / 12.5kWh / 15kWh /17.5kWh / 20kWh etc.
2. Good compatibility, standard communication protocal, CAN and RS485, compatible with most popular hybrid and off-grid inverters in the market.
3. IP65 protection class, suit for outdoor and indoor installation.
4. Long life cycle, more than 6000 times or 10 years.
5. High protection measures, built-in Aerosol active fire protection module, thermal runaway detection and active fire protection.
6. Quick installation design, plug and play assembly, no more cables between packs, saves manual installation costs.
7. The second-generation upgraded version, plug and play assembly, saves manual installation costs.
