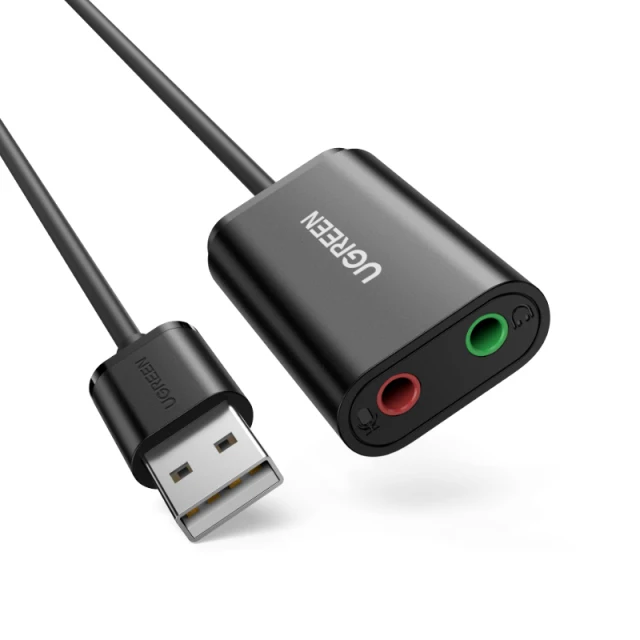

UGREEN USB Audio Adapter External Stereo Sound Card With 3.5mm Headphone Microphone Jack For Windows, Mac, Linux, PC, Laptops,
Desktops, PS5/4
Ugreen USB Audio Adapter includes a stereo headphone output jack and a mono microphone input jack. It can bypass the defective
sound card or the faulty 3.5mm audio port of your laptop/desktop system and regain the audio function for you. Save the cost of
replacing a failed sound card.
Specifications
- Computer Connector: USB 2.0 Male
- Headset/Speaker Connector (Green): 3.5mm Female
- Microphone Connector (Pink): 3.5mm Female

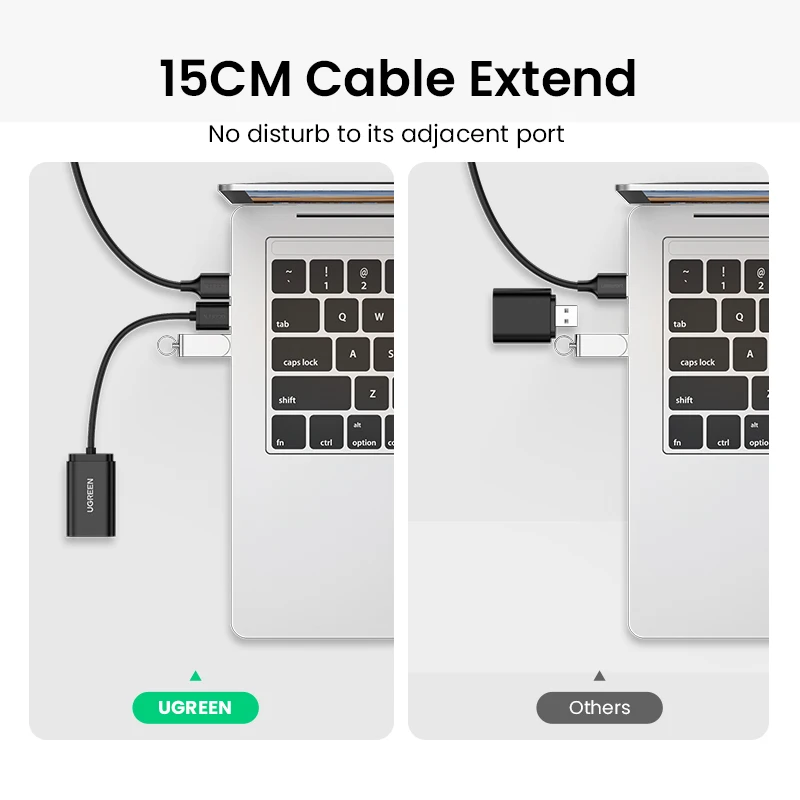

- Cable Length:15cm

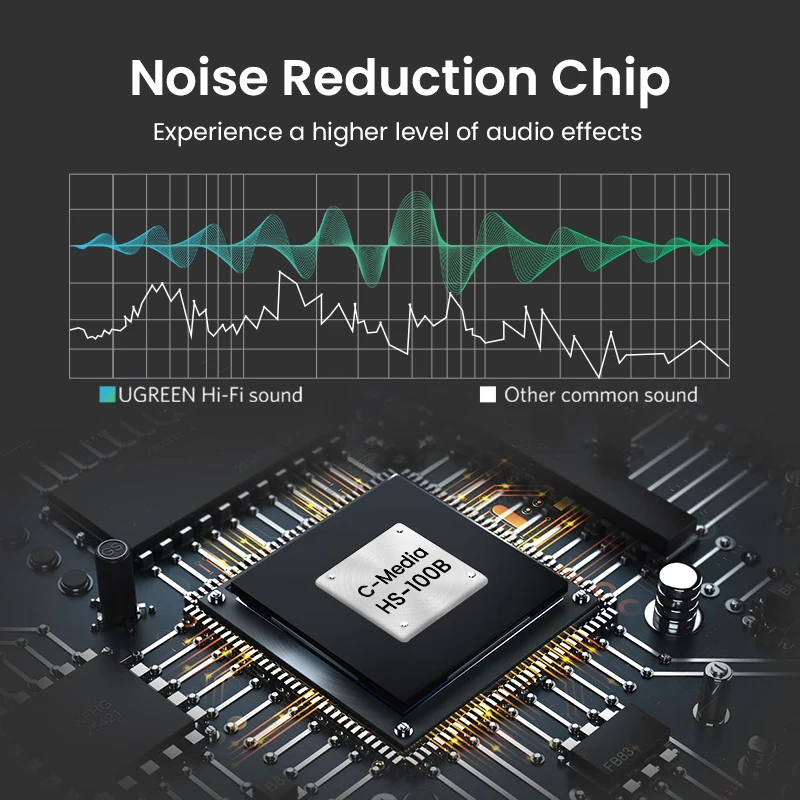

- Chipset: C-Media

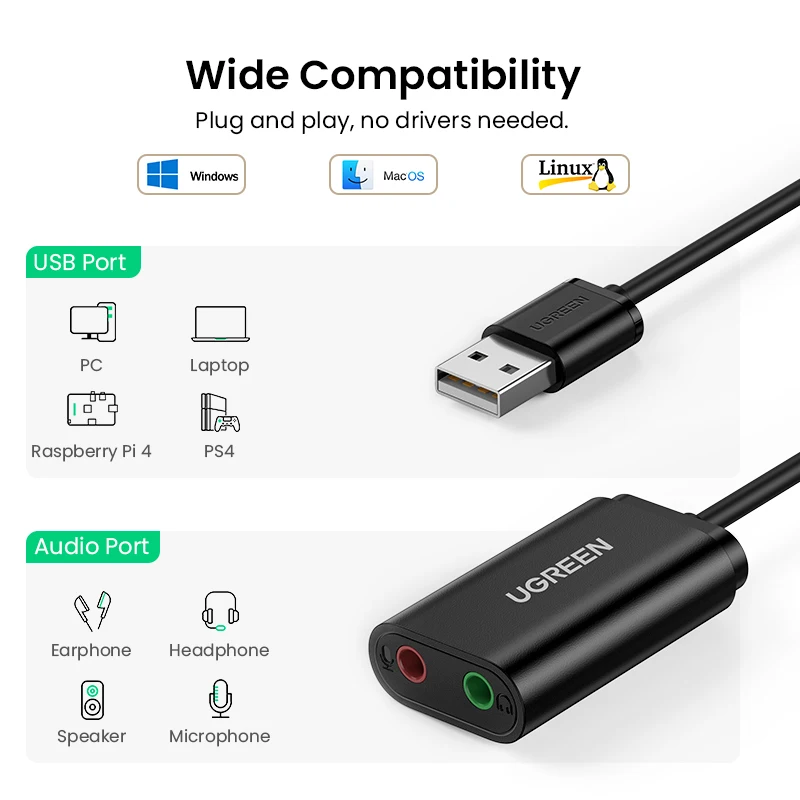

System requirements
* Windows 10
* Windows 8.1/8
* Windows 7
* Windows Vista
* Windows XP
* Mac OS 8.6 or above
* Linux
* PS5/4
Note: The USB interface on PS3 does not carry audio signal, so this usb audio adapter does not work with PS3.
Configuration Instructions
Windows:
* Right-click on the sound icon in the taskbar;
* Select Playback or Recording devices;
* Adjust the volume on the computer and in the application.
Mac:
* Go to System Preferences > Sound > C-Media USB Headset > Output or Input > Volume
There are 2 models optional, please choose suitable model according to your needs:
1) Standard Model-Black: HS-100B chipset, 3.5mm earphone port, 3.5mm mic port, 15cm cable length.
2) 2-in-1 Model-White: ALC4042 chipset, 3.5mm TRRS Female port, 15cm cable length.
External USB Sound adapter
