Высокомощный графит для полировки углерода Rp Hp Shp Uhp диаметр 300 мм
- Категория: Graphite Electrodes >>>
- Поставщик: Hebei,Nanhe,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2142.41 $* | 2249.31 $* |
| Aug-17-2025 | 2124.67 $* | 2230.60 $* |
| Jul-17-2025 | 1782.34 $* | 1871.64 $* |
| Jun-17-2025 | 2088.43 $* | 2192.88 $* |
| May-17-2025 | 1818.73 $* | 1909.3 $* |
| Apr-17-2025 | 2052.67 $* | 2155.41 $* |
| Mar-17-2025 | 2034.51 $* | 2136.97 $* |
| Feb-17-2025 | 2016.91 $* | 2117.43 $* |
| Jan-17-2025 | 1998.86 $* | 2098.14 $* |
Характеристики
Product Description
Polishing Carbon Rp Hp Shp Uhp Ultra High Power Diameter 300mm Graphite Diameter For Eaf/lfhttps://hebeinanhe.en.alibaba.com/Electrode
Specification
Product Name | Polishing Carbon Rp Hp Shp Uhp Ultra High Power Diameter 300mm Graphite Diameter For Eaf/lf |
Application | Steel Making |
Grade | UHP (Ultra High Power), HP (High Power), RP (Regular Power) |

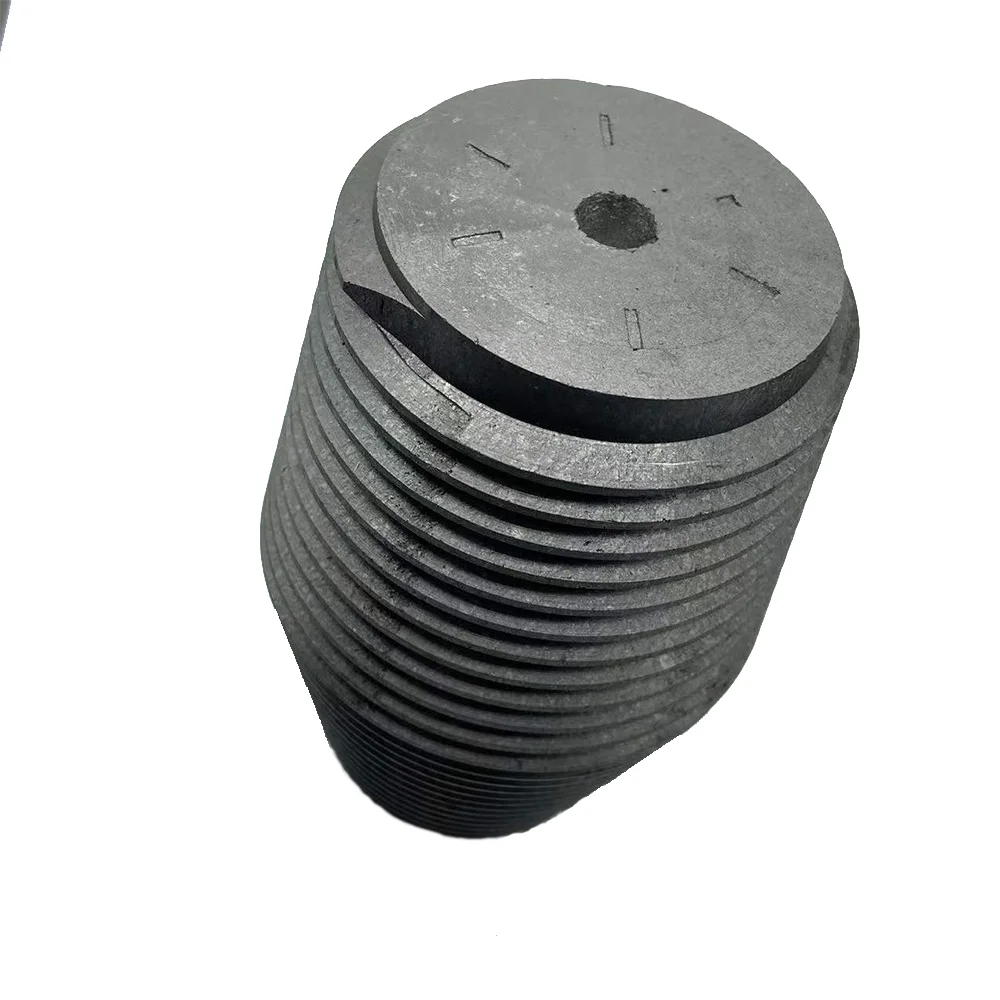

Nipple | 3TPI/4TPI/4TPIL |
Products Description

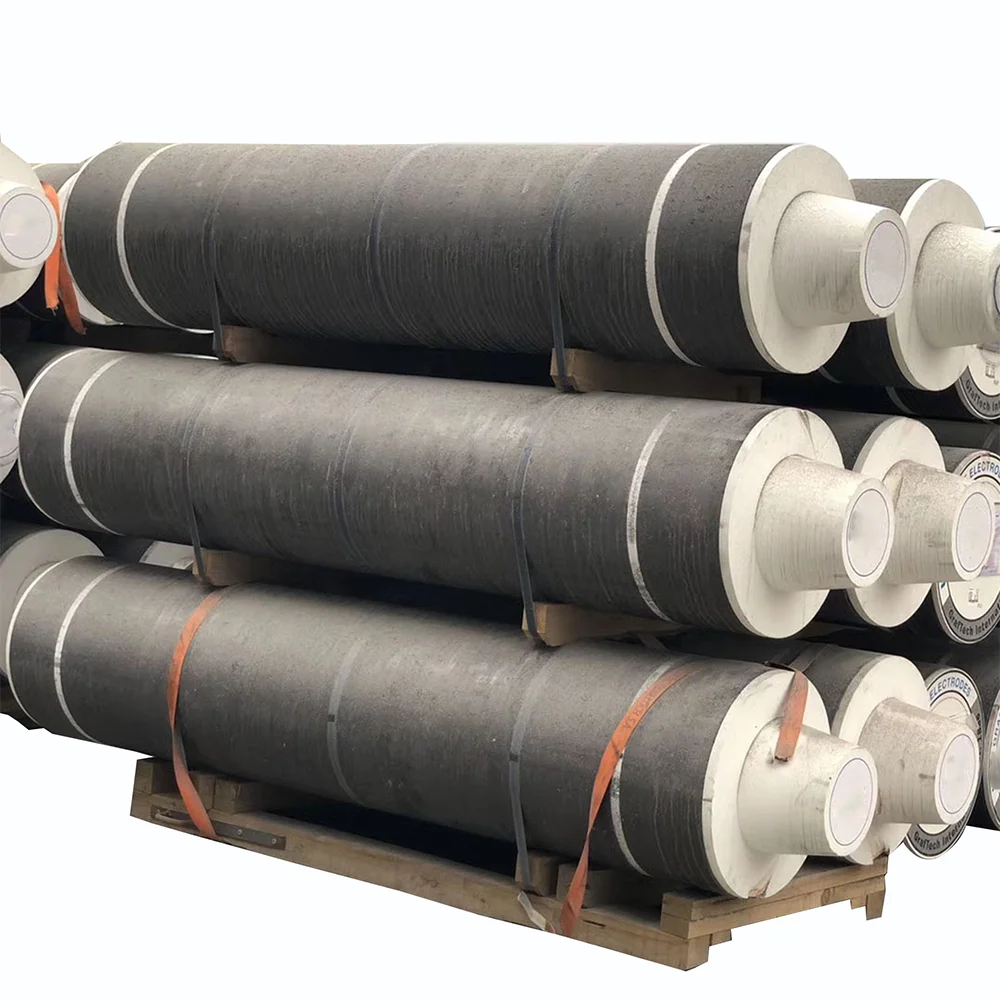

Graphite Electrode
Graphite electrodes have good electrical conductivity and chemical properties, high mechanical strength at high temperatures, good shock resistance and are good conductors of heat and electricity. They are widely used in electric arc furnaces and refining furnaces for steel making, producing ferroalloys, industrial silicon, and yellow phosphorus. , corundum and other submerged arc furnaces and other smelting furnaces that use electric arc furnaces to generate high temperature.
Product Show
Instructions for use
1. Wet graphite electrodes should be dried before use.

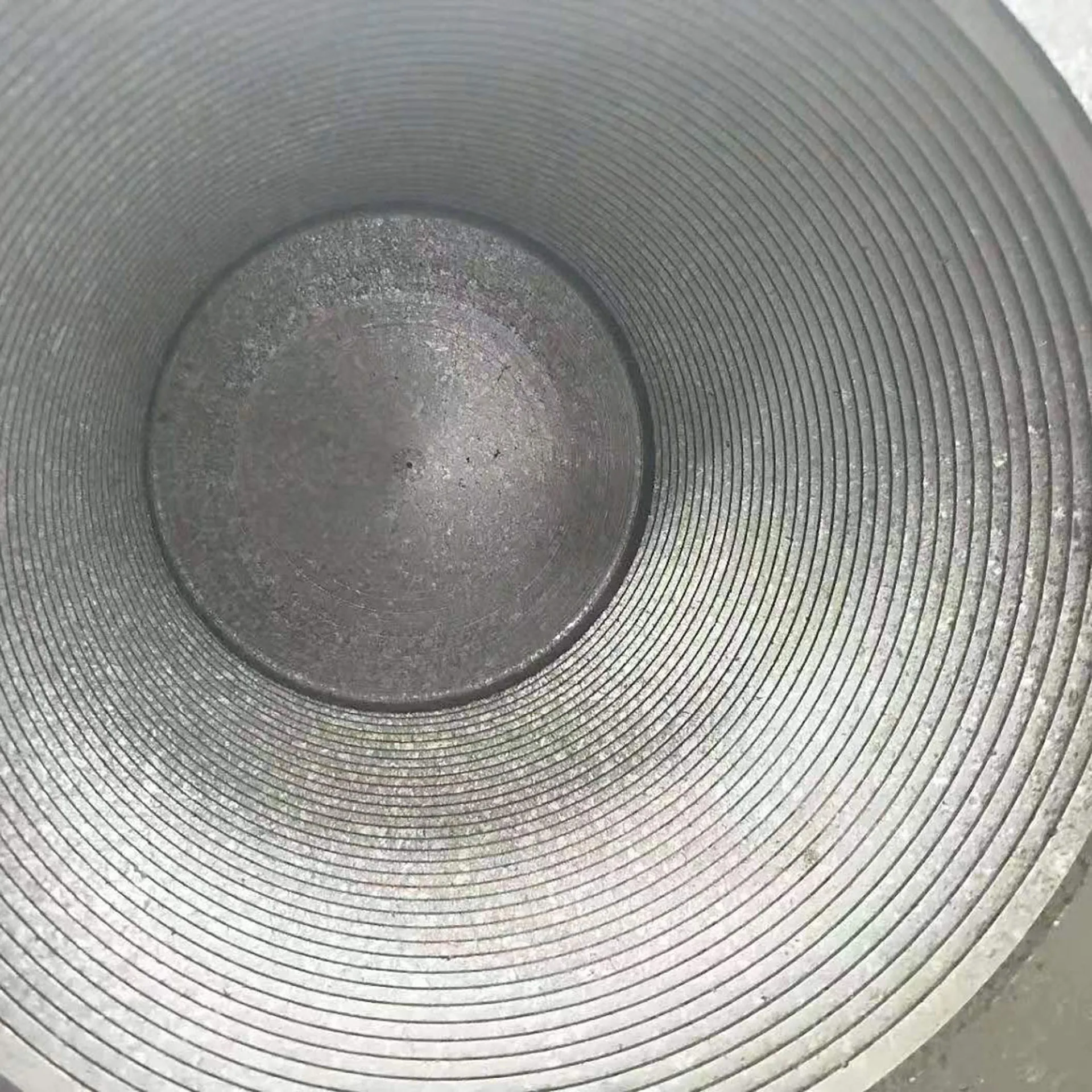

2. Remove the foam plastic protective cap on the spare graphite electrode hole, and check whether the inner thread of the electrode hole is complete.
3. Clean the surface of the spare graphite electrode and the inner thread of the hole with compressed air free of oil and water; avoid cleaning with steel wire balls or metal brush abrasive cloth.
4. Carefully screw the connector into the electrode hole of one end of the spare graphite electrode (it is not recommended to directly install the connector into the electrode removed from the furnace), and do not collide with the thread.
5. Screw the electrode spreader (graphite material is recommended) into the electrode hole at the other end of the spare electrode.
6. When lifting the electrode, place a soft object under one end of the spare electrode mounting joint to prevent the ground from hitting the joint; use the hook to extend into the lifting ring of the spreader and lift it up. come off or collide with other fixtures.
7. Lift the spare electrode above the electrode to be connected, align it with the electrode hole and drop it slowly; rotate the spare electrode to make the screw hook rotate and descend together with the electrode; when the distance between the end faces of the two electrodes is 10-20mm, use compressed air again Clean the exposed parts of the two end faces of the electrode and the joint; when the electrode is completely lowered at the end, do not be too violent, otherwise the electrode hole and the thread of the joint will be damaged due to violent collision.
8. Use a torque wrench to screw the spare electrode until the end faces of the two electrodes are in close contact (the correct connection gap between the electrode and the connector is less than 0.05mm).
1. Wet graphite electrodes should be dried before use.
2. Remove the foam plastic protective cap on the spare graphite electrode hole, and check whether the inner thread of the electrode hole is complete.
3. Clean the surface of the spare graphite electrode and the inner thread of the hole with compressed air free of oil and water; avoid cleaning with steel wire balls or metal brush abrasive cloth.
4. Carefully screw the connector into the electrode hole of one end of the spare graphite electrode (it is not recommended to directly install the connector into the electrode removed from the furnace), and do not collide with the thread.
5. Screw the electrode spreader (graphite material is recommended) into the electrode hole at the other end of the spare electrode.
6. When lifting the electrode, place a soft object under one end of the spare electrode mounting joint to prevent the ground from hitting the joint; use the hook to extend into the lifting ring of the spreader and lift it up. come off or collide with other fixtures.
7. Lift the spare electrode above the electrode to be connected, align it with the electrode hole and drop it slowly; rotate the spare electrode to make the screw hook rotate and descend together with the electrode; when the distance between the end faces of the two electrodes is 10-20mm, use compressed air again Clean the exposed parts of the two end faces of the electrode and the joint; when the electrode is completely lowered at the end, do not be too violent, otherwise the electrode hole and the thread of the joint will be damaged due to violent collision.
8. Use a torque wrench to screw the spare electrode until the end faces of the two electrodes are in close contact (the correct connection gap between the electrode and the connector is less than 0.05mm).
Recommend Products
Packing & Delivery
Company Profile
Hebei Nanhe Trading Co.,Ltd. is founded in 2011,is a high-tech enterprise integrating R/D, production and sale, with independent import and export rights for foreign trade. Developed rapidly in recent years, Our company has been found and conformed according to ISO9001 and SGS systems. As a professional manufacturer and supplier, we can offer you a wide range of materials and products and efficient customer service.With good quality, reasonable prices.We are truthful and candid, keeping our promises and delivering on our commitments.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
1. Are you Factory or Trading?
We are factory direct sale.
2. How about the Capacity?
High output, with an month output of 1,000 tons, timely delivery; guarantee delivery date.
3.How to guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
4.What can we buy from you?
Graphite electrode,electrode paste,semi coke, cpc and other graphite products.
5. How to confirm the grade of graphite electrode?
Please send inquiry to us, our sales manager will confirm the details and price for you.
Customers will be asked to provide electric arc furnace parameters and specifications and sizes of electrode.
We are factory direct sale.
2. How about the Capacity?
High output, with an month output of 1,000 tons, timely delivery; guarantee delivery date.
3.How to guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
4.What can we buy from you?
Graphite electrode,electrode paste,semi coke, cpc and other graphite products.
5. How to confirm the grade of graphite electrode?
Please send inquiry to us, our sales manager will confirm the details and price for you.
Customers will be asked to provide electric arc furnace parameters and specifications and sizes of electrode.
