Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
Радиоуправляемый бесщеточный двигатель bldc FlashHobby A1207 1207 7000KV 3-4S для FPV гоночного дрона мультикоптера игрушечного
- Категория: Motors >>>
- Поставщик: Huizhou,Flash,Hobby,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 6.20 $* | 6.86 $* |
| Jul-19-2025 | 5.31 $* | 5.29 $* |
| Jun-19-2025 | 6.29 $* | 6.48 $* |
| May-19-2025 | 6.18 $* | 6.23 $* |
| Apr-19-2025 | 5.30 $* | 5.65 $* |
| Mar-19-2025 | 6.16 $* | 6.55 $* |
| Feb-19-2025 | 6.74 $* | 6.4 $* |
| Jan-19-2025 | 6.30 $* | 6.15 $* |
Характеристики
Products Description

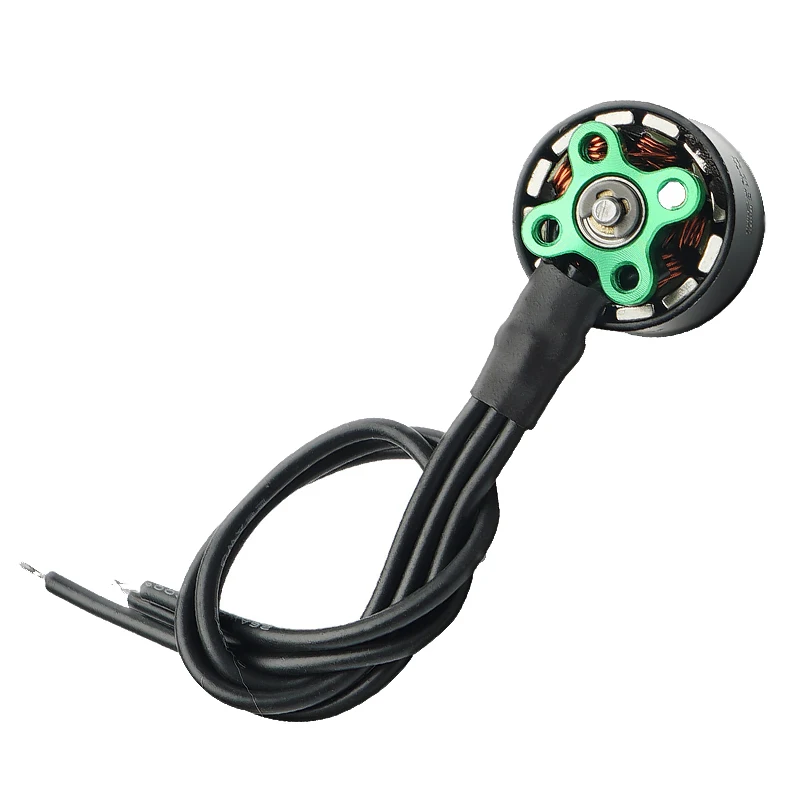

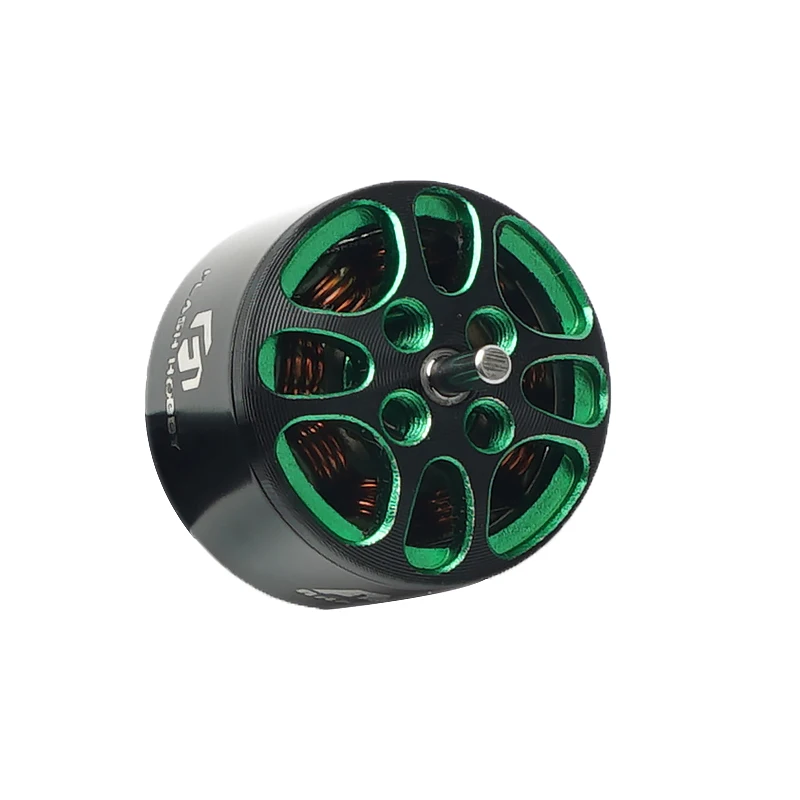

FlashHobby A1207 1207 7000KV 3-4S rc brushless motor bldc motor for FPV Racing Drone Multicopter RC Toy Car brushless motor
Flash Hobby A1207 1207 outrunner brushless motor specification
* KV: 7000KV
* Configuration: 9N12P
* Weight: 10.4g(including the cables)
* Motor Size: 15.7 x 13.8mm
* Motor Cable: 26#AWG 115mm
* Shaft Diameter: 1.5mm
* Prop Mount Shaft Dia.: 5*M2
* Recommend: 2~3inch prop application
* Configuration: 9N12P
* Weight: 10.4g(including the cables)
* Motor Size: 15.7 x 13.8mm
* Motor Cable: 26#AWG 115mm
* Shaft Diameter: 1.5mm
* Prop Mount Shaft Dia.: 5*M2
* Recommend: 2~3inch prop application
Company Profile
Huizhou Flash Hobby Motor Co., Ltd.
Huizhou Flash Hobby Motor Co., Ltd.Flash Hobby, a new worldwise brand, providing propulsion system solution for UAV with advanced technology, is specializing in Motors, ESCs (Electronic Speed Controller) and Servos. We have strong R&D ability and confidence to provide professional OEM/ODM RC solution for all customers, because our technical team comes from famous branded enterprises and with rich experience in RC industry.
Flashhobby takes the customer demands as the orientation, takes the improvement of product performance and the quality as the goal, brings more satisfied products to customers. We would like to grow up with you--our esteemed customers, and gain mutual benefits. Your valuable comments and ideas would be appreciated. Because the focus, so more professional!

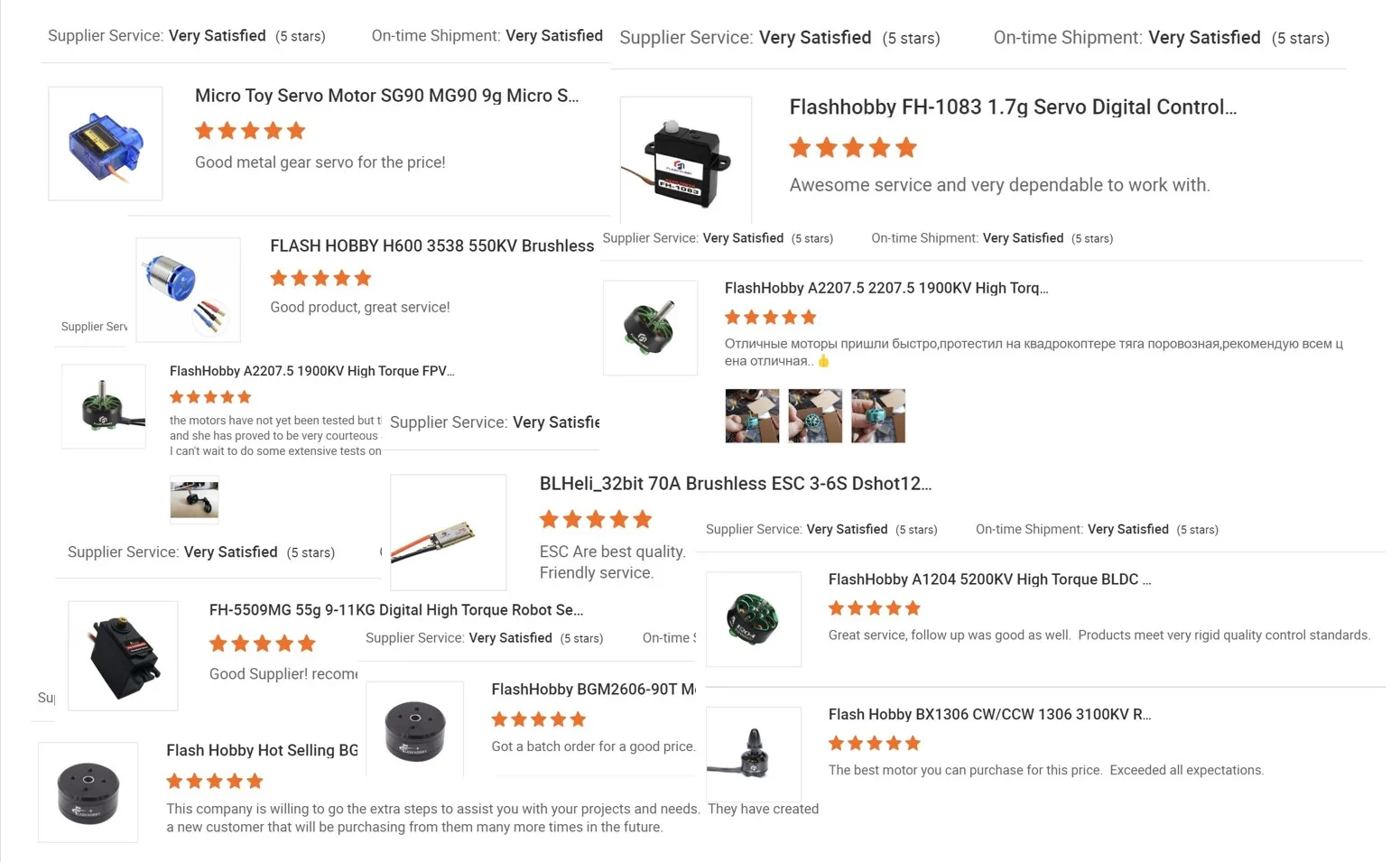

Customer Feedback
Flash Hobby Product Category
Flash Hobby Gearbox Brushless Motor
Gearbox Brushless Motor | Voltage（V） | No Load current（A） | No Load rpm | Reduction ratio | Rated load torque (kgf.cm) | MAX watt(W) | Dimensions（mm） |
PGM2826-4 | 12 | 1.85 | 12848 | 4 | 0.96 | 83.64 | 28*54.5 |
PGM2826-19 | 2.2 | 19 | 4.55 | 93 | 28*62 | ||
PGM2826-27 | 2.34 | 27 | 6.47 | 101.16 | 28*62 | ||
PGM2826-100 | 2.5 | 100 | 23.97 | 124.8 | 28*69 | ||
PGM2830-27A | 12 | 2.10 | 27 | 11.02 | 93 | 28*66 | |
PGM2830-78A | 2.4 | 100 | 40.8 | 117.6 | 28*72.6 | ||
PGM2830-4B | 12 | 1.77 | 9791 | 4 | 1.53 | 79.92 | 28*58.5 |
PGM2830-19B | 1.95 | 19 | 7.27 | 94.08 | 28*66 | ||
PGM2830-27B | 2.24 | 27 | 10.33 | 115.8 | 28*66 | ||
PGM2830-100B | 2.46 | 100 | 38.25 | 127.2 | 28*72.6 | ||
PGM2830-4C | 12 | 1.95 | 11942 | 4 | 1.02 | 74.04 | 28*58.5 |
PGM2830-19C | 2.22 | 19 | 4.85 | 85.92 | 28*66 | ||
PGM2830-27C | 2.36 | 27 | 6.89 | 101.04 | 28*66 | ||
PGM2830-100C | 2.55 | 100 | 25.5 | 135.6 | 28*72.6 | ||
PGM2836-4 | 12 | 1.67 | 5912 | 4 | 1.18 | 42 | 28*64.5 |
PGM2836-19 | 1.82 | 19 | 5.62 | 55.2 | 28*71.6 | ||
PGM2836-27 | 2.2 | 27 | 7.99 | 78.48 | 28*71.6 | ||
PGM2836-100 | 2.41 | 100 | 29.58 | 106.8 | 28*79 | ||
PGM3548-139 | 24 | 2.88 | 140 | 139 | 42.94 | 172.8 | 36*88.5 |
PGM4250-19 | 24 | 4.9 | 1000 | 19 | 26.87 | 676.8 | 42.8*127.5 |
PGM4250-51 | 24 | 4.1 | 300 | 51 | 43.33 | 379.2 | 42.8*127.5 |
Flash Hobby Brushless Motor
Brushless Motor | RPM/1V | Max watt(W) | Thrust (g) | Max current | Weight | Motor Size(mm) | Lipo cells(s) | |
2225 2000KV | 2000KV | 122 | 450 | 11A | 32g | Ф22*25 | 2-3 | |
2225 1600KV | 1600KV | 109 | 440 | 10A | ||||
2225 1350KV | 1350KV | 105 | 420 | 8.2A | ||||
2812 1600KV | 1600KV | 103 | 470 | 12A | 22g | Ф28*11.5 | 2-3 | |
2822 2600KV | 2600KV | 260 | 850 | 24A | 38g | Ф28*22 | 2-3 | |
2822 1800KV | 1800KV | 200 | 660 | 16.6A | ||||
2822 1450KV | 1450KV | 160 | 550 | 14.8A | ||||
2822 1100KV | 1100 | 102 | 520 | 9.9A | ||||
2826 2200KV | 2200 | 342 | 960 | 31.5A | 50g | Ф27.7*26.3 | 2-3 | |
2826 1400KV | 1400 | 205 | 780 | 18.9A | ||||
2826 1000KV | 1000 | 150 | 660 | 13.8A | ||||
2826 930KV | 930 | 130 | 645 | 12A | ||||
2830 1300KV | 1300 | 275 | 1300 | 19A | 52g | Ф28*30 | 2-4 | |
2830 1000KV | 1000 | 210 | 1000 | 14.5A | ||||
2830 850KV | 850 | 187 | 850 | 12.9A | ||||
2830 750KV | 750 | 185 | 866 | 12.8A | ||||
2836 1500KV | 1500 | 368 | 1150 | 25.4A | 70g | Ф28*36 | 2-4 | |
2836 1120KV | 1120 | 336 | 1130 | 23.2A | ||||
2836 880KV | 880 | 243 | 850 | 16.8A | ||||
2836 750KV | 750 | 206 | 800 | 14.2A | ||||
3530 1700KV | 1700 | 480 | 1240 | 33.1A | 74g | Ф35*30 | 2-4 | |
3530 1400KV | 1400 | 446 | 1180 | 30.8A | ||||
3530 1100KV | 1100 | 313 | 1100 | 21.6A | ||||
3536 1450KV | 1450 | 655 | 1380 | 45.2A | 102g | Ф35*36 | 2-4 | |
3536 1250KV | 1250 | 496 | 1270 | 34.2A | ||||
3536 1000KV | 1000 | 432 | 1160 | 29.8A | ||||
3536 910KV | 910 | 370 | 1050 | 25.5A | ||||
3542 1450KV | 1450 | 690 | 1420 | 47.6A | 130g | Ф35*42 | 2-4 | |
3542 1250KV | 1250 | 664 | 1350 | 45.8A | ||||
3542 1000KV | 1000 | 543 | 1260 | 37.5A | ||||
3548 1100KV | 1100 | 911 | 2150 | 50.3A | 156g | Ф35*48 | 3-5 | |
3548 900KV | 900 | 770 | 1780 | 42.5A | ||||
3548 790KV | 790 | 717 | 1650 | 39.6A | ||||
Flash Hobby D EVO Series Motor
D EVO Series Motor | RPM/1V | Max watt(W) | Thrust(g) | Max current | Weight | Motor Size(mm) | Lipo cells(s) | |
2826 EVO 2200KV | 2200 | 312 | 963 | 26.1A | 55.7g | ф28 x26mm | 3-4 | |
2826 EVO 1450KV | 1450 | 367 | 1256 | 30.97A | ||||
2826 EVO 1000KV | 1000 | 292 | 1111 | 18.43A | ||||
2830 EVO 850KV | 850 | 195 | 876 | 15.87A | ||||
2830 EVO 750KV | 750 | 175 | 897 | 10.78A | ||||
2836 EVO 1450KV | 1450 | 739 | 1582 | 48.69A | 88.6g | Ф28*36 | 2-4 | |
2836 EVO 1100KV | 1100 | 462 | 1623 | 30.3A | ||||
2836 EVO 850KV | 850 | 244 | 1028 | 15.11A | ||||
2836 EVO 750KV | 750 | 194 | 966 | 11.95A | ||||
3530 EVO 1700KV | 1700 | 702 | 1577 | 44.92A | 77g | Ф35*30 | 2-4 | |
3530 EVO 1400KV | 1400 | 663 | 1662 | 42.97A | ||||
3530 EVO 1100KV | 1100 | 380 | 1080 | 23.27A | ||||
3536 EVO 1450KV | 1450 | 609 | 1884 | 51.45A | 108g | Ф35*36 | 2-4 | |
3536 EVO 1250KV | 1250 | 919 | 2507 | 57.3A | ||||
3536 EVO 1000KV | 1000 | 300 | 1332 | 24.44A | ||||
3536 EVO 910KV | 910 | 347 | 1393 | 21.45A | ||||
4245 EVO 800KV | 800 | 1210 | 3635 | 58.6A | 173.5g | Ф42.8*45 | 5-6 | |
4245 EVO 700KV | 700 | 1013 | 3517 | 55.63A | ||||
4250 EVO 800KV | 800 | 1196 | 3716 | 60.74A | 209g | Ф42.8*50 | 5-6 | |
4250 EVO 600KV | 600 | 1252 | 4161 | 57.83A | ||||
4260 EVO 800KV | 800 | 1354 | 4152 | 60.74A | 283g | Ф42.8*60 | 5-6 | |
4260 EVO 600KV | 600 | 1272 | 4080 | 59.92A | ||||
Flash Hobby Arthur Series Brushless Motor
Arthur Series Brushless Motor | RPM/1V | Max watt(W) | Thrust (g) | Max current | Weight | Motor Size(mm) | Lipo cells(s) | |
0802 19000KV | 19000KV | 35 | 52 | 3.8A | 2g | Φ10.7x8 | 1S | |
1204 2500KV | 2500KV | 47 | 164 | 3.18A | 6g | Φ15.7x10.8 | 2-4S | |
1204 3100KV | 3100KV | 76 | 211 | 5.14A | ||||
1204 5200KV | 5200KV | 124 | 223 | 9.05A | ||||
1207 2500KV | 2500KV | 76 | 244 | 4.73A | 10.4g | Φ15.7x13.8 | 3-4S | |
1207 3100KV | 3100KV | 125 | 312 | 7.84A | ||||
1207 5200KV | 5200KV | 325 | 445 | 20.29A | ||||
1207 6000KV | 6000KV | 275 | 374 | 20.43A | ||||
1207 7000KV | 7000KV | 291 | 385 | 22.5A | ||||
1106 4500KV | 4500KV | 71 | 213 | 5.95A | 7.8g | Φ14.4×12.8 | 2-4S | |
1106 6500KV | 6500KV | 161 | 230 | 14.5A | 6.2g | |||
1404 2800KV | 2800KV | 172 | 343 | 7.16A | 9.9g | Φ18.6×13.2 | 3-6S | |
1404 3000KV | 3000KV | 146 | 339 | 9.19A | 3-6S | |||
1404 4300KV | 4300KV | 175 | 220 | 11.8A | 3-4S | |||
1404 6000KV | 6000KV | 219 | 379 | 15A | 3-4S | |||
1408(1.5) 2800KV | 2800KV | 339 | 660 | 17.25A | 16.4g | ф18.6 x 17.2 | 2-6S | |
1408(1.5) 3650KV | 3650KV | 351 | 650 | 22.39A | 16.2g | ф18.6 x 17.2 | 2-4S | |
1408 2800KV | 2800KV | 339 | 660 | 17.25A | 15.9g | ф18.6 x 17.2 | 2-6S | |
1408 3650KV | 3650KV | 351 | 650 | 22.39A | 15.9g | ф18.6 x 17.2 | 2-4S | |
2207.5 1900KV | 1900KV | 1069.2 | 1065 | 45.38A | 35.1g | ф27.5 x 18.5 | 3-6S | |
2207.5 2500KV | 2500KV | 677.2 | 1590 | 43.55A | 36.5g | ф27.5 x 18.5 | 2-4S | |
2207.5 2700KV | 2700KV | 869.3 | 1640 | 56.93A | 36.5 | ф27.5 x 18.5 | 2-4S | |
2306.5 1400KV | 1400KV | 827.0 | 1741.0 | 35A | 36.5g | ф28.8 x 17.5 | 3-6S | |
2306.5 1900KV | 1900KV | 1190.0 | 1961.0 | 51A | 36.6g | ф28.8 x 17.5 | 3-6S | |
2306.5 2300KV | 2300KV | 687.5 | 1472.0 | 42.9A | 36.8g | ф28.8 x 17.5 | 2-4S | |
2306.5 2550KV | 2550KV | 757.4 | 1718.0 | 47.3A | 37g | ф28.8 x 17.5 | 2-4S | |
2807 1300KV | 1300KV | 895.7 | 1996.0 | 40.03A | 56g | ф33.6 x 20 | 4-6S | |
2807 1500KV | 1500KV | 1098.8 | 2199.0 | 46.4A | 56g | ф33.6 x 20 | 4-6S | |
2807 1800KV | 1800KV | 636.1 | 1614.0 | 40.57A | 56g | ф33.6 x 20 | 3-4S | |
Flash Hobby Fast Speed High Torque Servo
Fast Speed High Torque Servo | Style | Dimensions （mm) | Volts(v) | Operating Speed(sec/60°) | torque (kg-cm) | Motor type | CASE |
BLS3837MED | magnetic | 40x20x38 | 6~8.4V | 0.07/0.1 | 26.0/37.0 | Brushless | CNC |
BLS3848MED | magnetic | 40x20x38 | 6~8.4V | 0.09/0.13 | 36.0/48.0 | Brushless | |
BLS3858MED | magnetic | 40x20x38 | 6~8.4V | 0.12/0.17 | 42.0/58.0 | Brushless | |
CLS3838MED | magnetic | 40x20x38 | 6~8.4V | 0.09/0.12 | 29.0/38.0 | coreless | |
CLS3850MED | magnetic | 40x20x38 | 6~8.4V | 0.11/0.15 | 38.0/50.0 | coreless | |
CLS3860MED | magnetic | 40x20x38 | 6~8.4V | 0.14/0.18 | 48.0/60.0 | coreless | |
M35CHW | Digital | 40x20x40.50 | 6~8.4V | 0.09/ 0.07 | 30.0/35.0 | coreless | |
M45CHW | Digital | 40x20x40.50 | 6~8.4V | 0.12/0.11 | 35.0/ 45.0 | coreless | |
M25BHW | Digital | 40x20x40.50 | 6~8.4V | 0.06/0.04 | 18.0/ 25.0 | Brushless | |
M15DHW | Digital | 40x20x40.50 | 5~7V | 0.16/ 0.11 | 11.2/15.2 | Iron Core | |
M20DHW | Digital | 40x20x40.50 | 5~7V | 0.21/0.14 | 15.5/20.5 | Iron Core | |
M25DHW | Digital | 40x20x40.50 | 5~7V | 0.24/0.16 | 18.6/25.9 | Iron Core | |
M30DHW | Digital | 40x20x40.50 | 5~7V | 0.32/0.22 | 22.3/30.0 | Iron Core | |
M35DHW | Digital | 40x20x40.51 | 5~8V | 0.37/0.25 | 24.9/35.0 | Iron Core | |
FH-2142 | Digital | 23X12X27.6 | 4.8V~6V | 0.09/0.08 | 3.2/4.2 | coreless | |
FH-2162 | Digital | 23X12X27.6 | 6V~7.4V | 0.07/0.05 | 4.8/6.2 | coreless |
