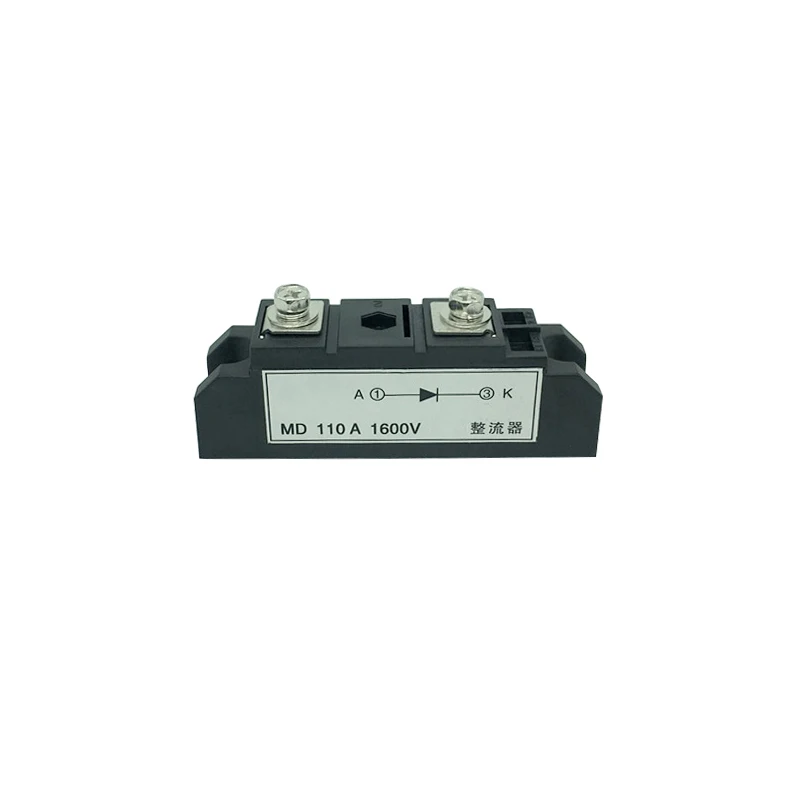

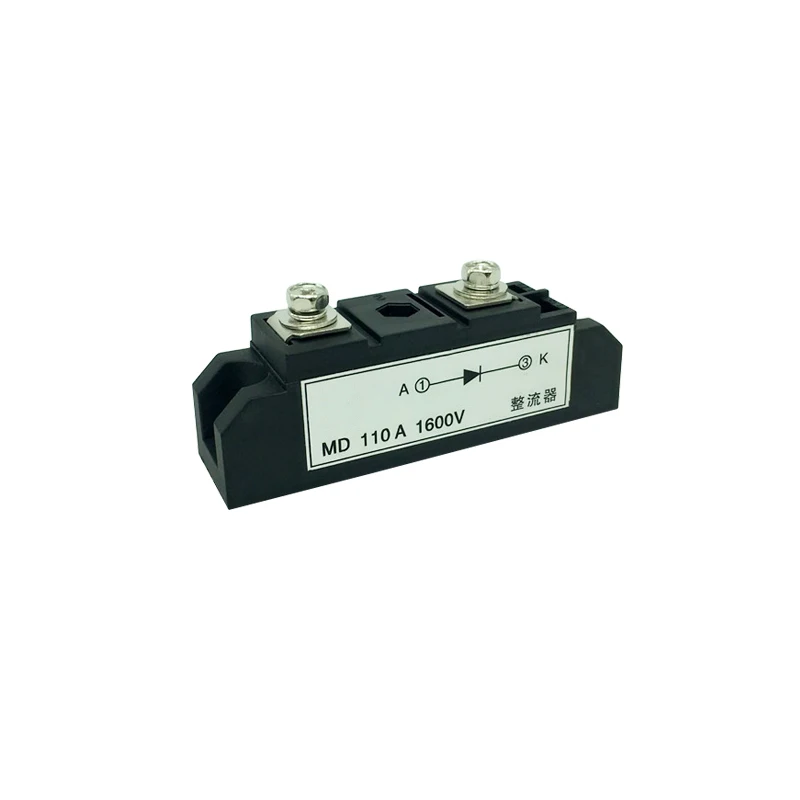

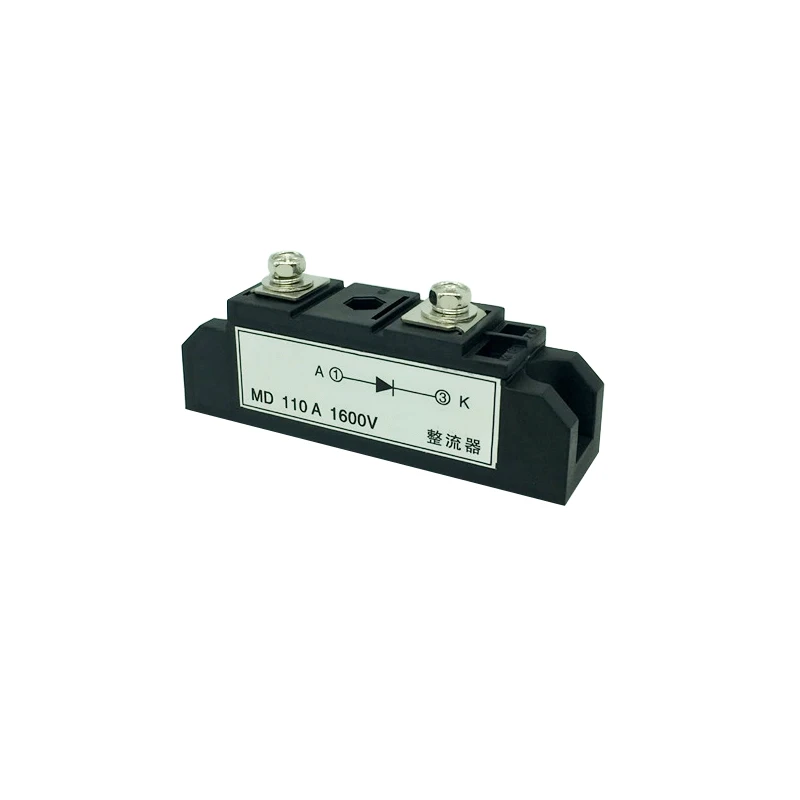

MD110A1600V выпрямительный диод PV солнечный диодный
- Категория: Discrete Semiconductors >>>
- Поставщик: Shanghai,Sdo,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.46 $* | 0.2 $* |
| Aug-20-2025 | 0.73 $* | 0.94 $* |
| Jul-20-2025 | 0.65 $* | 0.56 $* |
| Jun-20-2025 | 0.2 $* | 0.83 $* |
| May-20-2025 | 0.98 $* | 0.51 $* |
| Apr-20-2025 | 0.8 $* | 0.25 $* |
| Mar-20-2025 | 0.96 $* | 0.54 $* |
| Feb-20-2025 | 0.16 $* | 0.23 $* |
| Jan-20-2025 | 0.96 $* | 0.98 $* |
Характеристики
Installation notes:
●Because MD/MDK series photovoltaic anti diode module is insulated type ( i . e module wiring column on the insulation between the copper plate is greater than the 3.1KV value) . so you can put a plurality of modules are installed in the same radiator, or device grounding shell.

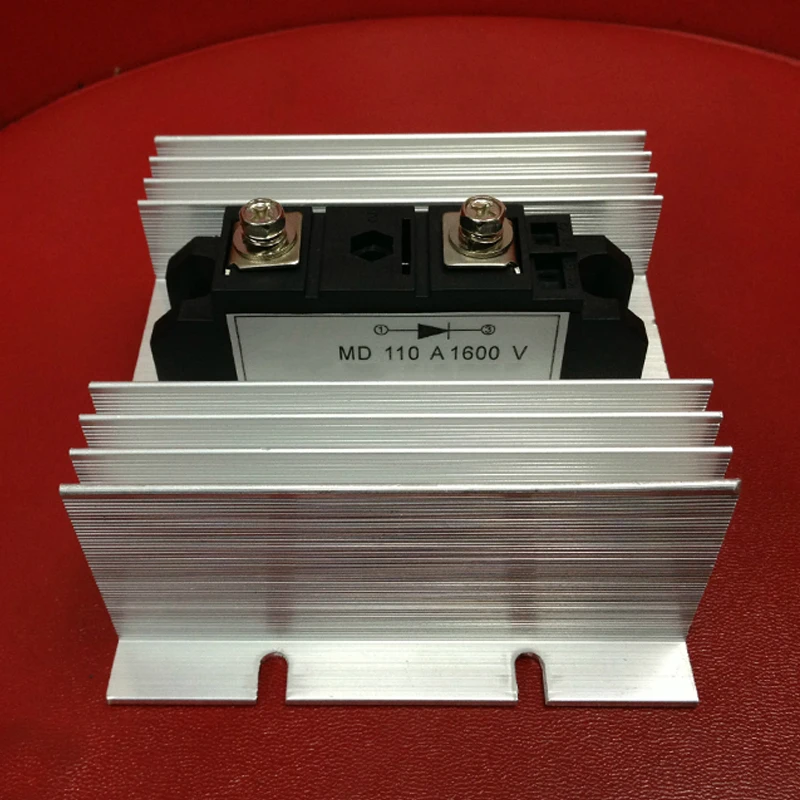

●Radiator mounting surface should be flat, smooth, no scratches, bump and sundries. The radiator surface finish should be less than 10μM. Module is installed in the radiator, between their contact surface thermal grease coated with a thin layer of Grease, with fine sandpaper to heathe contact surface of the oxid layer is removed, and then ethanol wipe the surface, make good contact, in order to reduce the thermal resistance. Module is fastened to the surface of the radiator, using M5 or M6 screw and spring washer, and shall be recoverable by the 4NM torque fastening screws on the module main electrode attachent copper bar, and a contact surface smooth, make good contact. Module 3 hours later, all the screws to tighten again. Select the user selection module radiator, must conside the following factors:
●Because MD/MDK series photovoltaic anti diode module is insulated type ( i . e module wiring column on the insulation between the copper plate is greater than the 3.1KV value) . so you can put a plurality of modules are installed in the same radiator, or device grounding shell.
●Radiator mounting surface should be flat, smooth, no scratches, bump and sundries. The radiator surface finish should be less than 10μM. Module is installed in the radiator, between their contact surface thermal grease coated with a thin layer of Grease, with fine sandpaper to heathe contact surface of the oxid layer is removed, and then ethanol wipe the surface, make good contact, in order to reduce the thermal resistance. Module is fastened to the surface of the radiator, using M5 or M6 screw and spring washer, and shall be recoverable by the 4NM torque fastening screws on the module main electrode attachent copper bar, and a contact surface smooth, make good contact. Module 3 hours later, all the screws to tighten again. Select the user selection module radiator, must conside the following factors:
●The sixe of the module working current, to determine the required area
●The use of the environment, we can determine what cooling way---natural cooling, forced air cooling or water cooling
●The device shape, volume, to the radiator reserved space size, which can be determined by what the shape of the radiator
●The use of the environment, we can determine what cooling way---natural cooling, forced air cooling or water cooling
●The device shape, volume, to the radiator reserved space size, which can be determined by what the shape of the radiator
Specification
Products Description
Featrue

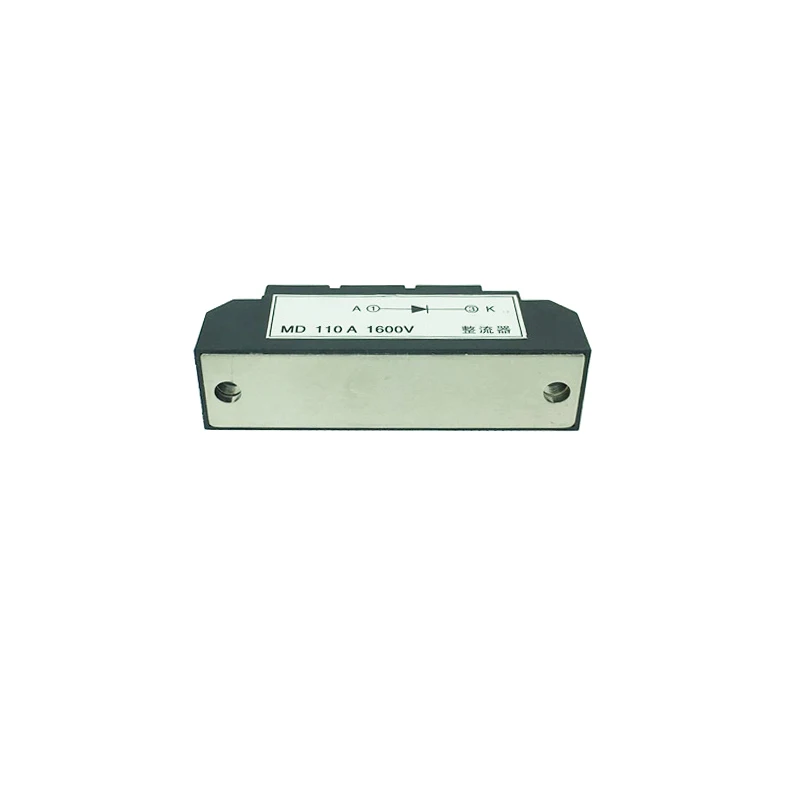

Chips are electrically insulated from bottom plate
Sealin compliance with international standard , pressure type
Excellent power / volume ratio
Maximum junction temperature up to 150'C, low forward voltage drop
Application
PV Junction Box PV DC Cabinet PV DC System
Company Information
Exhibition
Packaging&Shipping
FAQ
1) Are you a factory or trading company?
We have our own factories.
2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.
3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.
4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.
5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
6) How to guarantee the quality of your products?
We have our own factories.
2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.
3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.
4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.
5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
6) How to guarantee the quality of your products?
Our products have U L, TUV and other certifications.
