868 МГц/915 МГц IOT приемник дистанционного управления полоса пропускания пилы 1 дБ 4 полосный фильтр с разъемом SMAA
- Категория: Filters >>>
- Поставщик: Wuhan,Derun,Zhigu,Network,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.19 $* | 0.47 $* |
| Aug-15-2025 | 0.86 $* | 0.8 $* |
| Jul-15-2025 | 0.63 $* | 0.67 $* |
| Jun-15-2025 | 0.50 $* | 0.78 $* |
| May-15-2025 | 0.15 $* | 0.88 $* |
| Apr-15-2025 | 0.25 $* | 0.93 $* |
| Mar-15-2025 | 0.41 $* | 0.22 $* |
| Feb-15-2025 | 0.98 $* | 0.82 $* |
| Jan-15-2025 | 0.13 $* | 0.93 $* |
Характеристики
868MHz / 915MHz IOT Receiver Remote Control Saw Bandwidth 1dB 4MHz Bandpass Filter with SMA Connector for Radio Amplifiers
Product Description

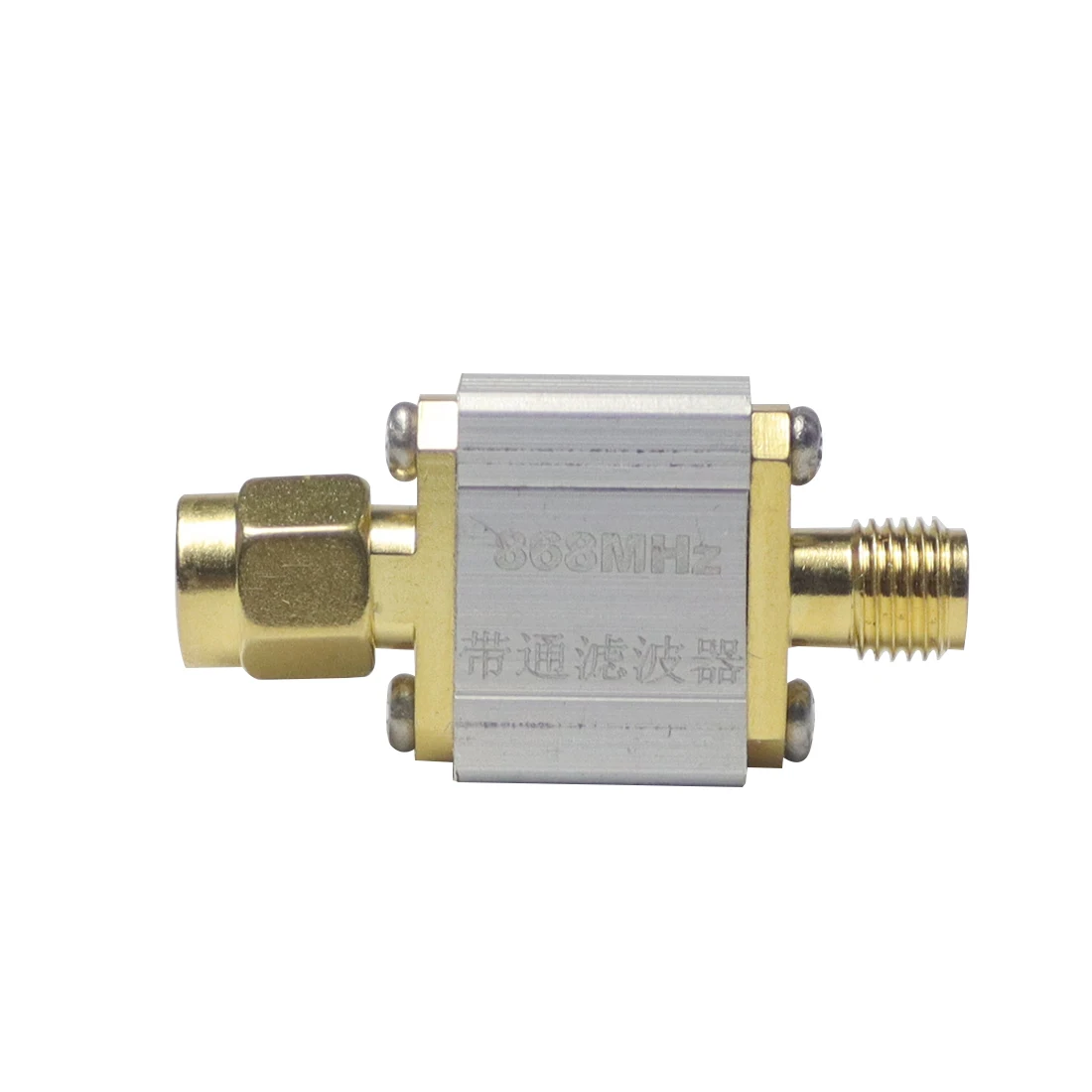

868MHz filter:
The bandwidth of this 1dB filter is 4MHz, optimized for the performance of 868MHz RFID receivers, European standard LoRa IoT node devices, which can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Model: FBP-868s
Impedance: 50 Ohm
Center frequency: 868 MHz
Bandwidth (1dB bandwidth): 866 to 870 MHz
In-band insertion loss: <3.5dB
Maximum load power: 100mW (20dBm)
Interface: SMA-M, SMA-F
915MHz Filter:
This filter has a bandwidth of 26 1dB MHz and is optimized for use in 915MHz RFID receivers to effectively filter out-of-band signals, reduce noise, and increase dynamic range.

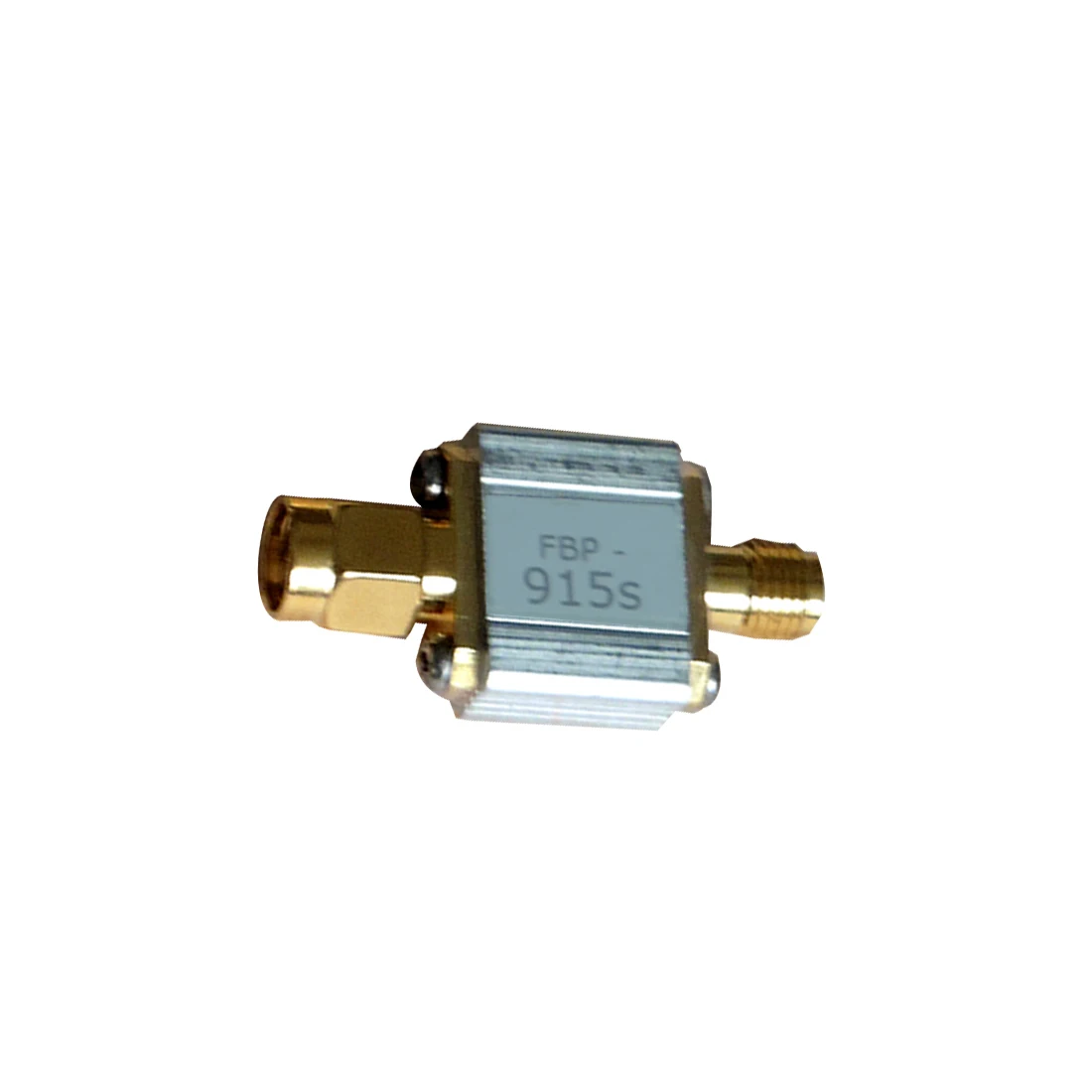

Model: FBP-915s
Impedance: 50 Ohm
Center frequency: 915 MHz
1dB bandwidth: from 902 to 928 MHz
In-band insertion loss: <= 2.0 dB
Maximum load power: 100mW (20dBm)
Interface: SMA-M, SMA-F
