Характеристики

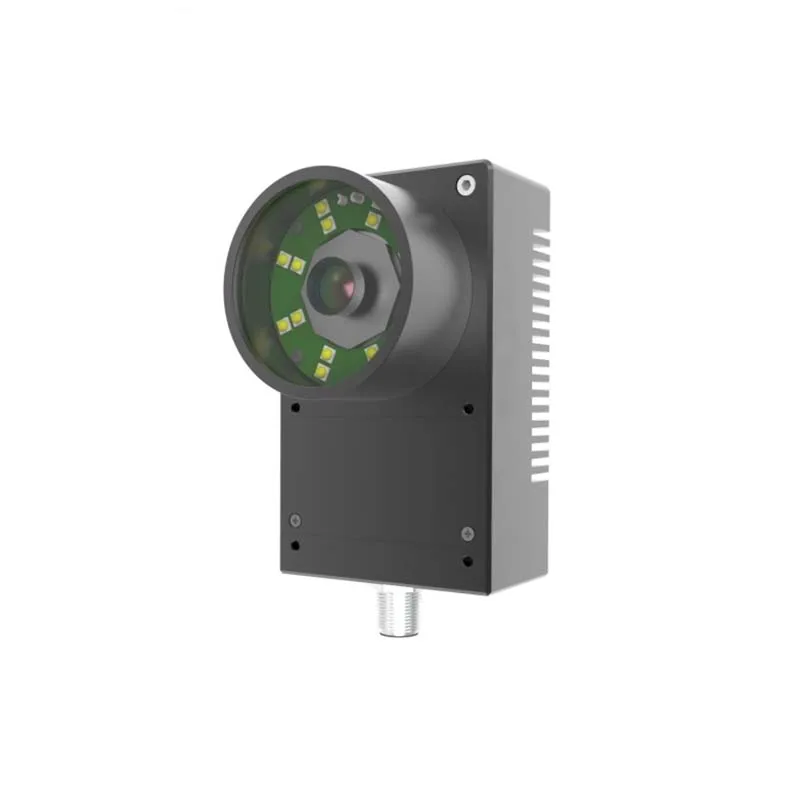

Product Description
This series of cameras is a color industrial smart camera with high cost performance, good stability and low power consumption.Pre-installed WIN10 operating system, supports Halcon, Labview and other visual software, which is convenient for program porting.It can replace Linux systems such as Ubuntu. SDK supports VC/C++, C++ builder, VB6, VB.NET, Delphi, C#, JAVA, Python and other programming languages.
Product Features
◆CPU Intel Atom Z8300 (1.44-1.83GHZ).
◆2G/32G, 4G/64G (memory/disk), support external USB2.0*2 port.
◆Display HDMI*1, support 1920*1080 resolution.
◆Ethernet 1000M*1, supporting GigE Vision camera.
◆M1212 core threaded aviation connector supports 12V/1A power input.
◆One input and two output interfaces can set the output delay, no need to deal with in the program.
◆Support trigger *1, flash *1, support RS232*1.
◆Support Windows10 64bit、Ubuntu16.04 64bit system.
◆Built-in USB2.0 interface all the way, convenient for disassembly and assembly, and can be used with dongle.
◆Integrated light source controller, optional LED lighting components, support stroboscopic synchronization function.
◆2G/32G, 4G/64G (memory/disk), support external USB2.0*2 port.
◆Display HDMI*1, support 1920*1080 resolution.
◆Ethernet 1000M*1, supporting GigE Vision camera.
◆M1212 core threaded aviation connector supports 12V/1A power input.
◆One input and two output interfaces can set the output delay, no need to deal with in the program.
◆Support trigger *1, flash *1, support RS232*1.
◆Support Windows10 64bit、Ubuntu16.04 64bit system.
◆Built-in USB2.0 interface all the way, convenient for disassembly and assembly, and can be used with dongle.
◆Integrated light source controller, optional LED lighting components, support stroboscopic synchronization function.
Specification
Type | SMI-CS-640P-01 |
Sensor | 1/5.6"CMOS |
Shutter type | Global shutter |
Camera type | Color |
Pixel size | 4.0*4.0μm |
Effective pixels | 300000 |
Resolution@Frame Rate | 640*480@790FPS |
Pixel bit depth | 8bit |
Sensitivity | 8V/lux-s 540nm |
CPU frequency | 1.44-1.83GHZ quad-core |
Memory | 2G/4G(optional) |
Maximum gain (multiple) | 8 |
Exposure time range (ms) | 0.00124~20.7 |
Disk | 32G/64G(optional) |
By default Win1064-bit system is pre-installed, Win1032-bit system or Ubuntu and Android system and other Linux platform systems are optional | |
Data interface | External USB20x2 port, 1000 network port *1 HDMI port*1 built-in USB20 port *1, light source power supply port *1 |
Video output format | Bayer8/Bayer12 |
I/O port | 1 optical isolation trigger input, one optical isolation flash output, 1 optical isolation input, 2 optical isolation outputs,support RS232*1 |
Lens interface | CS interface, pre-installed adapter ring, compatible with C-mount lens, optional M12 lens interface Dimensions [64*105*35mm (excluding lens and rear housing connector) |
Power supply | 12~24V |
Power | Maximum power 12W |
Dimensions | 64*105*35mm (excluding lens and rear housing connector) |
Weight | <500g |
Working temperature | 0~50 degrees |
Working humidity | 20~80% (non-condensing) |
Storage temperature | -30~60℃ |
Storage humidity | 20~95% (non-condensing) |
Driver | Directshow component Halcon special component Labview special driver OCX component TWAIN component |
Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
Other features | Support for ROI of any size, custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinates, ISP image processing acceleration, 3D noise reduction, Custom LUT table,frame rate adjustment, custom camera name, etc. |
