Активный оптический кабель KEXINT 40G 100G QSFP + к AOC 1 м 2 3 5 10 20 30
- Категория: >>>
- Поставщик: Shenzhen,Kexint,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 62.64 $* | 63.46 $* |
| Jul-16-2025 | 50.46 $* | 51.34 $* |
| Jun-16-2025 | 61.82 $* | 62.34 $* |
| May-16-2025 | 61.42 $* | 62.84 $* |
| Apr-16-2025 | 49.28 $* | 50.11 $* |
| Mar-16-2025 | 60.59 $* | 61.36 $* |
| Feb-16-2025 | 59.78 $* | 60.19 $* |
| Jan-16-2025 | 59.23 $* | 60.24 $* |
Характеристики
Products Description
AOC (Active Optical Cables) refers to a communication cable that needs to use external energy to convert electrical signals into optical signals, or convert optical signals into electrical signals in the communication process. The optical transceivers at both ends of the optical cable provide photoelectric conversion and Optical transmission function.
Compared with traditional cables, active optical cables have many advantages such as high transmission rate, long transmission distance, low energy consumption, and convenient use. They can help communication equipment enjoy the huge advantages of optical transmission, and are ideal for data centers, consumer electronics and other fields transmission cable.
With the irreversible trend of "optical advance and copper retreat", the future will be the era of "all-optical network", and active optical cable technology will penetrate into every corner of the high-speed interconnection market.

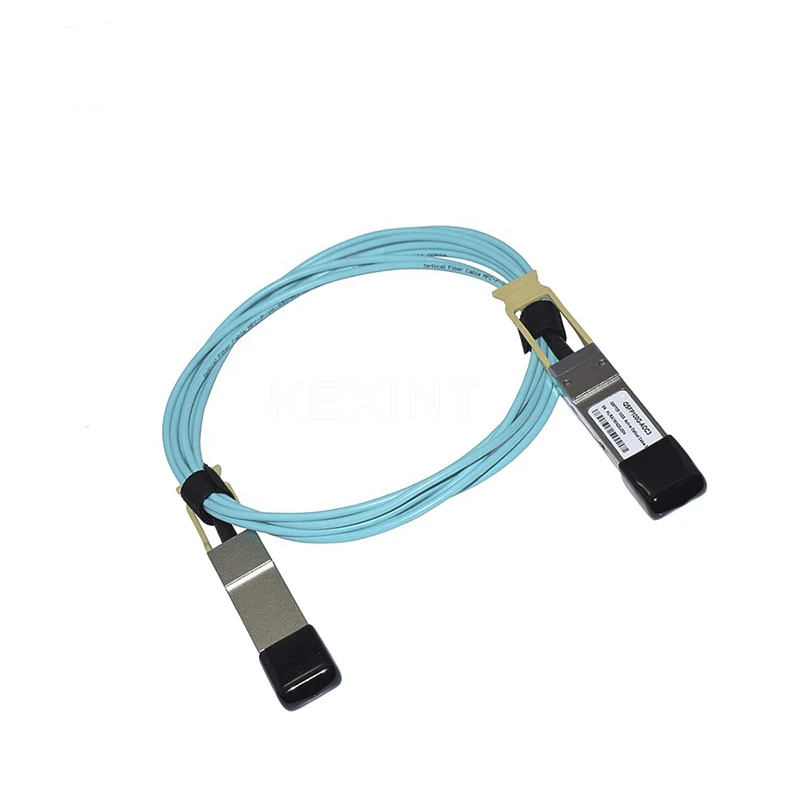

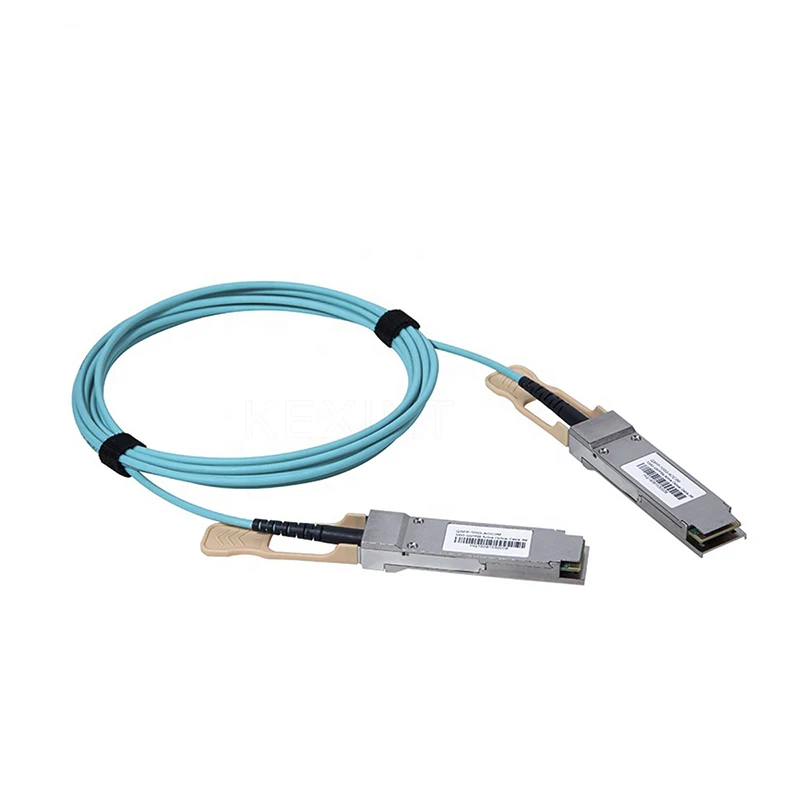

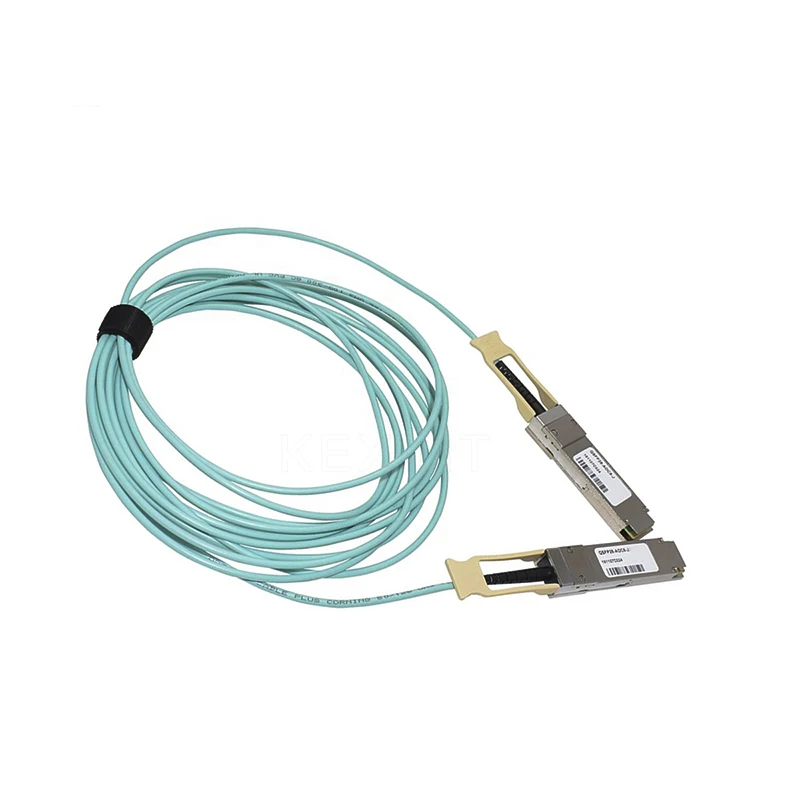

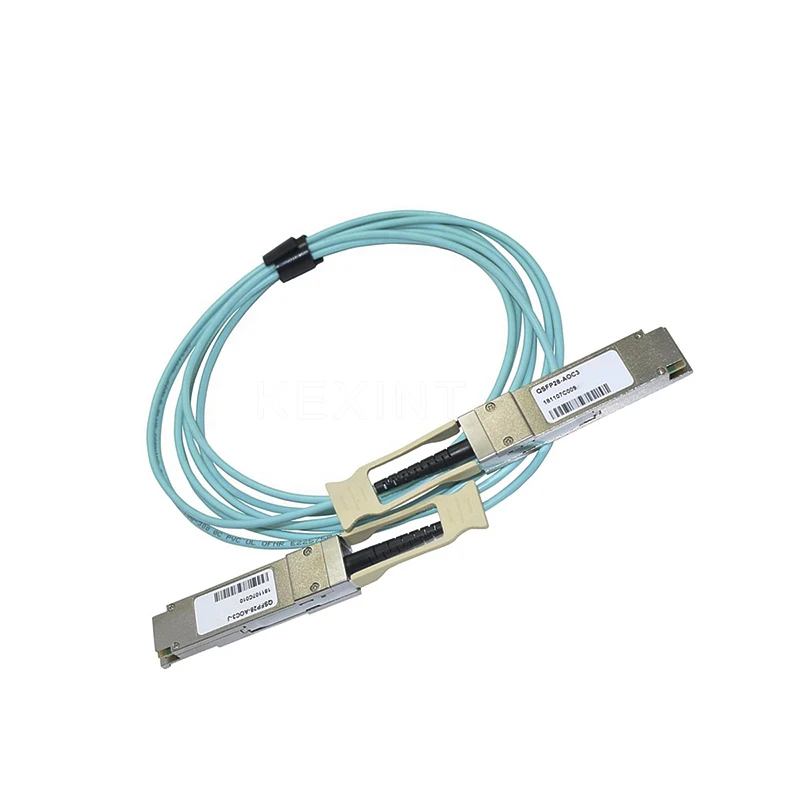

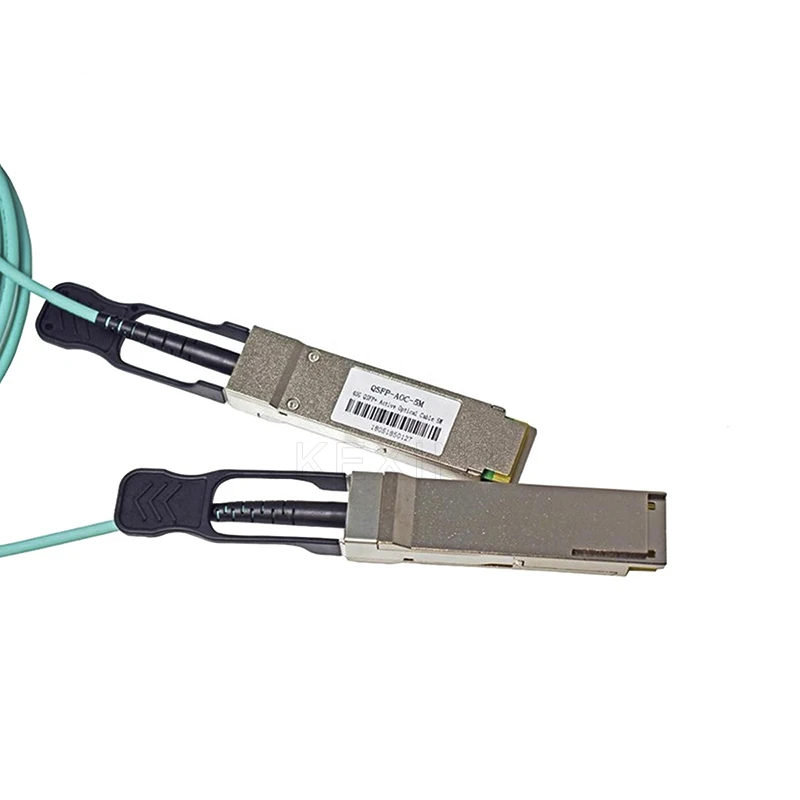

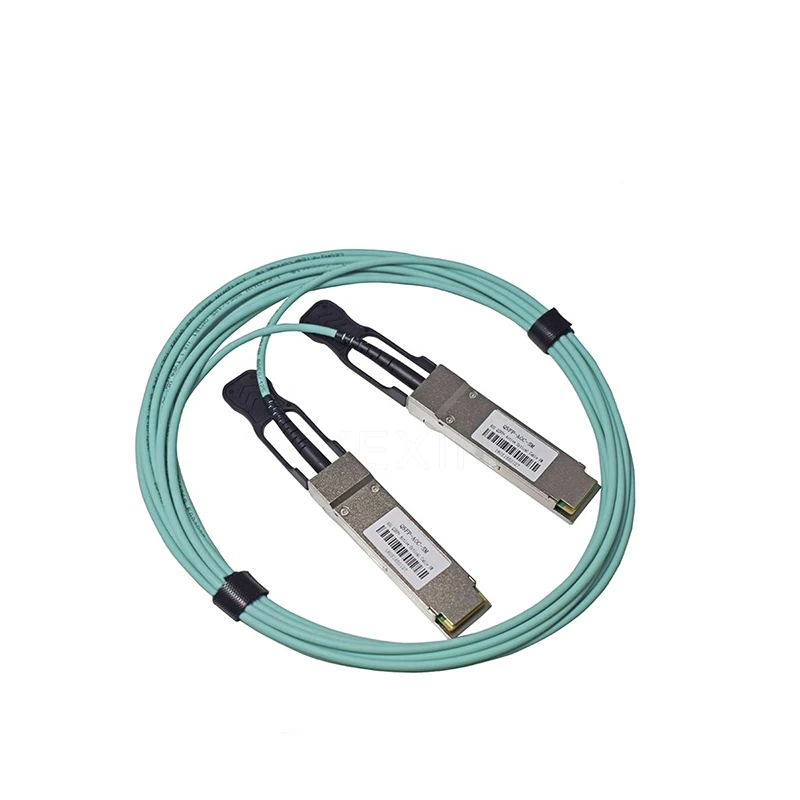

QSFP to QSFP Active Optical Cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,1.25G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.This QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. And it is one kind of parallel transceiver which provides increased port density and total system cost savings.UNIFIBER 40G QSFP+ AOC active optic cables are designed for 40G Ethernet links reach up to 300m (OM3) or 400m (OM4) over Multi-Mode Fiber (MMF).
Features：
4 channels full-duplex active optical cables
4x 850nm VCSEL array and PIN photo-detector array
Differential AC-coupled high-speed data interface
Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
Data rate up to 41.2Gbps
Length up to 300m over OM3 MMF
Power consumption < 1.5W per end
Operating case temperature range from 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)
Model No. | Description | Unit | Compatibility | |||
QSFP-AOC-1M | 40G/100G QSFP to QSFP AOC 1M, OM2/OM3 | Piece | All brands | |||
QSFP-AOC-2M | 40G/100G QSFP to QSFP AOC 2M, OM2/OM3 | Piece | All brands | |||
QSFP-AOC-3M | 40G/100G QSFP to QSFP AOC 3M, OM2/OM3 | Piece | All brands | |||
QSFP-AOC-5M | 40G/100G QSFP to QSFP AOC 5M, OM2/OM3 | Piece | All brands | |||
QSFP-AOC-7M | 40G/100G QSFP to QSFP AOC 7M, OM2/OM3 | Piece | All brands | |||
QSFP-AOC-10M | 40G/100G QSFP to QSFP AOC 10M, OM2/OM3 | Piece | All brands | |||
QSFP-AOC-15M | 40G/100G QSFP to QSFP AOC 15M, OM2/OM3 | Piece | All brands | |||
QSFP-AOC-20M | 40G/100G QSFP to QSFP AOC 20M, OM2/OM3 | Piece | All brands | |||
Customized Length, OM2/OM3/OM4 | ||||||
