Мини-самосвал с высокой эффективностью высокое качество низкая цена Электрический

Описание и отзывы

Трекер стоимости

Характеристики

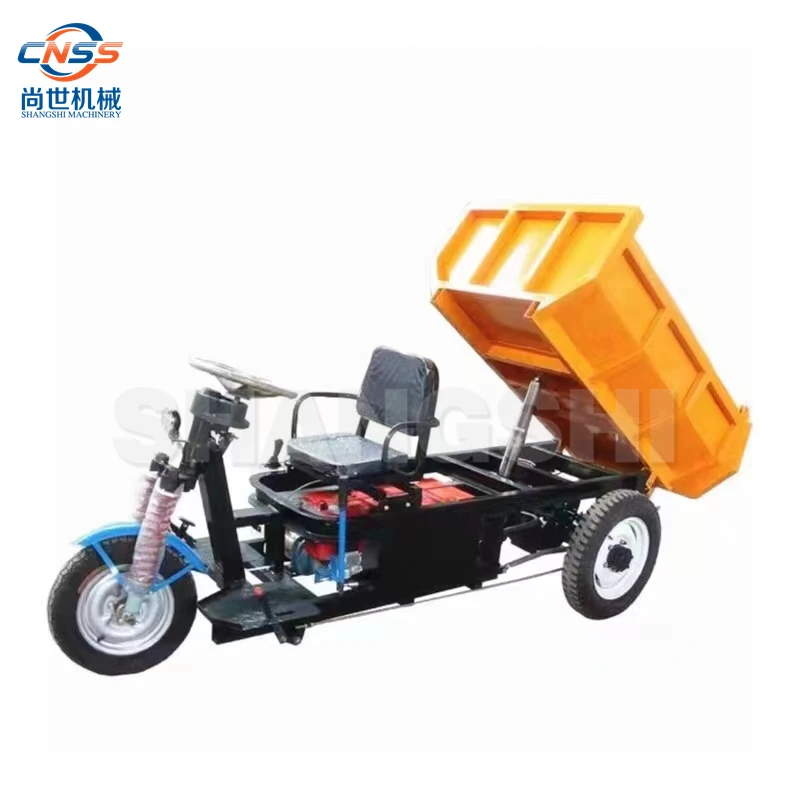

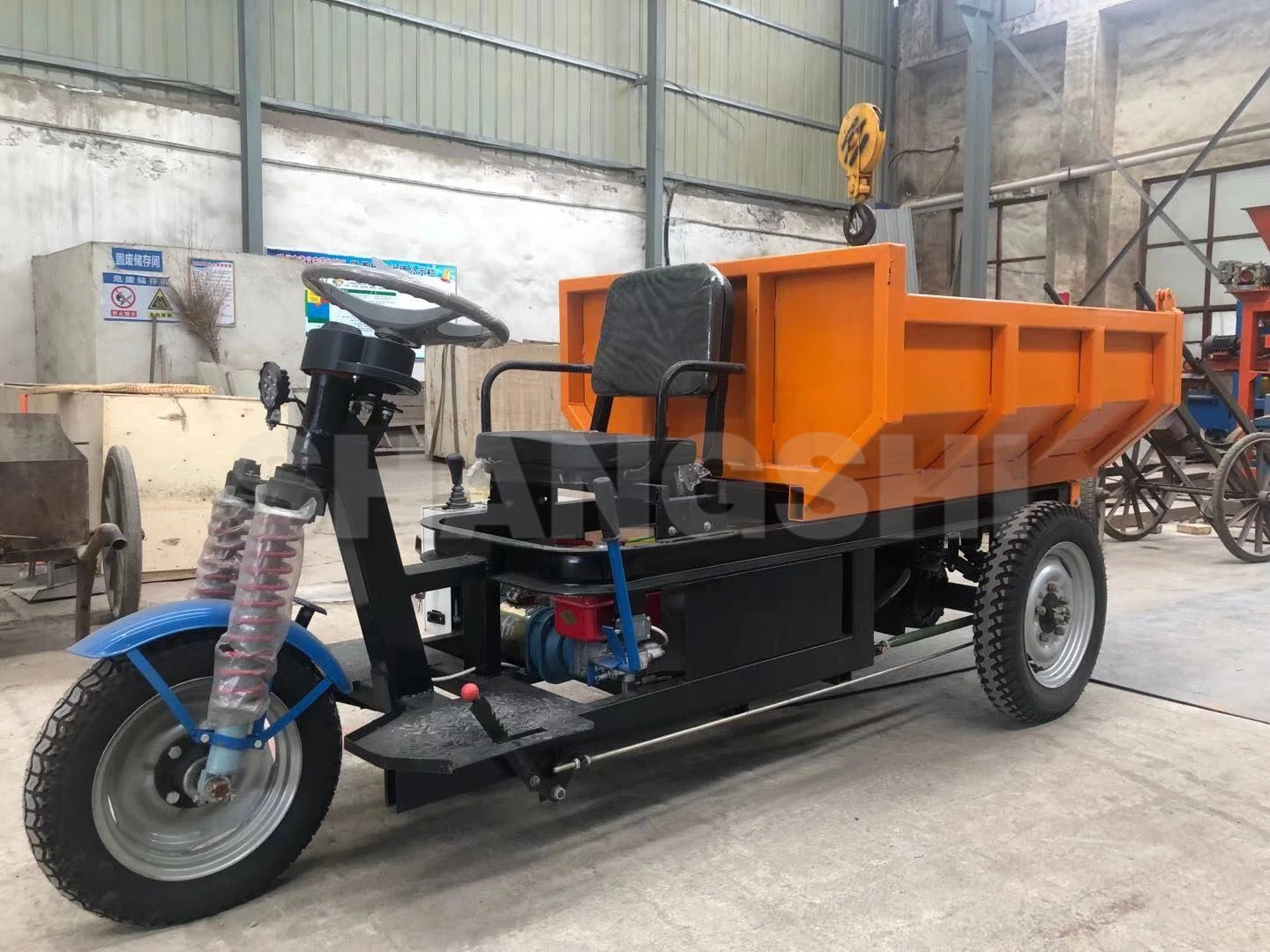

mini dumper truck with high efficiency high quality and low price tricycle electric

     mini dumper truck with high efficiency high quality and low price tricycle electric is our main product,using battery as power source. It has been improved many times with the advantage of large power long work hours,heavy load and suitable for any road.

     Our dumpers have been delivered to United States,Chile,Canada,Tanzania and etc.



Main Technical Parameters		Details
	Type	HYSP-1	HYSP-2	HYSP-3
1	Voltage	48V	60V	72V
2	Current	140AH	160AH	185AH
3	Lifting Motor Power	1000W	1000W	1000W
4	Drive Motor Power	1000W	1500W	2000W
5	Overall Sizes	2600*1150*1200mm	3500*1300*1400mm	3600*1350*1500mm
6	Box Sizes	1500*900*400mm	1700*1100*500mm	1800*1200*500mm
7	Workbench Height	60mm	700mm	720mm
8	Net Weight	650kg	700kg	1000kg
9	Tire Type(F/R)	400-12/450-14	450-14/500-14	450-14/500-16
10	Loading capacity	1000kg	1500kg	2000kg
11	Operating Speed	15-25km/h
12	Maximum Gradeability	25degrees
13	Thickness of Box	3-5mm
14	Charging Duration	First with 12 hours,then normal with 8 hours
15	Workiing Hours	10 to 12 hours with a full charge
16	Insulation Grade	level B



Features of mini dumper truck with high efficiency high quality and low price tricycle electric:

1.No pollution,high perfermance,low loss and energy saving.

2.Easy to operate and maintain without technical training.

3.Heavy load,wide applying.

4.It is the ideal transport in mining,flourmill,brickyard,etc.

1,The advanced paint makes the tricycle have strong anti-corrosion.

2,The unique design makes the tricycle more beautiful.

3,The unique design also increases the capacity of the tricycle.

4,This design also greatly reduces the friction between the tire and the body to protect the tires.

Details Show of mini dumper truck with high efficiency high quality and low price tricycle electric:

1,The gear lever uses the high-end technology to own strong sensitivity and to make the driver feel comfortable.It is easy to control the speed when the driver meets Uphills and Downhills

2,Through the advanced technology,the head lamp can make the electric tricycle drive in rainy and dark and foggy day safely and accessibly.

3.As to tire, our factory adopts the high-quality tire. It can support body,buffer external shocks,prevent deformation from various load force and high and low temperature to ensure security and stability of the vehicle.And model of front tire is 4.00-12 model of rear tire is 4.50-14.

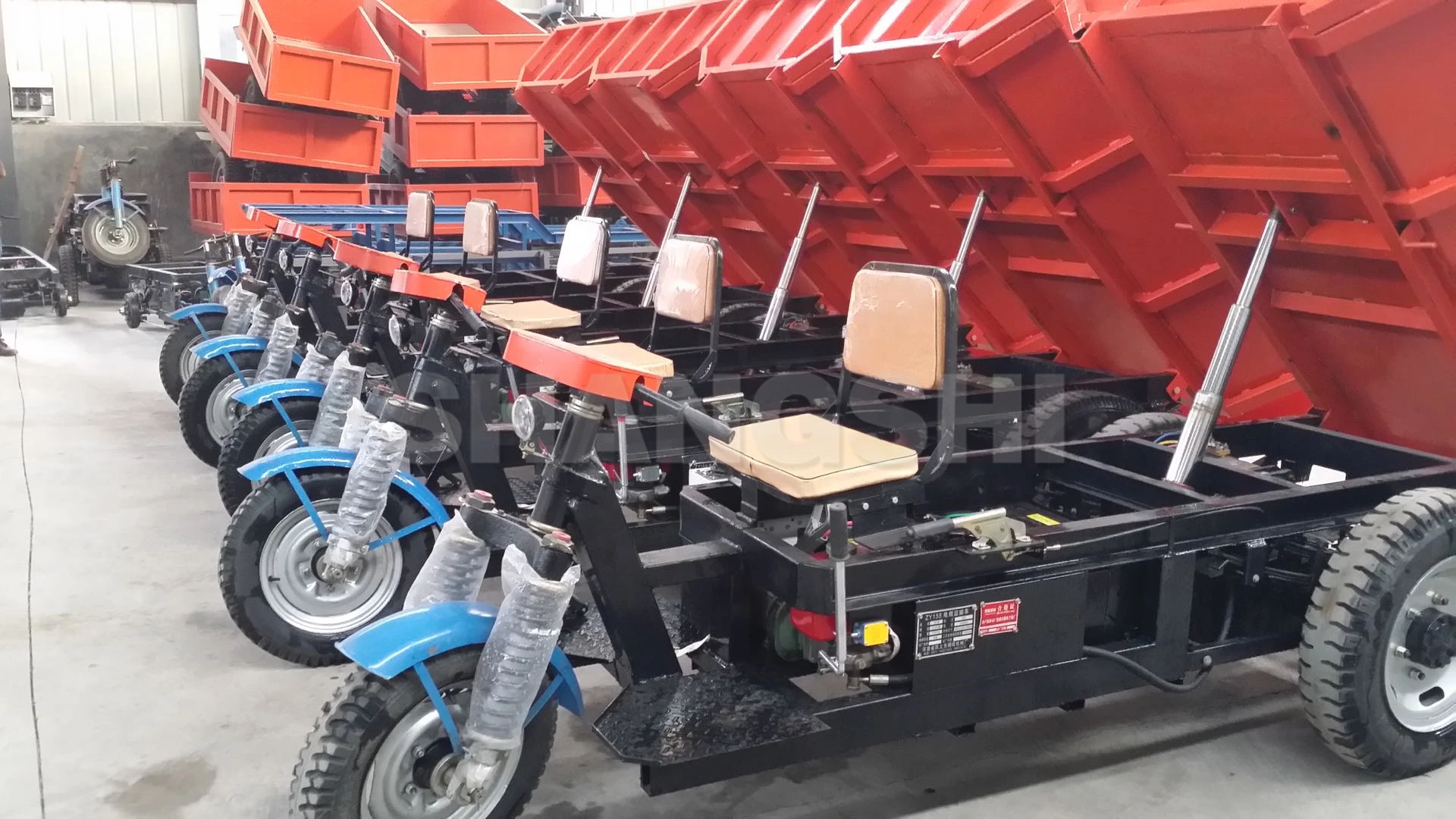

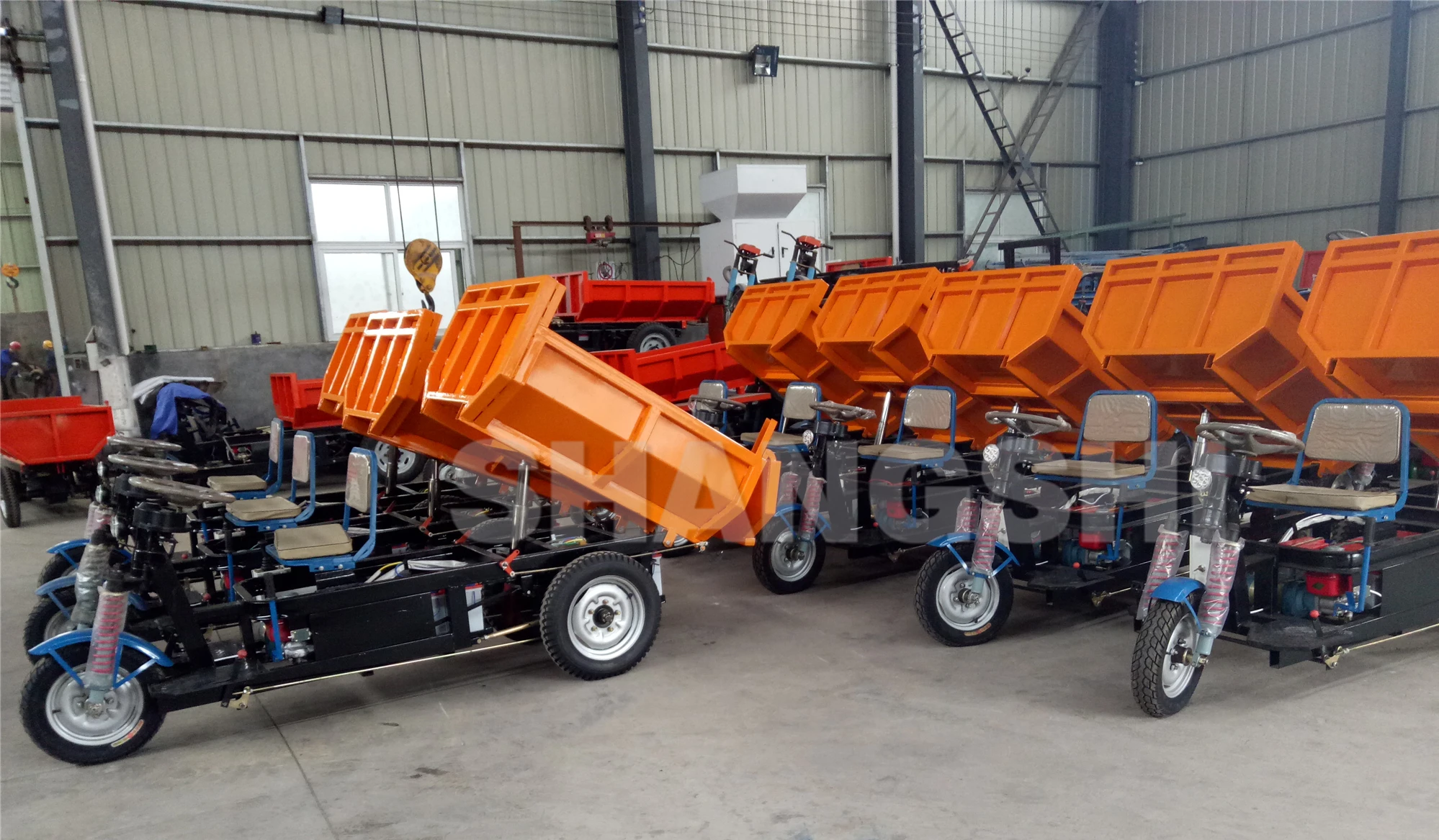

Our workshop:



Customer Visiting:

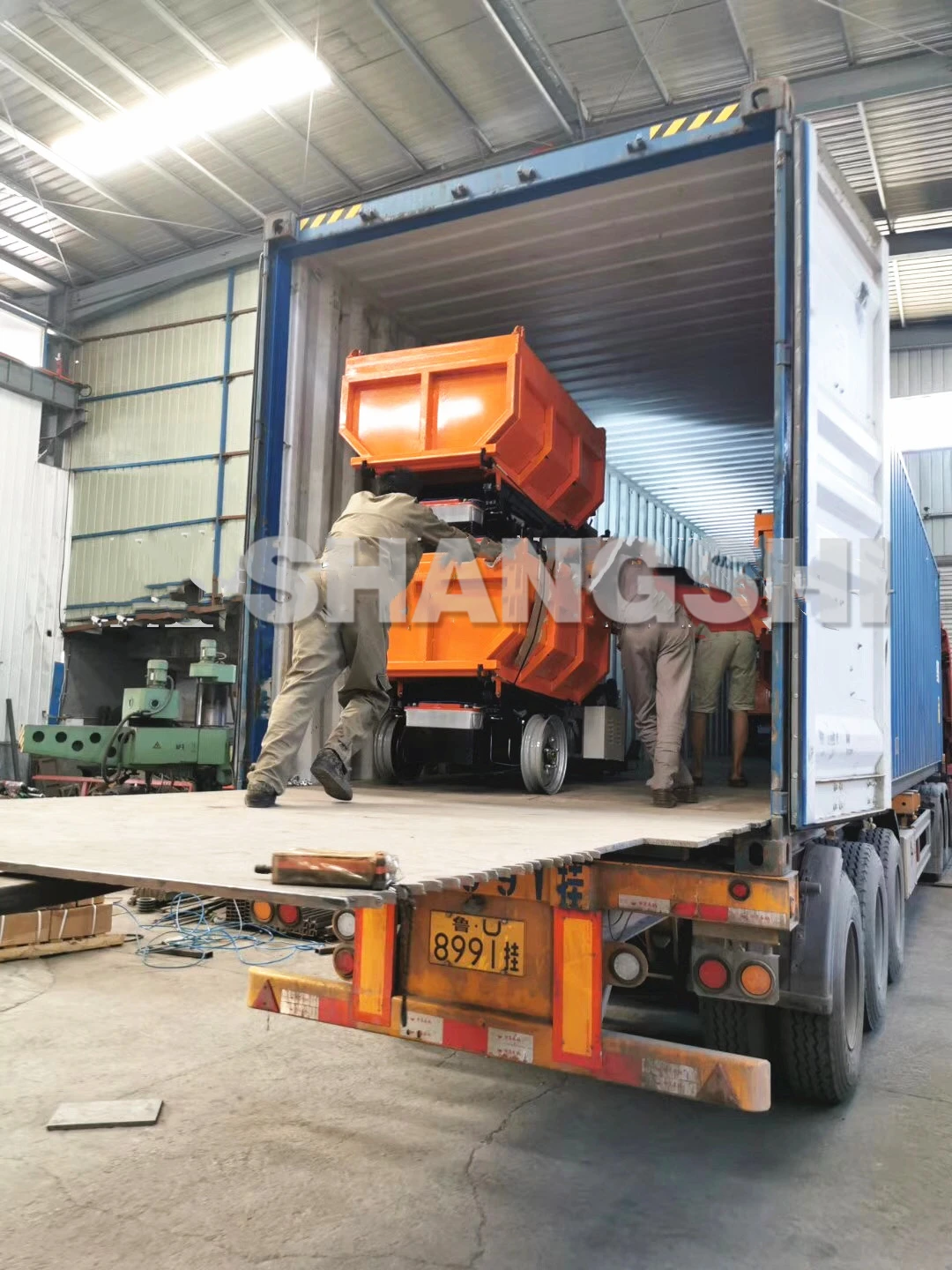

Packaging Details of mini dumper truck with high efficiency high quality and low price tricycle electric:
1.Standard export packing or according to customer's requirements.
2.If bulk purchasing,we will use standard container.
Delivery Details of mini dumper truck with high efficiency high quality and low price tricycle electric:
1.Lead time for mass production:within 3 days after received 30% deposit.
2.Delivery date:within 5 days after received balance payment.
3.After the confirmation of the order,the buyers should pay 30% deposit,the rest can be pay off in two weekdays before shipping the goods off.

Company Information

Henan Shangshi Machinery Manufacturing Co., Ltd.,which specializes in Electric Tricycle,brick making machine,concrete mixer and oil press,is located in Gongyi,Henan Province,China and has an area of 10,000 square meters.

In 2009:Hongying Machinery Factory became the first batch of high-quality enterprises stationed in Alibaba domestic station in Gongyi.The products were sold all over the world through the Internet and enjoyed good reputation.

In 2014:Hongying Machinery Factory established in Alibaba International Station and the sales exceeded 2 million.The products were sold in more than 30 countries,including Congo,Tanzania,Zambia,Egypt,Philippines,Mexico,Australia,Israel,Benin and so on.

In 2017:Hongying Machinery Factory is committed to providing customers with high-quality products and one-stop service.We firmly believe that only we step into the international standard track,we have unlimited room for extension.Dear friends,please contact us and cooperate with us so that the high-quality products can go outside Asia to the world.



Contact us
