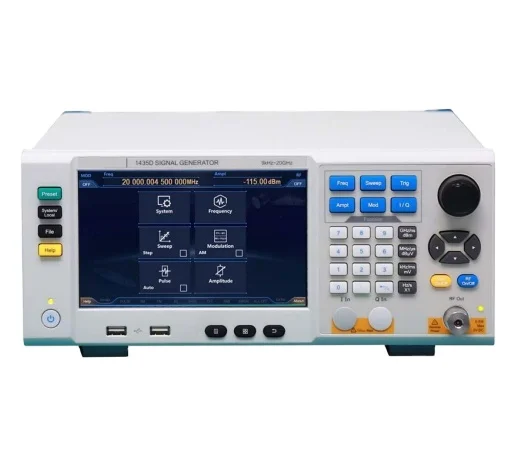

Product Description
Based on innovative technologies, the 1435 series signal generator achieves balance in terms of performance, economy and volumetric weight. It also has excellent spectral purity, with a single side band (SSB) phase noise of -136dBc/Hz(when the carrier is 1GHz and the frequency offset is 10kHz) or -116dBc/Hz (when the carrier is 10GHz and the frequency offset is 10kHz). It provides a high power output and a large dynamic range, with the maximum output power up to 20dBm @ 20GHz and an output power dynamic range greater than 150dB. It responds fast and switches to another frequency in only 1ms, which shortens the test time and improves test efficiency, meeting the needs of massive data testing; in addition , it also has excellent analog modulation and pulse modulation functions. By adopting advanced frequency synthesis and RF channel signal processing technologies, it can achieve high performance while reducing the cost . Besides , it is equipped with a 7-inch high-sensitivity LED touch screen, and supports operation by touch screen, panel buttons, rotary knobs, external mouse and keyboard, etc., which fully upgrades the users’ operation experience. It adopts portable 3U chassis structure and is featured by small size and light weight, and thus is easy to carry. The 1435 series signal generator can meet both the test requirements for high performance in the R&D phase and the test requirements for high efficiency in the production phase.
Main Features
● Wide frequency coverage
● High output power
● Excellent SSB phase noise
● Extremely short frequency switching time
● High performance pulse modulation
● Built-in multi-function function generator
● Small size and light weight
● High-sensitivity LED touch screen
● Wide frequency coverage
● High output power
● Excellent SSB phase noise
● Extremely short frequency switching time
● High performance pulse modulation
● Built-in multi-function function generator
● Small size and light weight
● High-sensitivity LED touch screen
Wide frequency coverage
The 1435A/B/C/D/F series signal generator provides a frequency range of 9kHz~3GHz/6GHz/12GHz/20GHz/40GHz. Its lowest frequency can be as low as 9kHz and its highest frequency can be as high as 40GHz, which can meet the needs of wide frequency band testing.
High output power

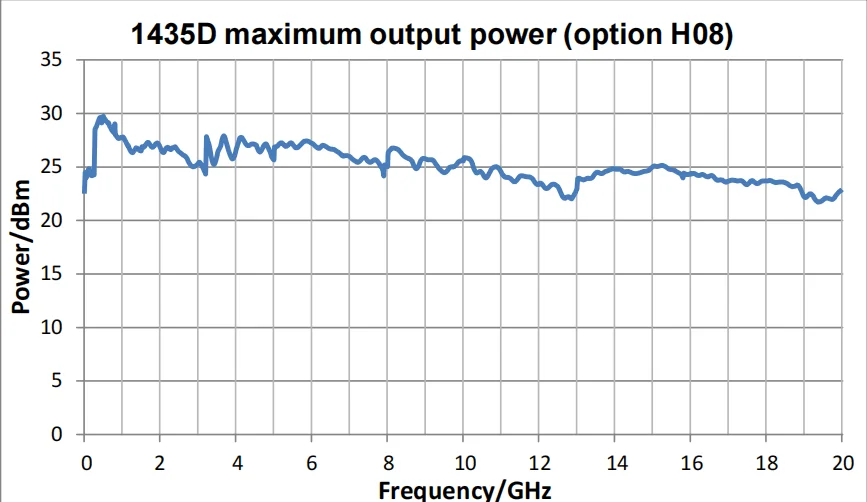

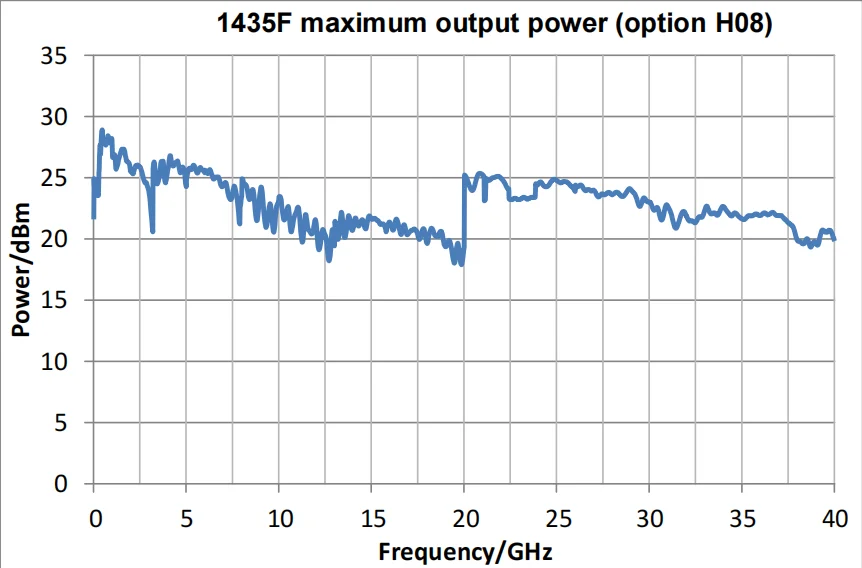

When the H08 high-power output option is selected, the measured value of the full-band output power of 2 3
the 1435A/B/C/D series signal generator can be above 20dBm and the full-band output power of the
1435F series signal generator can be above 17dBm. In the test where high-power excitation signals are
required, the 1435 series signal generator can be used to obtain the required test signal without an
external amplifier.
The 1435A/B/C/D/F series signal generator provides a frequency range of 9kHz~3GHz/6GHz/12GHz/20GHz/40GHz. Its lowest frequency can be as low as 9kHz and its highest frequency can be as high as 40GHz, which can meet the needs of wide frequency band testing.
High output power
When the H08 high-power output option is selected, the measured value of the full-band output power of 2 3
the 1435A/B/C/D series signal generator can be above 20dBm and the full-band output power of the
1435F series signal generator can be above 17dBm. In the test where high-power excitation signals are
required, the 1435 series signal generator can be used to obtain the required test signal without an
external amplifier.
Specification

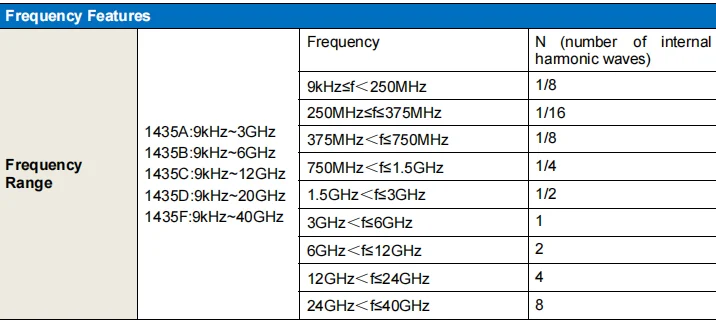

Frequency Features | ||||||||||
Range | 1435B:9kHz~6GHz 1435C:9kHz~12GHz 1435D:9kHz~20GHz 1435F:9kHz~40GHz | Frequency | N (number of internal harmonic waves) | |||||||
9kHz≤f＜250MHz | 1/8 | |||||||||
250MHz≤f≤375MHz | 1/16 | |||||||||
375MHz＜f≤750MHz | 1/8 | |||||||||
750MHz＜f≤1.5GHz | 1/4 | |||||||||
1.5GHz＜f≤3GHz | 1/2 | |||||||||
3GHz＜f≤6GHz | 1 | |||||||||
6GHz＜f≤12GHz | 2 | |||||||||
12GHz＜f≤24GHz | 4 | |||||||||
24GHz＜f≤40GHz | 8 | |||||||||
Frequency Resolution | 0.001Hz | |||||||||
Frequency Switching Time | ≤1ms (typical value 2) | |||||||||
Time Base Aging Rate (Typical Value) | Standard: ±5×10-7/year (after continuous switch-on for 30 days) High Stability Time Base option H10: ±5×10-8/year (after continuous switch-on for 30 days) ±5×10-10/day(after continuous switch-on for 30 days) | |||||||||
Reference Output | Frequency | 10MHz | ||||||||
Power | >+4dBm, to 50Ω load | |||||||||
Reference Input | Frequency | 1MHz~50MHz, step 1Hz | ||||||||
Power | 0dBm~+7dBm, impedance 50Ω | |||||||||
Scanning Features | ||||||||||
Scanning Mode | Step Scan, List Scan | |||||||||
Scan Dwell Time | 100μs~100s | |||||||||
Power Features | ||||||||||
Minimum Power | Standard | Option H01 | ||||||||
-15dBm (can be set -20dBm) | -110dBm (can be set -135dBm) | |||||||||
Maximum Power (25±10°C) | Frequency Range | Standard | High Power Output Option H08 | |||||||
1435A/B | ||||||||||
9kHz≤f≤3GHz | 18dBm | 22dBm | ||||||||
3GHz＜f≤5GHz | 16dBm | 20dBm | ||||||||
5GHz＜f≤6GHz | 15dBm | 18dBm | ||||||||
1435C/D | ||||||||||
9kHz≤f≤3GHz | 16dBm | 21dBm | ||||||||
3GHz＜f≤20GHz | 15dBm | 20dBm | ||||||||
1435F | ||||||||||
9kHz≤f≤3GHz | 14dBm | 20dBm | ||||||||
3GHz＜f≤17GHz | 13dBm | 17dBm | ||||||||
17GHz＜f≤40GHz | 11dBm | 15dBm | ||||||||
Standard | ||||||||||
Power Accuracy (25±10°C) | Power (dBm) Frequency | 10~Maximum Power | -10 to 10 | -15 to 10 | ||||||
9kHz≤f≤2GHz | ±0.8dB | ±0.6dB | ±1.5dB | |||||||
2GHz＜f≤20GHz | ±0.9dB | ±0.7dB | ±1.5dB | |||||||
20GHz＜f≤40GHz | ±0.9dB | ±0.8dB | ±1.8dB | |||||||
H01A/B Programmable Step Attenuator Option | ||||||||||
Power (dBm) Frequency | 10 to Maximum Power | -10 to 10 | -70 to 10 | -90 to 70 | ||||||
9kHz＜f≤2GHz | ±0.8dB | ±0.6dB | ±0.7dB | ±1.4dB | ||||||
2GHz＜f≤20GHz | ±0.9dB | ±0.7dB | ±0.7dB | ±1.6dB | ||||||
20GHz＜f≤40GHz | ±0.9dB | ±0.8dB | ±1.1dB | ±2.0dB | ||||||
Power Resolution | 0.01dB | |||||||||
Output Impedance | 50Ω (rated value3) | |||||||||
Source Standing Wave Ratio, VSWR (Internal Fixed Amplitude) (Typical Value) | 9kHz≤f≤3 Hz | ＜1.7 | ||||||||
3GHz＜f≤13GHz | ＜1.6 | |||||||||
13GHz＜f≤20GHz | ＜1.8 | |||||||||
20GHz＜f≤40GHz | ＜1.6 | |||||||||
Maximum Reverse Power | 0.5W (0V DC) (rated value) | |||||||||
Spectral Purity | ||||||||||
Harmonic Wave (at +10dBm) | 9kHz≤f≤10MHz | ＜-23dBc | ||||||||
10MHz＜f≤2GHz | ＜-30dBc | |||||||||
2GHz＜f≤6GHz (1435B) | ＜-30dBc | |||||||||
2GHz＜f≤20GHz | ＜-55dBc | |||||||||
20GHz＜f≤40GHz | ＜-50dBc (typical value) | |||||||||
Subharmonic Wave (at +10dBm) | 9kHz≤f≤6GHz | None | ||||||||
6GHz＜f≤12GHz | ＜-60dBc | |||||||||
12GHz＜f≤24GHz | ＜-55dBc | |||||||||
24GHz＜f≤40GHz | ＜-50dBc | |||||||||
Non-Harmonic Wave (at 0dBm, 10kHz Frequency | Frequency | Standard | Low Phase Noise Option | |||||||
9kHz≤f≤250MHz | ＜-54dBc | ＜-60dBc | ||||||||
250MHz＜f≤3GHz | ＜-62dBc | ＜-77dBc | ||||||||
3GHz＜f≤6GHz | ＜-56dBc | ＜-71dBc | ||||||||
6GHz＜f≤12GHz | ＜-50dBc | ＜-65dBc | ||||||||
12GHz＜f≤24GHz | ＜-44dBc | ＜-59dBc | ||||||||
24GHz＜f≤40GHz | ＜-38dBc | ＜-53dBc | ||||||||
Standard | ||||||||||
Frequency | 100Hz | 10kHz | ||||||||
100MHz | -83 | -115 | ||||||||
250 MHz | -93 | -127 | ||||||||
500MHz | -89 | -121 | ||||||||
1 GHz | -83 | -115 | ||||||||
2 GHz | -77 | -109 | ||||||||
3GHz | -74 | -105 | ||||||||
4 GHz | -71 | -103 | ||||||||
6 GHz | -68 | -99 | ||||||||
10 GHz | -63 | -95 | ||||||||
20 GHz | -57 | -89 | ||||||||
40 GHz | -51 | -83 | ||||||||

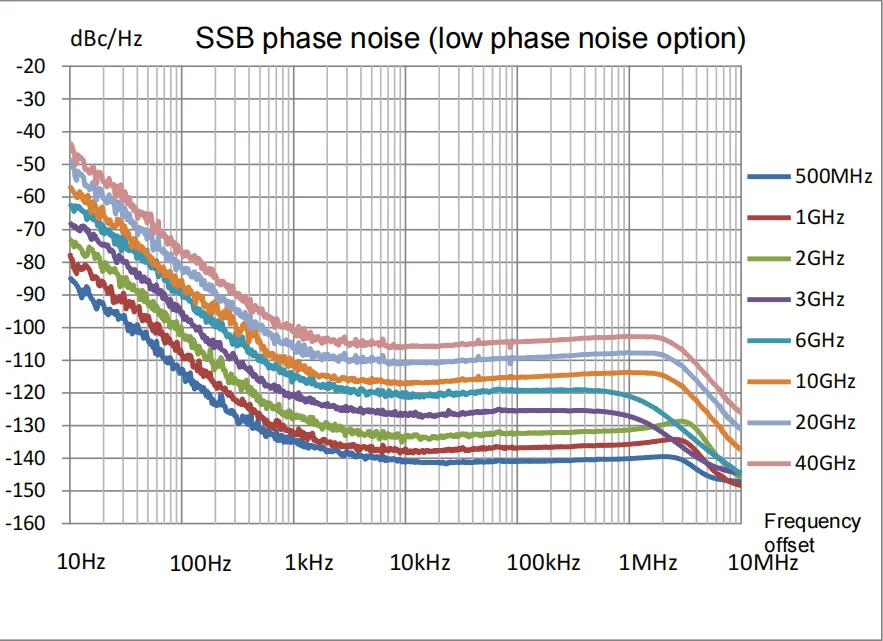

Low Phase Noise Option | ||||||||||
Frequency | 100Hz | 1kHz | 10kHz | 100kHz | ||||||
100MHz | -83 | -112 | -131 | -131 | ||||||
250 MHz | -93 | -123 | -139 | -139 | ||||||
500MHz | -89 | -119 | -135 | -135 | ||||||
1 GHz | -83 | -113 | -132 | -132 | ||||||
2 GHz | -77 | -107 | -126 | -126 | ||||||
3 GHz | -74 | -104 | -121 | -121 | ||||||
4 GHz | -71 | -101 | -120 | -120 | ||||||
6 GHz | -68 | -98 | -115 | -115 | ||||||
10 GHz | -63 | -93 | -113 | -113 | ||||||
20 GHz | -57 | -87 | -107 | -107 | ||||||
40 GHz | -51 | -81 | -101 | -101 | ||||||
Modulation Features | ||||||||||
Frequency Modulation5 (Option H02) | Maximum frequency offset: N × 16MHz (N is the number of fundamental harmonic wave) Accuracy (1kHz modulation rate, frequency offset: N × 500kHz): ± (2% × set frequency offset + 20Hz) Modulation rate (3dB bandwidth, frequency offset: N × 500kHz): DC-7MHz Distortion (1kHz rate, frequency offset: N × 500kHz): <0.4% | |||||||||
Phase Modulation5 (Option H02) | Maximum phase offset: N × 16rad (N is the number of fundamental harmonic wave) Accuracy (1kHz modulation rate, frequency offset: N × 500kHz): ± (2% × set phase offset + 0.01rad) Modulation rate (3dB bandwidth, phase offset: N × 8rad): DC-1MHz Distortion (1kHz modulation rate, phase offset: N × 8rad): <0.4% | |||||||||
Amplitude Modulation5 (Option H02) | Maximum depth: >90% Modulation rate: (1kHz modulation rate, 30% modulation depth): ± (4% × set depth +1%) Modulation rate (bandwidth: 3dB; modulation depth: 30%; frequency test points: 1GHz, 5GHz, 20GHz, 40GHz): DC～100kHz Distortion: (1kHz modulation rate, linear mode, total harmonic distortion, 30% modulation depth): <2%; | |||||||||
Pulse Modulation 6 (Option H03) | Switching ratio | ＞80dB | ||||||||
Rise and fall time | ＜10ns | |||||||||
Minimum pulse of internal fixed amplitude | 1μs | |||||||||
Minimum pulse of non-fixed amplitude | 100ns | |||||||||
Narrow PulseModulation 6 (Option H04) | Switching ratio | ＞80dB | ||||||||
Rise and fall time | ＜10ns | |||||||||
Minimum pulse of internal fixed amplitude | 1μs | |||||||||
Minimum pulse of non-fixed amplitude | 20ns | |||||||||
Internal Analog Modulation Signal Generator (Option H02) | It provides three independent signals for frequency/phase modulation, amplitude modulation and low frequency output signals Waveform: sine wave, square wave, triangle wave, sawtooth wave Frequency range: sine wave 0.1Hz~10MHz Square wave, triangle wave, sawtooth wave 0.1Hz~1MHz Frequency resolution: 0.1Hz Low frequency output: amplitude 0~5V peak (rated value), to 50Ω load | |||||||||
Internal Pulse Generator (Option H03) | Pulse width: 20ns~(42s-10ns) (rated value) Pulse period: 40ns~42s (rated value) Resolution: 10ns | |||||||||

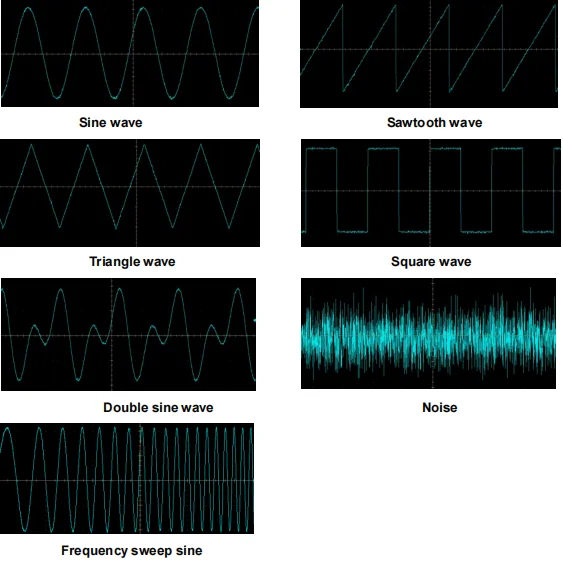

Multi-Function Function Generator (Option H05 | The Multi-function generator consists of 7 waveform generators. The generator can be set separately or five generators can be set simultaneously by using the AM, FM/ΦM and the composite modulation features in the low-frequency output. Waveform: Function generator 1: sine wave, triangle wave, square wave, sawtooth wave, pulse Function generator 2: sine wave, triangle wave, square wave, sawtooth wave, pulse Dual function generator: sine wave, triangle wave, square wave, sawtooth wave, pulse, phase offset and amplitude ratio of audio 2 relative to audio 1; Scan function generator: sine wave, triangle wave, square wave, sawtooth wave; Noise generator 1: uniform, Gaussian; Noise generator 2: uniform, Gaussian; DC: LF output only; Frequency parameters: Sine wave: 0.1Hz to 10MHz; Triangle wave, square wave, sawtooth wave, pulse: 0.1Hz to 1MHz; Resolution: 0.1Hz; | |||||||||
General Features | ||||||||||
RF Output Port | 1435A/B/C: N type (negative), impedance 50Ω 1435D: 3.5mm (positive), N type (negative) (option H91), impedance 50Ω 1435F: 2.4mm (positive), impedance 50Ω | |||||||||
Maximum Dimensions (width × height × depth) | Width × height × depth: 330mm × 147mm × 397mm (excluding the handle) 420mm × 147mm × 445mm (including the handle) | |||||||||
Weight | <12kg (the weight varies with the model and option configuration) | |||||||||
Power Supply | 100~120VAC, 50~60Hz; or 200~240VAC, 50~60Hz (self-adaptive) | |||||||||
Power Consumption | Less than 300W | |||||||||
Temperature Range | Operating temperature: 0°C~+50°C; storage temperature: -40°C~+70°C | |||||||||
