Gas engine generator 360kw





Cummins generator set parameters:

Model		360GF-T
Rated power (kW/KVA)		360/450
Rated current (A)		650
Rated Voltage(V)		380
Rated Frequency(Hz)		50
Size (mm)		3860*1850*2280
Weight (kg)		4900
Engine	Model	6TDN
	Type	Water-cooled, 4-stroke,6 cylinder in-line
	Rated Power(kW)	400
	Rated Speed(rpm)	1500
	Cylinder No.	6
	Bore*Stroke(mm)	152×180
	Cooling Method	Water-cooled
	Oil Consumption(g/KWH)	<0.2
	Gas Consumption(m3/h)	200
	Starting method	24V DC
Alternator	Brand	China
	Model	EG315-360
	Rated Power(kW/KVA)	360/400
	Voltage Regulation	±1
	Excitation mode	Brushless, Self Excitation
	Insulation Class	H
Control System	Model	Electric control
	Working Voltage	DC8.0V to DC35.0V
	Overall Dimensions	197 mm x 152 mm x 47mm
	Panel Cutout	186mm x 141mm
	Working Condition	Temperature: (-25~70)ºC; Humidity: (20~90)%
	Weight	0.56kg

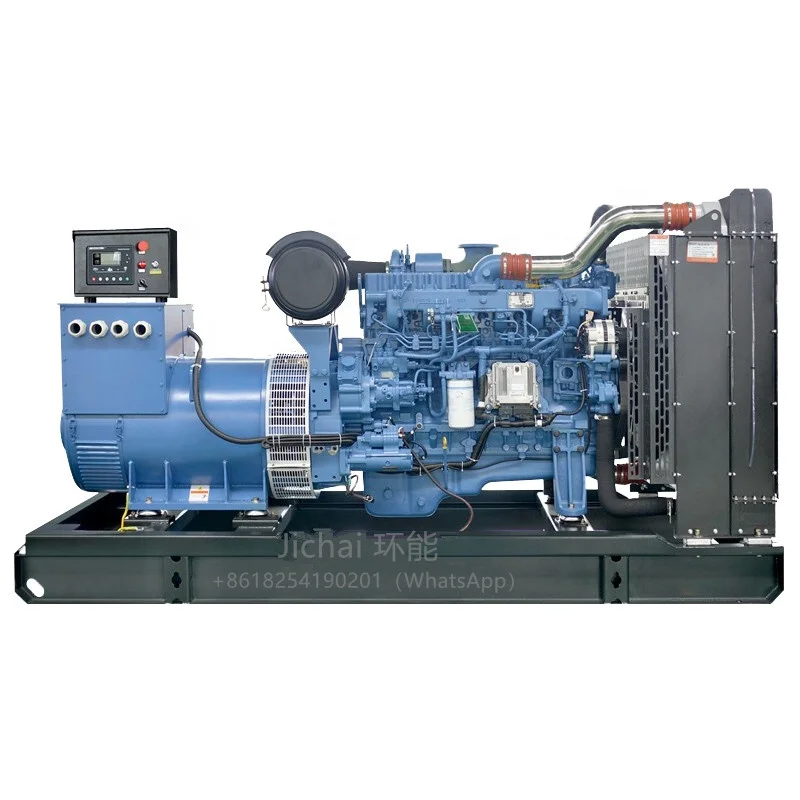

Gas engine generator 360kw

Specification of 360kW natural gas generator



360kw Natural Gas Generator is equipped with 6TDN Gas engine as original power. It is consisted of brush-less three-phase synchronous alternator, and Control System made by advanced manufacturing plant.



360kW Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adopt ability, high stability and low fluctuation. The generator is desirable for industrial power solution.



The monitoring and protection cabinet of the control system is installed on the unit base.

The control system configuration is as follows:

Control panel

Cabinet components

Electrostatic battery charger

Emergency stop button Digital indication for:

Start/Stop button

Hours run

Battery voltage

Engine speed

Oil pressure

Alarm output

Water temperature

Frequency

Voltage and currency Shutdown with the following indication:

Low oil pressure

High water temperature

Low water level

Over speed

Emergency stop

Failure to start
