Характеристики
Application

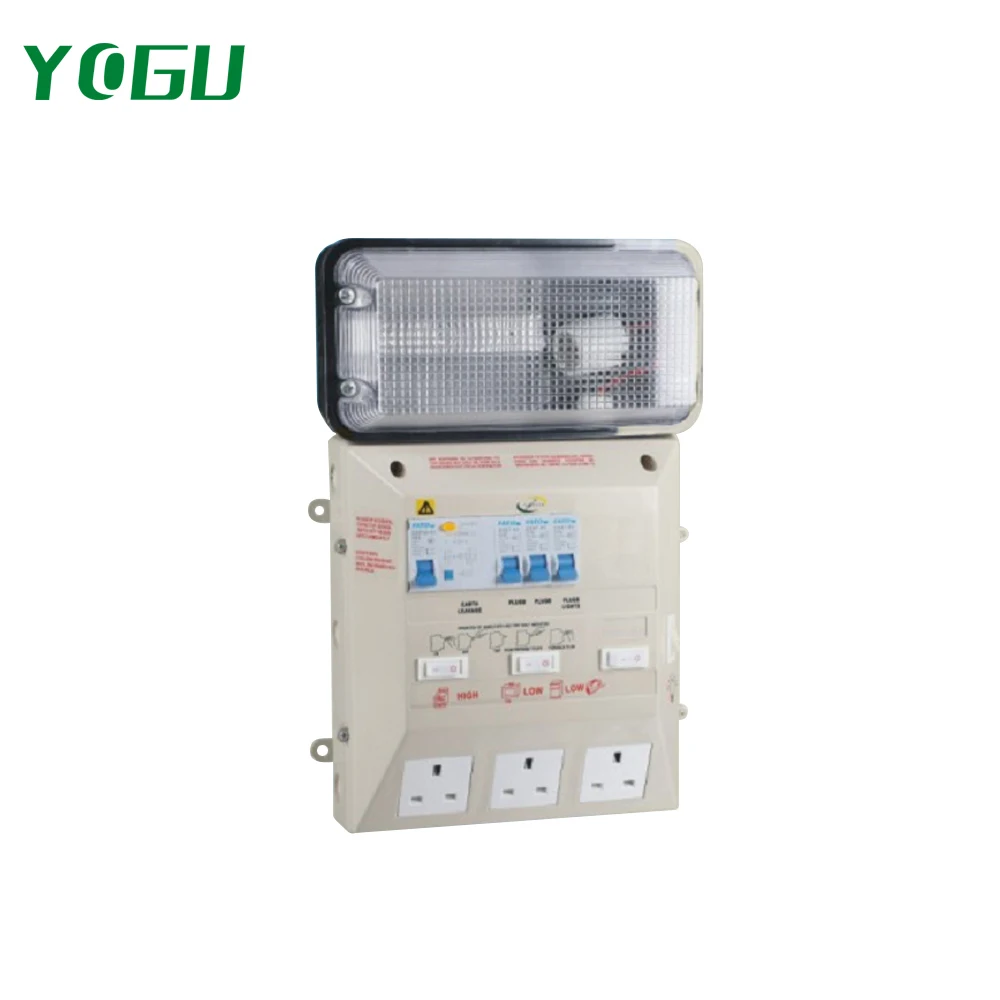

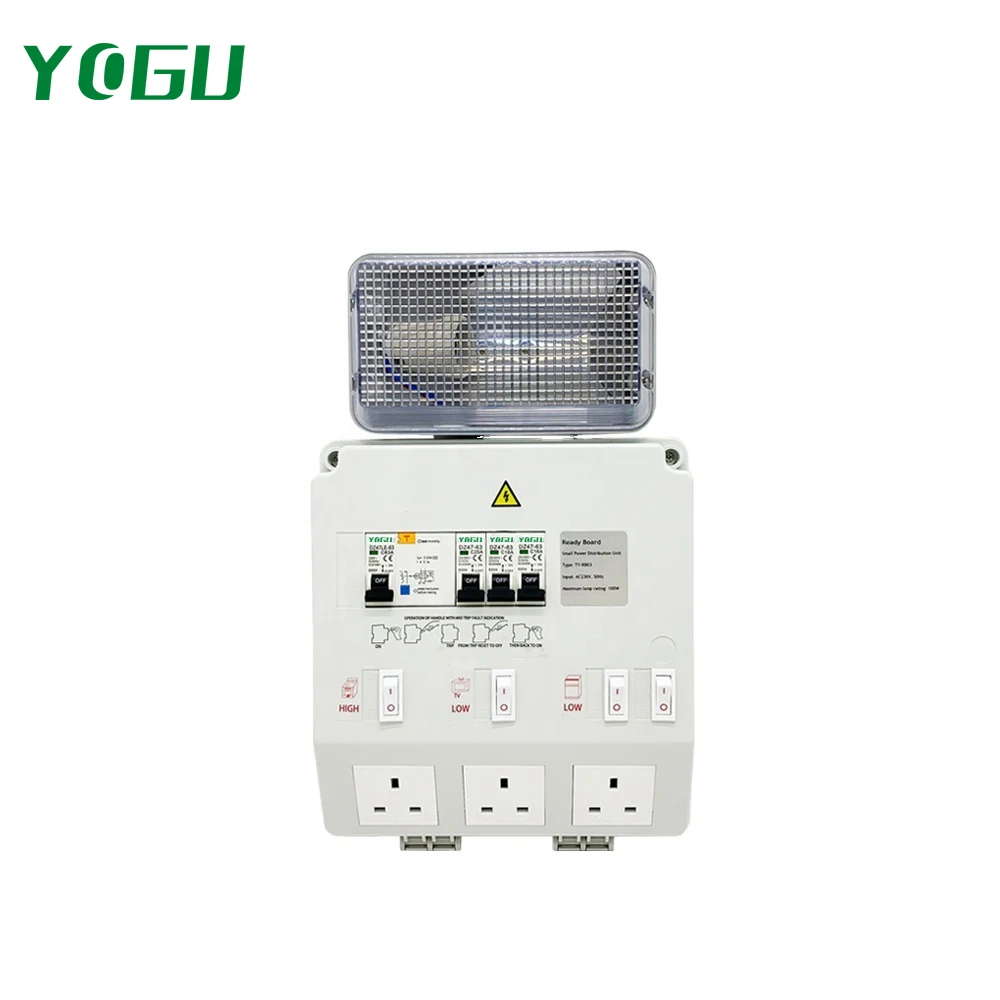

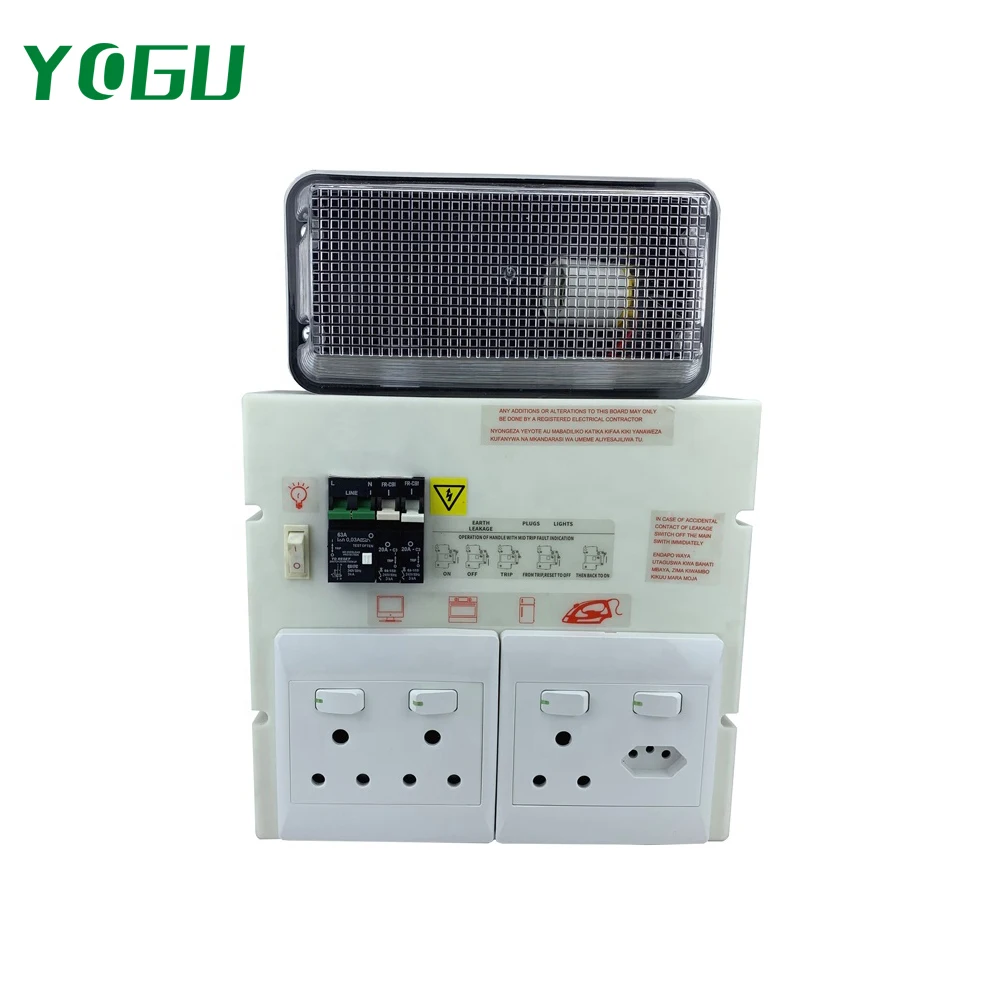

A Ready Board is a small gadget used to distribute power in a small building of two rooms or less.Since no wiring is needed, extension cables are used to supply power from the gadget to places where power is needed.When using Ready Board, one does not need electrical wiring in the property, therefore can save wiring cost.
FEATURES
Ready Board is basically a set of the following items:
* Main Switch: for switching power supply on or off.
* Circuit Breaker:for disconnecting supply in the event of a short circuit.
* Earth Leakage System: for safety in case of leakages.One large lamp for lighting the room where Ready Board is installed
* Three Switch Socket:Left Hand Side Switch Socket: For connecting extension cable to heavy power appliances such as cookers.
* Middle Switch Socket:For connecting extension cable to medium power appliances such as a iron
* Right Hand Side Switch Socket: For connecting extension cable to light power appliances such as radio, TV set, fans etc.
* Main Switch: for switching power supply on or off.
* Circuit Breaker:for disconnecting supply in the event of a short circuit.
* Earth Leakage System: for safety in case of leakages.One large lamp for lighting the room where Ready Board is installed
* Three Switch Socket:Left Hand Side Switch Socket: For connecting extension cable to heavy power appliances such as cookers.
* Middle Switch Socket:For connecting extension cable to medium power appliances such as a iron
* Right Hand Side Switch Socket: For connecting extension cable to light power appliances such as radio, TV set, fans etc.
Ready Board is supplied to customers along with a metering unit for measuring electricity consumption.
TECHNICAL SPECIFICATION
Item | READY BOARD-SMALL POWER DISTRIBUTION UNIT |
Model | YGRB-01 |
Standards | IEC60050, lEC60898-1, IEC61009-1 |
Rated Voltage Frequency | 220/230V 50/60Hz |
Earth leakage Circuit Breaker | TYPE:DZ47LE-63 1piece, 2-pole, 63A With overcurrent protection device |
MCB | TYPE:DZ47-63 3 pieces, 1-pole, 1*25A.1-pole, 2*20A |
Terminal | With Separate PE and N bar |
3 Socket Outlets with Switch | customized |
Enclosure Material | Anti-flaming ABS |
Degree of Protection | Anti-flaming ABS |
Light bulb | Replaceable 100W Max |
Holder | B-22/E-27 |
Main Supply | 220/230V, 50/60Hz |
Color | Black/ transparent |
Weather rating | IP65 |
Enclosure Material | PC cover, Nylon base |
Lamp holder | With a bayonet lamp holder complies with IEC 61184 |
Ambient | Suitable for indoor or outdoor use |
