Индивидуальный портативный односторонний и двухсторонний сварочный аппарат точечные сварочные
- Категория: Seam Welders >>>
- Поставщик: Chengdu,Xingweihan,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3570.23 $* | 3749.63 $* |
| Aug-16-2025 | 3540.95 $* | 3717.30 $* |
| Jul-16-2025 | 2970.27 $* | 3119.92 $* |
| Jun-16-2025 | 3480.7 $* | 3654.75 $* |
| May-16-2025 | 3030.51 $* | 3182.6 $* |
| Apr-16-2025 | 3420.19 $* | 3591.24 $* |
| Mar-16-2025 | 3390.3 $* | 3560.18 $* |
| Feb-16-2025 | 3360.54 $* | 3528.94 $* |
| Jan-16-2025 | 3330.37 $* | 3497.39 $* |
Характеристики

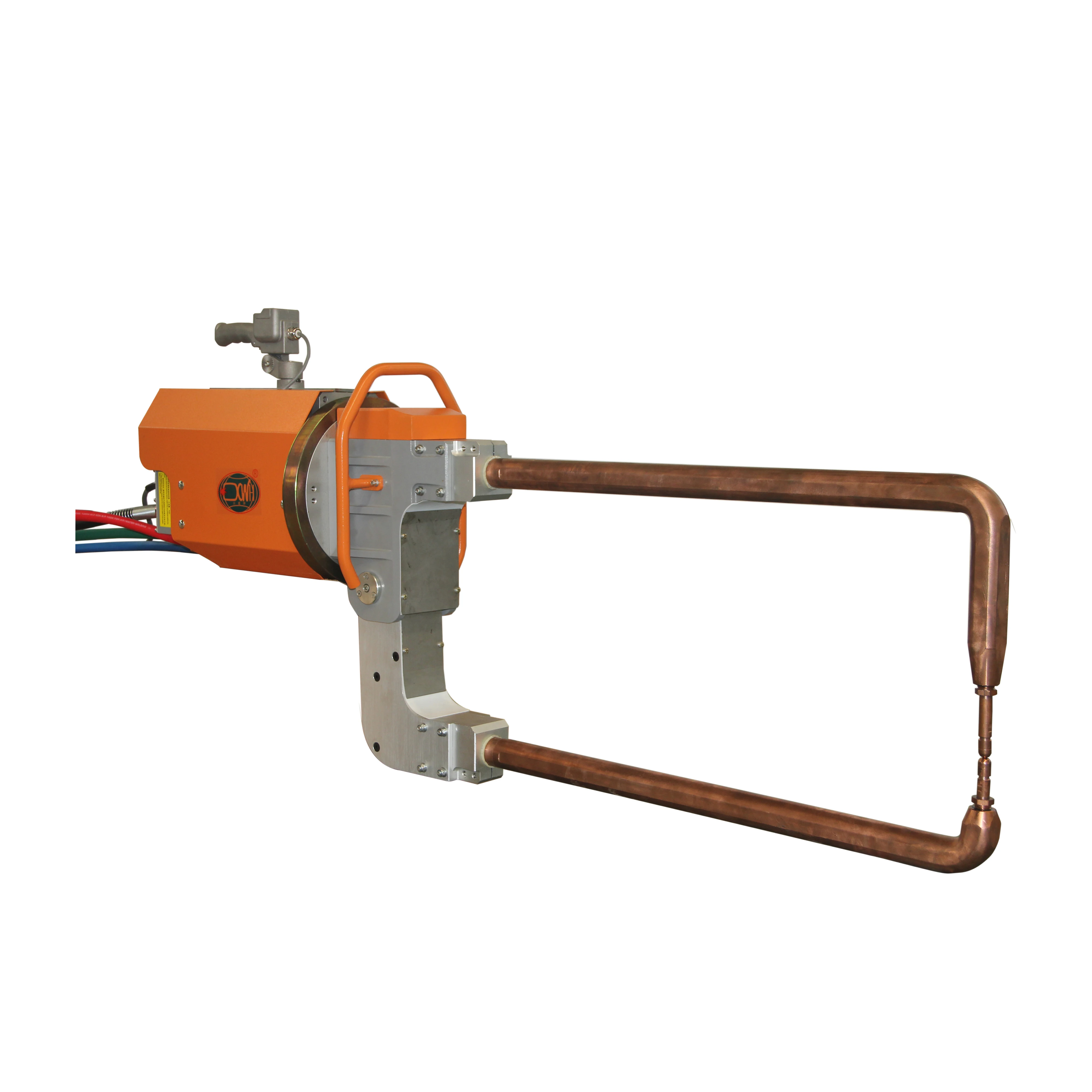

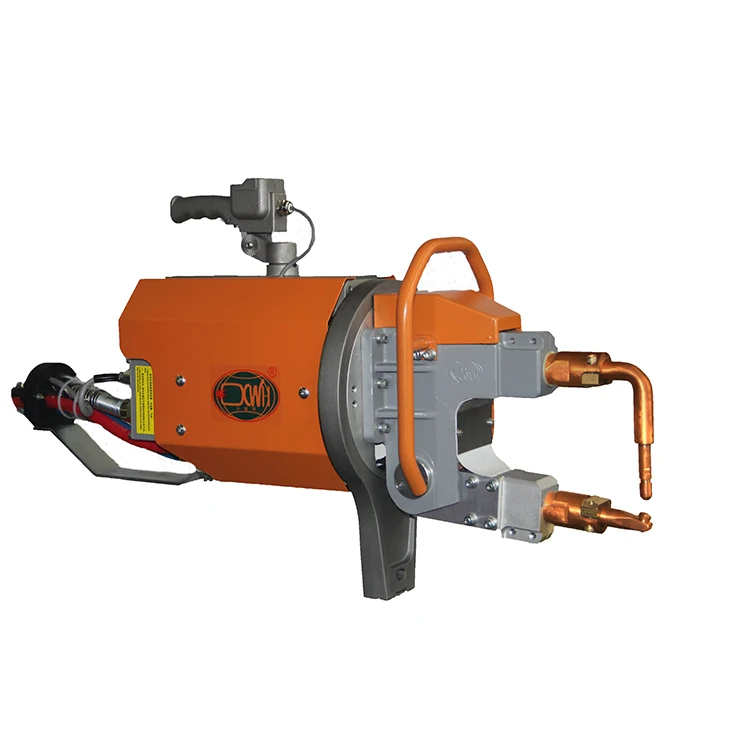

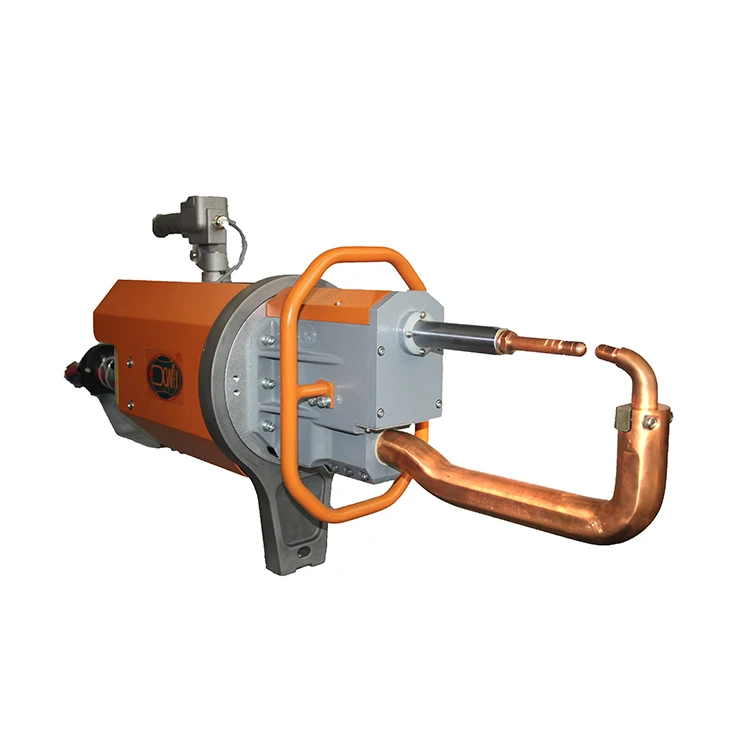

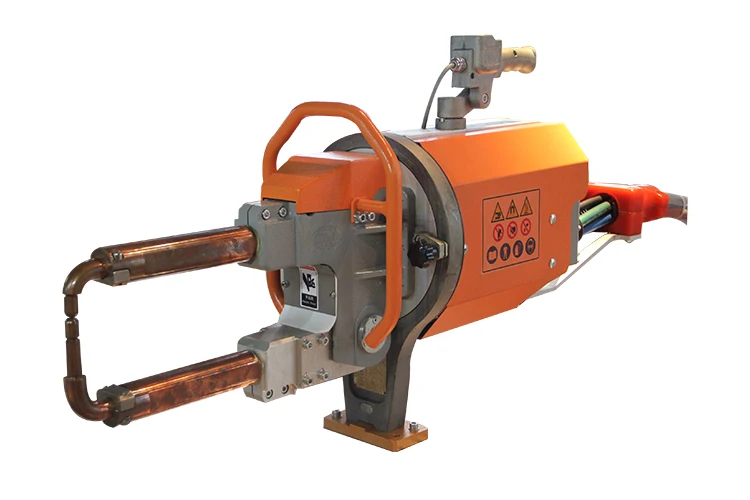

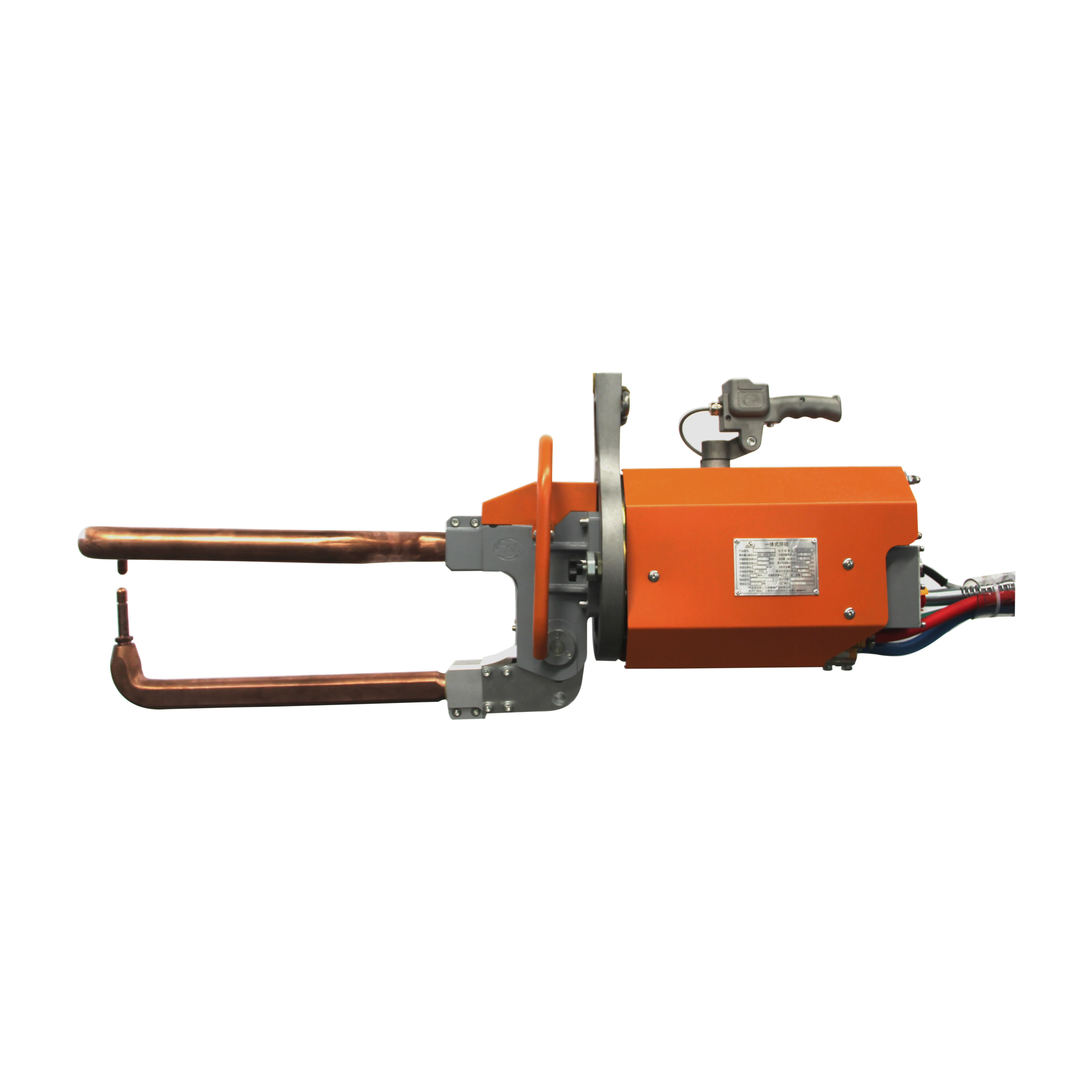

Most Popular 220V 380V Portable Suspended Spot Welding Gun
Product Description
X type C type
features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 120-280
| 100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
Main Characteristics
1. High efficiency resistance welding machine.
2. Easy to install and simple to operate, saves energy.
3. Nimble and 360° rotational use. Stays at any angle any and position.
4. Small, light, high power output. Smallest welder in its power class.
5. Electrode and welding arm are all water cooled so that welding quality can be guaranteed.
6. Gun body is cast with special aluminum, light and ductile
7. The electrode arm is made of copper alloy with good flexional strength, high conductivity.
8. High production rate, sufficient supply of spare parts and components.
Specifics
Application
- Important equipment
Workflow
![customized welding machine]()
1.Please give us your specific requirement,include the material and thickness or 3D drawing of workpiece or anyelse.
2.Technicist makes 3D modeling and select suitable welding machine and shape of clamp .We should keep contact at this point.
3.Building the cooperation relations and signing a contact. Wewill confirm drawing with you in one day or two days.
4.We confirm the accurancy of contract finaly,then we can produce welding machine.
Related Products
Company Information
ChengDu XinWei Welding Technoloy Co.Ltd is a high tech-corporation of resistance welding machine and relative products integrated with researching , developing, manufacturing, marketing and service.We have 15 years experience in welding technology.In 2008,our output of single product is more than 1000 units.
Cooperative partner
This is one of our overseas customers' factories.
Exhibition
Our company is a manufacturer of welding equipment and has the right to run the import/export business.
We are engaging in this field for over fifteen years. We have exported our products to India, Pakistan, Mexico, Russia and so on.Total number of export countries reached 53 including online and offline services.
Packaging & Shipping
1. Packaging: Depending on customers' requirement,such as iron case or iron pallet etc.
2. Shipping: When the container arrived our factory,our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
Our Services
♥ Your reply will be replied within 24 hours.
♥ Fast delivery time and good after service.
♥ Keep the mass production as the sample in high quality.
♥ Freight forwarder: faster, safer, and convenient.
♥ Good factory price.
♥ Guaranteed for one year.
♥ Providing overseas services.
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.Can you put my brand name (logo) on this Spot Welder?
Yes,we can . In order to explore the market better and provide more convenient services to global customers.
9.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
