Характеристики
Product Description
Brief Introduction:
1）Insulating glass production line has two work models, manual operation and automatic operation. These two work models can be achieved by switching over the control panel
1）Insulating glass production line has two work models, manual operation and automatic operation. These two work models can be achieved by switching over the control panel
2）It include feeding section, glass washing-drying section, aluminium spacer install section, light-inspection section, outside
assembly section, panel press section and out load section
assembly section, panel press section and out load section
Main Features：
1) Automatically distinguish the coating side of coated glass and low-E glass.
2) PLC control system with touch screen operation.
3) Machine work and fault dynamic display.
4)Outside assembly lines can produce standard double layer IG and three layer IG.
5) Production lines are available for both of inside and outside panel press, witch can produce stepped IG,standard double layer IG and three layer IG .
Details Images

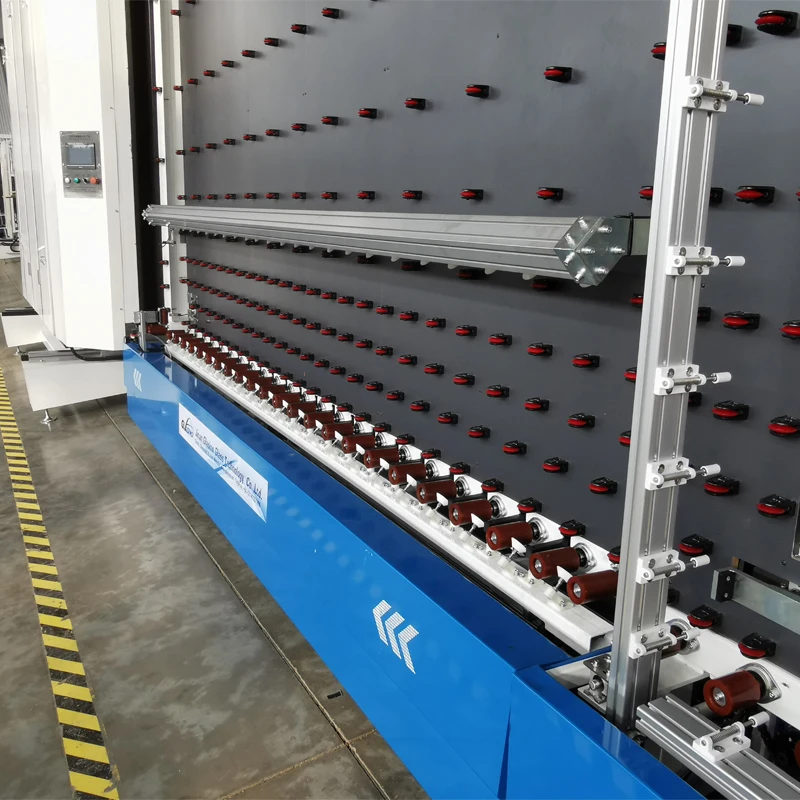

Rubber gear can protect the glass well
Technical Parameter
Total power | 34Kw |
Max. glass size | 2500*3600mm |
Min. glass size | 300*500mm |
Glass thickness | 3-12mm |
Input Voltage | 380V 50HZ |
Glass washing speed | 8-45m/min |
Total Weight | 7000 kg |
Overall Dimension | 26000*1800*3600 |
Product packaging
Main parts
NO. | Name | Brand | Remarks |
1 | PLC | Siemens | Germany |
2 | Frequency converter | Siemens | Germany |
3 | Touch screen | Kinco | China |
4 | Photoelectric Sensor | Autonics | South Korea |
5 | Proximity switch | Omron | Japan |
6 | Pneumatic Parts | AirTAC | Taiwan |
7 | Circuit breaker | Schneider | France |
8 | Motor circuit breaker | Siemens | Germany |
9 | Miniature circuit breaker | Siemens | Germany |
10 | AC contactor | Siemens | Germany |
11 | Intermediate relay | Schneider | France |
12 | Button | Schneider | France |
13 | Indicator light | Schneider | France |
14 | Motor | Maili | China |
15 | Switch power supply | Mingweo | China |
16 | Washing system | Glasino | China |
17 | Transport system | Glasino | China |
18 | Plywood pressing system | Glasino | China |
19 | Hydraulic Station | Glasino | China |

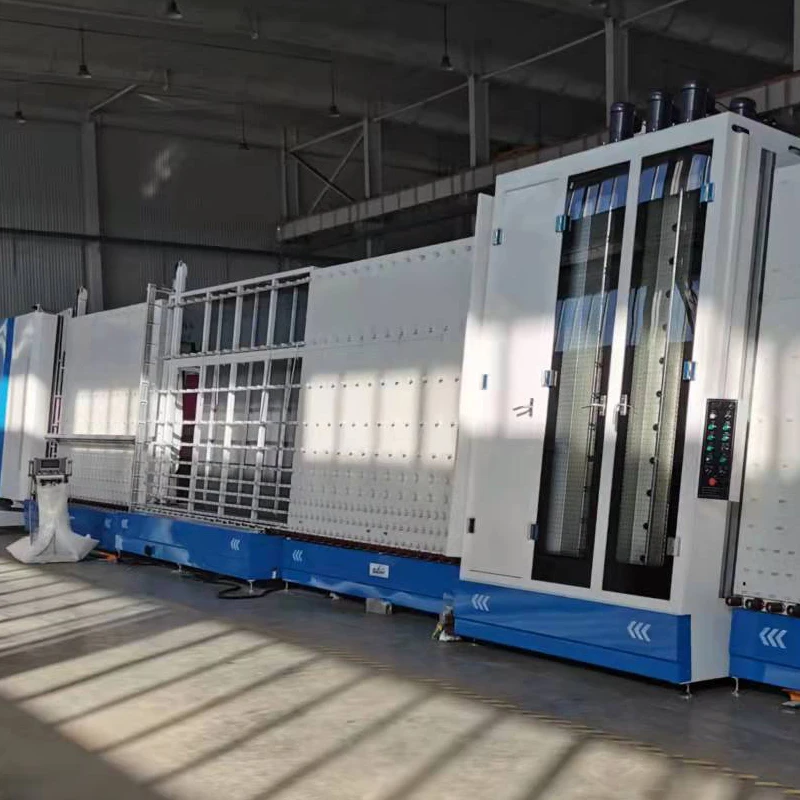

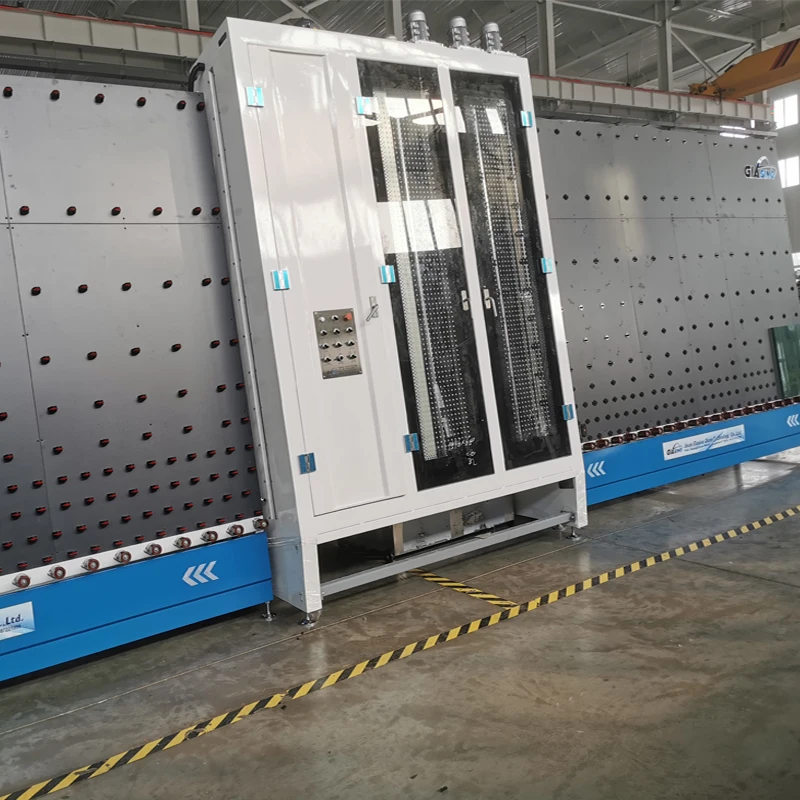

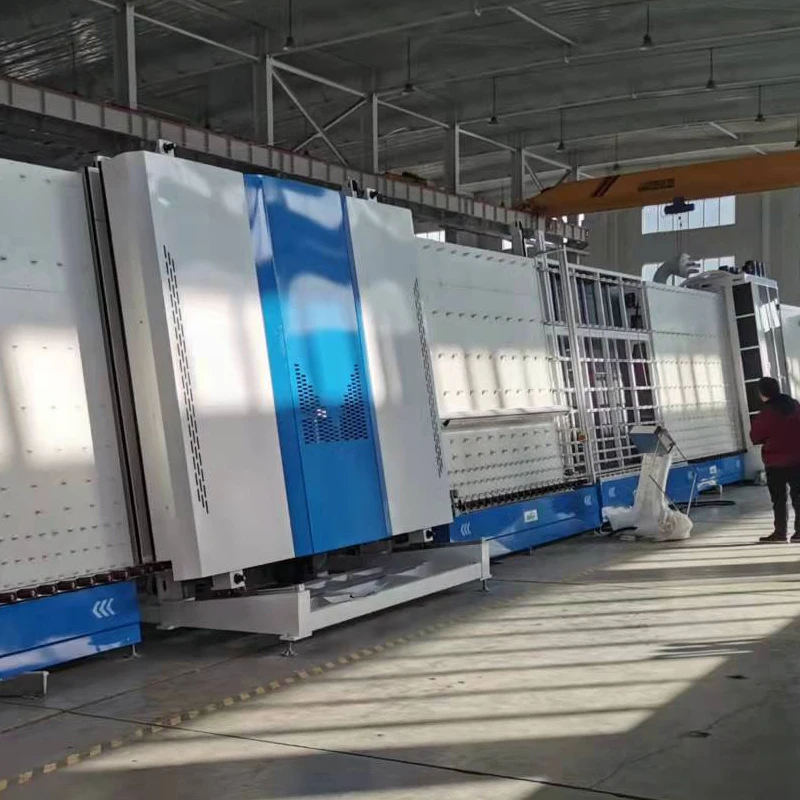

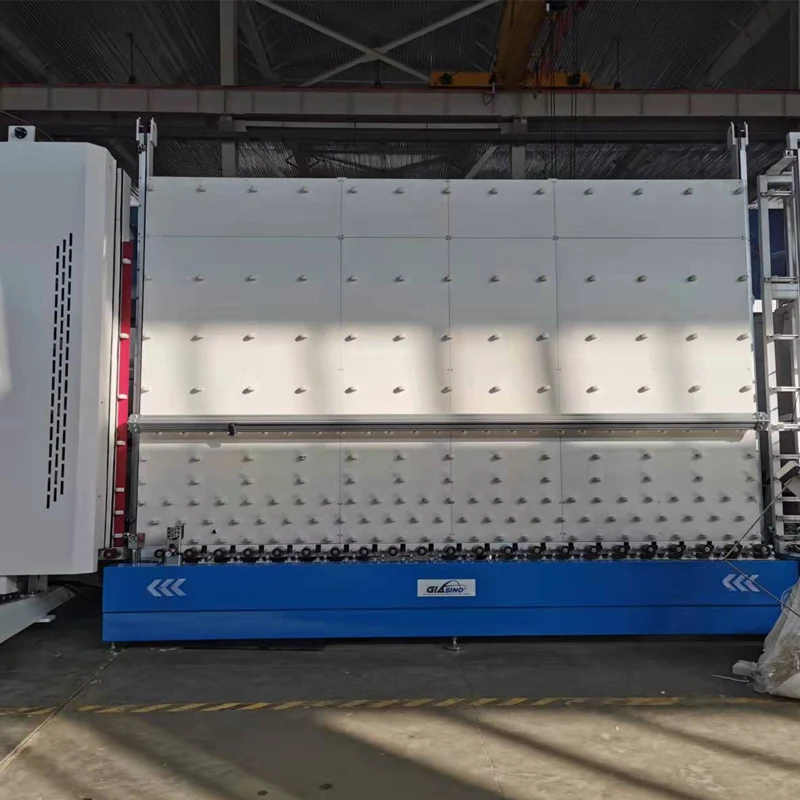

Customer Photos
Recommend Products
FAQ
1.Q: Are you a factory or trading company?
A:We are a factory.
2.Q: How does your factory do regarding quality control?
A:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
3.Q:What you can do if my machines have problems?
A: We can send you free components to you if your machines are in guarantee time.
A: We can send our engineers to repair your machines.
4.Q: Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
A:We are a factory.
2.Q: How does your factory do regarding quality control?
A:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
3.Q:What you can do if my machines have problems?
A: We can send you free components to you if your machines are in guarantee time.
A: We can send our engineers to repair your machines.
4.Q: Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
