Китай портативный ручной волоконно-лазерный сварочный аппарат из нержавеющей стали
- Категория: >>>
- Поставщик: Liaocheng,Easy,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 3181.87 $* | 3245.18 $* |
| Jul-16-2025 | 2580.94 $* | 2632.60 $* |
| Jun-16-2025 | 3131.10 $* | 3194.23 $* |
| May-16-2025 | 3106.53 $* | 3168.74 $* |
| Apr-16-2025 | 2480.68 $* | 2530.8 $* |
| Mar-16-2025 | 3056.57 $* | 3117.76 $* |
| Feb-16-2025 | 3031.85 $* | 3092.83 $* |
| Jan-16-2025 | 3006.47 $* | 3066.7 $* |
Характеристики
Product Description

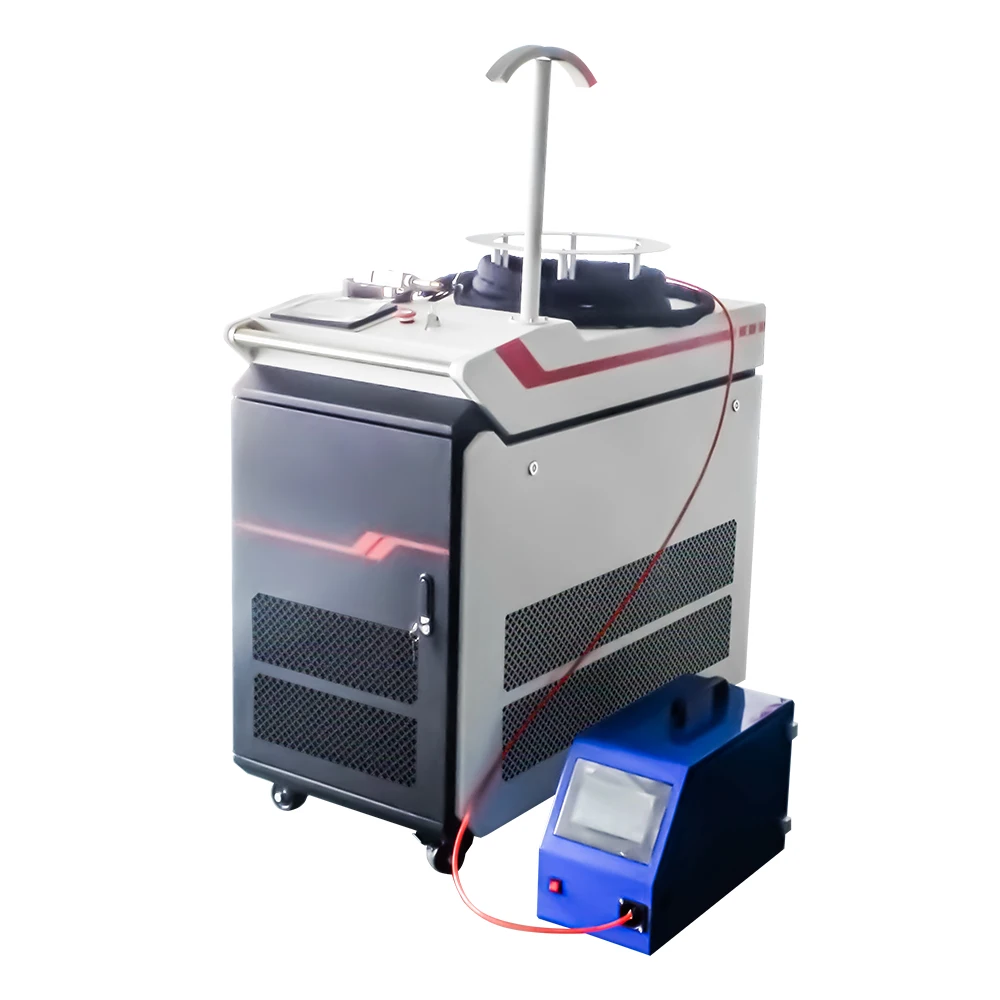

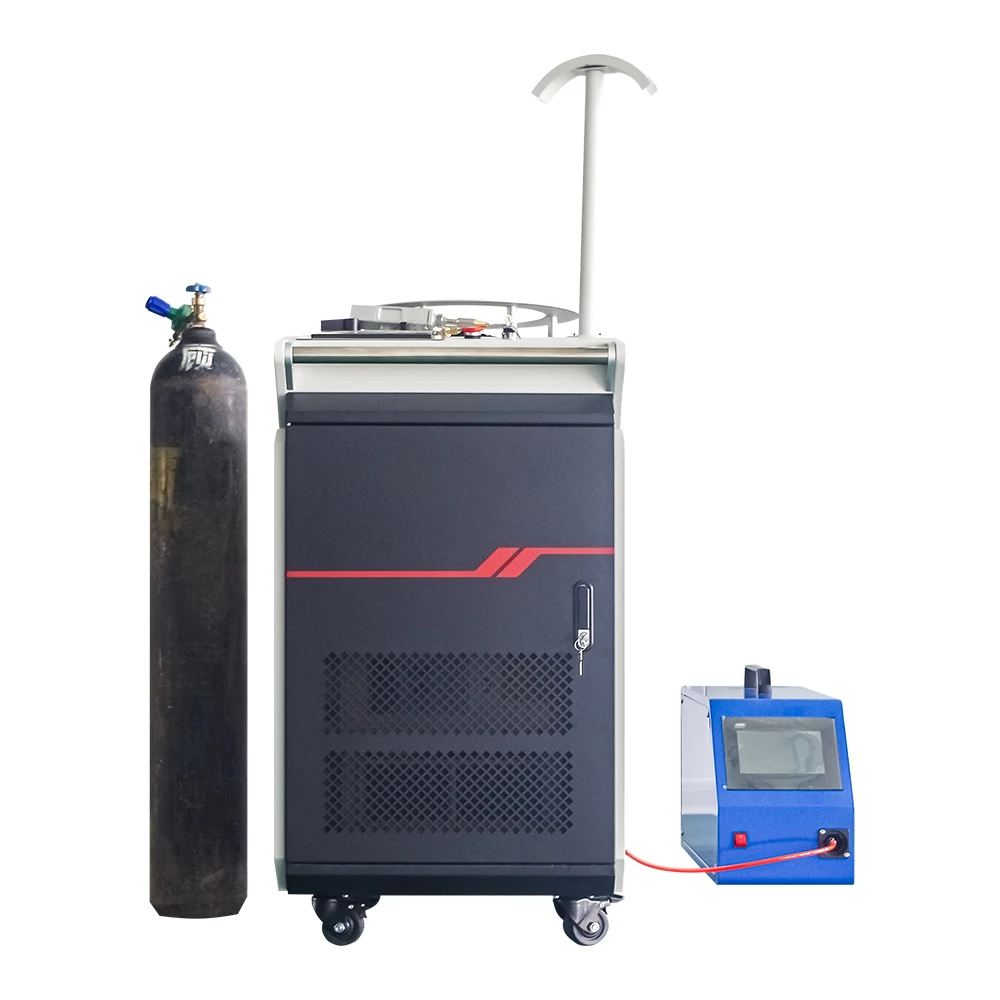

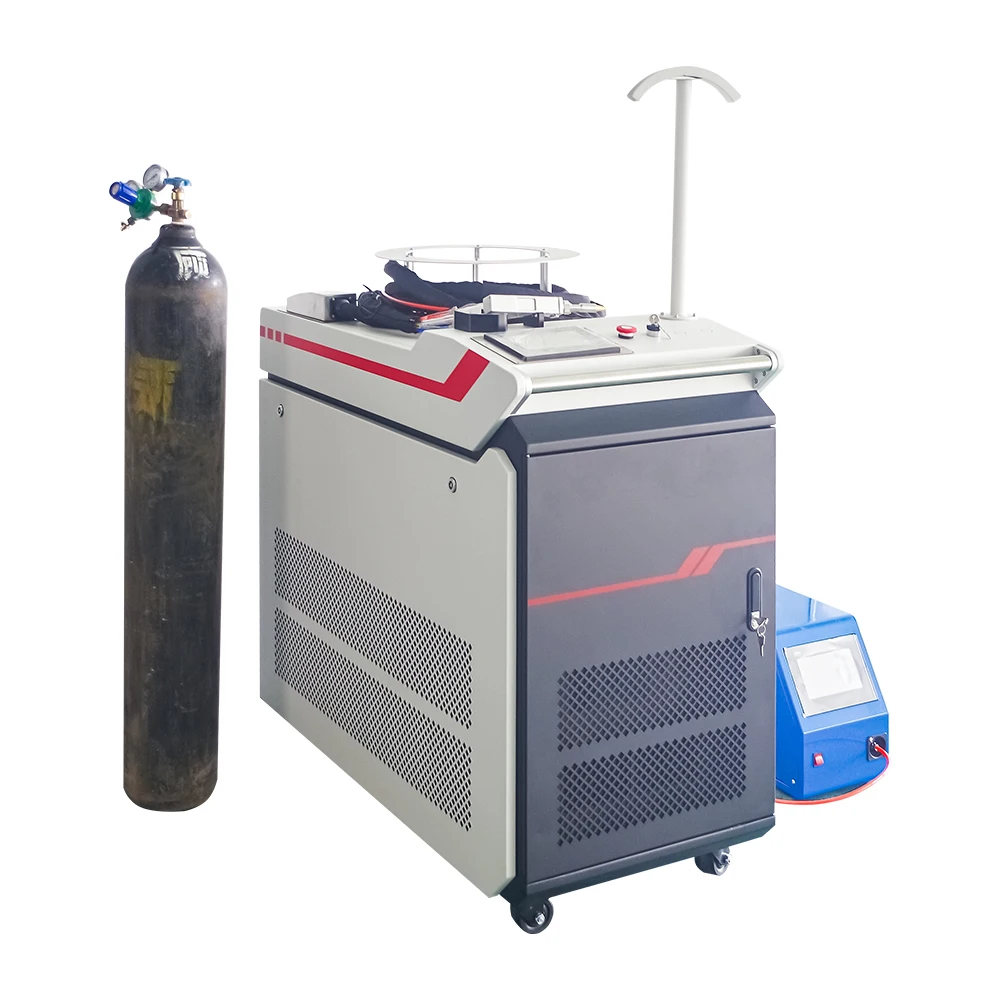

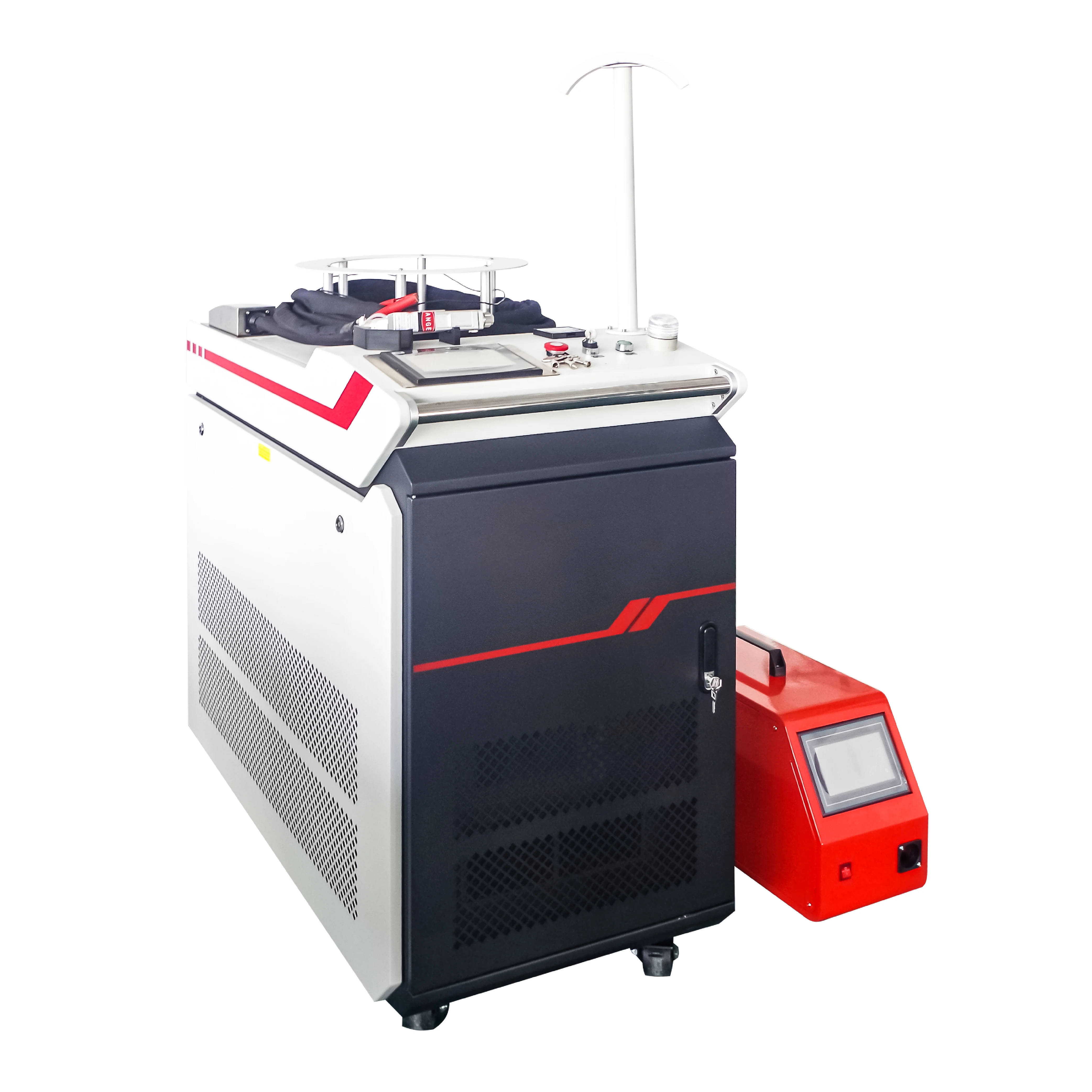

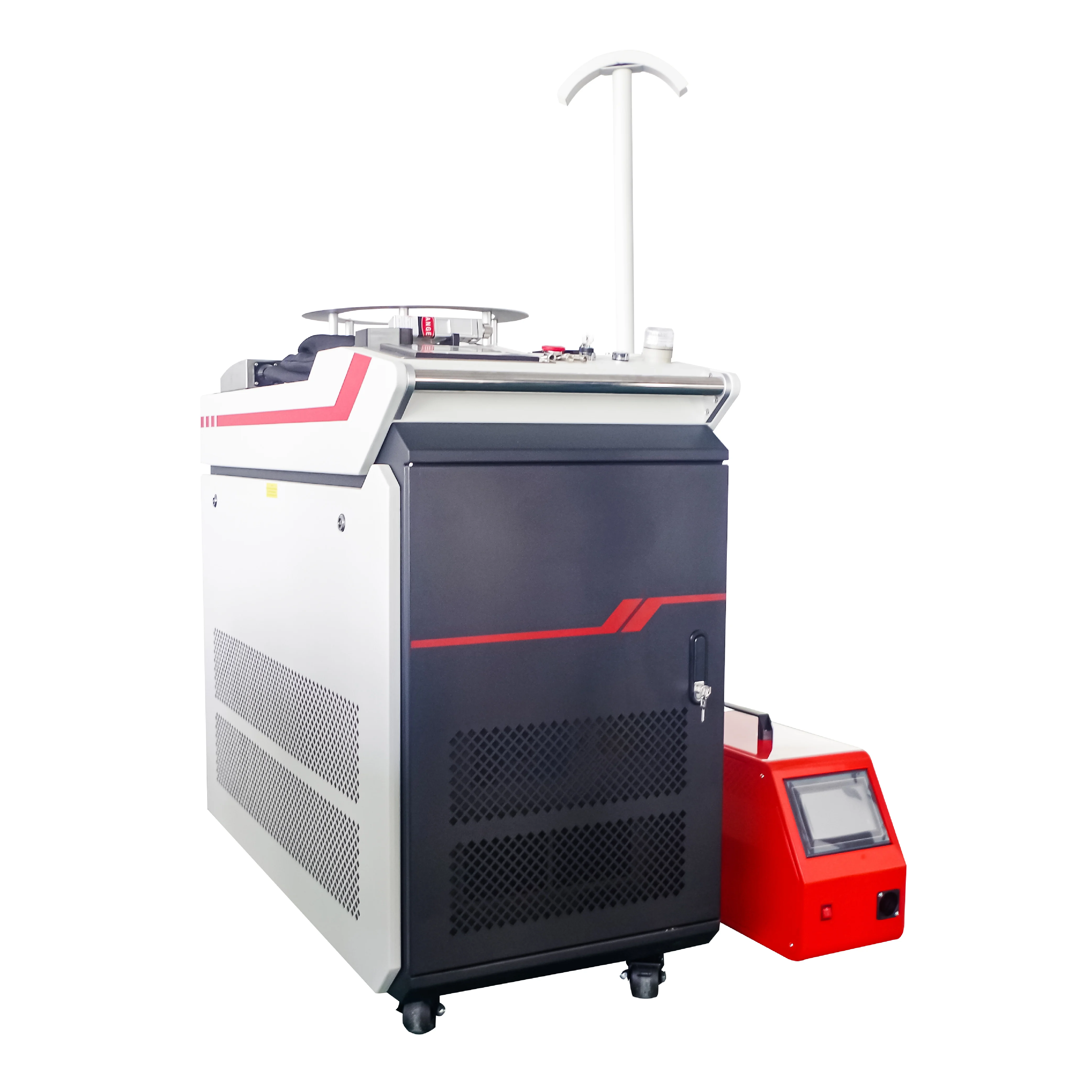

Laser Welding Machine
Two-year warranty.The standard cable is 9 meters, but we support customization.
What are the advantages of laser welding？
1.Fast cooling rate, fine weld seam, high precision.2.Small size, flexible processing.

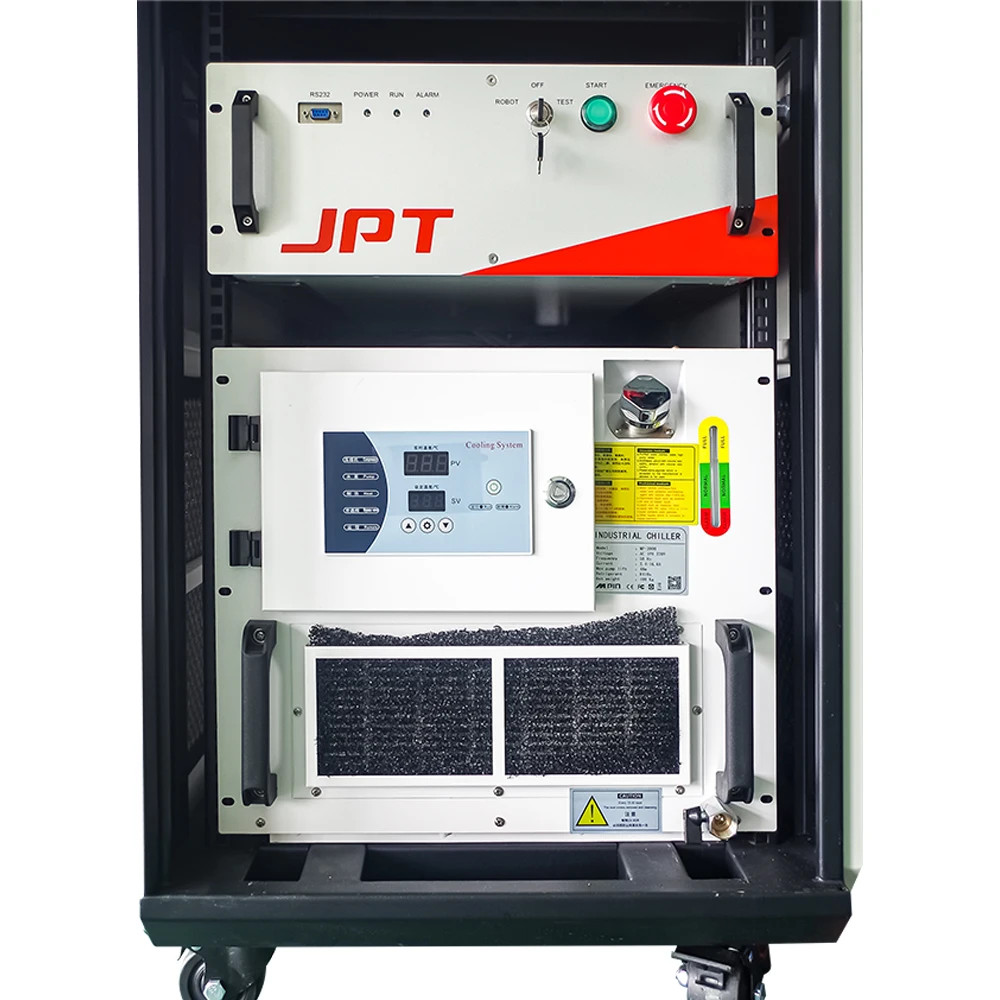

JPT Laser source
Fiber laser source, the laser power is stable,，with indicator light and emergency stop button, can more intuitively observe the
operation of the laser and make judgments.
Fiber laser source, the laser power is stable,，with indicator light and emergency stop button, can more intuitively observe the
operation of the laser and make judgments.
Industrial Chiller
Control and adjust the temperature of the laser source and better protect the life of the laser source in bad weather temperature.
Control and adjust the temperature of the laser source and better protect the life of the laser source in bad weather temperature.
Wire Feeder
The portable wire feeder only needs to connect the wire feeder power cable and the wire feeder signal cable to the corresponding
interface on the back of the machine, which is easy to connect, and has a touch screen control system, which is simple to control
and easy to operate.
The portable wire feeder only needs to connect the wire feeder power cable and the wire feeder signal cable to the corresponding
interface on the back of the machine, which is easy to connect, and has a touch screen control system, which is simple to control
and easy to operate.
Handheld swing head
Feature：Light weight 0.8KG, High quality copper nozzle,Integrated gas protection system.
Feature：Light weight 0.8KG, High quality copper nozzle,Integrated gas protection system.
How thick materials can be welded?
Take 1000W as an example, please refer to the table.SUITABLE THICKNESS FOR WELDING | ||||||||
Power | Stainless steel | Carbon steel | Aluminum | Brass | ||||
1000W | 2mm | 2mm | 1.5mm | 1.5mm | ||||
1500W | 3mm | 2mm | 2mm | 2mm | ||||
2000W | 4mm | 4mm | 2.5mm | 2.5mm | ||||
What materials can be welded？
Aluminum，Stainless Steel, Carbon Steel，Copper，Silver, Titanium, Tin.
Specification
Model | RF-1000/1500/2000W |
Laser power | 1000/1500/2000W |
Center wavelength | 1070+-5nm |
Laser frequency | 50Hz-5KHz |
Work patterns | Continuous |
Electricity demand | AC220V |
Output fiber length | 5/10/15m (Optional) |
Cooling method | Water Cooling |
Dimensions | 1150*760*1370mm |
Weight | 275kg(About) |
Cooling water temperature | 5-45℃ |
Average consumed power | 2500/2800/3500/4000W |
Laser Energy Stability | <2% |
Air humidity | 10-90% |
Packing & Delivery
Company Profile
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2: We will send operation video and manual for the machine. Our engineer will do training online.
Q3: If some problems happen to this machine, what should I do?
A3: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
A1: We will help you choose the suitable machine and share you the solution; you can share us what material will you welding and the depth of WELDING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2: We will send operation video and manual for the machine. Our engineer will do training online.
Q3: If some problems happen to this machine, what should I do?
A3: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
Q4: What’s delivery time?
A4: Commonly, the lead time is within 5 working days after receiving the payment.
Q5: What’s package, will it protect the products?
A5: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What payment terms can you accept?
A6: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q7: How is the shipping method?
A7: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
A4: Commonly, the lead time is within 5 working days after receiving the payment.
Q5: What’s package, will it protect the products?
A5: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What payment terms can you accept?
A6: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q7: How is the shipping method?
A7: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
